SPIRAL CABLE

SPIRAL CABLE

Exploded View

INFOID:0000000006113053

Removal and Installation

INFOID:0000000006113054

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the driver air bag module. Refer to

SR-11, "Removal and Installation"

.

2.

Remove the steering wheel. Refer to

ST-33, "Removal and Installation"

.

3.

Remove the steering column upper cover and steering column lower cover. Refer to

IP-14, "Removal and

Installation"

.

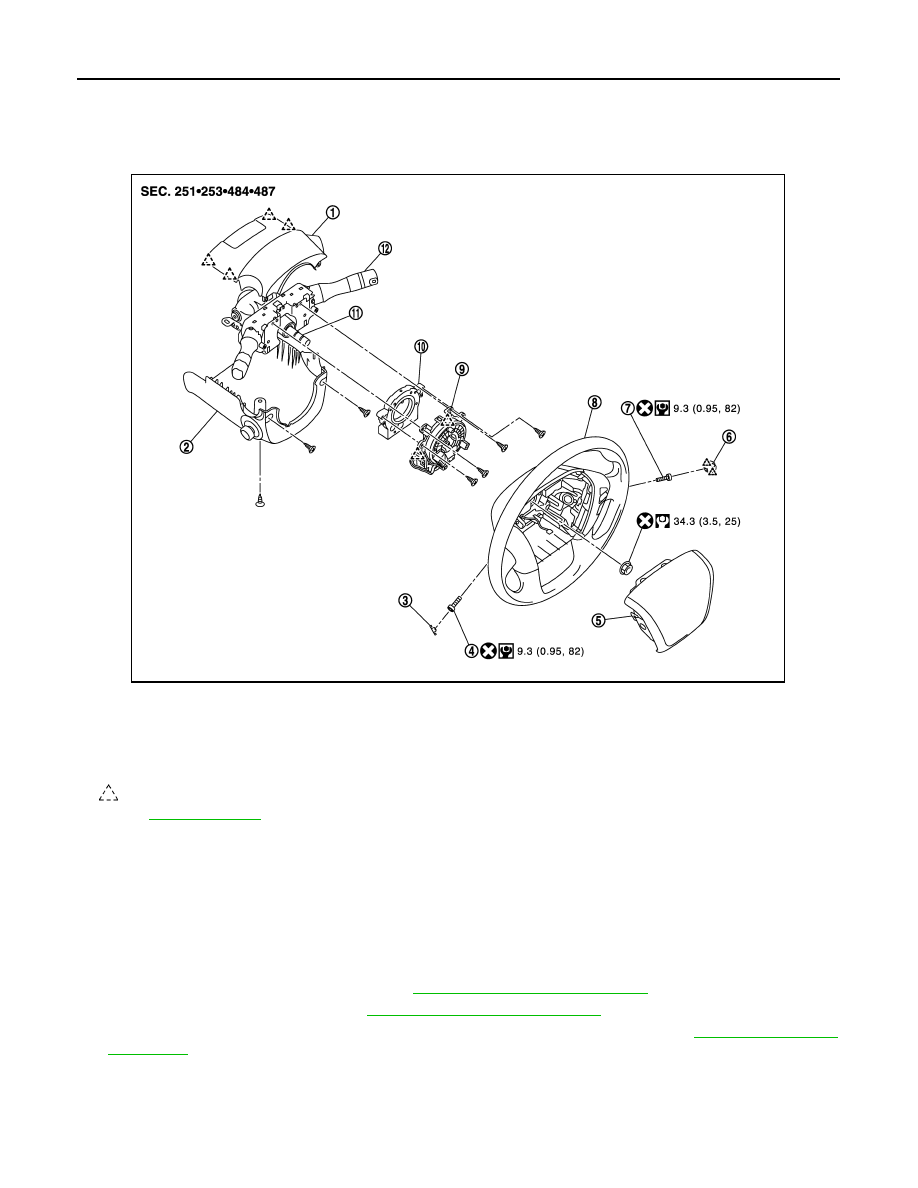

1.

Steering column upper cover

2.

Steering column lower cover

3.

Side lid LH

4.

TORX bolt LH

5.

Driver air bag module

6.

Side lid RH

7.

TORX bolt RH

8.

Steering wheel

9.

Spiral cable

10. Steering angle sensor

11.

Steering column assembly

12. Combination switch

: Pawl

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA1472GB

SPIRAL CABLE

SR-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

4.

Disconnect the spiral cable body side harness connectors (A)
and steering angle sensor harness connector (B).

5.

Remove the spiral cable fixing screws.

6.

Pull out forward the spiral cable and steering sensor.

7.

Remove steering angle sensor. Refer to

BRC-139, "Removal and Installation"

.

CAUTION:

• Never impact the spiral cable.
• Replace the spiral cable if it has been dropped or sustained

an impact.

• Never disassemble the spiral cable.
• Never apply lubricant to the spiral cable.
• Never allow oil, grease, detergent, or water to come in contact with the spiral cable.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

• The spiral cable may snap during steering operation if the

cable is installed in an improper position.
The neutral position is set as follows.

• Carefully turn the spiral cable clockwise to the end position.

Then turn it counterclockwise (about 2 and a half turns) and
stop turning at the mark (B) on which the stopper insertion
holes are in the same position.

• The service part is installed in the neutral position by the

stopper and can be set without adjusting after the stopper is
removed.

• Never over turn the spiral cable or go beyond the number of

turns required. (These will cause the cable to snap.)

• Adjust the spiral cable locating pin (A) to the steering wheel

locating pin hole (C).

JMHIA1486ZZ

JMHIA0009ZZ

JMHIA0879ZZ

SR-16

< REMOVAL AND INSTALLATION >

SPIRAL CABLE

• Fix the driver air bag module harnesses to the harness fixing

hook (A).

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT-III. Refer to

SRC-14, "On Board

Diagnosis Function"

 or

SRC-19, "CONSULT-III Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA1485ZZ

FRONT PASSENGER AIR BAG MODULE

SR-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

FRONT PASSENGER AIR BAG MODULE

Exploded View

INFOID:0000000006113055

Removal and Installation

INFOID:0000000006113056

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the instrument panel assembly. Refer to

IP-14, "Removal and Installation"

.

2.

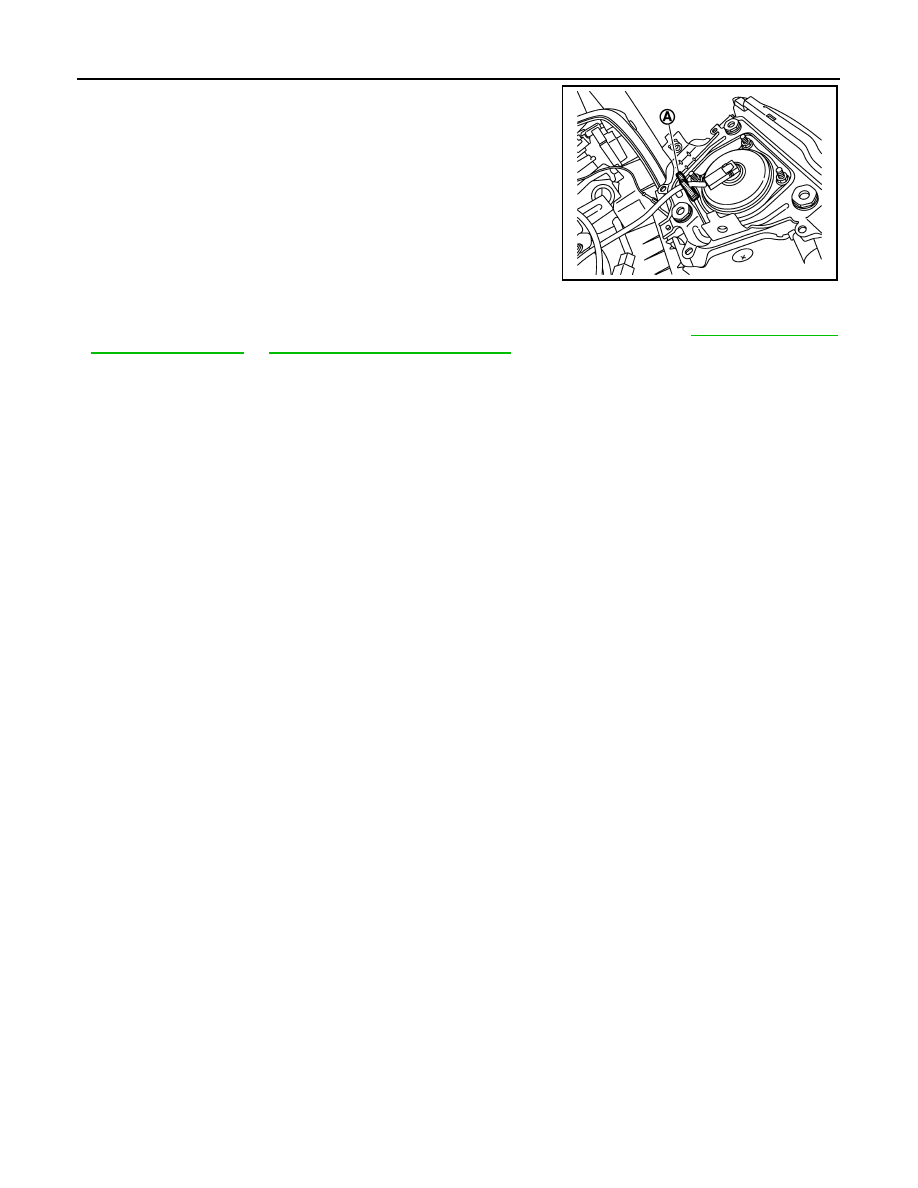

Remove the front passenger air bag module fixing screws (A).

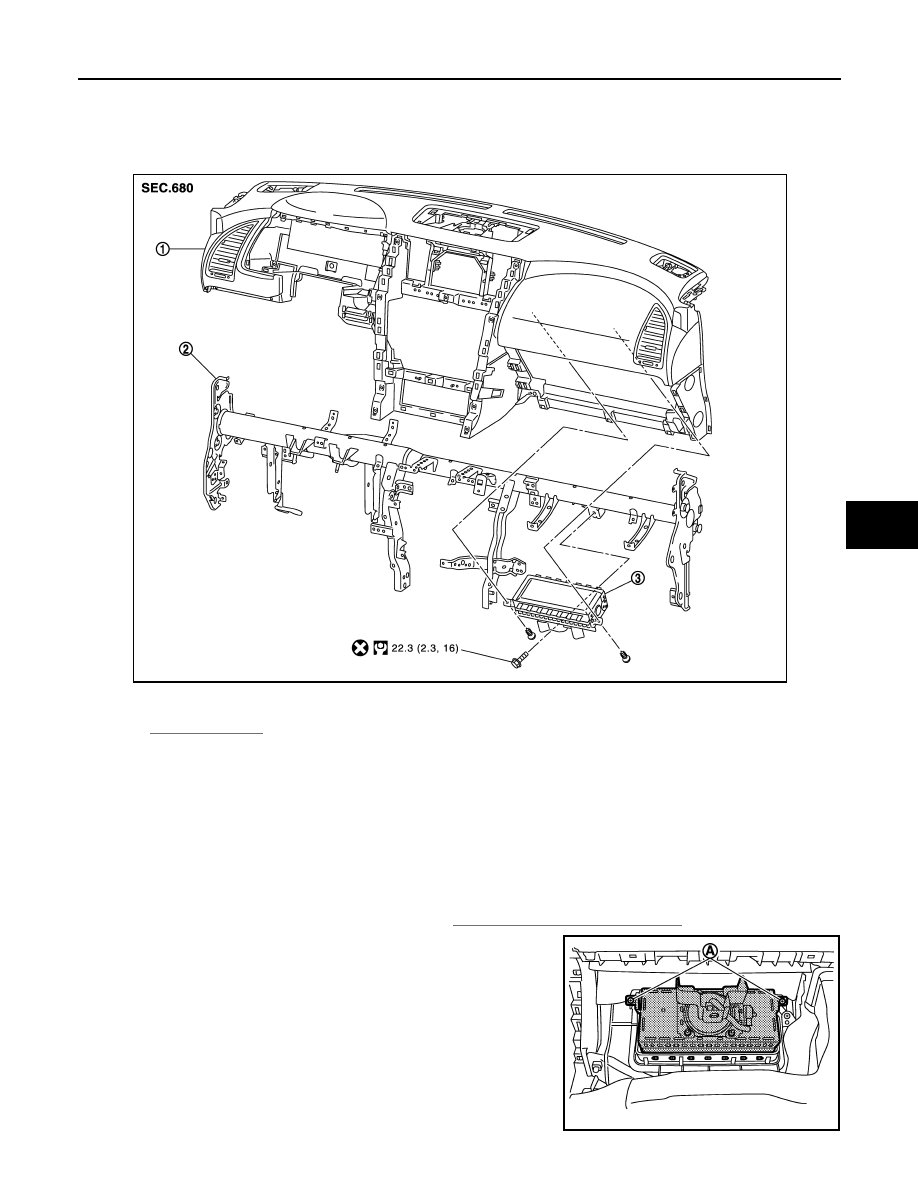

1.

Instrument panel assembly

2.

Steering member assembly

3.

Front passenger air bag module

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA1473GB

JMHIA1487ZZ
