Infiniti QX56 (Z62). Manual - part 1191





SEC-154

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

PANIC ALARM FUNCTION DOES NOT OPERATE

PANIC ALARM FUNCTION DOES NOT OPERATE

Description

INFOID:0000000006226336

NOTE:
• Before performing the diagnosis following procedure, check “Work Flow”. Refer to

SEC-48, "Work Flow"

.

• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and

check each symptom.

CONDITIONS OF VEHICLE (OPERATION CONDITIONS)

• Ignition switch is in OFF or LOCK position.
• Intelligent Key is removed from key slot.

Diagnosis Procedure

INFOID:0000000006226337

1.

CHECK REMOTE KEYLESS ENTRY FUNCTION

Check remote keyless entry function.

Does door lock/unlock with Intelligent key button?

YES

>> GO TO 2.

NO

>> Go to

DLK-175, "Diagnosis Procedure"

.

2.

CHECK VEHICLE SECURITY ALARM OPERATION

Check vehicle security alarm operation.

Does alarm (headlamps and horns) active?

YES

>> GO TO 3.

NO

>> Go to

SEC-18, "VEHICLE SECURITY SYSTEM : System Description"

.

3.

CHECK “PANIC ALARM SET” SETTING IN “WORK SUPPORT”

Check “PANIC ALARM SET” setting in “WORK SUPPORT”.
Refer to

SEC-22, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Set “PANIC ALARM SET” setting in “WORK SUPPORT”.

4.

CONFIRM THE OPERATION

Confirm the operation again.
Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-40, "Intermittent Incident"

.

NO

>> GO TO 1.

NATS ANTENNA AMP.

SEC-155

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

REMOVAL AND INSTALLATION

NATS ANTENNA AMP.

Removal and Installation

INFOID:0000000006226338

REMOVAL

1.

Remove the push-button ignition switch. Refer to

SEC-156, "Removal and Installation"

.

2.

Disengage the NATS antenna amp. pawl, and then remove
NATS antenna amp.

INSTALLATION

Install in the reverse order of removal.

: Pawl

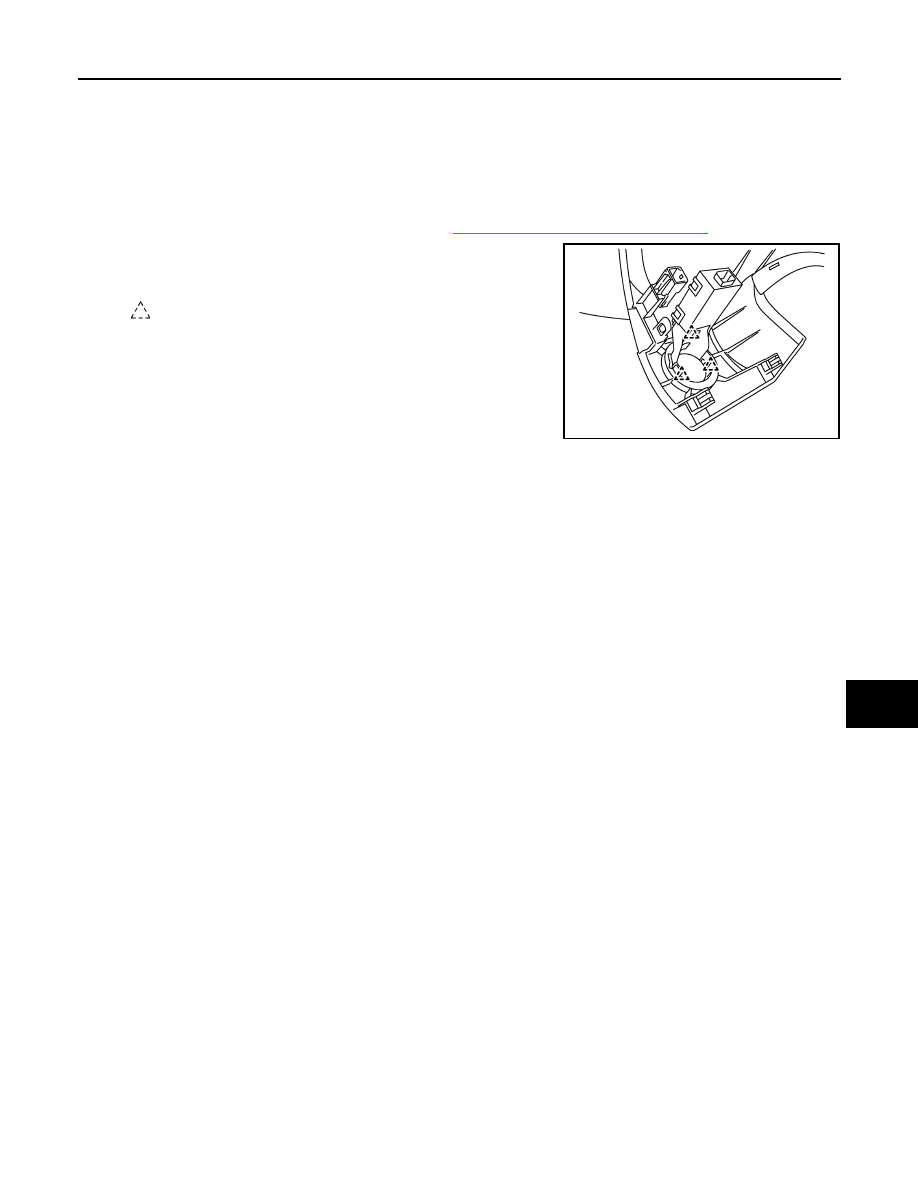

JMKIA5307ZZ

SEC-156

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

PUSH-BUTTON IGNITION SWITCH

PUSH-BUTTON IGNITION SWITCH

Exploded View

INFOID:0000000006226339

Refer to

IP-13, "Exploded View"

.

Removal and Installation

INFOID:0000000006226340

REMOVAL

1.

Remove the cluster lid A. Refer to

IP-14, "Removal and Installation"

.

2.

Disengage the push-button ignition switch fixing pawl and then
remove push-button ignition switch.

INSTALLATION

Install in the reverse order of removal.

: Pawl

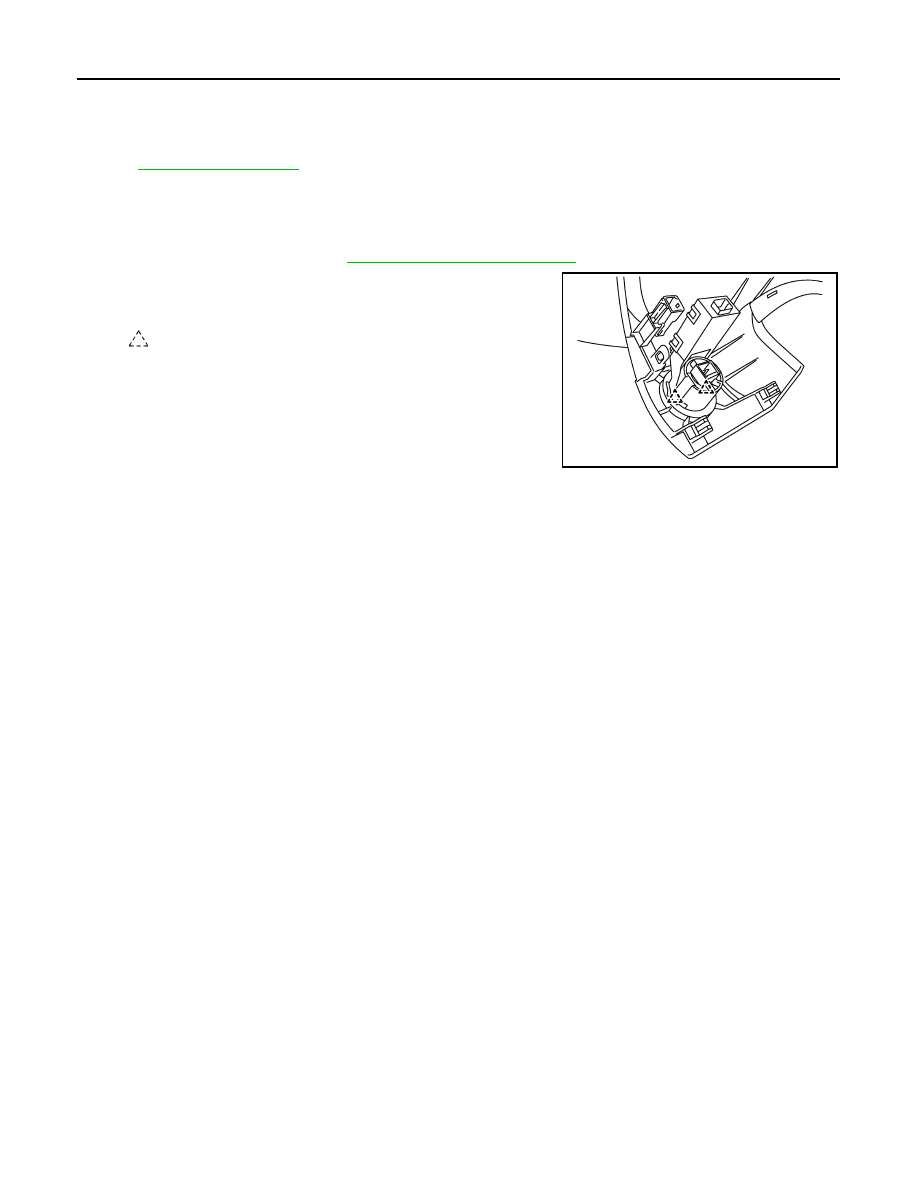

JMKIA5306ZZ
