SE-6

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

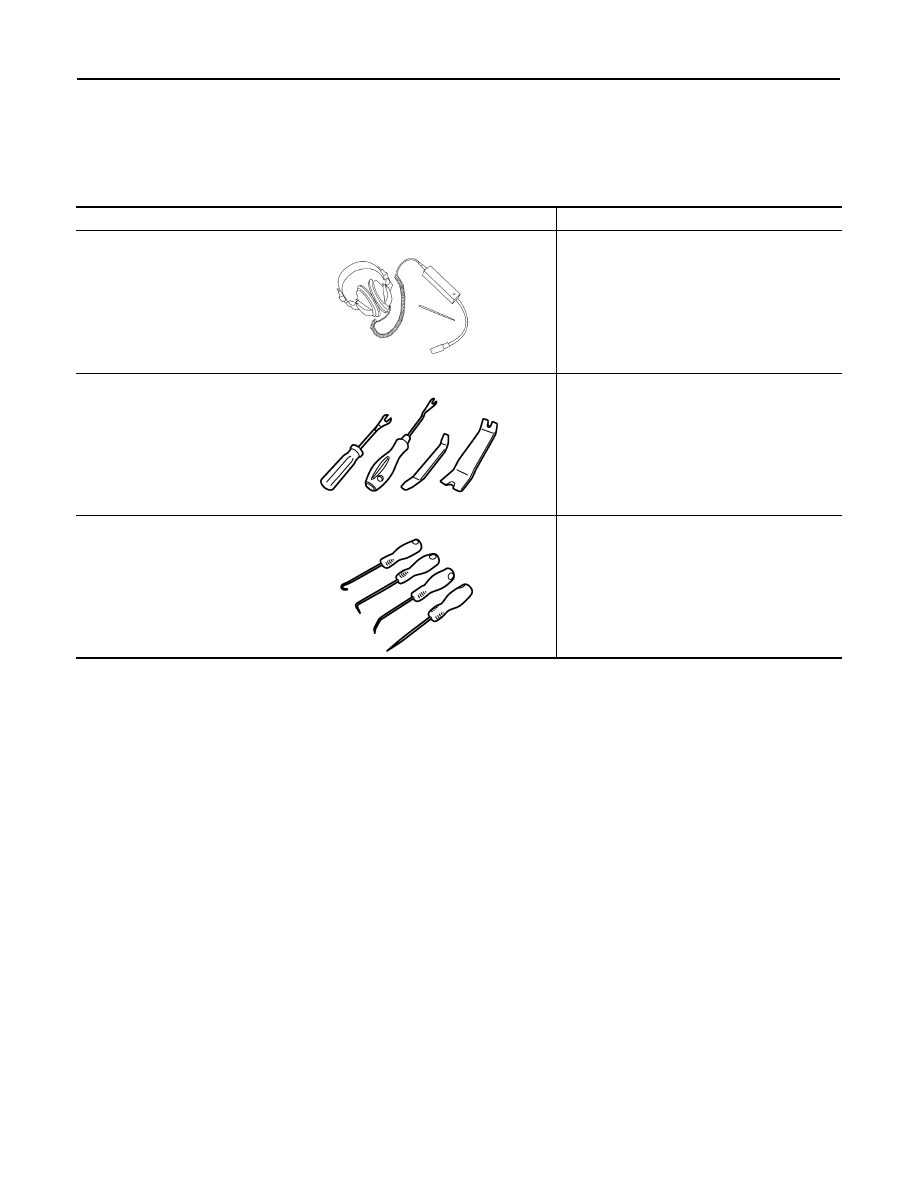

Commercial Service Tool

INFOID:0000000006217354

Tool name

Description

Engine ear

Locates the noise

Remover tool

Removes clips, pawls, and metal clips

Hook and pick tool

Removes the snap pins

SIIA0995E

JMKIA3050ZZ

JMJIA0490ZZ

CLIP LIST

SE-7

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

CLIP LIST

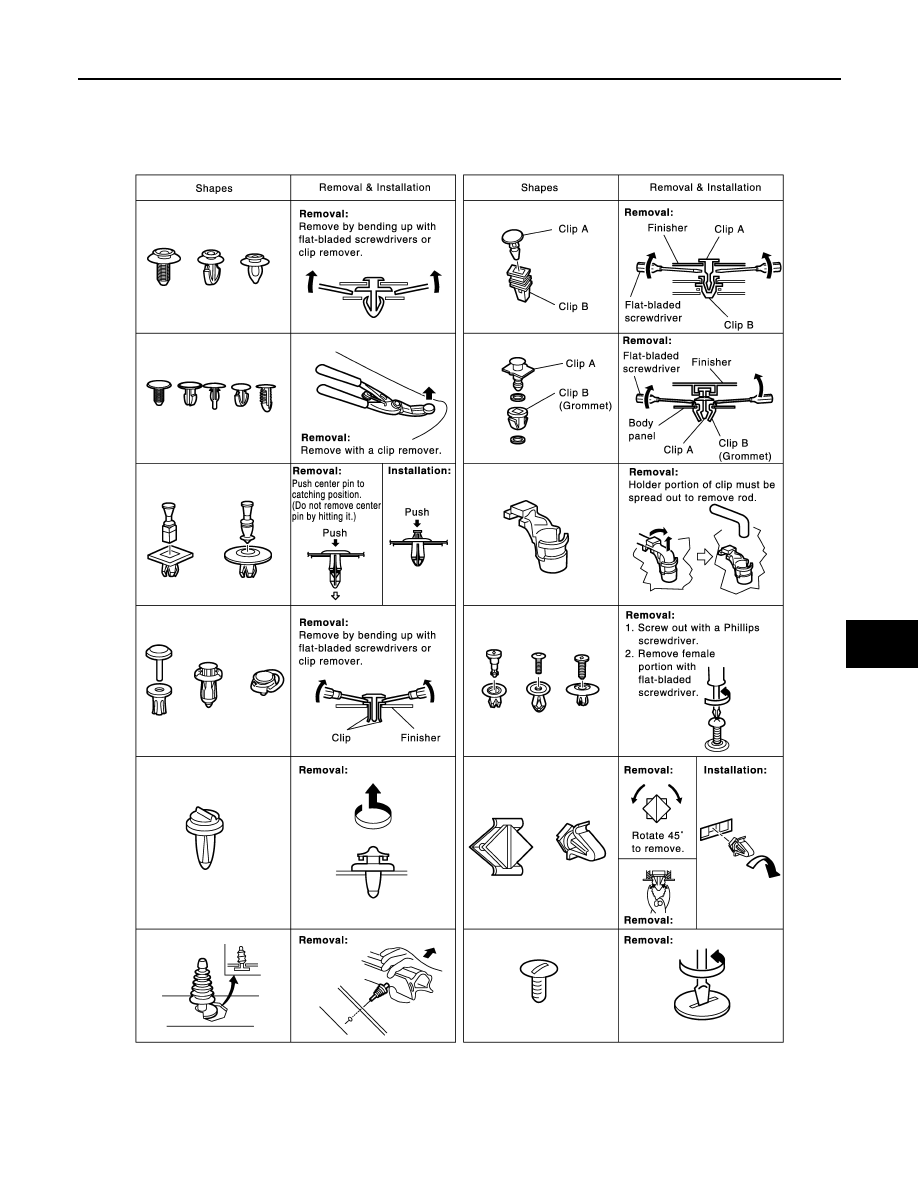

Clip List

INFOID:0000000006217355

JMJIA3734GB

SE-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

POWER SEAT SYSTEM

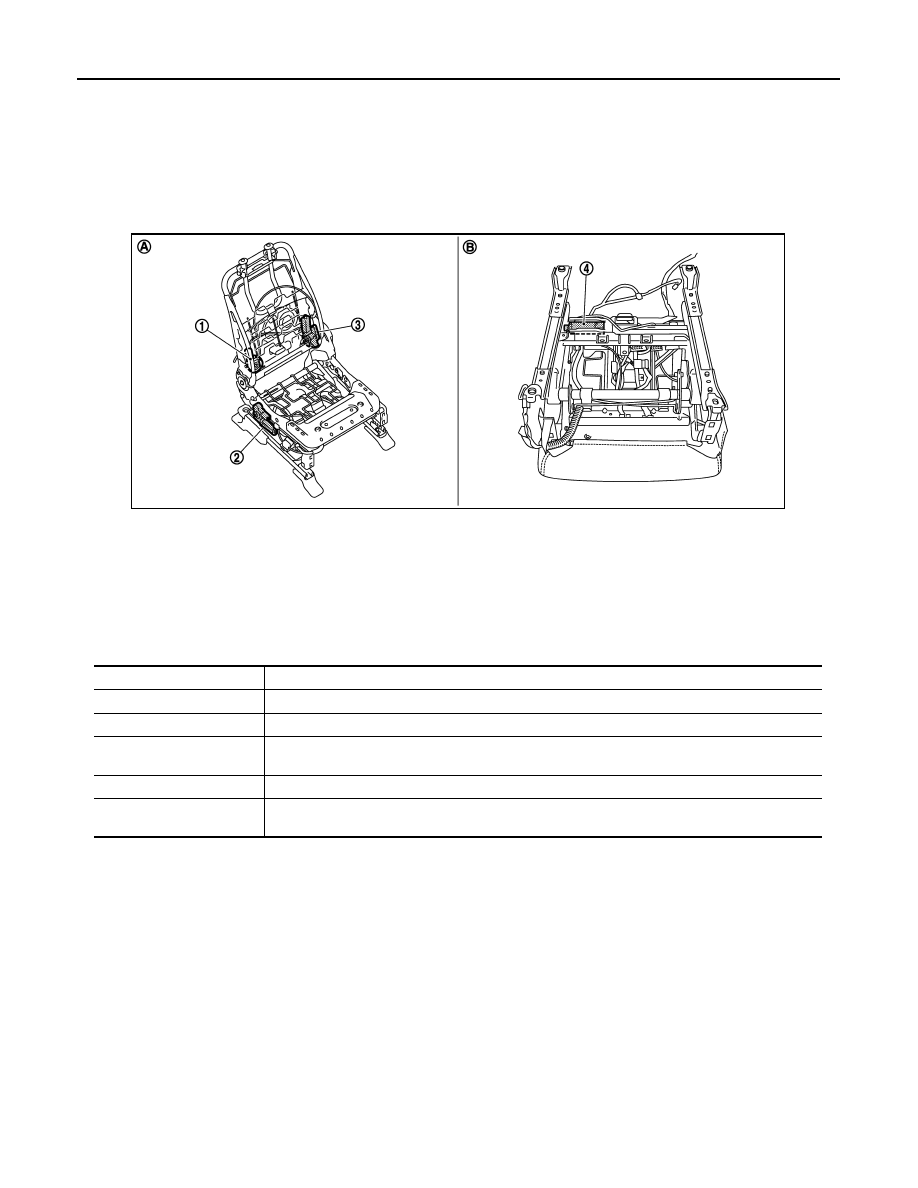

POWER SEAT SYSTEM : Component Parts Location

INFOID:0000000006217356

POWER SEAT SYSTEM : Component Description

INFOID:0000000006217357

LUMBAR SUPPORT SYSTEM

1.

Lumber support motor

2.

Lifting motor

3.

Reclining motor

4.

Sliding motor

A.

View with seat cushion pad and seat
back pad removed.

B.

Back side of seat cushion

JMJIA4288ZZ

Item

Function

BCM

Supplies at all times the power received from battery to power seat switch

Power seat switch

Built-in reclining switch, sliding switch and lifting switch, controls the power supplied to each motor

Reclining motor

With the power supplied from power seat switch, operates the forward and backward movement
of seatback

Sliding motor

With the power supplied from power seat switch, operates the forward and backward slide of seat

Lifting motor

With the power supplied from power seat switch, operates the up and down movement of seat
cushion

COMPONENT PARTS

SE-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

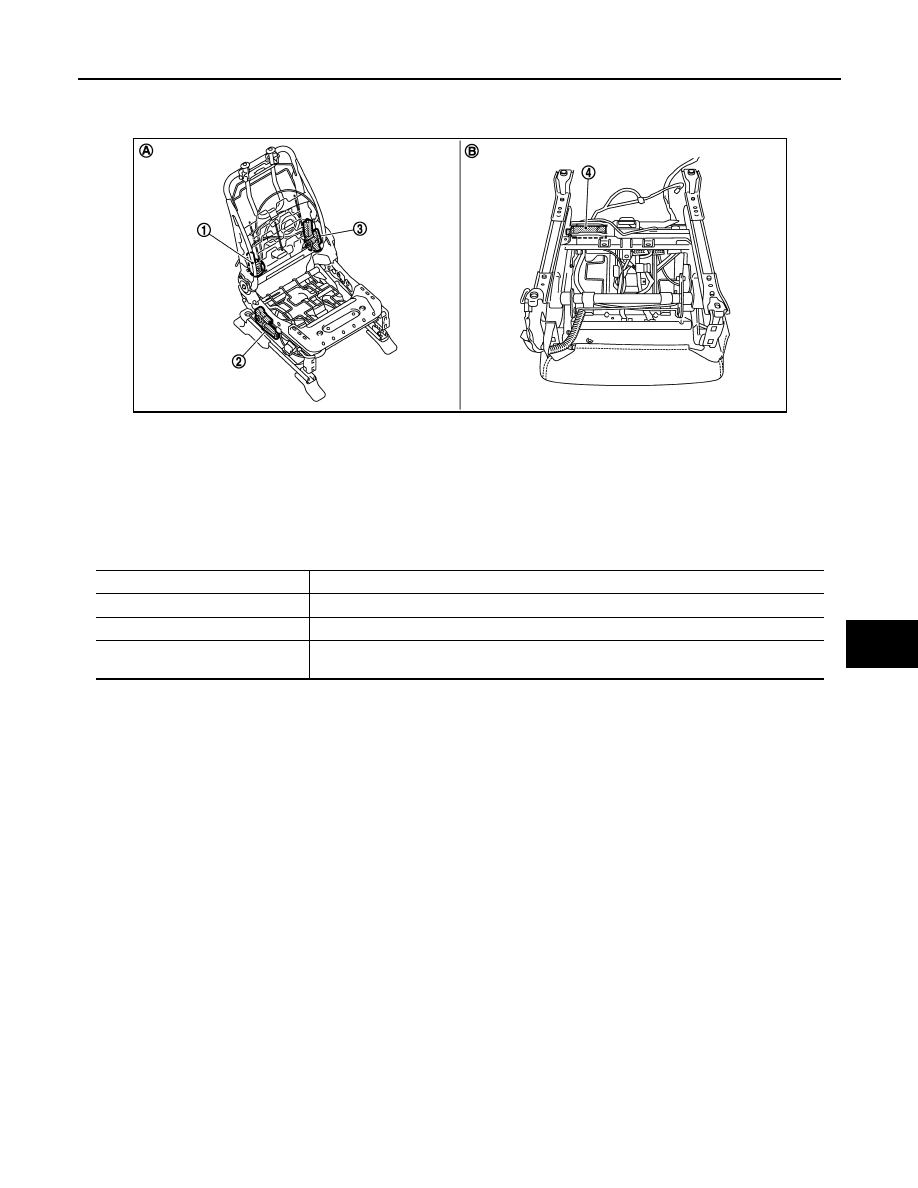

LUMBAR SUPPORT SYSTEM : Component Parts Location

INFOID:0000000006217358

LUMBAR SUPPORT SYSTEM : Component Description

INFOID:0000000006217359

SECOND SEAT POWER UNLOCK SYSTEM

1.

Lumber support motor

2.

Lifting motor

3.

Reclining motor

4.

Sliding motor

A.

View with seat cushion pad and seat
back pad removed.

B.

Back side of seat cushion

JMJIA4288ZZ

Item

Function

BCM

Supplies at all times the power received from battery to power seat switch

Lumbar support switch

Controls the power supplied to lumbar support motor

Lumbar support motor

With the power supplied from lumbar support switch, operates the forward and backward
movement of seatback support device
