WIRING DIAGRAM

AIR LEVELIZER CONTROL SYSTEM

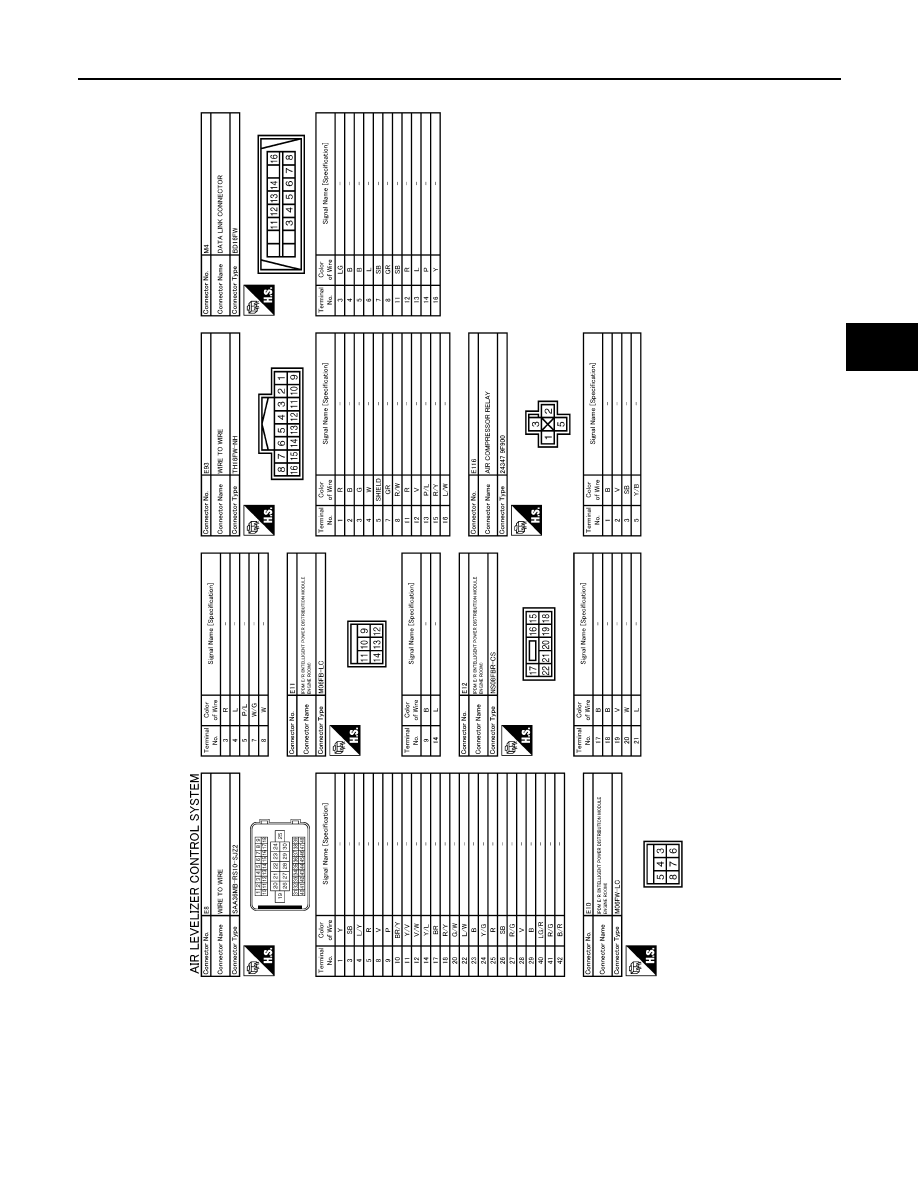

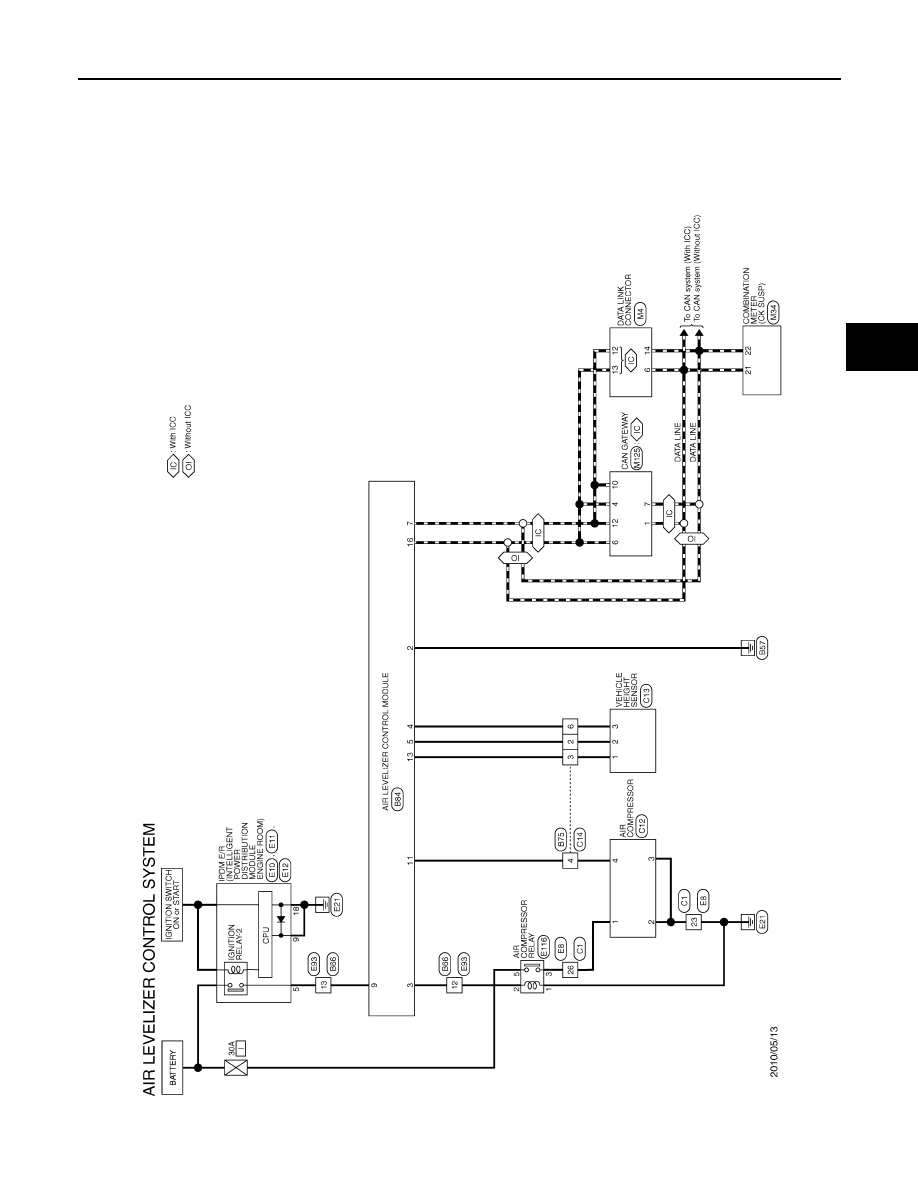

Wiring Diagram

INFOID:0000000006256057

JCEWM0220GB

SCS-62

< WIRING DIAGRAM >

[AIR LEVELIZER CONTROL SYSTEM]

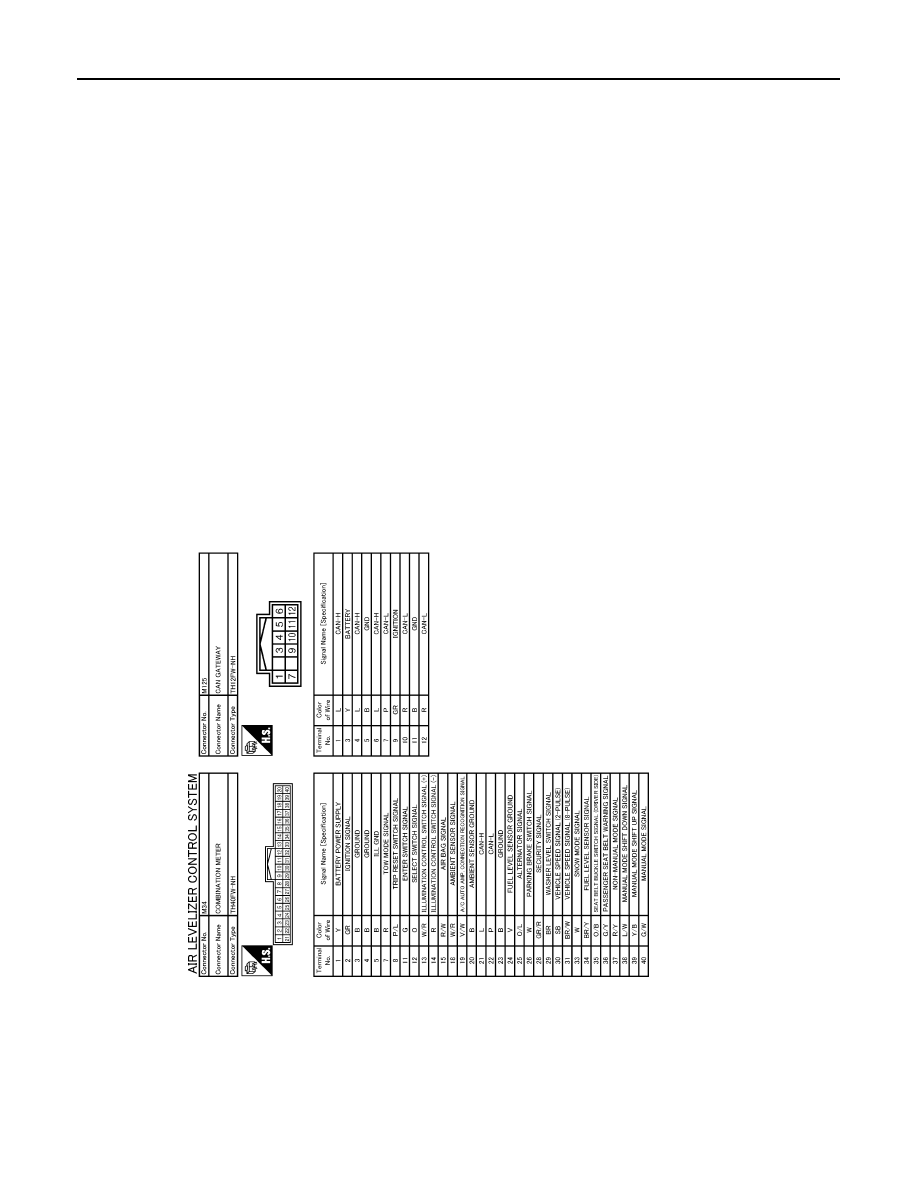

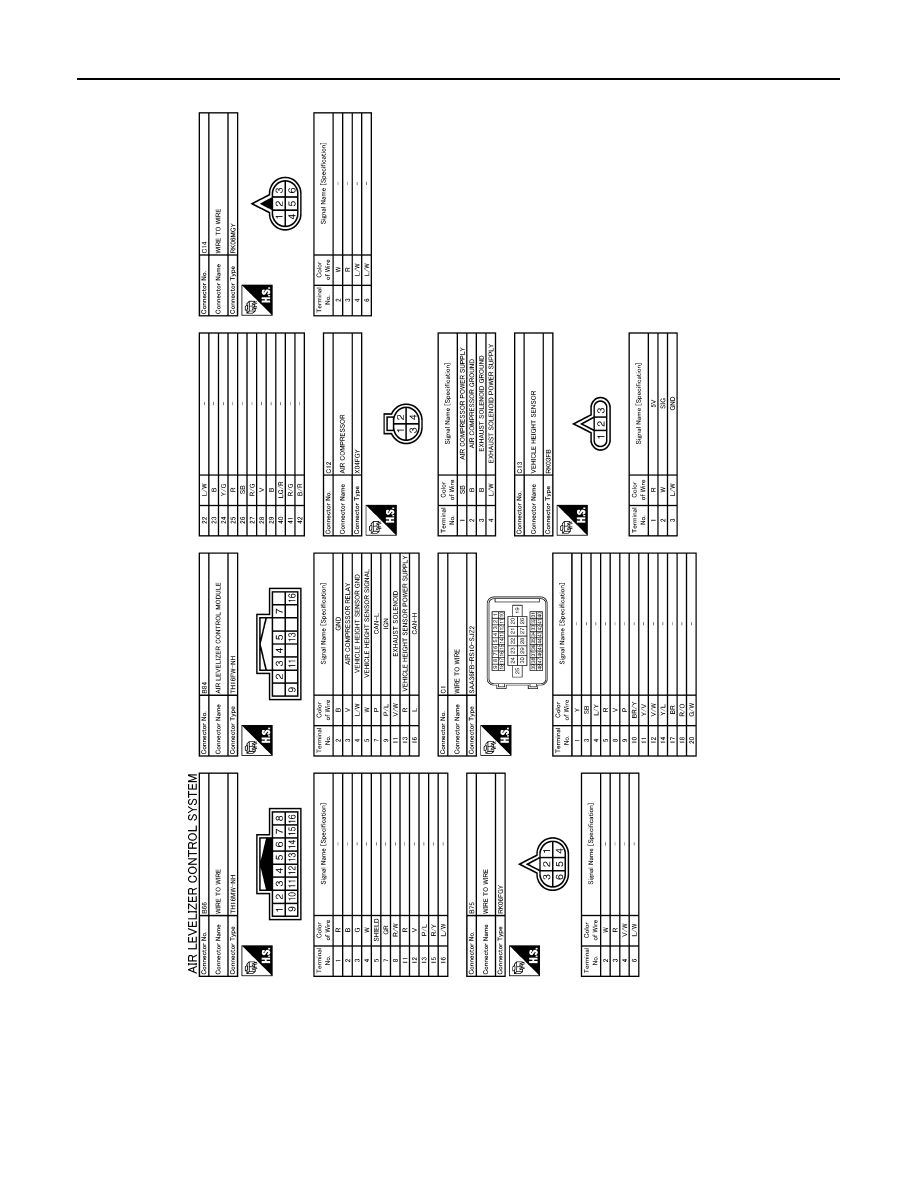

AIR LEVELIZER CONTROL SYSTEM

JCEWM0221GB

AIR LEVELIZER CONTROL SYSTEM

SCS-63

< WIRING DIAGRAM >

[AIR LEVELIZER CONTROL SYSTEM]

C

D

F

G

H

I

J

K

L

M

A

B

SCS

N

O

P

JCEWM0222GB

SCS-64

< WIRING DIAGRAM >

[AIR LEVELIZER CONTROL SYSTEM]

AIR LEVELIZER CONTROL SYSTEM

JCEWM0223GB
