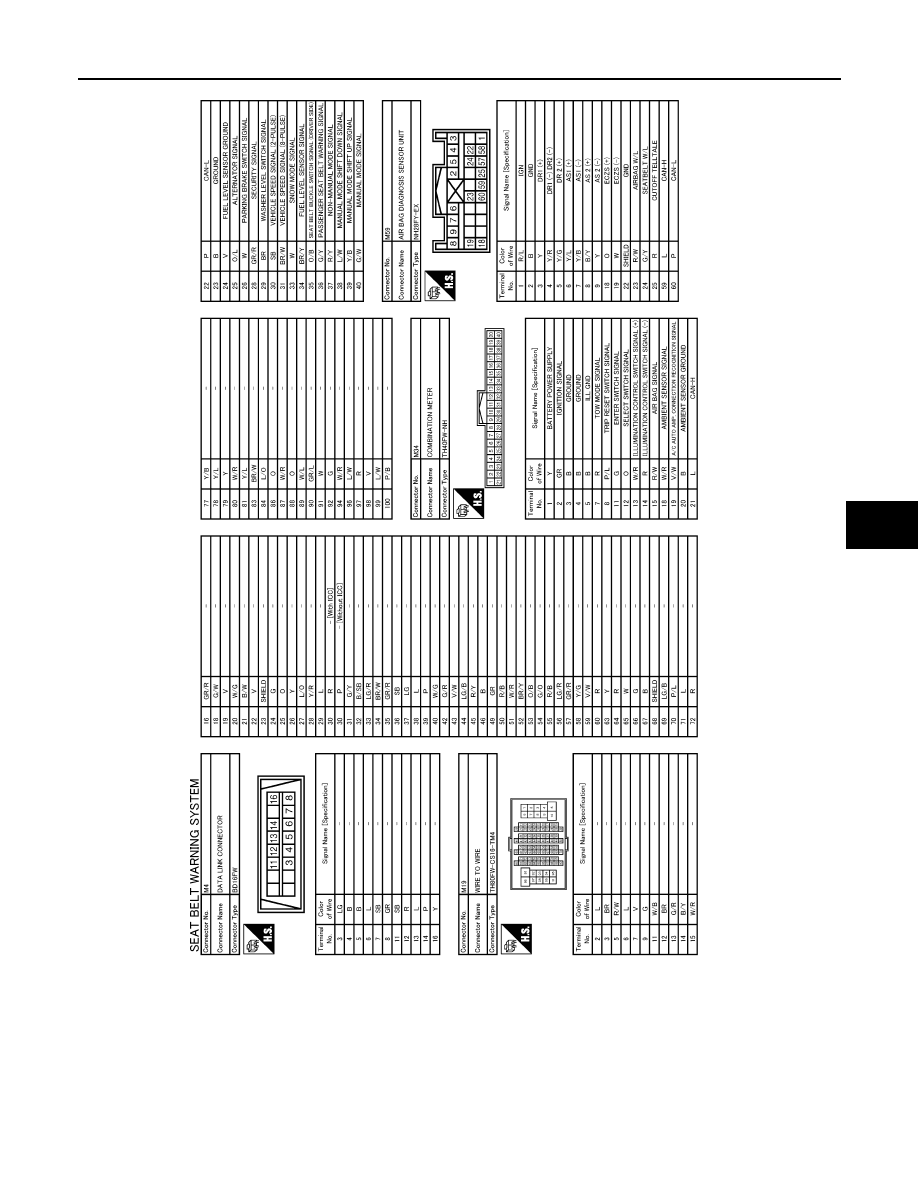

SEAT BELT WARNING SYSTEM

JCHWM0723GB

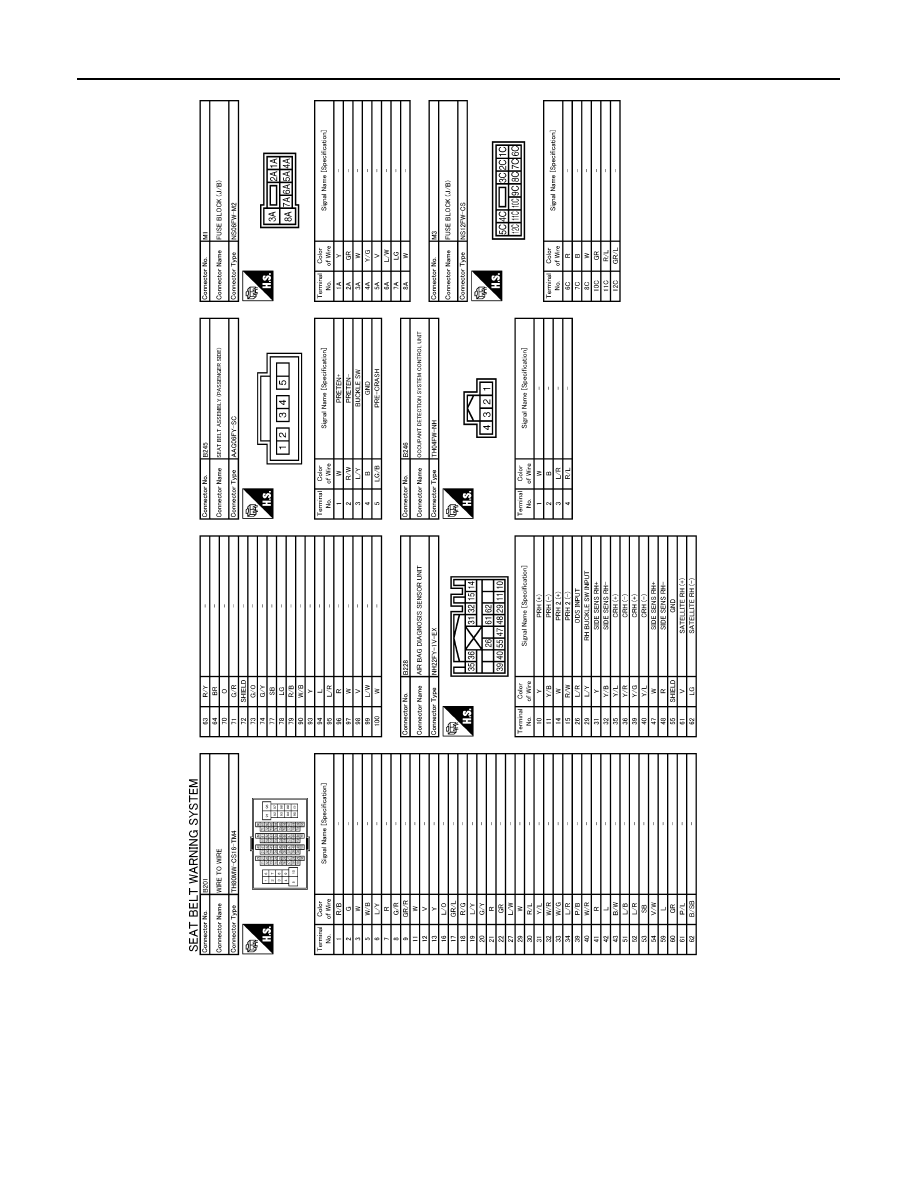

SEAT BELT WARNING SYSTEM

SBC-29

< WIRING DIAGRAM >

C

D

E

F

G

I

J

K

L

M

A

B

SBC

N

O

P

JCHWM0724GB

SBC-30

< WIRING DIAGRAM >

SEAT BELT WARNING SYSTEM

JCHWM0725GB

DIAGNOSIS AND REPAIR WORKFLOW

SBC-31

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SBC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

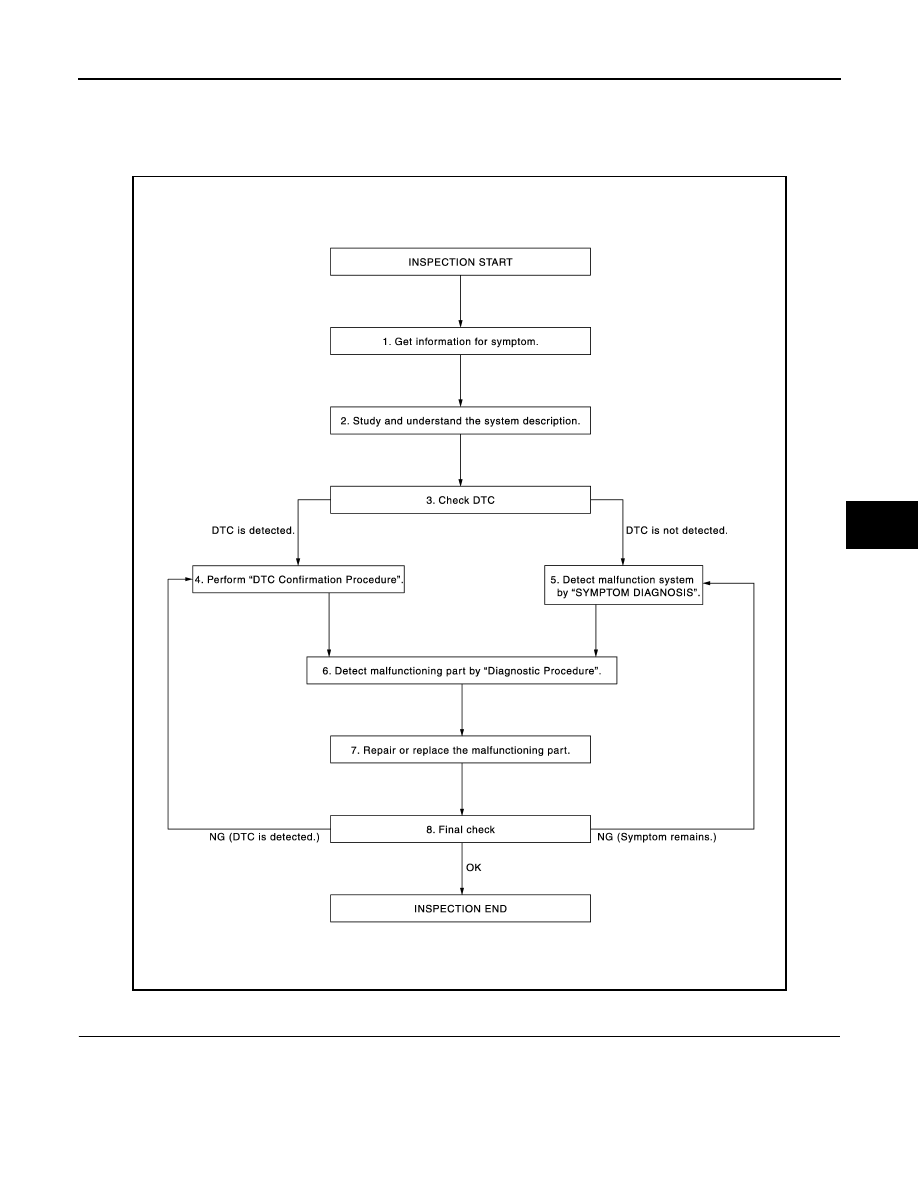

Work Flow

INFOID:0000000006237890

1.

GET INFORMATION FOR SYSTEM

Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-
tion occurred) as much as possible when the customer brings the vehicles in.

>> GO TO 2.

JMHIA1405GB
