Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation was noted. Seat belt
pre-tensioners should be replaced even if the seat belts were not in use during a frontal collision in
which the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident. (i.e. torn webbing, bent retractor or guide, etc.)
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioner must be replaced even if the seat belts were not in use during the collision in

which the air bags are deployed.

PRELIMINARY CHECKS

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

Repeat step above if necessary to check the other seat belts.

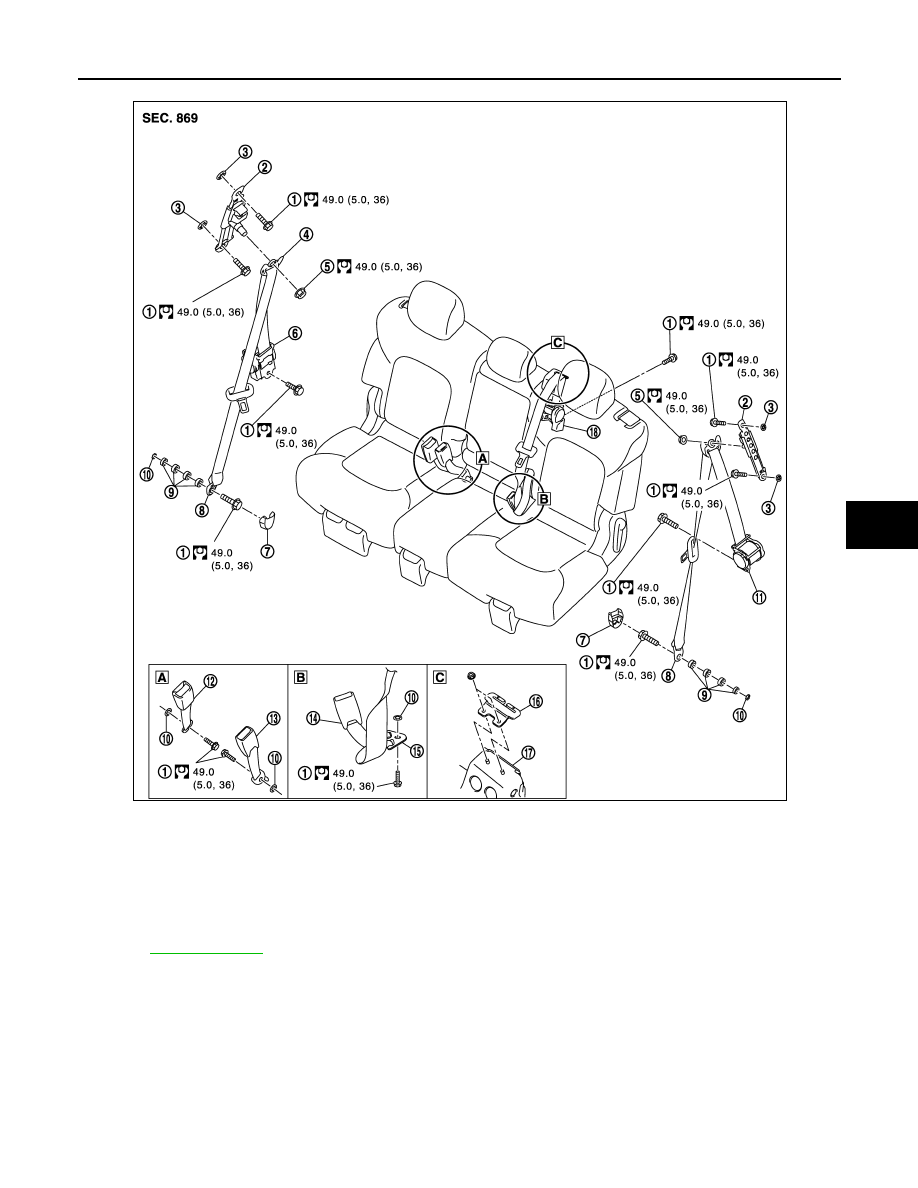

SEAT BELT BUCKLE : Exploded View

INFOID:0000000006369608

BENCH SEAT

SECOND SEAT BELT

SB-15

< REMOVAL AND INSTALLATION >

CAPTAIN SEAT

Anchor bolt

Seat belt adjuster

Retaining washer

Shoulder anchor

Anchor nut

Second seat belt retractor RH

Outer anchor cover

Outer anchor

Spacer

10. Retaining washer

11.

Second seat belt retractor LH

12. Seat belt buckle RH

13. Seat belt buckle (center)

14. Seat belt buckle LH

15. Center anchor

16. Center seat belt guide

17. Seatback frame

18. Second seat belt retractor (center)

Refer to

GI-4, "Components"

for symbols in the figure.

JMHIA1480GB

SB-16

< REMOVAL AND INSTALLATION >

SECOND SEAT BELT

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000006217626

REMOVAL

Remove the second seat assembly from vehicle. Refer to

SE-125, "Removal and Installation"

Remove the seat cushion and seat cushion under cover from seat cushion frame. Refer to

SE-130, "SEAT

CUSHION : Disassembly and Assembly"

Remove the seat belt buckle mounting anchor bolt and then remove the center and outer seat belt buckle.

INSTALLATION

Install in the reverse order of removal.

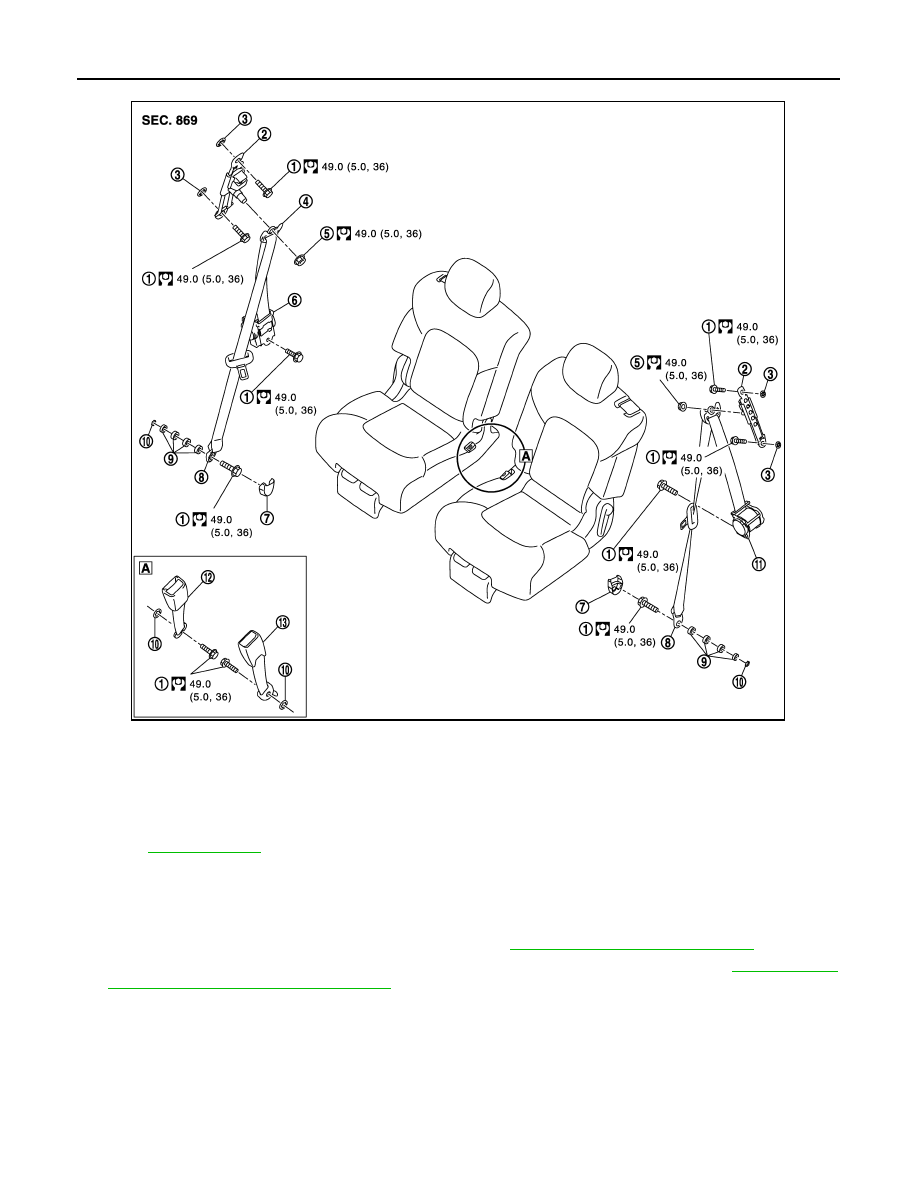

Anchor bolt

Seat belt adjuster

Retaining washer

Shoulder anchor

Anchor nut

Second seat belt retractor RH

Outer anchor cover

Outer anchor

Spacer

10. Retaining washer

11.

Second seat belt retractor LH

12. Seat belt buckle RH

13. Seat belt buckle LH

Refer to

GI-4, "Components"

for symbols in the figure.

JMHIA1496GB

THIRD SEAT BELT

SB-17

< REMOVAL AND INSTALLATION >

THIRD SEAT BELT

SEAT BELT RETRACTOR

SEAT BELT RETRACTOR : Inspection

INFOID:0000000006217627

AFTER A COLLISION

WARNING:

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.
• The seat belt pre-tensioners must be replaced even if the seat belts were not in use during the collision in

which the air bags were deployed.

PRELIMINARY CHECKS

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

Check retractor operation:

Fully extend the seat belt webbing and check for twists, tears or other damage.

Allow the seat belt to retract. Check that webbing returns smoothly and completely into the retractor. If the
seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth. Dirt build-up in the
loops of that upper anchors can cause the seat belts to retract slowly.

Fasten the seat belt. Check that seat belt returns smoothly and completely to the retractor. If the webbing
does not return smoothly, the cause may be an accumulation of dust or dirt. Use the “SEAT BELT TAPE
SET” and perform the following steps.

Repeat steps above if necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

NOTE:
All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the
retractor will lock and prevent the webbing from extending any further. All 3-point type seat belt retractors
except the driver seat belt also have an Automatic Locking Retractors (ALR) mode. The ALR mode (also
called child restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt
is fully extended. When the webbing is then retracted partially, the ALR mode automatically locks the seat belt
in a specific position so the webbing cannot be extended any further. To cancel the ALR mode, allow the seat
belt to fully wind back into the retractor.
Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating prop-
erly.

ELR Function Stationary Check

Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from
extending further.

ALR Function Stationary Check

Pull out the entire length of seat belt from retractor until a click is heard.

Retract the webbing partially. A clicking noise should be heard as the webbing retracts indicating that the
retractor is in the Automatic Locking Retractors (ALR) mode.
