PWC-12

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

RETAIND PWR

RETAIND PWR : CONSULT-III Function (BCM - RETAINED PWR)

INFOID:0000000006217270

Data monitor

CONSULT screen item

Indication/Unit

Description

Vehicle Speed

km/h

Vehicle speed of the moment a particular DTC is detected

Odo/Trip Meter

km

Total mileage (Odometer value) of the moment a particular DTC is detected

Vehicle Condition

SLEEP>LOCK

Power position status of
the moment a particular
DTC is detected

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “LOCK”)

SLEEP>OFF

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “OFF”.)

LOCK>ACC

While turning power supply position from “LOCK” to “ACC”

ACC>ON

While turning power supply position from “ACC” to “IGN”

RUN>ACC

While turning power supply position from “RUN” to “ACC” (Vehicle
is stopping and selector lever is except P position.)

CRANK>RUN

While turning power supply position from “CRANKING” to “RUN”
(From cranking up the engine to run it)

RUN>URGENT

While turning power supply position from “RUN“ to “ACC” (Emer-
gency stop operation)

ACC>OFF

While turning power supply position from “ACC” to “OFF”

OFF>LOCK

While turning power supply position from “OFF” to “LOCK”

OFF>ACC

While turning power supply position from “OFF” to “ACC”

ON>CRANK

While turning power supply position from “IGN” to “CRANKING”

OFF>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “OFF”.) to low power consumption mode

LOCK>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “LOCK”.) to low power consumption mode

LOCK

Power supply position is “LOCK” (Ignition switch OFF with steer-
ing is locked.)

OFF

Power supply position is “OFF” (Ignition switch OFF with steering
is unlocked.)

ACC

Power supply position is “ACC” (Ignition switch ACC)

ON

Power supply position is “IGN” (Ignition switch ON with engine
stopped)

ENGINE RUN

Power supply position is “RUN” (Ignition switch ON with engine
running)

CRANKING

Power supply position is “CRANKING” (At engine cranking)

IGN Counter

0 - 39

The number of times that ignition switch is turned ON after DTC is detected
• The number is 0 when a malfunction is detected now.
• The number increases like 1

 2

 3...38

 39 after returning to the normal condition

whenever ignition switch OFF

 ON.

• The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.

Monitor Item

Description

DOOR SW-DR

Indicates [ON/OFF] condition of driver side door switch.

DOOR SW-AS

Indicates [ON/OFF] condition of passenger side door switch.

BCM (BODY CONTROL MODULE)

PWC-13

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000006217271

ECU

Reference

BCM

BCS-33, "Reference Value"

BCS-54, "Fail-safe"

BCS-56, "DTC Inspection Priority Chart"

BCS-57, "DTC Index"

PWC-14

< ECU DIAGNOSIS INFORMATION >

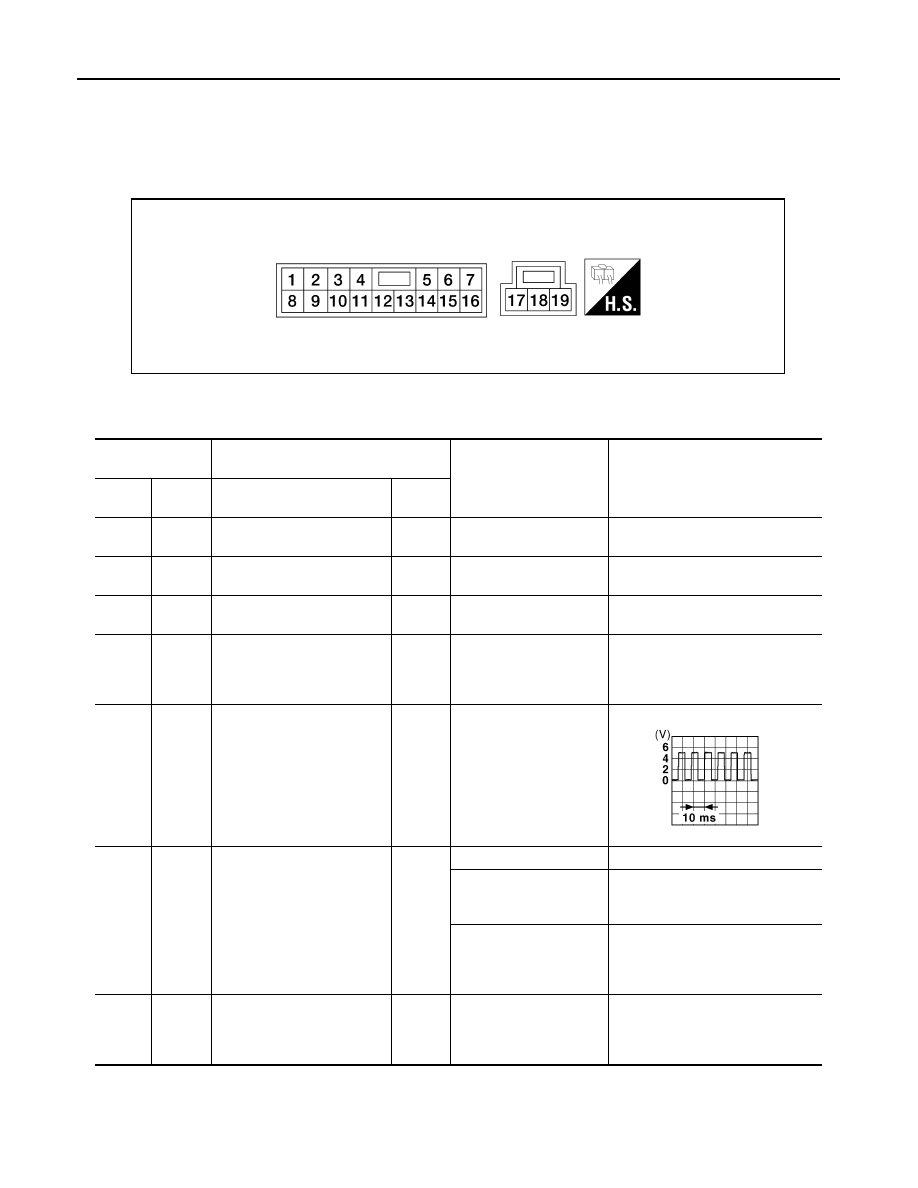

POWER WINDOW MAIN SWITCH

POWER WINDOW MAIN SWITCH

Reference Value

INFOID:0000000006217272

TERMINAL LAYOUT

PHYSICAL VALUES

POWER WINDOW MAIN SWITCH

LIIA2455E

Terminal No.

(wire color)

Description

Condition

Voltage [V]

(Approx.)

+

-

Signal name

Input/

Output

2

(W/B)

Ground

Encoder ground

0

4

(R)

Ground

Door key cylinder switch
LOCK signal

Input

Key position
(Neutral

Locked)

 0

6

(W)

Ground

Door key cylinder switch UN-
LOCK signal

Input

Key position
(Neutral

Unlocked)

 0

8

(L)

Ground

Front driver side power win-
dow motor UP signal

Output

When front LH switch in
power window main
switch is
operated UP

12

9

(G/W)

Ground

Encoder pulse signal 2

Input

When power window mo-
tor operates.

10

(Y)

Ground

Retained power signal

Input

IGN SW ON

12

Within 45 second after ig-
nition switch is turned to
OFF

12

When driver side or pas-
senger side door is
opened during retained
power operation

0

11

(G)

Ground

Front driver side power win-
dow motor DOWN signal

Output

When front LH switch in
power window main
switch is
operated DOWN

12

JMKIA0070GB

POWER WINDOW MAIN SWITCH

PWC-15

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

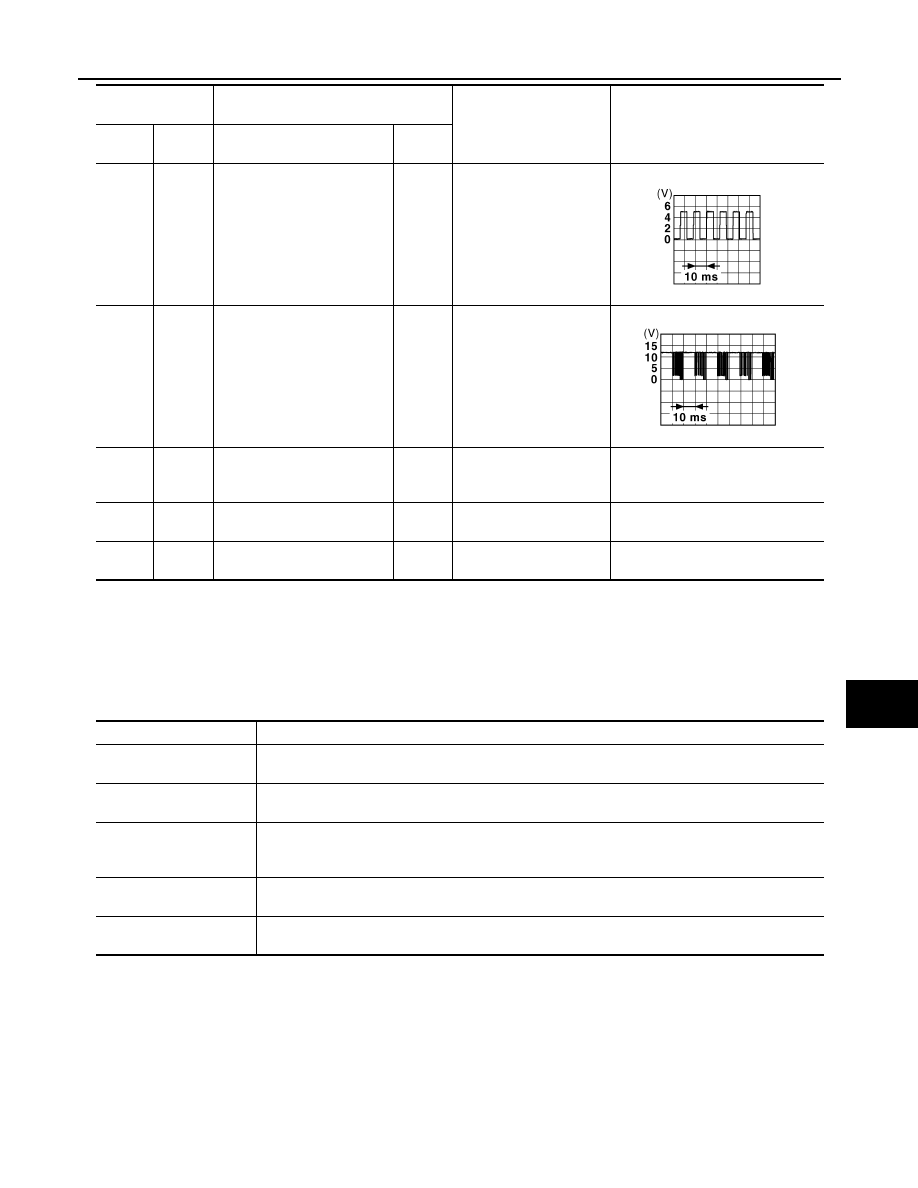

Fail-safe

INFOID:0000000006217273

FAIL-SAFE CONTROL

Switches to fail-safe control when malfunction is detected in encoder signal that detects up/down speed and
direction of door glass. Switches to fail-safe control when a signal that is out of the specified value is detected
between the fully closed position and the actual position of the glass.

If fail-safe control, the system changes to a non-initialized condition and the following function do not operate.
• Auto-up operation
• Anti-pinch function
• Retained power function

When fail-safe control is activated, perform initialization procedure to recover. If a malfunction is detected in
power window switch or more, fail-safe control is activated again.

13

(G/Y)

Ground

Encoder pulse signal 1

Input

When power window mo-
tor operates.

14

(V)

Ground

Power window serial link

Input/

Output

IGN SW ON or power win-
dow timer operating.

15

(G/R)

Ground

Encoder power supply

Output

When ignition switch ON
or power window timer op-
erates.

12

17

(B)

Ground

Ground

0

19

(W)

Ground

Battery power supply

Input

12

Terminal No.

(wire color)

Description

Condition

Voltage [V]

(Approx.)

+

-

Signal name

Input/

Output

JMKIA0070GB

JPMIA0013GB

Malfunction

Malfunction condition

Pulse sensor malfunction

When one pulse signal that is the specified value or more is detected continuously for the specified
time or more, while door glass is being operated UP or DOWN.

Both pulse sensors mal-
function

When both pulse signals are not detected continuously for the specified time or more, while door
glass is being operated UP or DOWN.

Pulse direction malfunc-
tion

When a pulse signal indicating that window is moving in the opposite direction against the power win-
dow motor is detected for the specified value or more, while door glass is being operated UP or
DOWN.

Glass recognition position
malfunction 1

When the actual door glass position that is out of specified value is detected compared to the door
glass fully closed position memorized in module, while door glass is being operated UP or DOWN.

Glass recognition position
malfunction 2

When pulse count that is out of the door glass full stroke value or more is detected, while door glass
is being operated UP or DOWN.
