Infiniti QX56 (Z62). Manual - part 1010

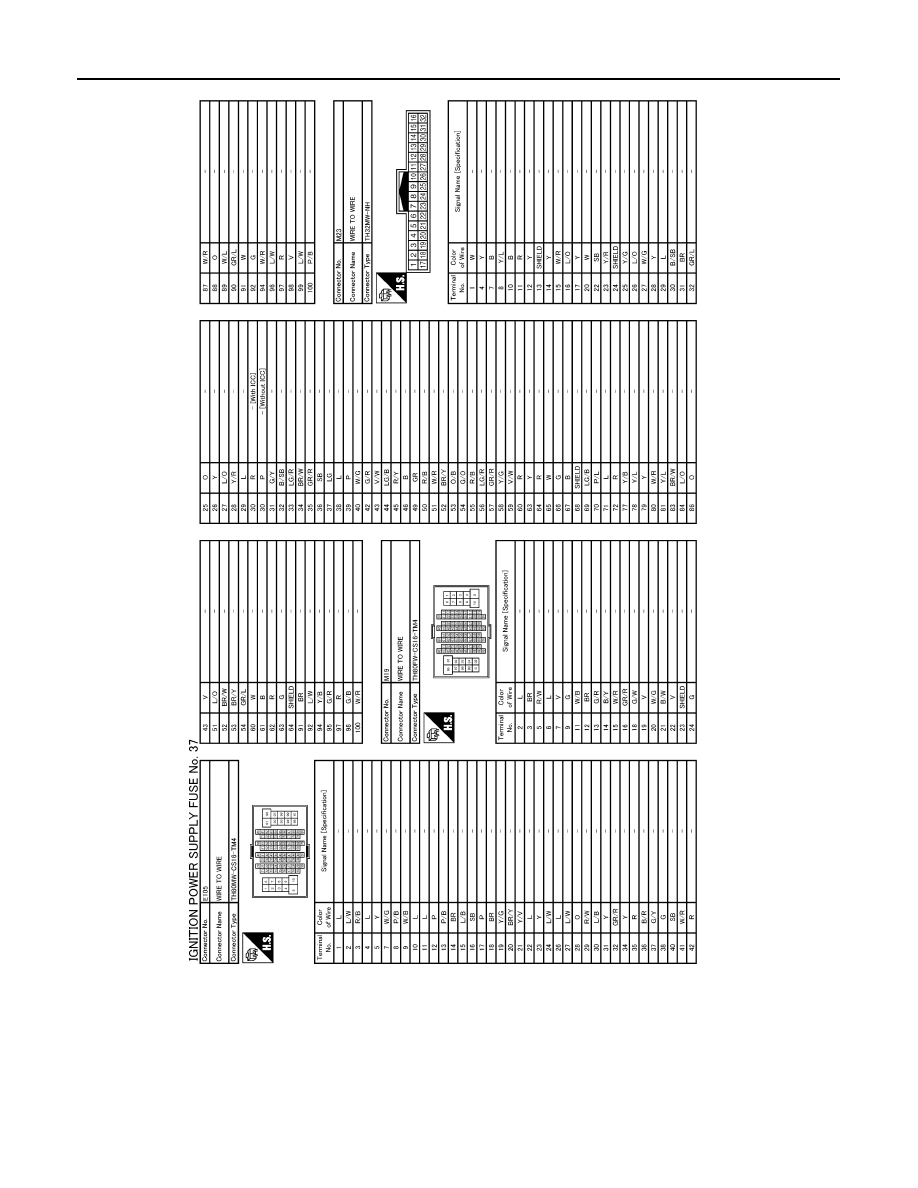

PG-118

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

JCMWM8454GB

PG

POWER SUPPLY ROUTING CIRCUIT

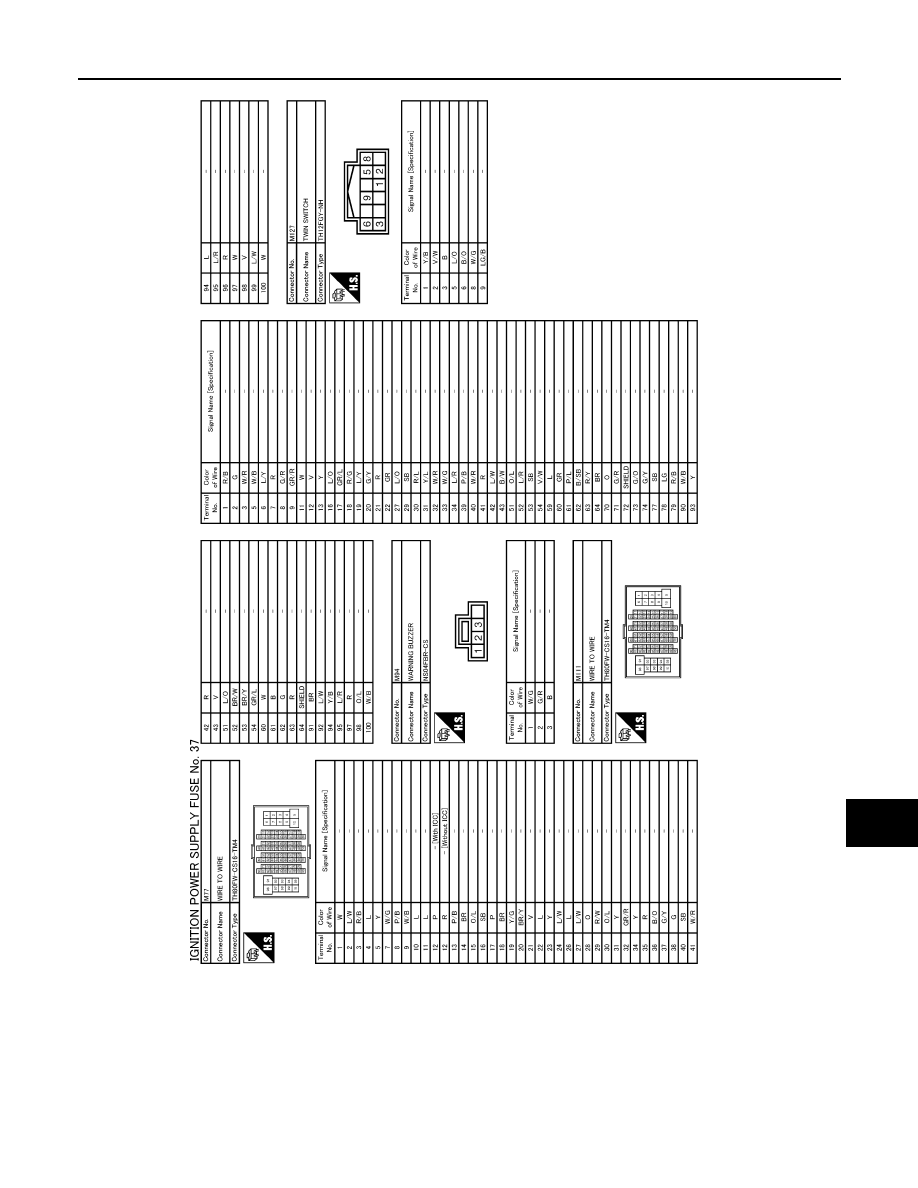

PG-119

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM8455GB

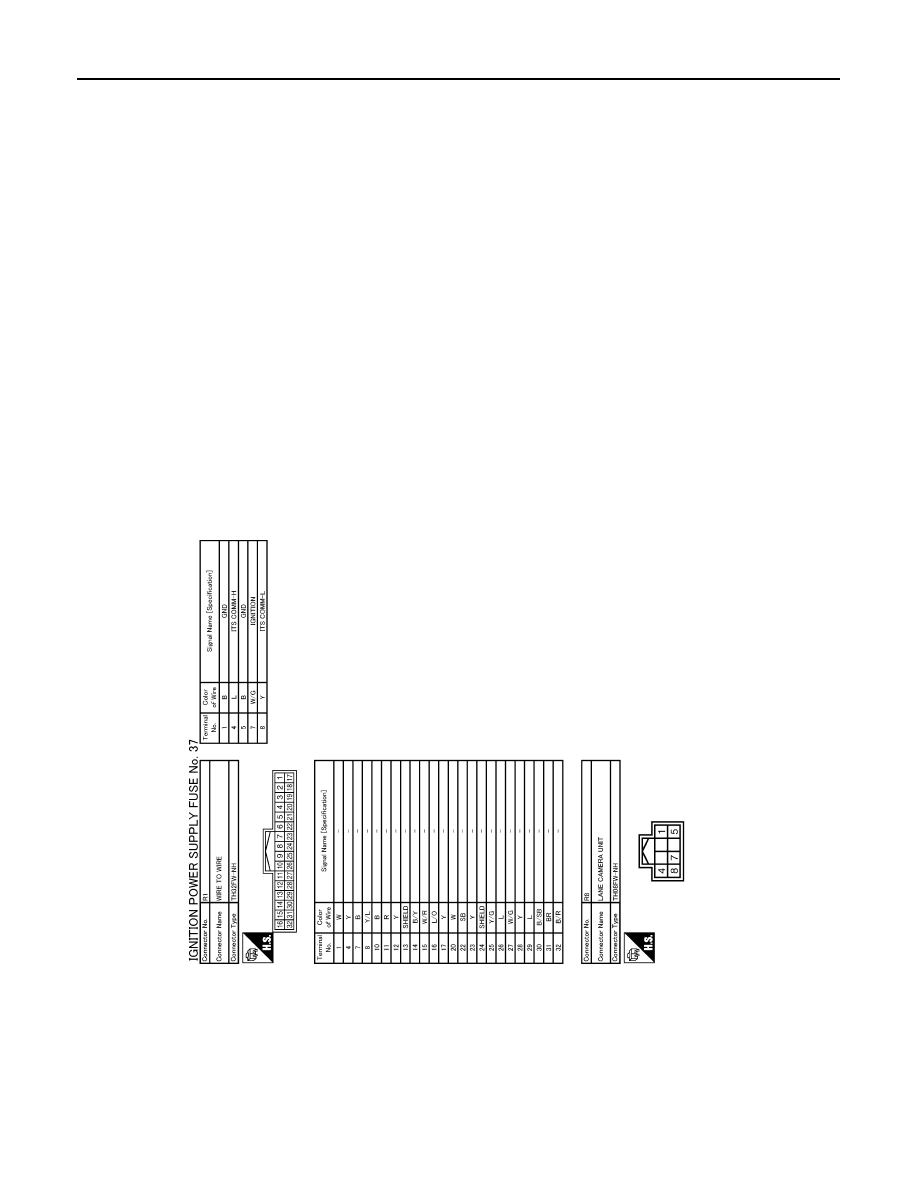

PG-120

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

JCMWM8456GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-121

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

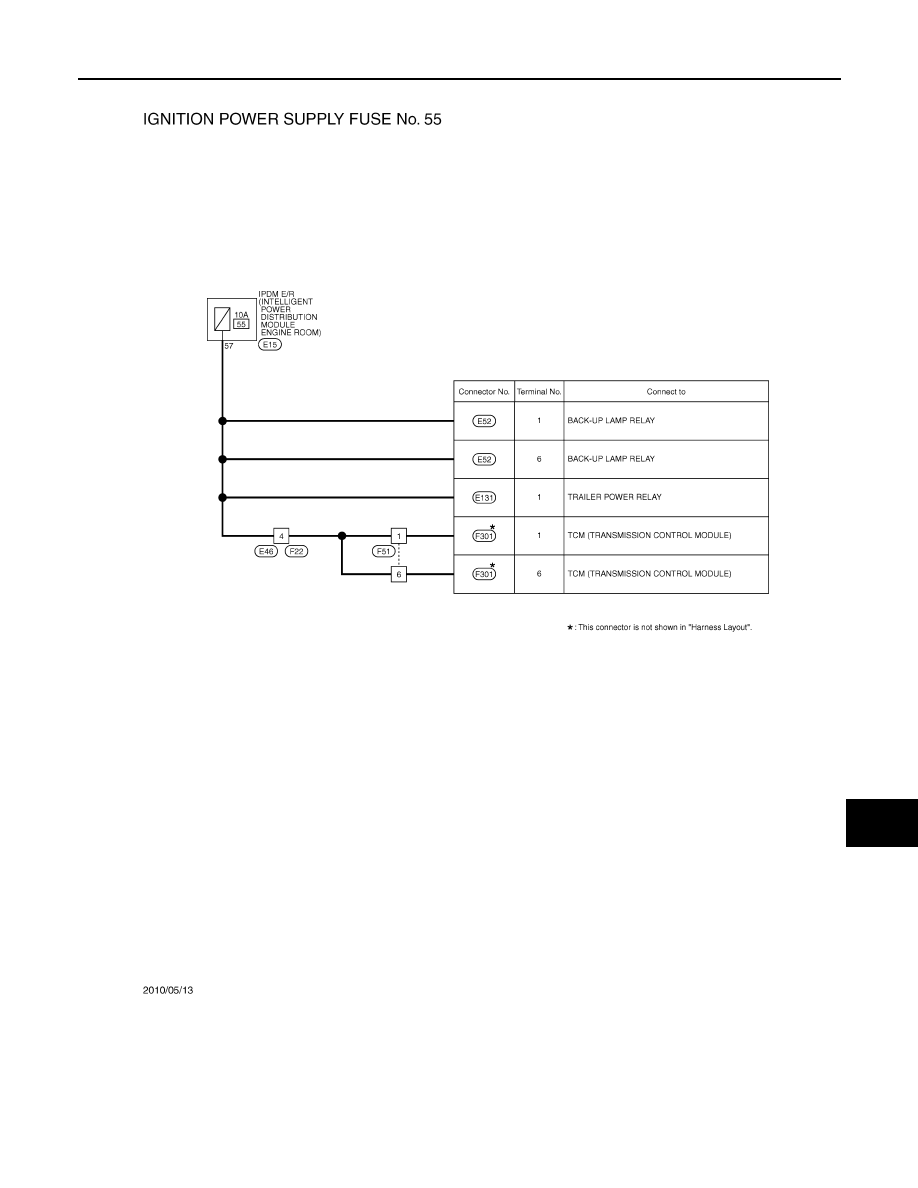

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 55 -

INFOID:0000000006288148

JCMWM8457GB
