Infiniti QX56 (Z62). Manual - part 101





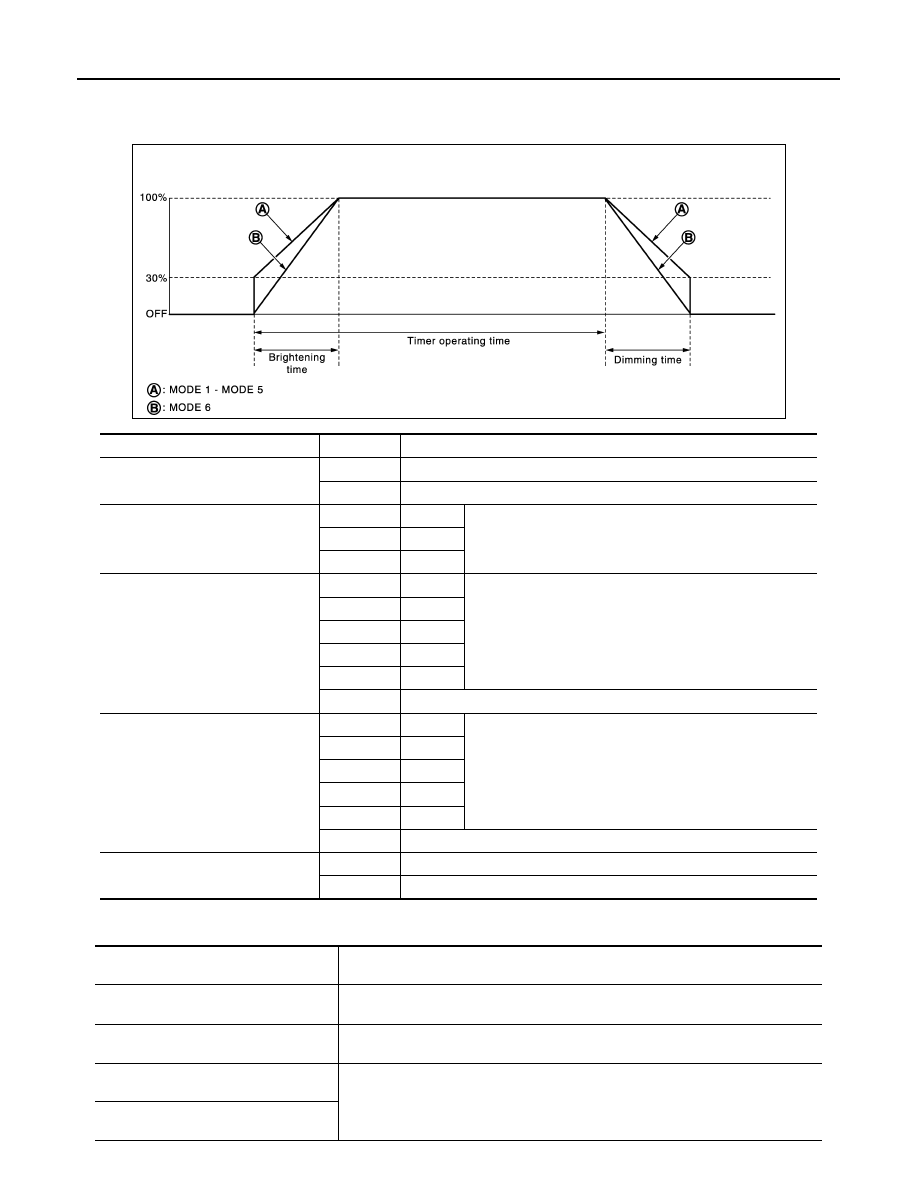

BCS-18

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

INT LAMP : CONSULT-III Function (BCM - INT LAMP)

INFOID:0000000006376481

WORK SUPPORT

DATA MONITOR

JMLIA0961GB

Service item

Setting item

Setting

SET I/L D-UNLCK INTCON

On*

With the interior room lamp timer function

Off

Without the interior room lamp timer function

ROOM LAMP TIMER SET

MODE 2

7.5 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 3*

15 sec.

MODE 4

30 sec.

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

MODE 6*

Gradually brightens from 0% to 100% brightness in 1 second.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

MODE 6*

Gradually dims from 100% to 0% in 1 second.

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door only.

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

The switch status input from door request switch (driver side)

REQ SW-AS
[On/Off]

The switch status input from door request switch (passenger side)

REQ SW-RR
[On/Off]

NOTE:
The item is indicated, but not monitored.

REQ SW-RL
[On/Off]

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ACTIVE TEST

HEADLAMP

HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)

INFOID:0000000006376461

WORK SUPPORT

PUSH SW
[On/Off]

The switch status input from push-button ignition switch

UNLK SEN -DR
[On/Off]

Driver door unlock status input from unlock sensor

DOOR SW-DR
[On/Off]

The switch status input from door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from rear door switch RH

DOOR SW- RL
[On/Off]

The switch status input from rear door switch LH

DOOR SW- BK
[On/Off]

The switch status input from back door switch

CDL LOCK SW
[On/Off]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW
[On/Off]

Unlock switch status input from door lock and unlock switch

KEY CYL LK-SW
[On/Off]

Lock switch status received from door key cylinder switch

KEY CYL UN-SW
[On/Off]

Unlock switch status received from door key cylinder switch

TRNK/HAT MNTR
[On/Off]

NOTE:
The item is indicated, but not monitored.

RKE-LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

Monitor item

[Unit]

Description

Test item

Operation

Description

INT LAMP

On

Outputs the interior room lamp control signal to turn the interior room lamps ON.
 [Map lamp, personal lamp, foot lamp (when applicable lamps switch is in DOOR po-
sition.)]

Off

Stops the interior room lamp control signal to turn the interior room lamps OFF.

STEP LAMP TEST

On

Outputs the step lamp control signal to turn the step lamps ON.

Off

Stops the step lamp control signal to turn the step lamps ON.

Service item

Setting item

Setting

CUSTOM A/LIGHT SETTING

MODE 1*

1

Normal

MODE 2

More sensitive setting than normal setting (Turns ON earlier than normal opera-
tion)

MODE 3

More sensitive setting than MODE 2 (Turns ON earlier than MODE 2)

MODE 4

Less sensitive setting than normal setting (Turns ON later than normal operation)

BCS-20

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

*

1

: Factory setting

*

2

: For models for Canada, this item is displayed but is not operated.

DATA MONITOR

BATTERY SAVER SET

On*

1

With the exterior lamp battery saver function

Off

Without the exterior lamp battery saver function

ILL DELAY SET

MODE 1*

1

45 sec.

Sets delay timer function timer operation time
(All doors closed)

MODE 2

Without the
function

MODE 3

30 sec.

MODE 4

60 sec.

MODE 5

90 sec.

MODE 6

120 sec.

MODE 7

150 sec.

MODE 8

180 sec.

AUTO LIGHT LOGIC SET*

2

MODE 1*

1

With twilight ON custom & with wiper INT, LO and HI

MODE 2

With twilight ON custom & with wiper LO and HI

MODE 3

With twilight ON custom & without

MODE 4

Without twilight ON custom & with wiper INT, LO and HI

MODE 5

Without twilight ON custom & with wiper LO and HI

MODE 6

Without twilight ON custom & without

Service item

Setting item

Setting

Monitor item

[Unit]

Description

PUSH SW
[On/Off]

The switch status input from push-button ignition switch

ENGINE STATE
[Stop/Stall/Crank/Run]

The engine status received from ECM via CAN communication

VEH SPEED 1
[km/h]

The value of the vehicle speed received from combination meter via CAN communi-
cation

TURN SIGNAL R
[On/Off]

Each switch status that BCM judges from the combination switch reading function

TURN SIGNAL L
[On/Off]

TAIL LAMP SW
[On/Off]

HI BEAM SW
[On/Off]

HEAD LAMP SW1
[On/Off]

HEAD LAMP SW2
[On/Off]

PASSING SW
[On/Off]

AUTO LIGHT SW
[On/Off]

FR FOG SW
[On/Off]

RR FOG SW
[On/Off]

NOTE:
This item is indicated, but can not monitored

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-21

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ACTIVE TEST

*: Only models for Canada display this item.

WIPER

WIPER : CONSULT-III Function (BCM - WIPER)

INFOID:0000000006376469

WORK SUPPORT

DOOR SW-DR
[On/Off]

The switch status input from front door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from rear door switch RH

DOOR SW- RL
[On/Off]

The switch status input from rear door switch LH

DOOR SW-BK
[On/Off]

The switch status input from back door switch

OPTICAL SENSOR
[On/Off]

The sensor status input from optical sensor

OPTI SEN (DTCT)
[V]

The value of outside brightness voltage input from the optical sensor

OPTI SEN (FILT)
[V]

The value of outside brightness voltage filtered by BCM

Monitor item

[Unit]

Description

Test item

Operation

Description

TAIL LAMP

On

Transmits the position light request signal to IPDM E/R via CAN commu-
nication to turn the tail lamp ON

Off

Stops the tail lamp request signal transmission

HEAD LAMP

Hi

Transmits the high beam request signal via CAN communication to turn
the headlamp (HI)

Lo

Transmits the low beam request signal via CAN communication to turn
the headlamp (LO)

Off

Stops the high & low beam request signal transmission

FR FOG LAMP

On

Transmits the front fog lights request signal to IPDM E/R via CAN com-
munication to turn the front fog lamp ON

Off

Stops the front light request signal transmission

RR FOG LAMP

On

NOTE:
This item is indicated, but can not tested

Off

DAYTIME RUNNING LIGHT*

On

Transmits the front fog lights request signal to IPDM E/R via CAN com-
munication to turn the front fog lamp ON (daytime running light system)

Off

Stops the front light request signal transmission (daytime running light
system)

ILL DIM SIGNAL

On

• Transmits the dimmer signal to combination meter via CAN communi-

cation and dims combination meter

• Transmits the dimmer signal to AV control unit and dims display

Off

Stops the dimmer signal transmission
