Infiniti QX56 (Z62). Manual - part 1002

PG-86

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

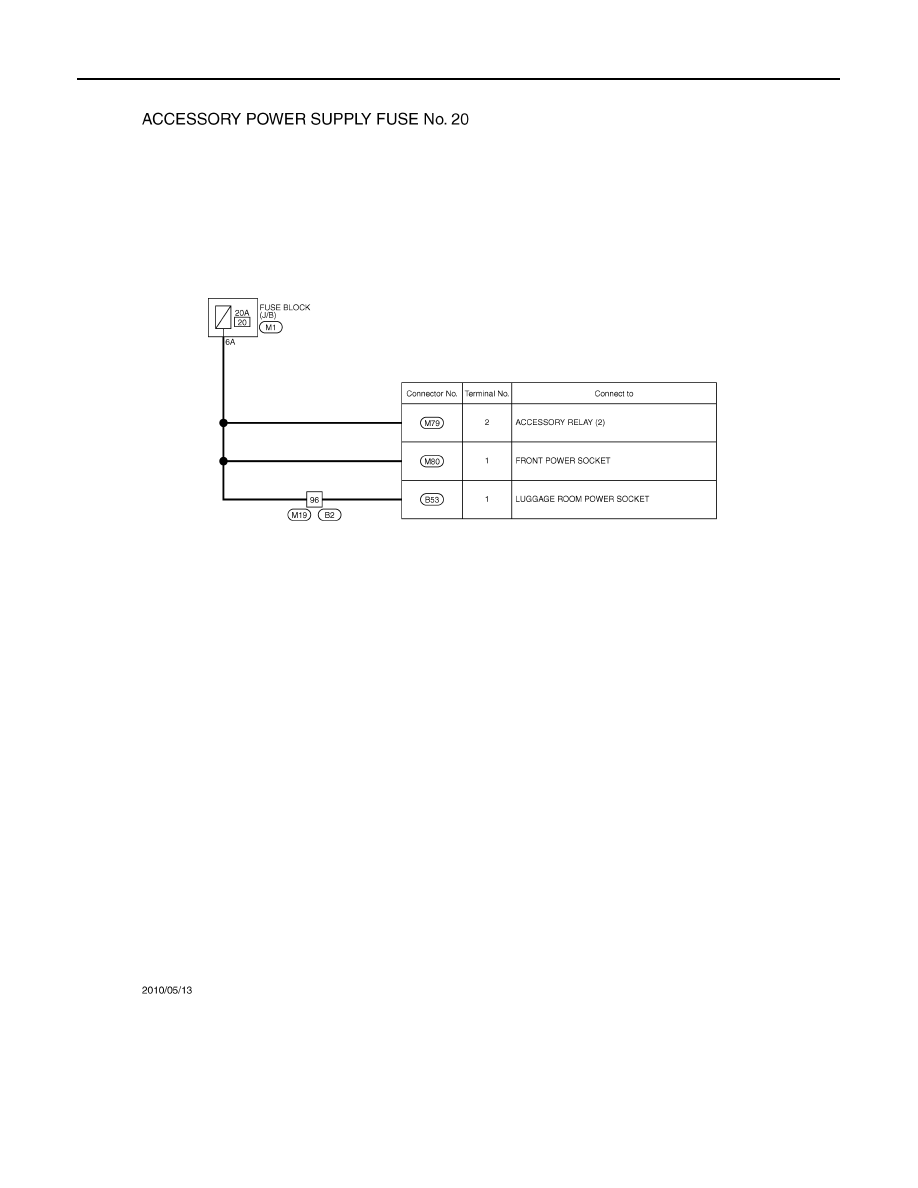

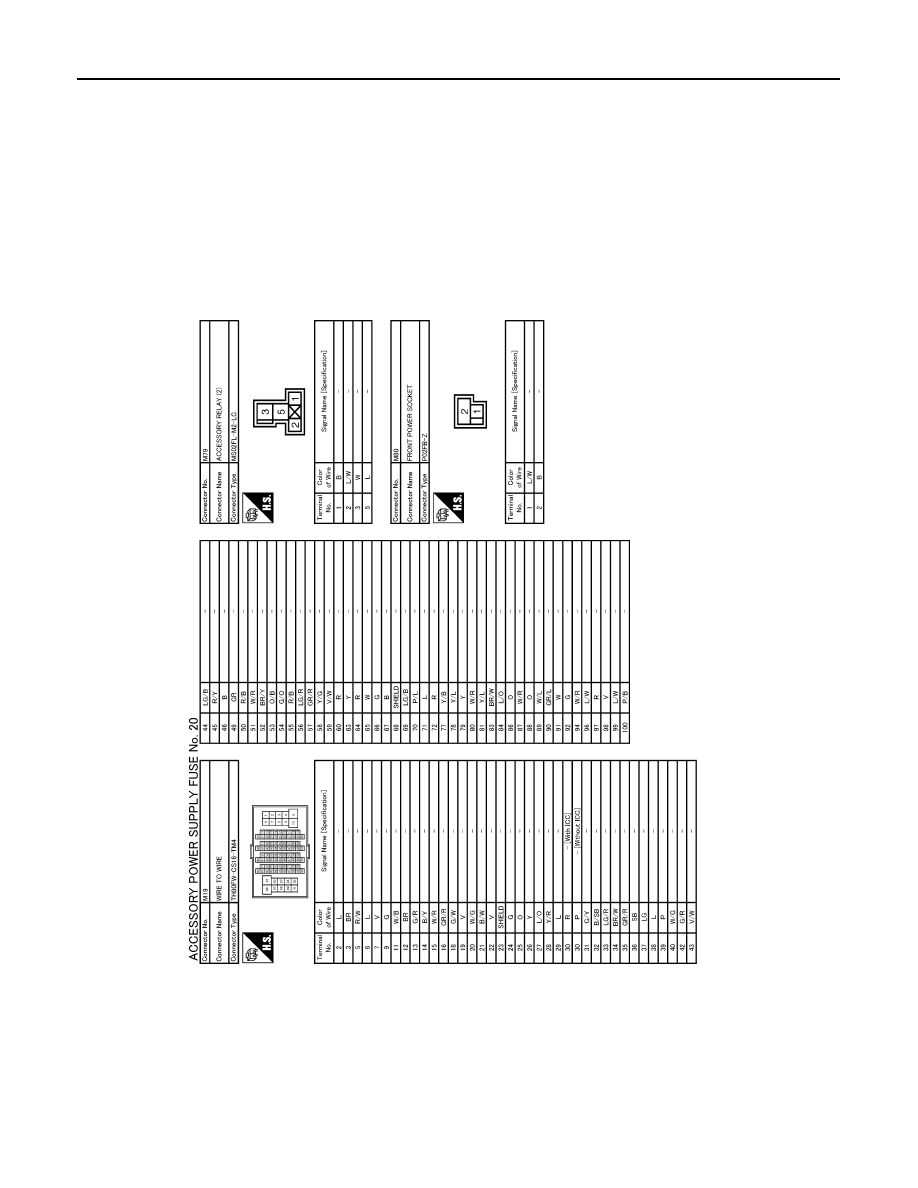

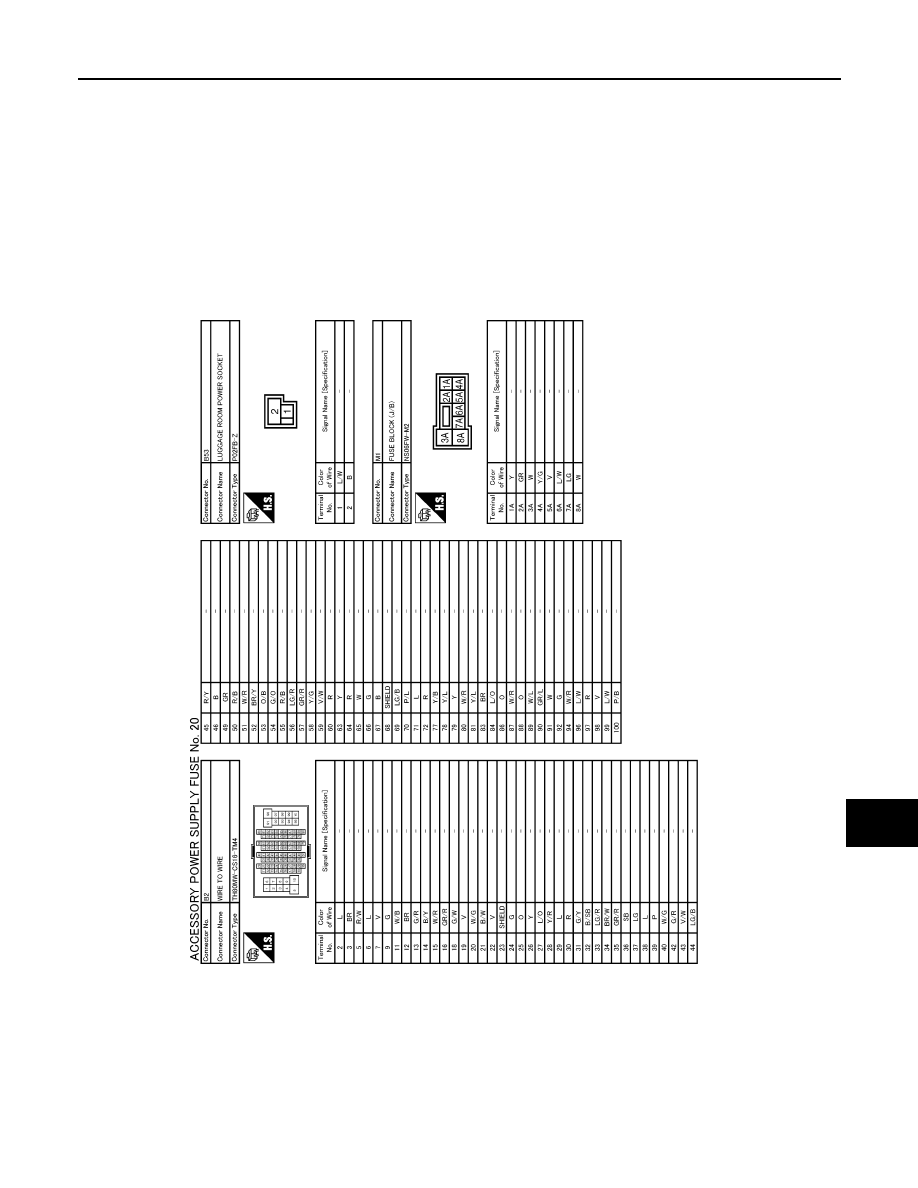

Wiring Diagram - ACCESSORY POWER SUPPLY FUSE No. 20 -

INFOID:0000000006288144

JCMWM8422GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-87

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM8423GB

PG-88

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

JCMWM8424GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-89

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

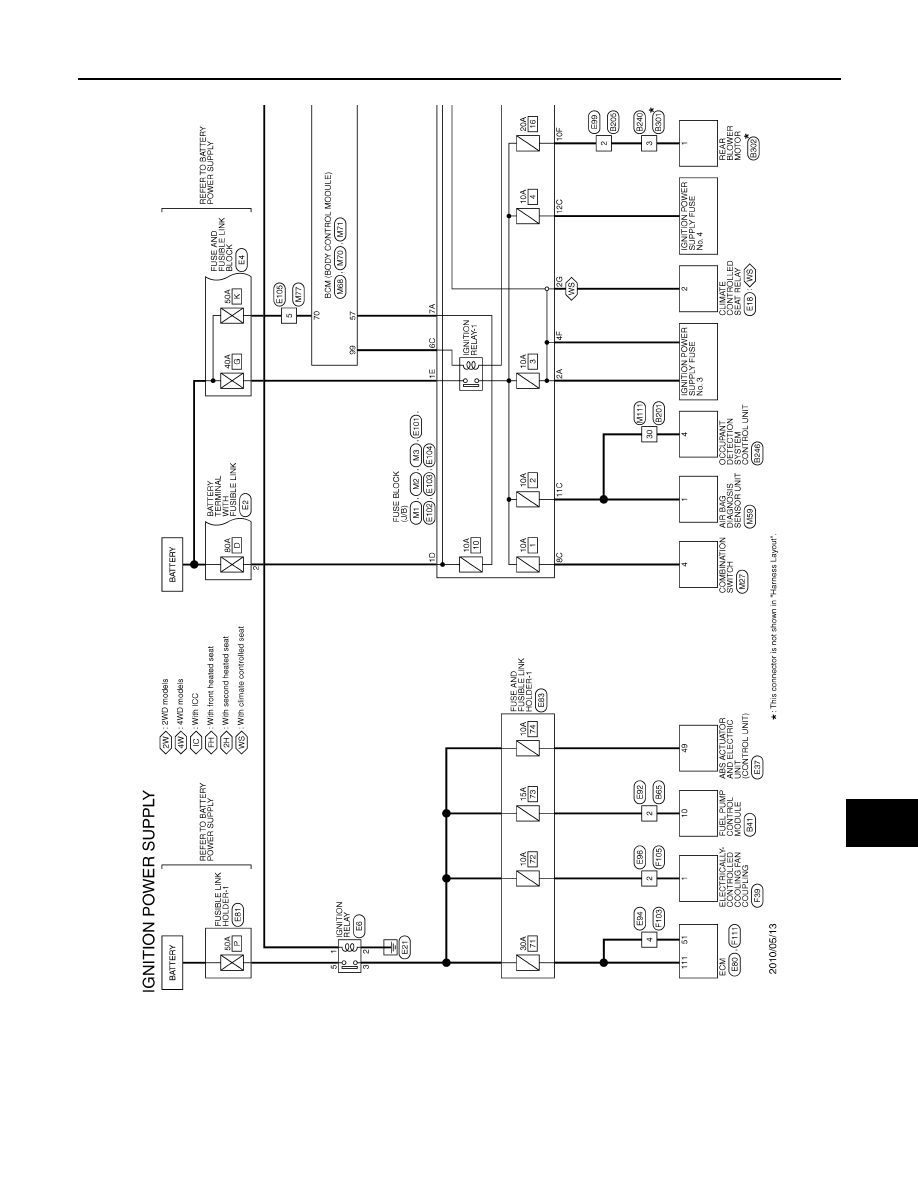

Wiring Diagram - IGNITION POWER SUPPLY -

INFOID:0000000006275751

JCMWM8425GB
