MULTIFUNCTION SWITCH

MULTIFUNCTION SWITCH

Removal and Installation

INFOID:0000000006216391

REMOVAL

1.

Remove cluster lid C. Refer to

IP-13, "Exploded View"

.

2.

Disconnect multifunction switch connector.

3.

Remove multifunction switch mounting screws to remove multifunction switch from cluster lid C.

INSTALLATION

Install in the reverse order of removal.

AV

PRESET SWITCH

AV-227

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PRESET SWITCH

Removal and Installation

INFOID:0000000006216392

REMOVAL

1.

Remove cluster lid C. Refer to

IP-13, "Exploded View"

.

2.

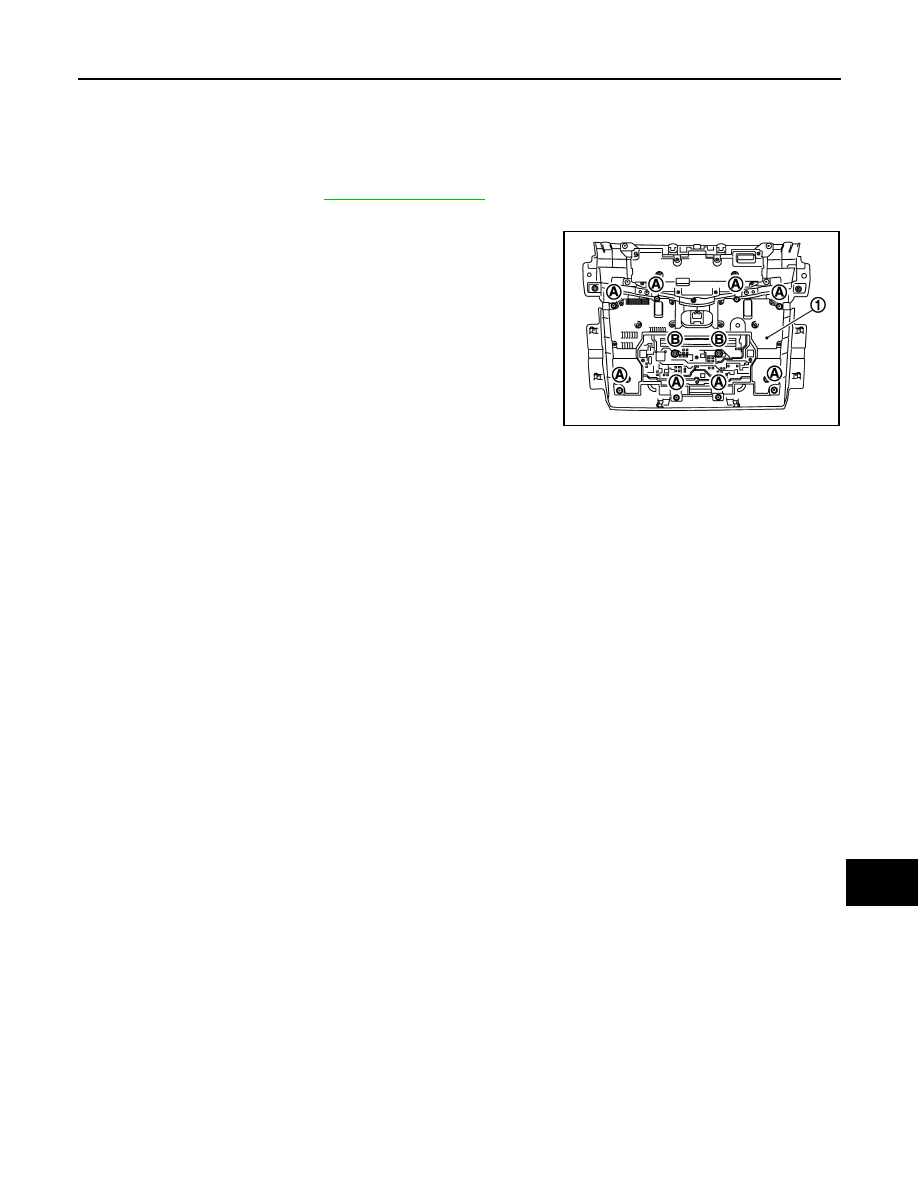

Disconnect preset switch (1) connector.

3.

Remove preset switch mounting screws (A) and (B).

4.

Remove preset switch from cluster lid C.

INSTALLATION

Install in the reverse order of removal.

JSNIA2983ZZ

AV-228

< REMOVAL AND INSTALLATION >

FRONT AUXILIARY INPUT JACKS

FRONT AUXILIARY INPUT JACKS

Removal and Installation

INFOID:0000000006216393

REMOVAL

1.

Remove center console assembly. Refer to

IP-23, "Exploded View"

.

2.

Remove front auxiliary input jacks mounting screws to remove front auxiliary input jacks.

INSTALLATION

Install in the reverse order of removal.

AV

REAR AUXILIARY INPUT JACKS

AV-229

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR AUXILIARY INPUT JACKS

Removal and Installation

INFOID:0000000006216394

REMOVAL

1.

Remove console rear finisher. Refer to

IP-23, "Exploded View"

.

2.

Remove rear auxiliary input jacks mounting screws to remove rear auxiliary input jacks.

INSTALLATION

Install in the reverse order of removal.
