Infiniti QX56 (Z62). Manual - part 48





AV-46

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

*: Never perform other operations for approximately 10 seconds after performing "Initialize Camera
Image Calibration".

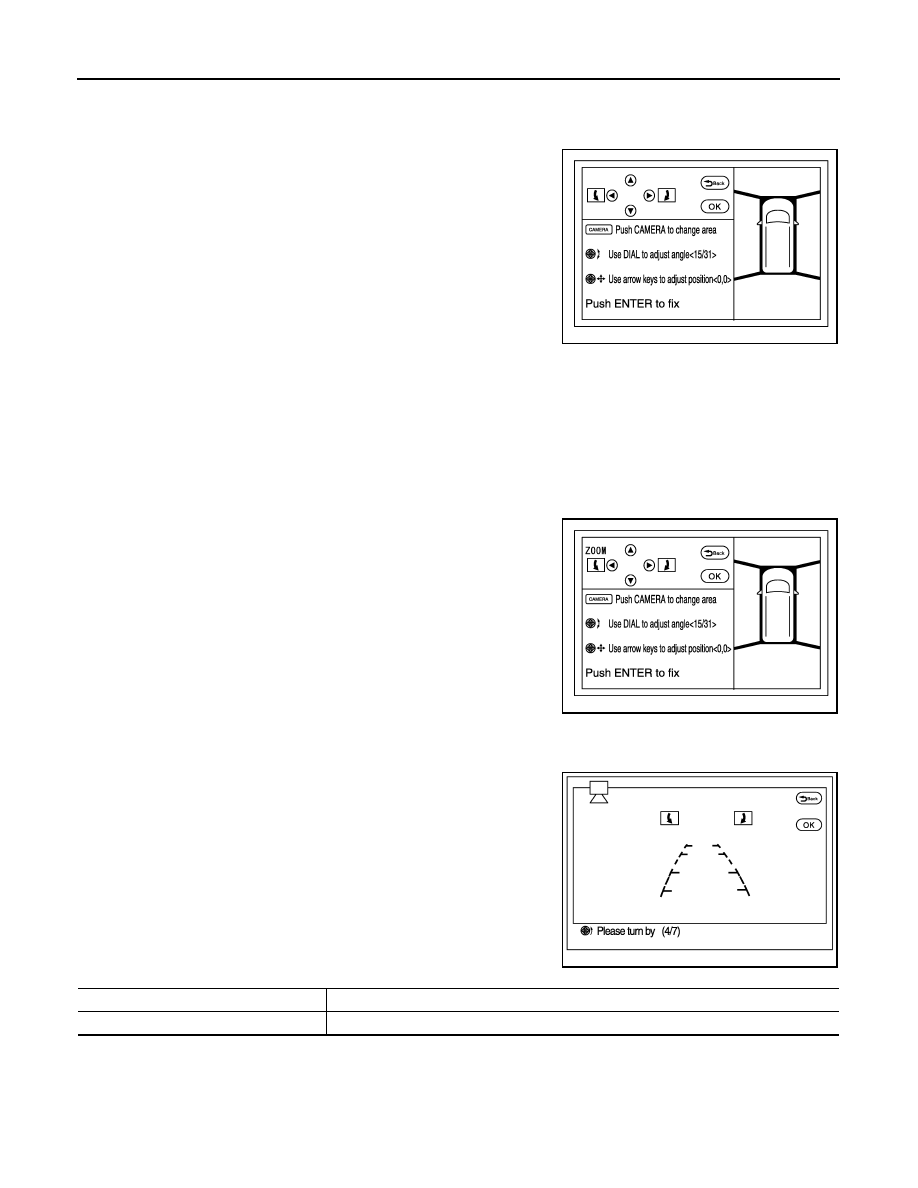

Fine Tuning of Birds-Eye View

• The fine adjustment function of camera calibration can check and

adjust the difference between each camera.

• Fine adjustments can be performed for each camera. Move the

“+”-mark to select the camera by pressing the “CAMERA” switch.

• Perform the adjustment with the center dial and upper/lower/left/

right switches.

CAUTION:

Operate the center dial slowly because the changing of the
screen takes approximately 1 second.
NOTE:
• It can be initialized to the NISSAN factory shipment setting with

“Initialize Camera Image Calibration” of “Calibrating Camera
Image”.

• The adjustment value is cancelled in this mode by performing “Initialize Camera Image Calibration”.

ZOOM function

• The ZOOM ratio of camera can be changed when calibrating the

camera.

• It shifts to ZOOM function mode by shifting the selector lever to a

position other than the “R” position

 “R” position

 other than “R”

position in the “Fine Tuning of Birds-Eye View” mode.

• The changing of ZOOM ratio can be performed for each camera.

Move the “+”-mark to select the camera by pressing “CAMERA”
switch and press the left/right switch to change the ZOOM ratio.

NOTE:
• When the position is not correct in “Fine Tuning of Birds-Eye View”

mode, use this "ZOOM" function to adjust it.

• If this function is used, always adjust the upper/lower/left/right posi-

tion again on the “Fine Tuning of Birds-Eye View” screen.

Correct Draw Line of Wide View

The display position of guiding lines when displayed on the rear-wide
view can be changed.

Correct Draw Line of Camera Image item

Adjustment range

Rotating direction

: 31 patterns (16 on the center)

Upper/lower direction

: (

99) – (+99)

Left/right direction

: (

99)

 (+99)

JSNIA2280ZZ

JSNIA2279ZZ

Adjustment range

Rotating direction

: 7 patterns

JSNIA2380ZZ

Items

Description

Rear-Wide View

The position of rear wide view guideline can be changed.

AV

DIAGNOSIS SYSTEM [SONAR CONTROL UNIT (WITH AROUND VIEW MONI-

TOR)]

AV-47

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM [SONAR CONTROL UNIT (WITH AROUND VIEW
MONITOR)]

CONSULT-III Function

INFOID:0000000006216222

APPLICATION ITEMS

CONSULT-III can display each diagnostic item using the diagnostic test modes shown as follows:

ECU IDENTIFICATION

Displays the part number of sonar control unit.

SELF-DIAGNOSTIC RESULTS

For details, refer to

AV-77, "DTC Index"

.

DATA MONITOR

*: Even when a buzzer (backward) is output condition, this item is indicated as OFF.

ACTIVE TEST

WORK SUPPORT

CORNER SEN DISTANCE SET

Corner sensor warning buzzer distance can be set to 4 phases as follows.

Test mode

Function

Ecu Identification

Sonar control unit part number can be read.

Self Diagnostic Result

Sonar control unit checks the conditions and displays memorized error.

Data Monitor

Sonar control unit input/output data in real time.

Active Test

Gives a drive signal to a load to check the operation.

Work support

Changes setting of each function.

Monitor Item

Display

Description

SONAR OPE

On

Around view monitor is ON. (sonar system is ON)

Off

Around view monitor is OFF. (sonar system is OFF)

BUZZER OUTPUT

*

On

Buzzer (forward) is output condition.

Off

Buzzer (forward) is non-output condition.

CR SEN [FL]
CR SEN [FR]
CR SEN [RL]
CR SEN [RR]

ERROR

When a sensor is abnormal.

LV.0

When a sensor is not detection.

LV.2

The distance between the corner sensor and an obstacle is 50 cm (19.6 in) or more and
less then 60 cm (23.6 in).

LV.3

The distance between the corner sensor and an obstacle is 30 cm (11.8 in) or more and
less then 50 cm (19.6 in).

LV.4

The distance between corner sensor and an obstacle less than 30 cm (11.8 in).

Active test item

Function

BUZZER

This test is able to check buzzer operation.

SONAR SENSOR

This test is able to check each sonar sensor operation.

Work support item

Function

CORNER SEN DISTANCE SET

Corner sensor warning buzzer distance is adjustable to 4 phases.

AV-48

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM [SONAR CONTROL UNIT (WITH AROUND VIEW MONI-

TOR)]

The default of this model is “NORMAL”.

Warning item

FARTHER

FAR

NORMAL (Default)

NEAR

Second warning

70 – 80 cm (27.5 – 31.4 in)

60 – 70 cm (23.6 – 27.5 in)

50 – 60 cm (19.6 – 23.6 in)

40 – 50 cm (15.7 – 19.6 in)

Third warning

50 – 70 cm (19.6 – 27.5 in)

40 – 60 cm (15.7 – 23.6 in)

30 – 50 cm (11.8 – 19.6 in)

30 – 40 cm (11.8 – 15.7 in)

Fourth warning

Less than 50 cm (19.6 in)

Less than 40 cm (15.7 in)

Less than 30 cm (11.8 in)

Less than 30 cm (11.8 in)

AV

DIAGNOSIS SYSTEM (HEADREST DISPLAY UNIT)

AV-49

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (HEADREST DISPLAY UNIT)

Description

INFOID:0000000006216223

Self-diagnosis of headrest display unit can be performed by operating rear seat remote controller.

On Board Diagnosis Function

INFOID:0000000006216224

Self-diagnosis mode can check the following items.

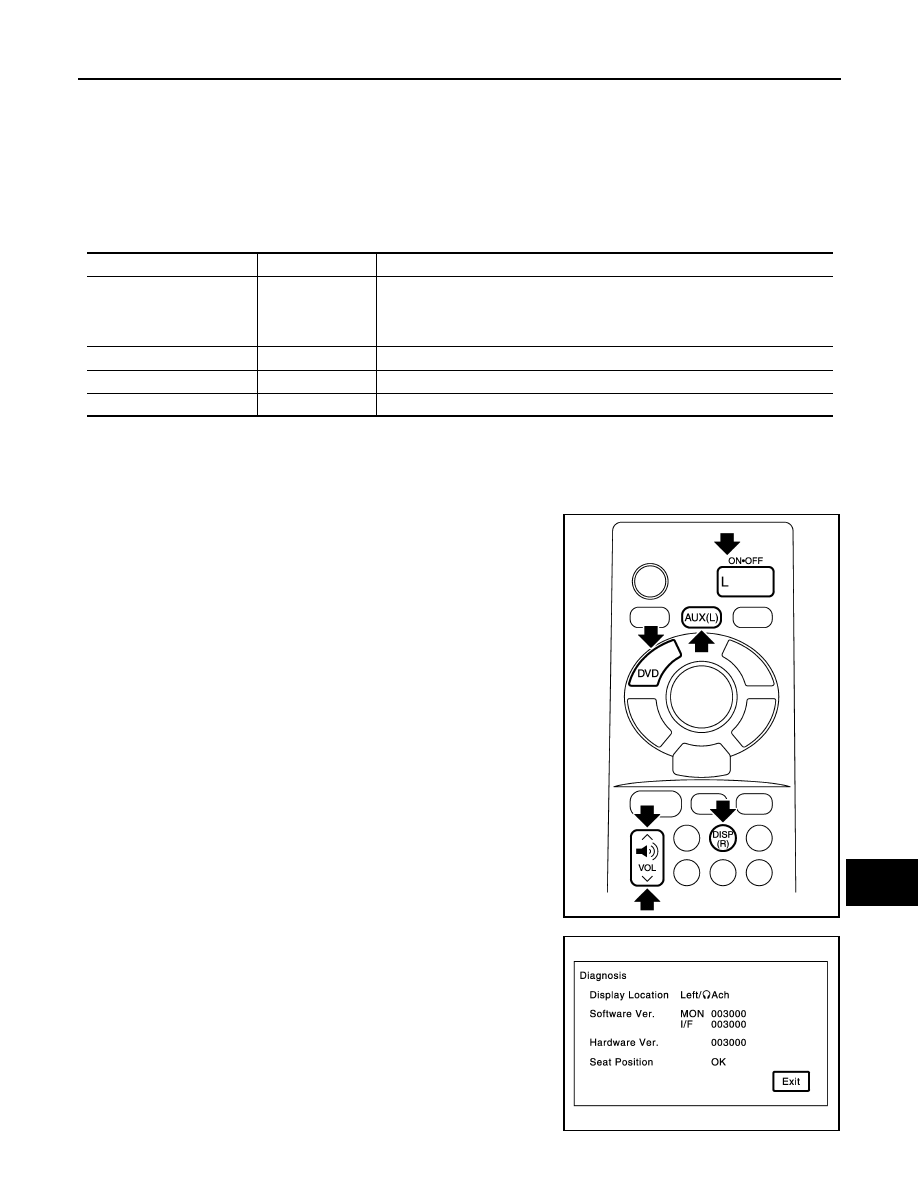

METHOD OF STARTING

1.

Turn ignition switch to the ON position.

2.

Turn the headrest display unit OFF.

3.

Press each switch of rear seat remote controller in the order shown below.
“AUX(L)”

“VOL DOWN”

“DISP(R)”

“VOL UP”

“DVD”

“L”

NOTE:
• Operation must be done within 20 seconds.
• Perform the operation of rear seat remote controller for head-

rest display unit of each side.

4.

When the rear seat remote operation is performed as shown on
procedure 3, self-diagnosis screen is displayed.

Diagnosis item

Display

Description

Display Location

Left/Right/Un-

known

Installation location of headrest display unit is displayed.
NOTE:
If displayed location is different from the actual location or shown as “unknown”,
check location recognition signal circuit.

Software Ver.

*****

Software version of headrest display unit is displayed.

Hardware Ver.

*****

Hardware version of headrest display unit is displayed.

Seat Position

OK

Not used for this vehicle.

JSNIA3003ZZ

JSNIA3005ZZ
