Infiniti QX56 (Z62). Manual - part 4





COMPONENT PARTS

ADP-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Door mirror (driver side/
passenger side)

Door mirror motor

It makes mirror face operate from side to side and up and down
with the electric power that automatic drive positioner control unit
supplies.

Mirror sensor

• Mirror sensor is installed to door mirror.
• The resistance of 2 sensors (horizontal and vertical) is changed

when door mirror is operated.

• Automatic drive positioner control unit calculates door mirror po-

sition according to the change of the voltage of 2 sensor input
terminals.

Tilt motor

Tilt motor

• Tilt motor is installed to steering column assembly.
• Tilt motor is activated with automatic drive positioner control unit.
• Steering column is tilted upward/downward by changing the ro-

tation direction of tilt motor.

Tilt sensor

• Tilt sensor is integrated in tilt motor.
• The resistance of tilt sensor is changed according to the up/

down position of steering column.

• The terminal voltage of automatic drive positioner control unit

will be changed according to a change of tilt sensor resistance.

• Automatic drive positioner control unit calculates the tilt position

from the voltage.

Telescopic motor

Telescopic motor

• Telescopic motor is installed to steering column assembly.
• Telescopic motor is activated with automatic drive positioner

control unit.

• Compresses steering column by changing the rotation direction

of telescopic motor.

Telescopic sensor

• Telescopic sensor is integrated in telescopic motor.
• The resistance of telescopic sensor is changed according to the

forward/backward position of steering column.

• The terminal voltage of automatic drive positioner control unit

will be changed according to a change of telescopic sensor re-
sistance.

• Automatic drive positioner control unit calculates the telescopic

position from the voltage.

Sliding motor

Sliding motor

• Seat sliding motor is installed to the seat cushion frame.
• Seat sliding motor is activated with driver seat control unit.
• Slides the seat frontward/ rearward by changing the rotation di-

rection of sliding motor.

Sliding sensor

• Sliding sensor is integrated in sliding motor.
• The pulse signal is input to driver seat control unit when sliding

is performed.

• Driver seat control unit counts the pulse and calculates the slid-

ing amount of the seat.

Reclining motor

Reclining motor

• Seat reclining motor is installed to seat back frame.
• Seat reclining motor is activated with driver seat control unit.
• Seatback is reclined frontward/rearward by changing the rota-

tion direction of reclining motor.

Reclining sensor

• Reclining sensor is integrated in reclining motor.
• The pulse signal is input to driver seat control unit when the re-

clining is operated.

• Driver seat control unit counts the pulse and calculates the re-

clining amount of the seat.

Lifting motor (front)

Lifting motor (front)

• Lifting motor (front) is installed to seat side cushion frame.
• Lifting motor is activated with driver seat control unit.
• Seat lifter (front) is moved upward/downward by changing the

rotation direction of lifting motor (front).

Lifting sensor (front)

• Lifting sensor (front) is installed in lifting motor (rear).
• When lifting motor (rear) operates, pulse signal is transmitted to

driver seat control unit from lifting sensor. Driver seat control unit
counts the pulse and calculates the lift position (rear) of the seat.

Component parts

Description

ADP-10

< SYSTEM DESCRIPTION >

COMPONENT PARTS

Lifting motor (rear)

Lifting motor (rear)

• Lifting motor (rear) is installed to seat slide cushion frame.
• Lifting motor (rear) is activated with driver seat control unit.
• Seat lifter (rear) is moved upward/downward by changing the ro-

tation direction of lifting motor (rear).

Lifting sensor (rear)

• Lifting sensor (rear) is installed to seat side cushion frame.
• The pulse signal is input to driver seat control unit when lifting

(rear) is operated.

• Driver seat control unit counts the pulse and calculates the lifting

(rear) amount of the seat.

Component parts

Description

SYSTEM

ADP-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

SYSTEM

AUTOMATIC DRIVE POSITIONER SYSTEM

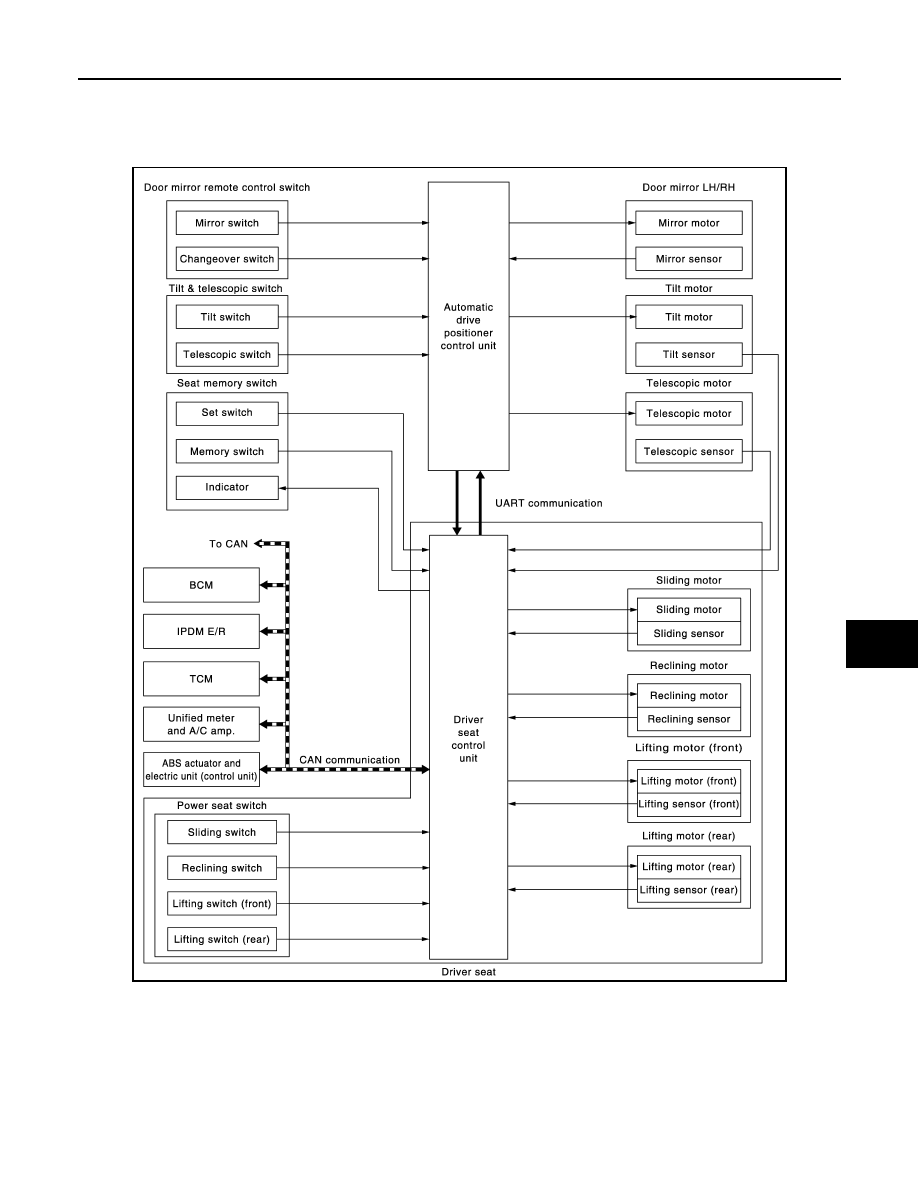

AUTOMATIC DRIVE POSITIONER SYSTEM : System Diagram

INFOID:0000000006248303

AUTOMATIC DRIVE POSITIONER SYSTEM : System Description

INFOID:0000000006248304

The system automatically moves the driver seat, steering column and door mirror position by the driver seat
control unit and the automatic drive positioner control unit. The driver seat control unit corresponds with the
automatic drive positioner control unit by UART communication.

JMJIA3773GB

ADP-12

< SYSTEM DESCRIPTION >

SYSTEM

NOTE:
The lumbar support system are controlled independently with no link to the automatic drive positioner system.
Refer to

SE-16, "LUMBAR SUPPORT SYSTEM : System Description"

.

Sleep control

Driver seat control unit equips sleep control for reducing power consumption.
The system switches to sleep control when all of the following conditions are satisfied.
• Ignition switch is OFF (steering lock status).
• All devices of auto driving position system are not operating.
• 45 seconds timer of driver seat control unit is not operating.
• Set switch and memory switch (1 and 2) are OFF.

Wake-up control

Sleep control releases when detecting status change in either of the following item.
• CAN communication
• Power seat switch
• Set switch and seat memory switch (1 and 2)
• Tilt & telescopic switch

MANUAL FUNCTION

Function Description

Manual function

The driving position (seat, steering column and door mirror position) can be adjusted
by using the power seat switch, tilt & telescopic switch or door mirror remote control
switch.

Memory function

The seat, steering column and door mirror move to the stored driving position by
pressing seat memory switch (1 or 2).

Entry/Exit assist function

Exit

On exit, the seat moves backward and the steering column moves upward.

Entry

On entry, the seat and steering column returns from exiting position to the previous
driving position.

Intelligent Key interlock function

Perform memory operation, exiting operation and entry operation by Intelligent Key
unlock operation or driver side door request switch unlock operation.
