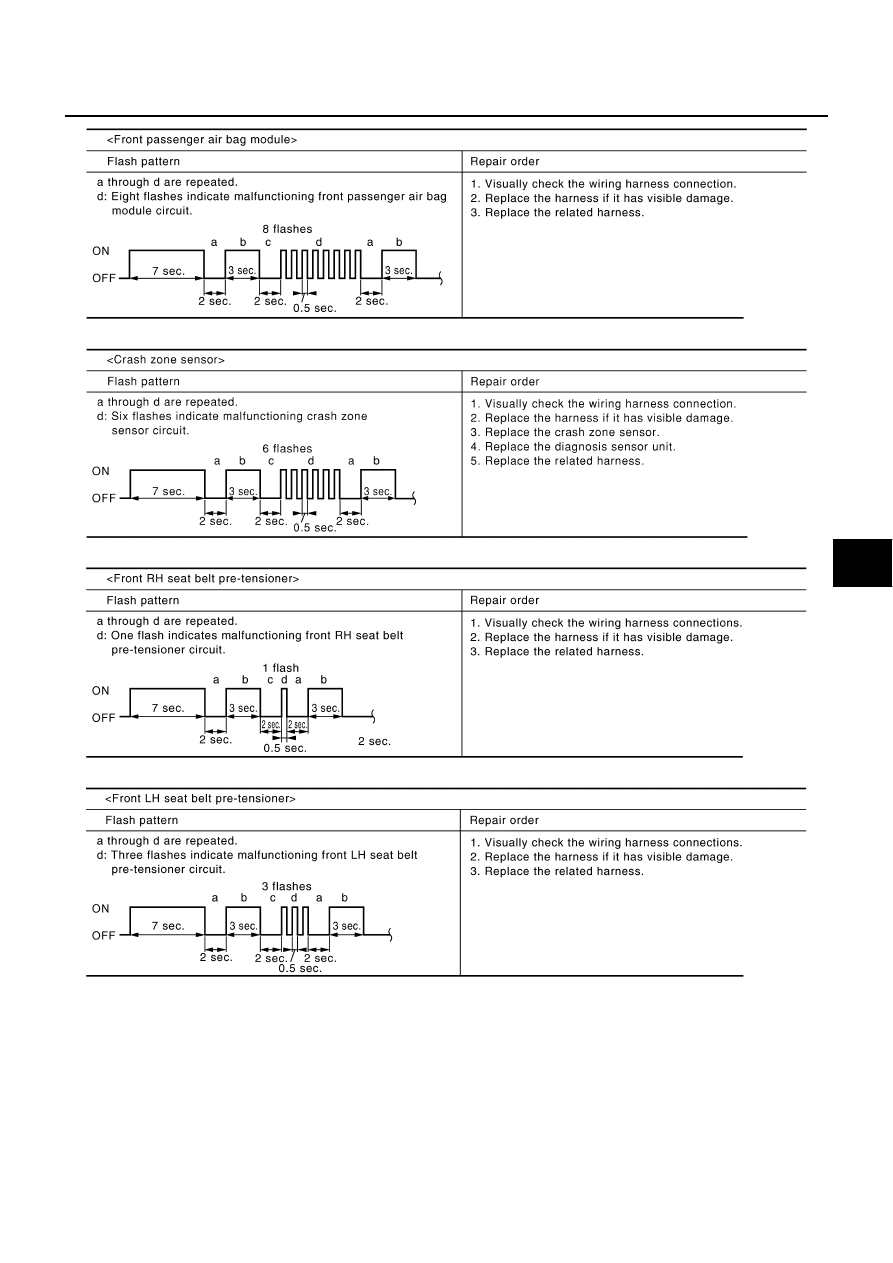

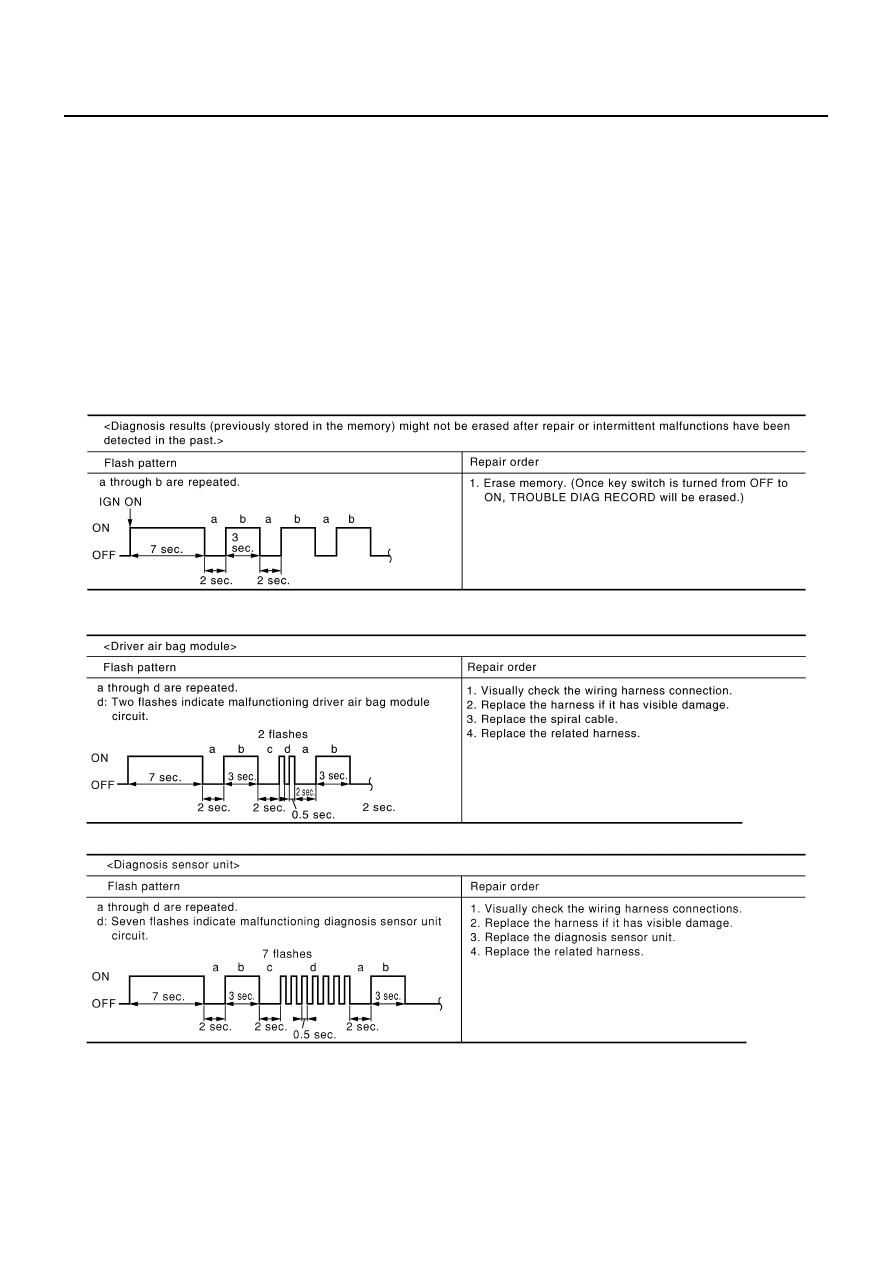

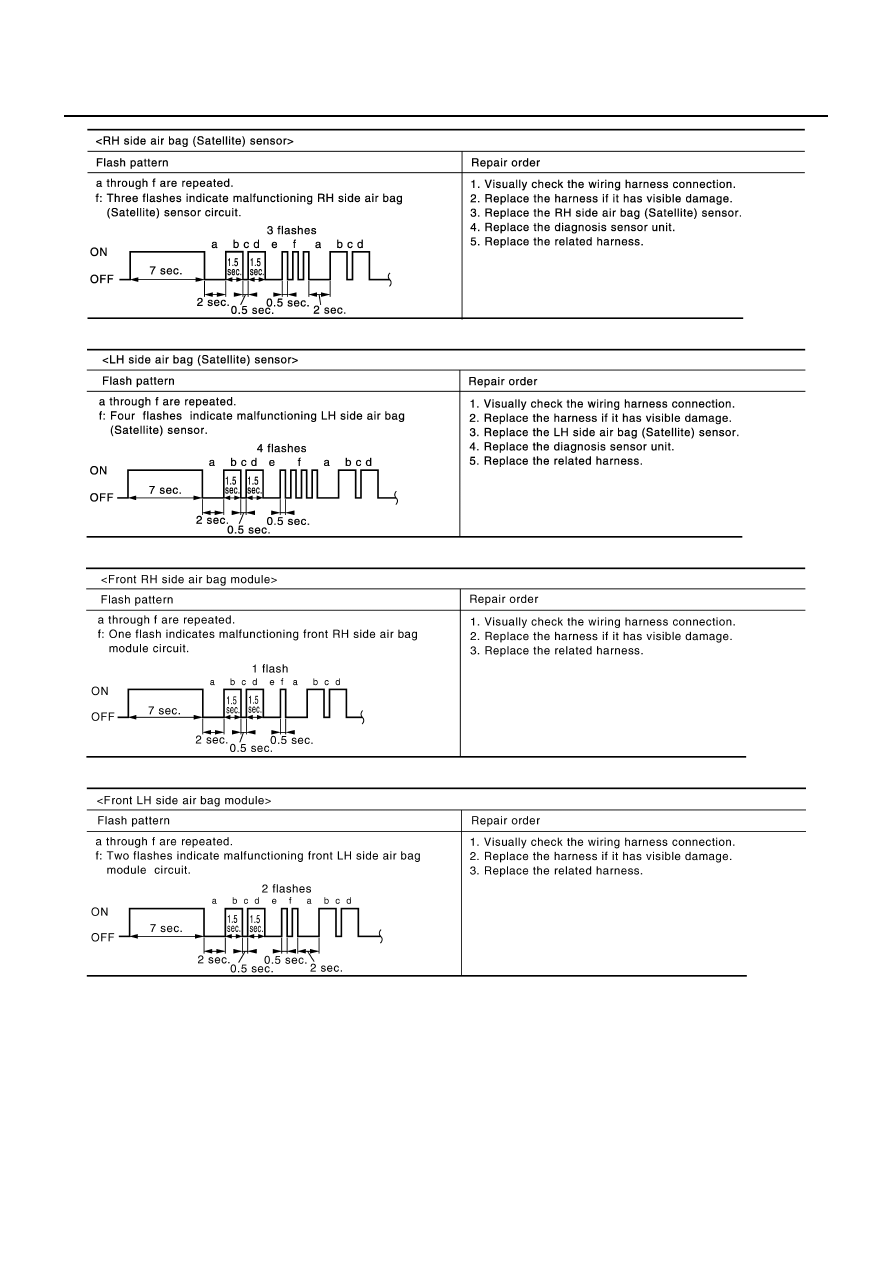

TROUBLE DIAGNOSIS SRS-33 C D E F G I J K L M A B SRS PASS A/B INDCTR ● Cutoff telltale circuit is open or shorted to grand or the circuits 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace cutoff telltale. 4. Replace the diagnosis sensor unit. OCCUPANT SENS C/U ● Trouble occurs in Occupant Classification System-CU. ● Replace passenger side seat cush- OCCUPANT SENS ● Trouble occurs in Occupant Classification System-SENS. ● Replace passenger side seat cush- BELT TENSION SENS ● Trouble occurs in Belt Tension sensor (BTS), circuit of BTS— 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace passenger side seat belt assembly. 4. Replace the diagnosis sensor unit. OCCUPANT SENS C/U ● Trouble occurs in Occupant Classification System-CU, circuit of 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace passenger side seat cush- ion assembly. 4. Replace the diagnosis sensor unit. FRONTAL COLLISION- ● Seat belt pre-tensioner and front air bag are deployed. ● Go to . SIDE COLLISION ● Side and curtain air bag is deployed. ● Go to Diagnostic item Explanation Repair order “Recheck SRS at each replacement” |
