TROUBLE DIAGNOSIS

SCS-9

C

D

F

G

H

I

J

K

L

M

A

B

SCS

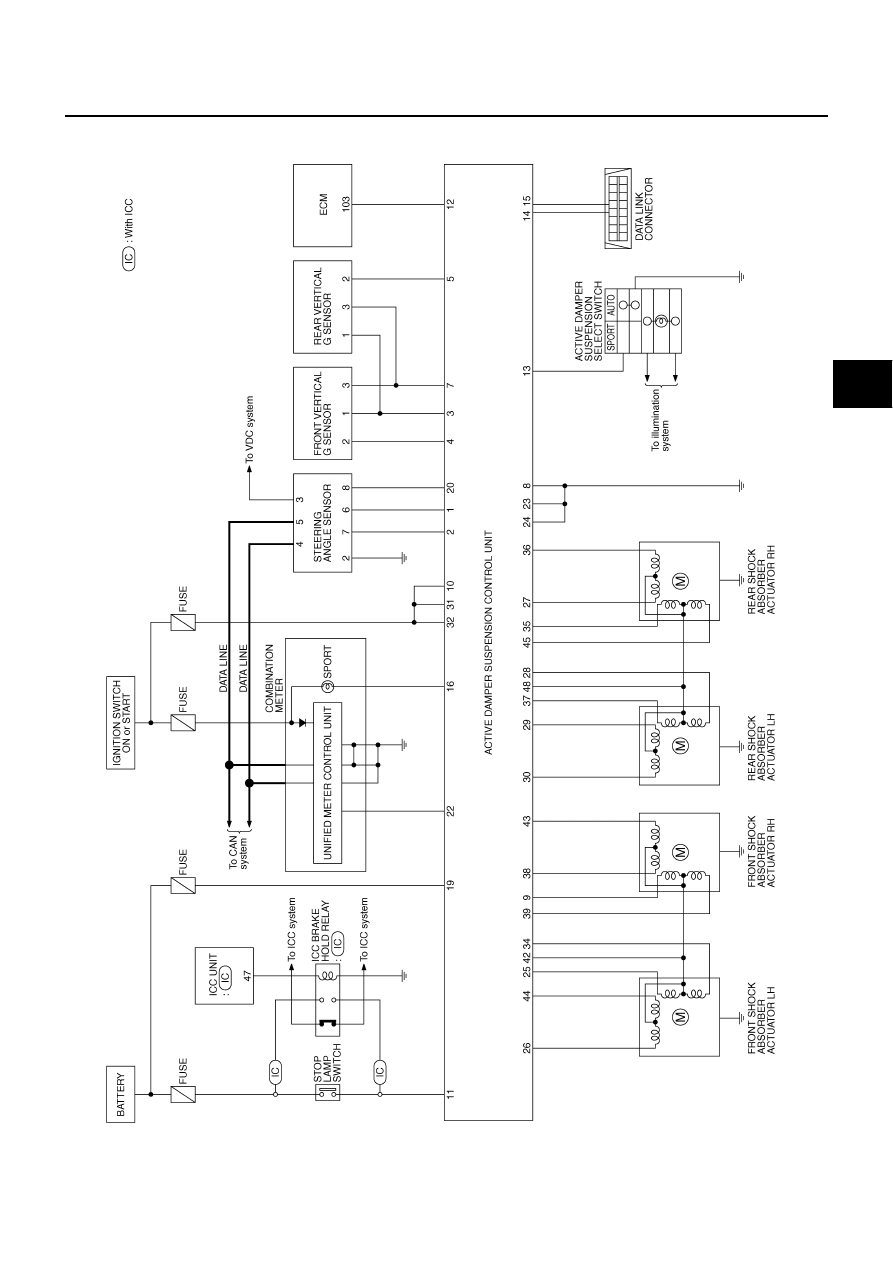

Circuit Diagram

NES000AP

TEWM0134E

SCS-10

TROUBLE DIAGNOSIS

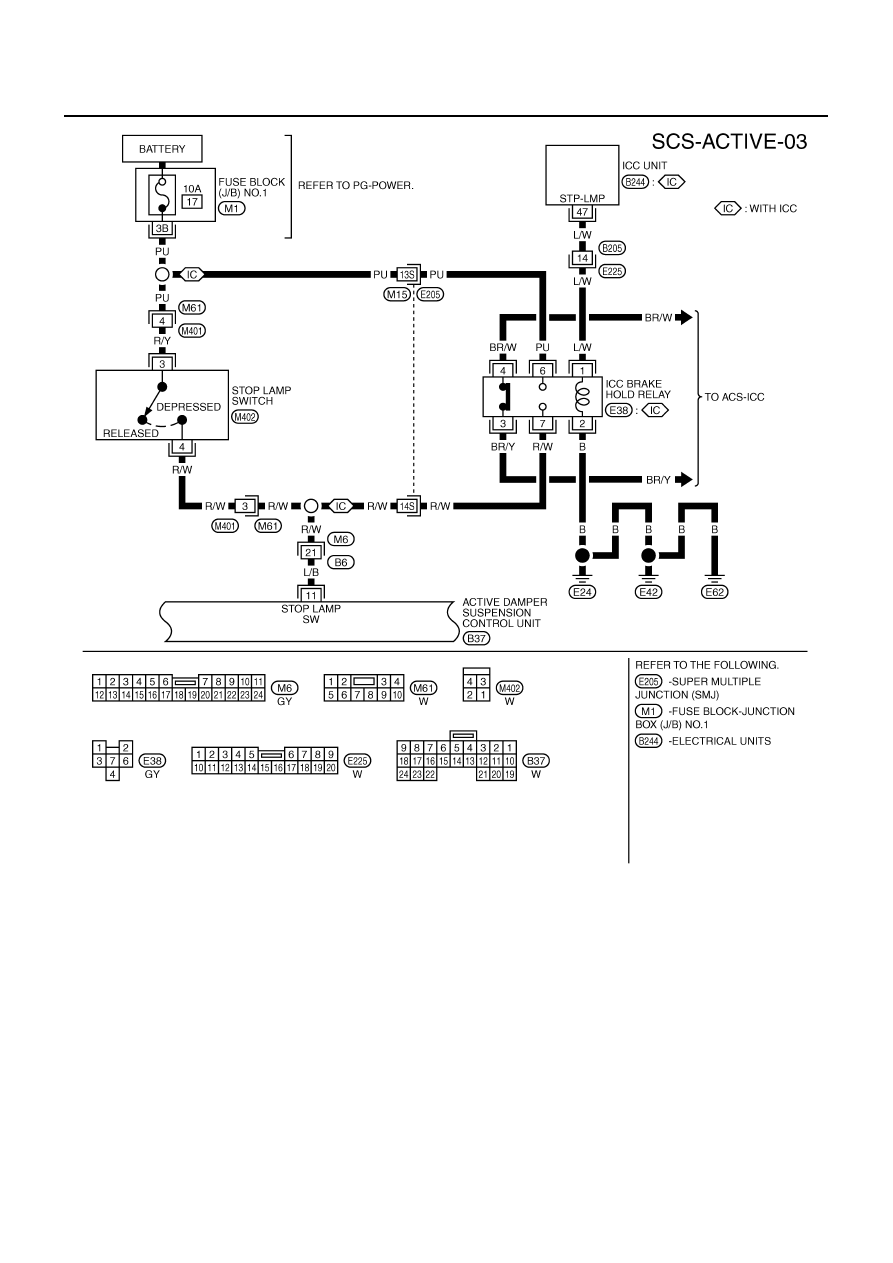

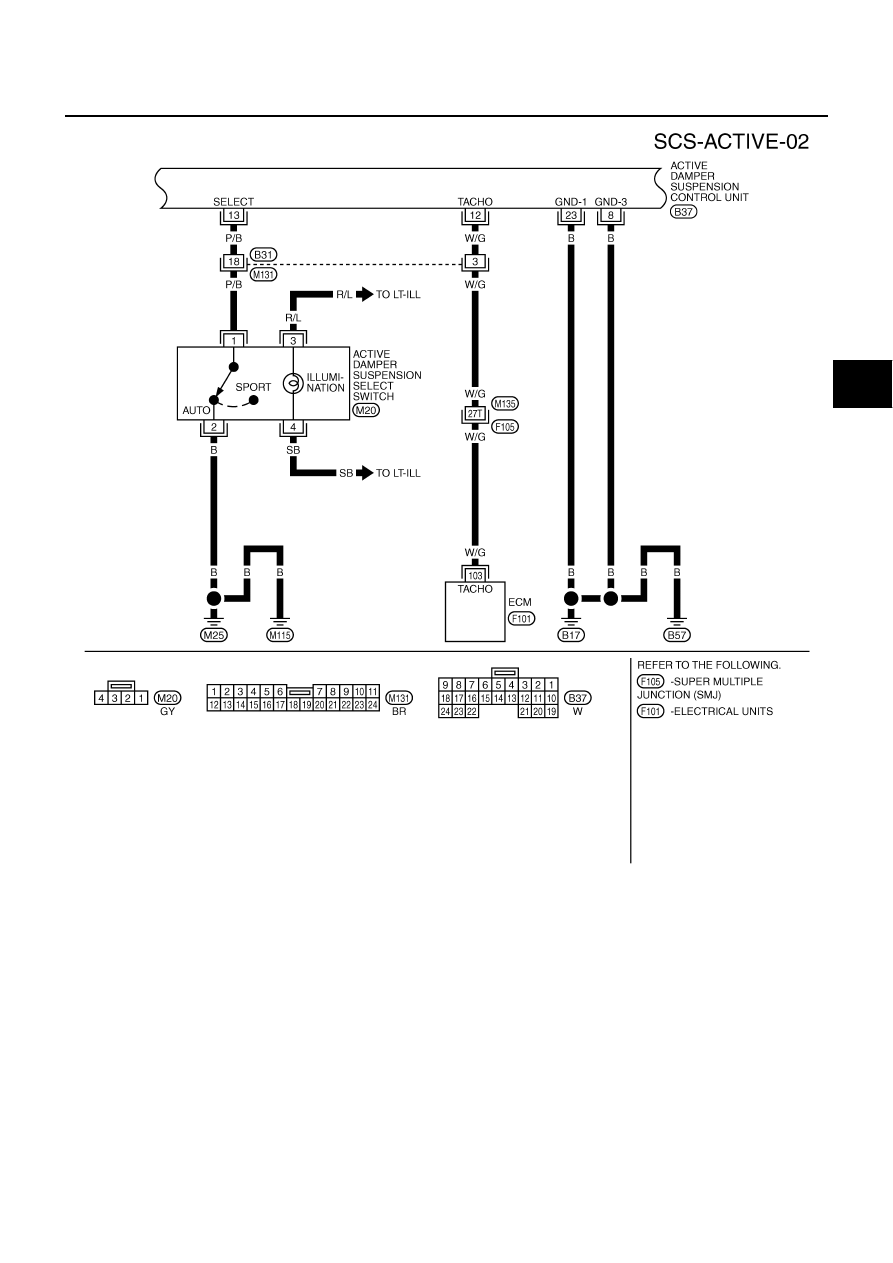

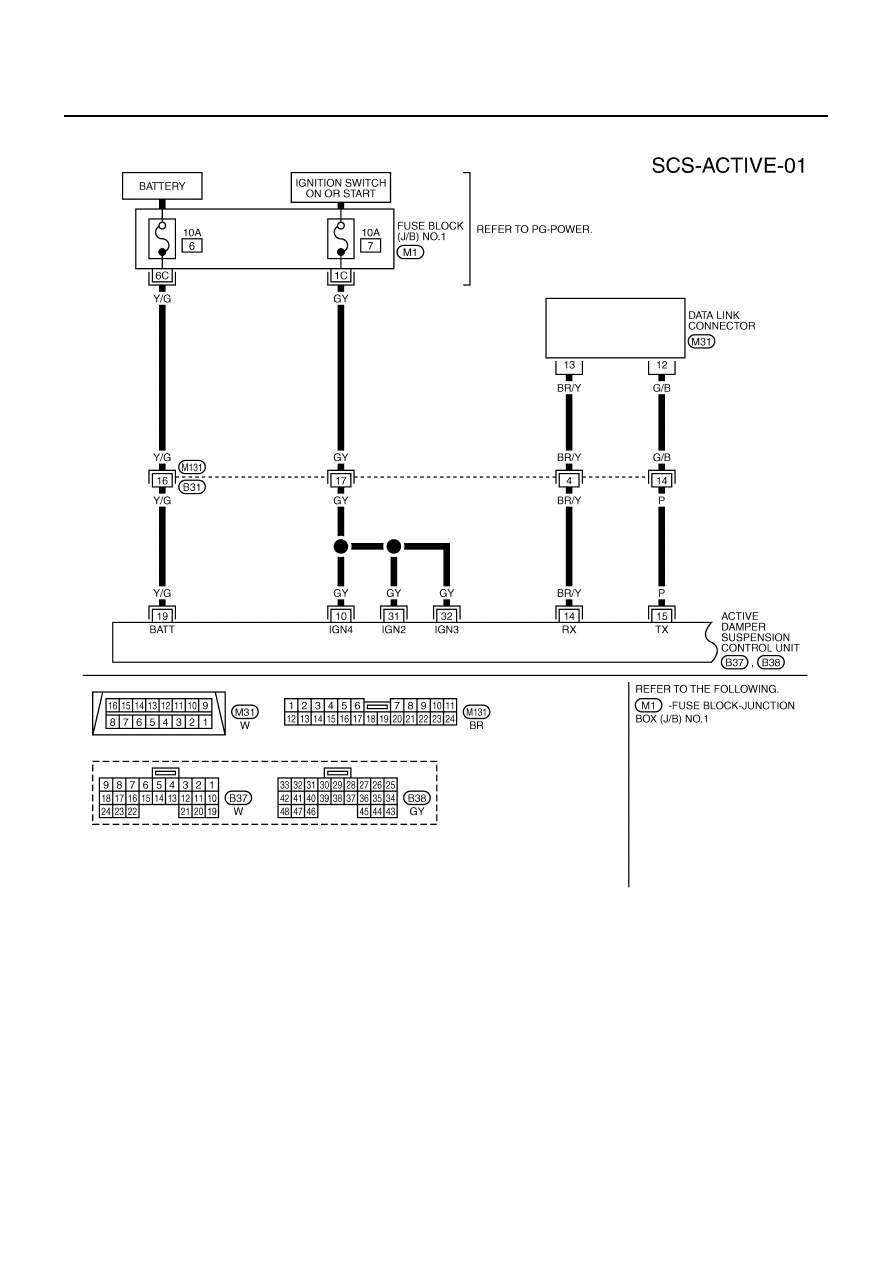

Wiring Diagram — ACTIVE —

NES000B1

TEWM0126E

TROUBLE DIAGNOSIS

SCS-11

C

D

F

G

H

I

J

K

L

M

A

B

SCS

TEWM0135E

SCS-12

TROUBLE DIAGNOSIS

TEWM0127E
