HYDRAULIC LINE

PS-33

C

D

E

F

H

I

J

K

L

M

A

B

PS

●

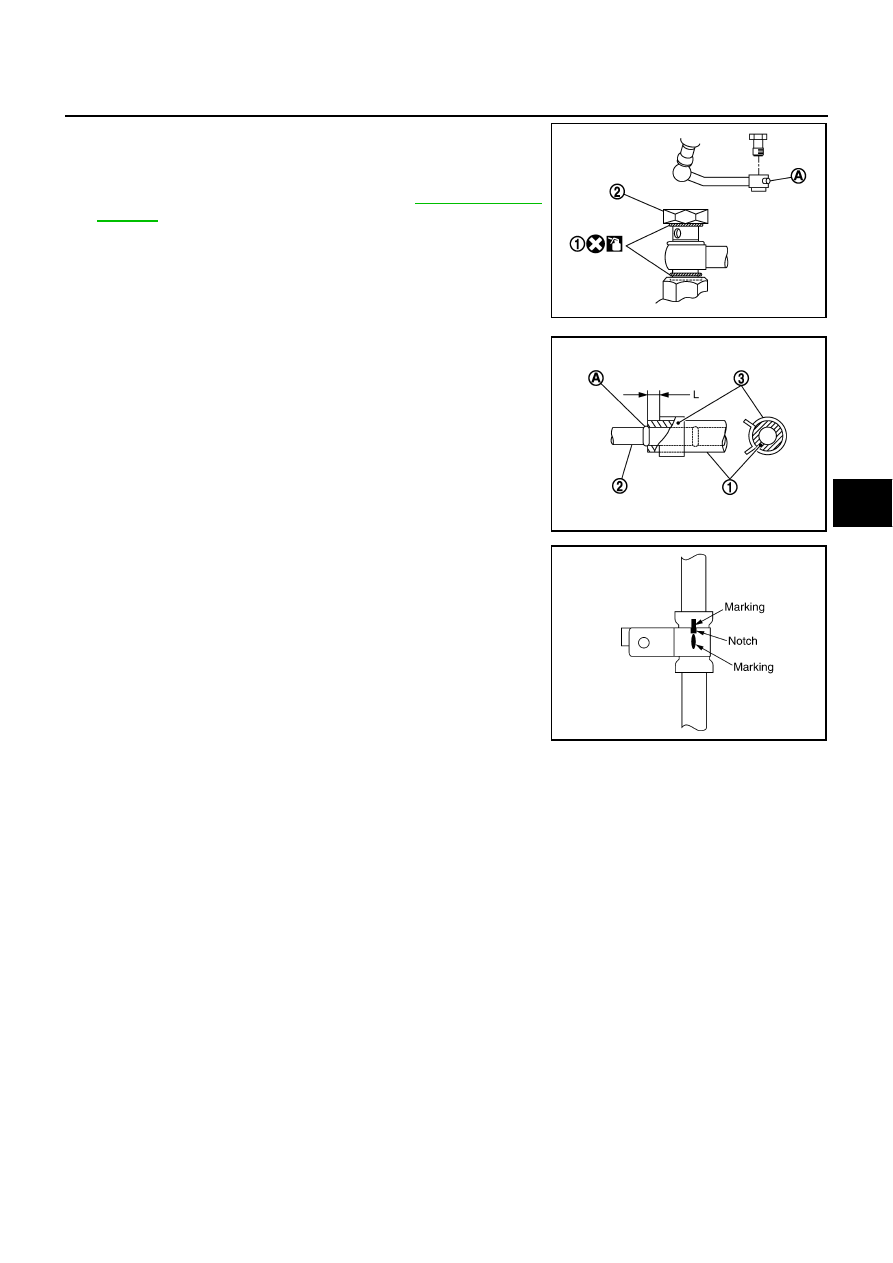

Apply Genuine Nissan PSF or equivalent to around the O-
ring (1), then install the eye-bolt (2) with the eye-joint
(assembled to high pressure hose) protrusion (A) facing
with pump side cutout, and then tighten it to the specified
torque after tightening by hand. Refer to

PS-27, "COMPO-

NENTS"

 .

●

Never apply fluid to the hose (1) and tube (2).

●

Insert the hose (1) securely until it contacts the spool (A) of
the tube (2).

●

Install the clamp (3) to the hose (2) at dimension “L” from
the edge of the hose (2).

●

Confirm with mating marking that if it is in phase with the
hose and clamp, then correct if needs.

SGIA1598E

Dimension “L”

: 3 – 8 mm (0.12 – 0.31 in)

SGIA1600E

SGIA0563E

PS-34

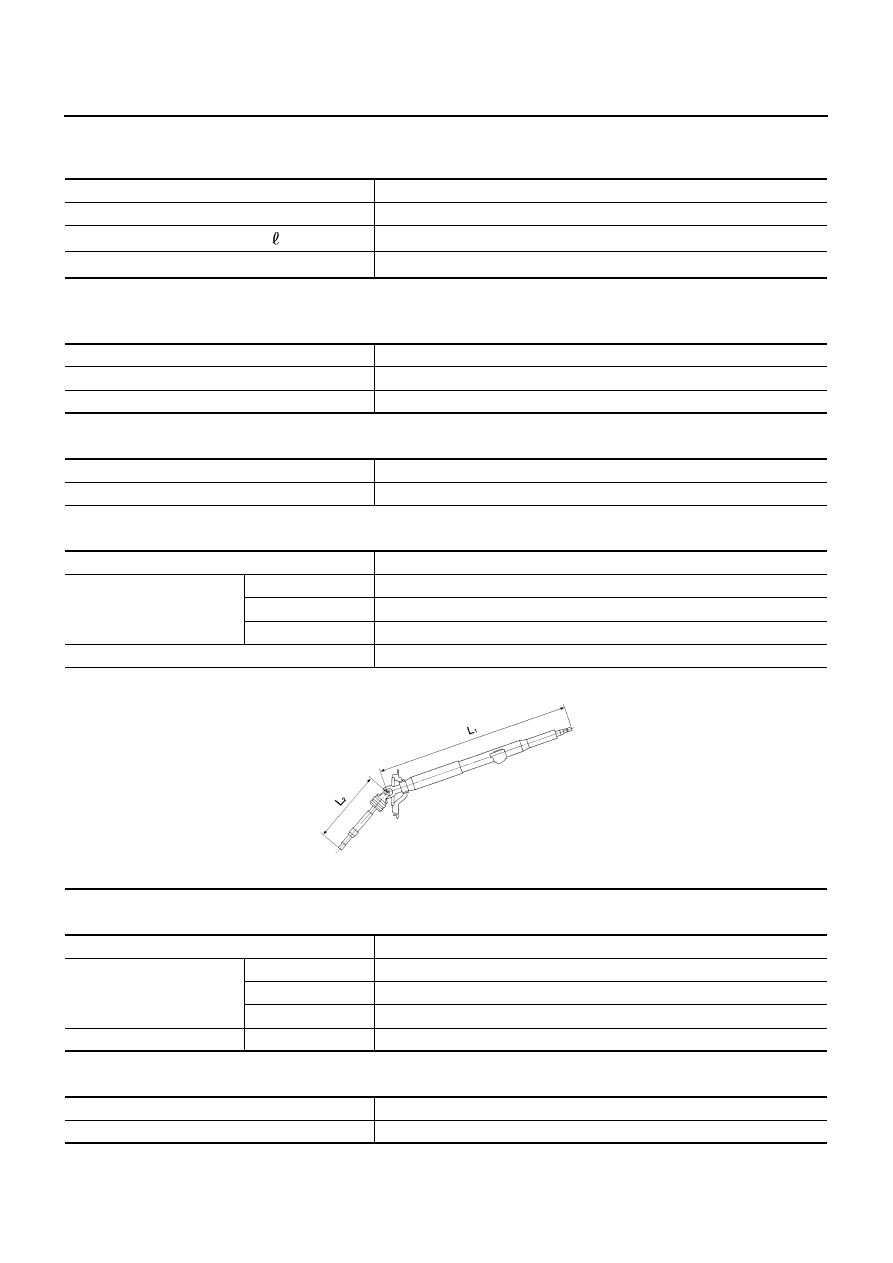

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

NGS0004D

Inspection and Adjustment

NGS0004E

STEERING WHEEL AXIAL END PLAY AND PLAY

Unit: mm (in)

STEERING WHEEL TURNING FORCE

Unit: N (kg, lb)

STEERING COLUMN LENGTH

Unit: mm (in)

STEERING ANGLE

Unit: Degree minute (Decimal degree)

RACK SLIDING FORCE

Unit: N (kg, lb)

Applied model

VK45DE

Steering gear model

PR26AF

Fluid capacity (Approx.)

 (US qt, lmp qt)

1.0 (1-1/8, 7/8)

Relief oil pressure

kPa (kg/cm

2

 , psi)

8,500 - 9,300 (88 - 94, 1,251 - 1,337)

Item

Standard

End play of the axial direction for steering wheel

0 (0)

Steering wheel play on the outer circumference

0 - 35 (0 - 1.38)

Item

Standard

Steering wheel turning force

36 (3.6, 8.0) or less

Item

Standard

Steering column length “L

1

 ”

Minimum

628 mm (24.72 in)

Neutral

643 mm (25.31 in)

Maximum

658 mm (25.91 in)

Steering column length “L

2

 ”

346.8 mm (13.65 in)

SST315B

Item

Standard

Inner wheel

Minimum

39

°

45

′

 (39.75

°

)

Nominal

42

°

45

′

 (42.75

°

)

Maximum

43

°

45

′

 (43.75

°

)

Outer wheel

Nominal

33

°

50

′

 (33.83

°

)

Item

Standard

Rack sliding force

255 - 294 (26.1 - 29.9, 57.4 - 66.0)

SERVICE DATA AND SPECIFICATIONS (SDS)

PS-35

C

D

E

F

H

I

J

K

L

M

A

B

PS

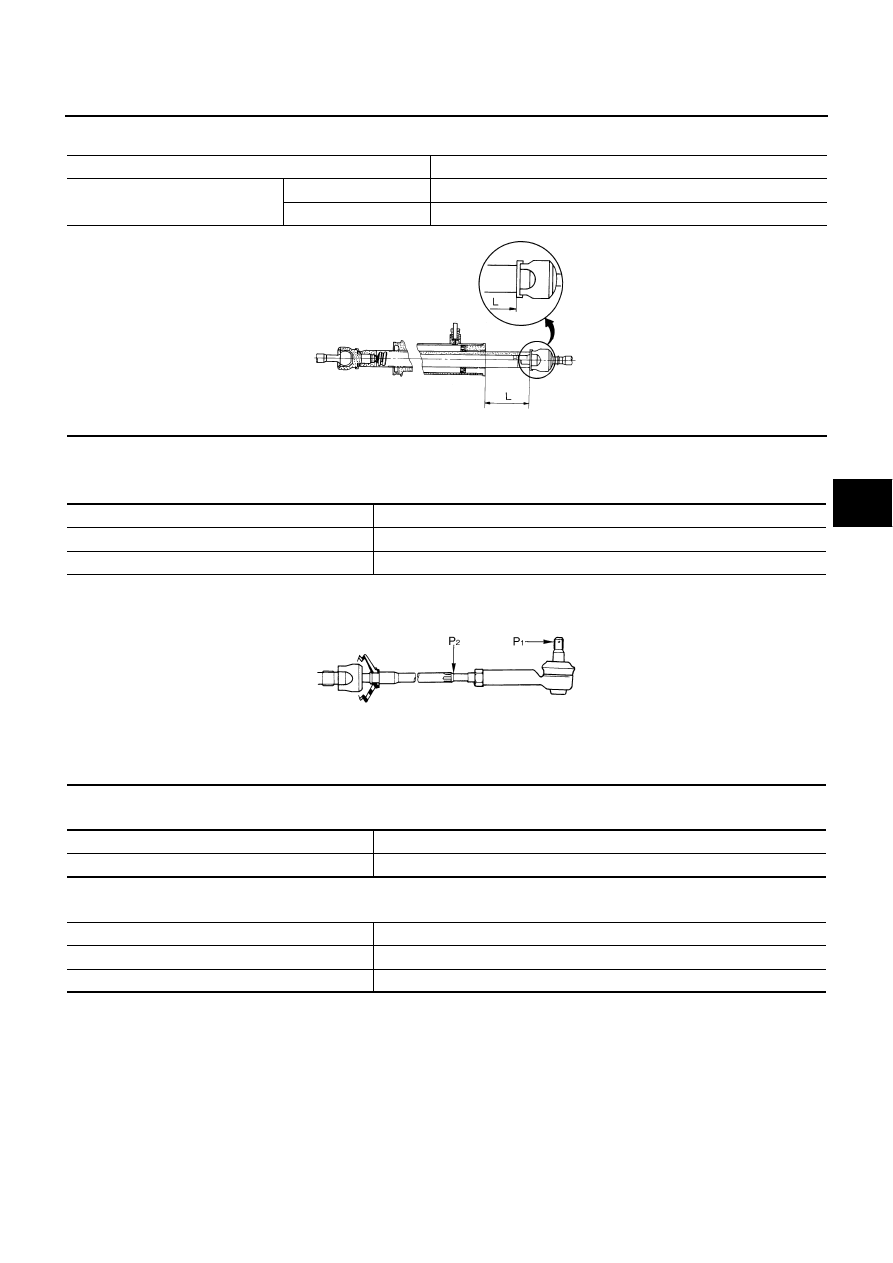

RACK STROKE

Unit: mm (in)

SOCKET SWING TORQUE AND ROTATING TORQUE
Swing Torque

Unit: N (kg, lb)

Rotating Torque

Unit: N·m (kg-m, in-lb)

SOCKET AXIAL END PLAY

Unit: mm (in)

Item

Standard

Rack neutral position, dimension “L”

Except for RAS models

68.5 (2.697)

RAS models

66.0 (2.598)

SGIA0629J

Item

Standard

Outer socket “P

1

 ”

4.81 - 45.7 (0.50 - 4.6, 1.09 - 10.2)

Inner socket “P

2

 ”

8.9 - 64 (0.91 - 6.5, 2.00 - 14.3)

SGIA1540E

Item

Standard

Outer socket

0.3 - 2.9 (0.03 - 0.29, 3 - 25)

Item

Standard

Outer socket

0.5 (0.02) or less

Inner socket

0.2 (0.008) or less

PS-36

SERVICE DATA AND SPECIFICATIONS (SDS)

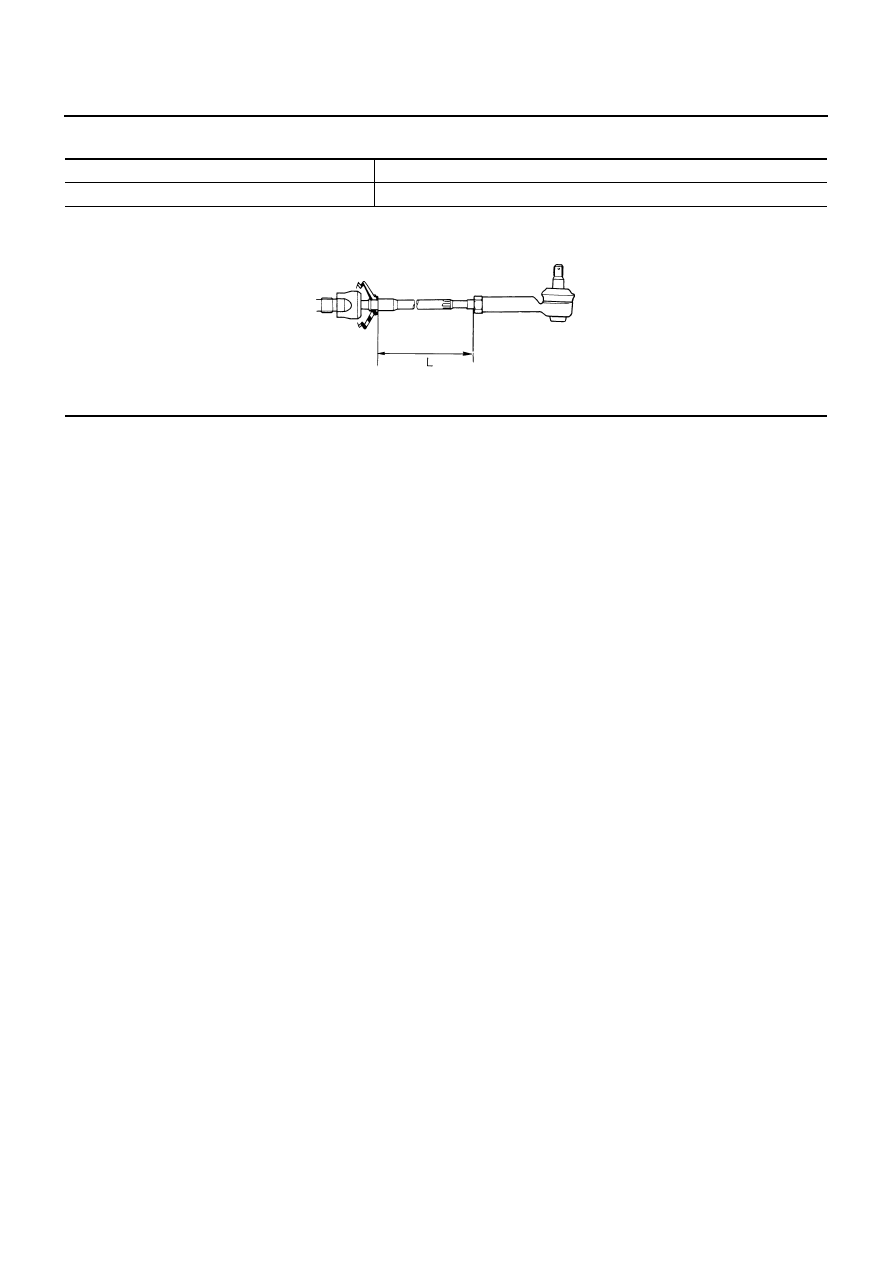

INNER SOCKET LENGTH

Unit: mm (in)

Item

Standard

Inner socket length “L”

160 (6.30)

SGIA1512E
