Infiniti Q45. Manual - part 726

POWER SUPPLY ROUTING

PG-3

C

D

E

F

G

H

I

J

L

M

A

B

PG

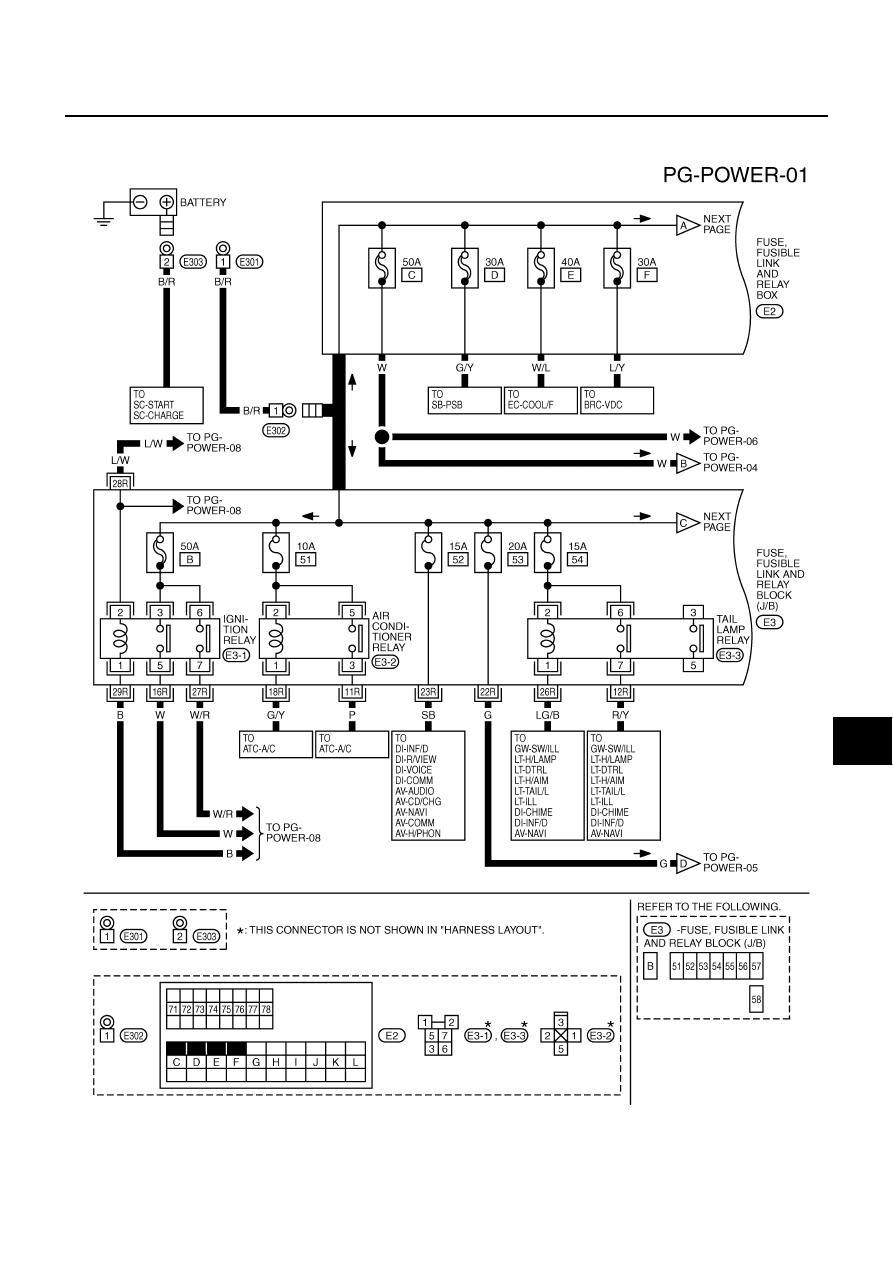

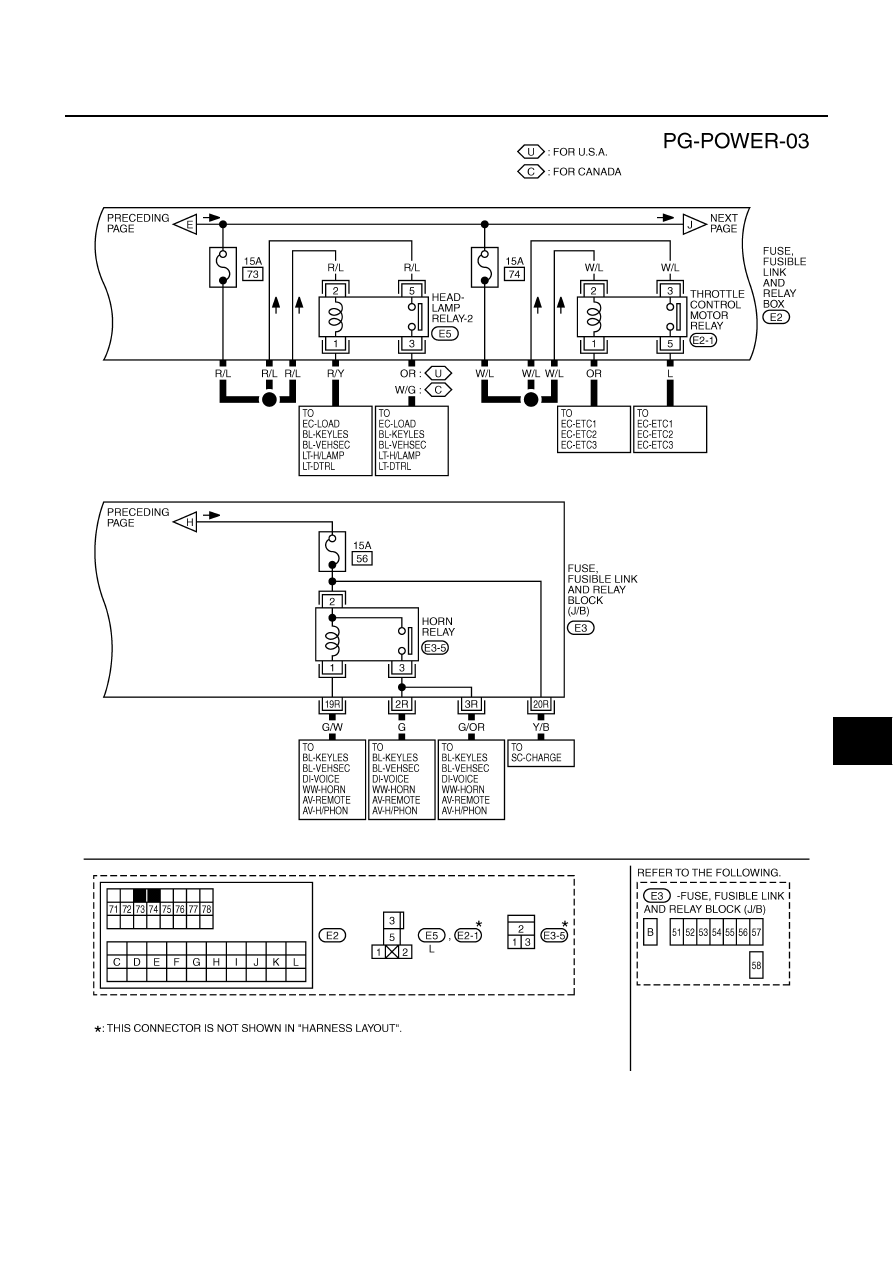

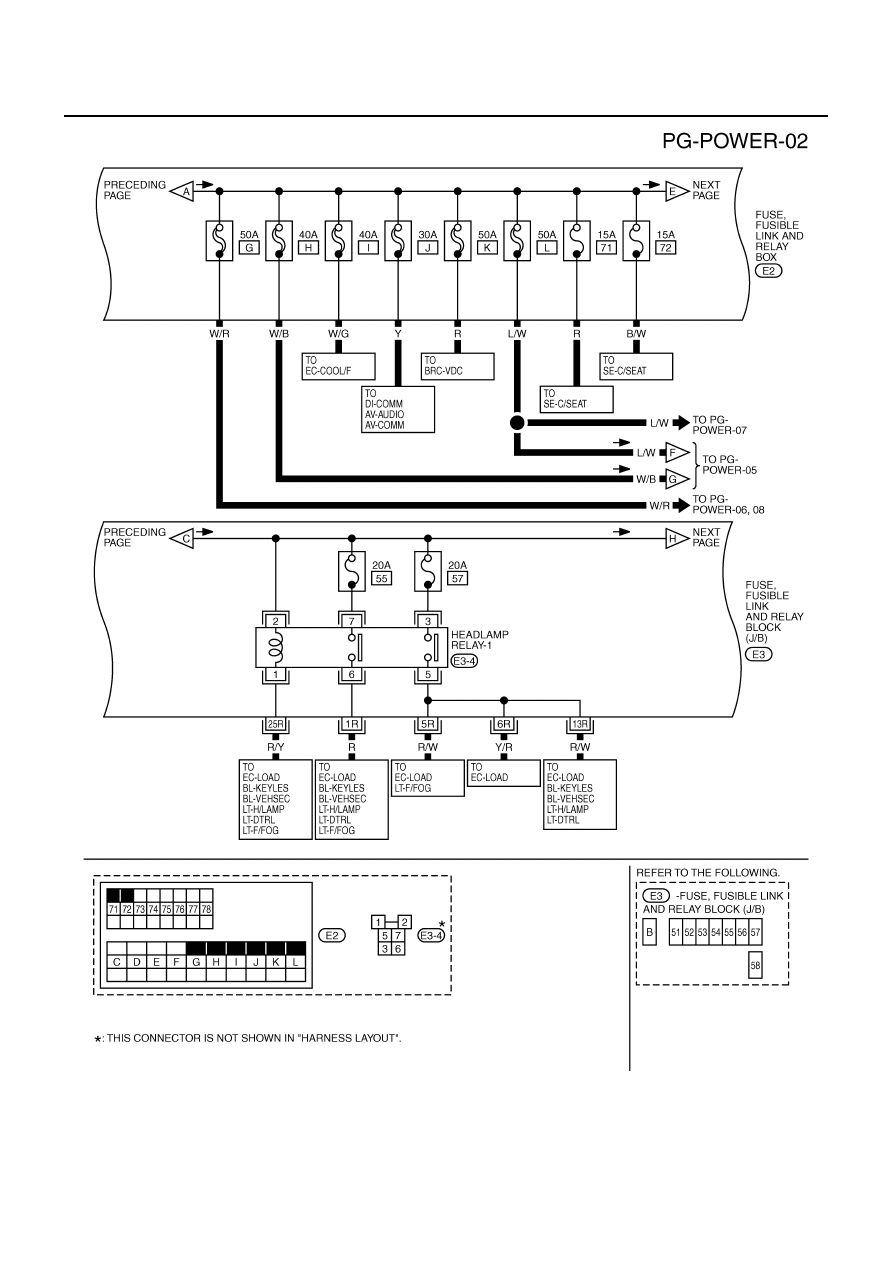

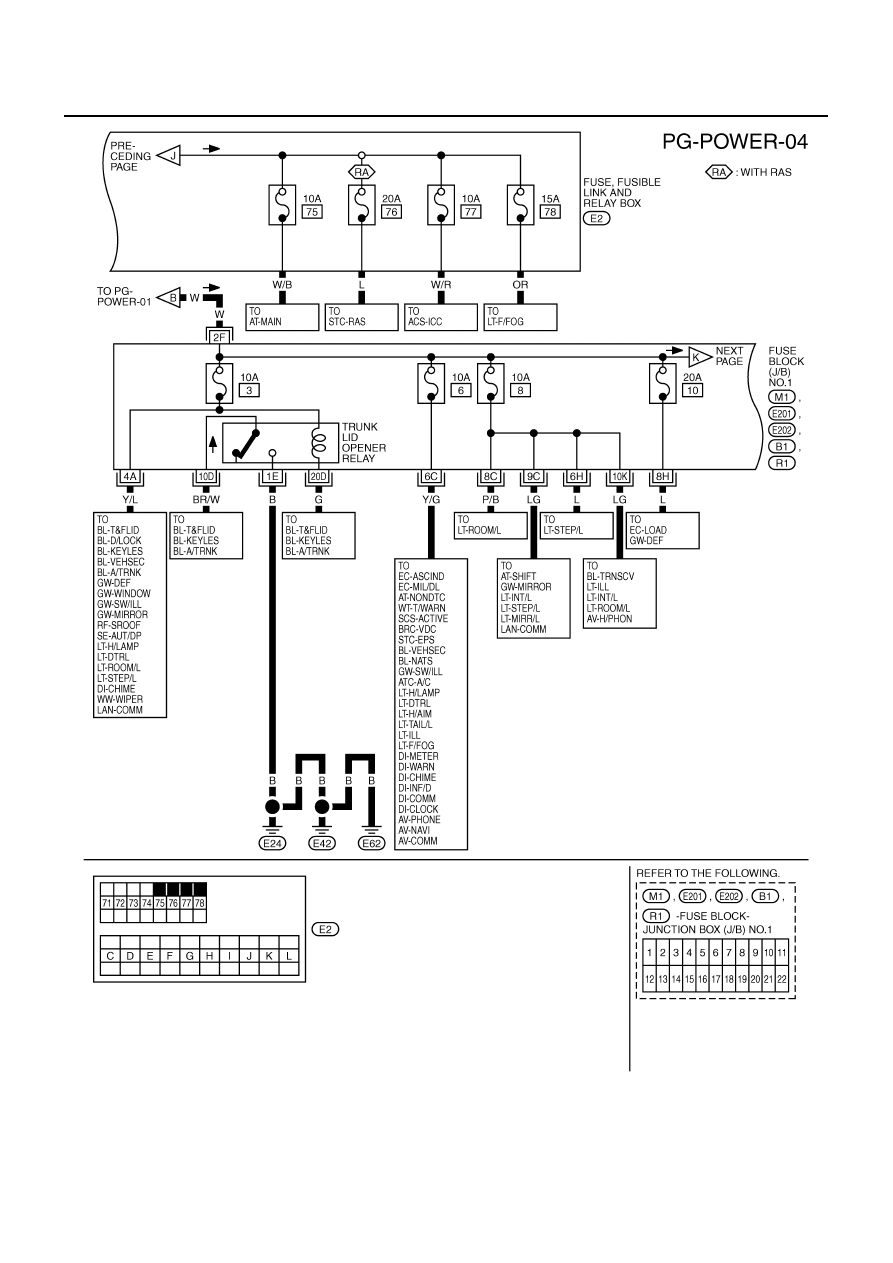

Wiring Diagram — POWER —

NKS001LK

BATTERY POWER SUPPLY— IGNITION SW. IN ANY POSITION

TKWM3842E

PG-4

POWER SUPPLY ROUTING

TKWM3843E

POWER SUPPLY ROUTING

PG-5

C

D

E

F

G

H

I

J

L

M

A

B

PG

TKWM3844E

PG-6

POWER SUPPLY ROUTING

TKWM3845E
