Infiniti Q45. Manual - part 711





ILLUMINATION

LT-181

C

D

E

F

G

H

I

J

L

M

A

B

LT

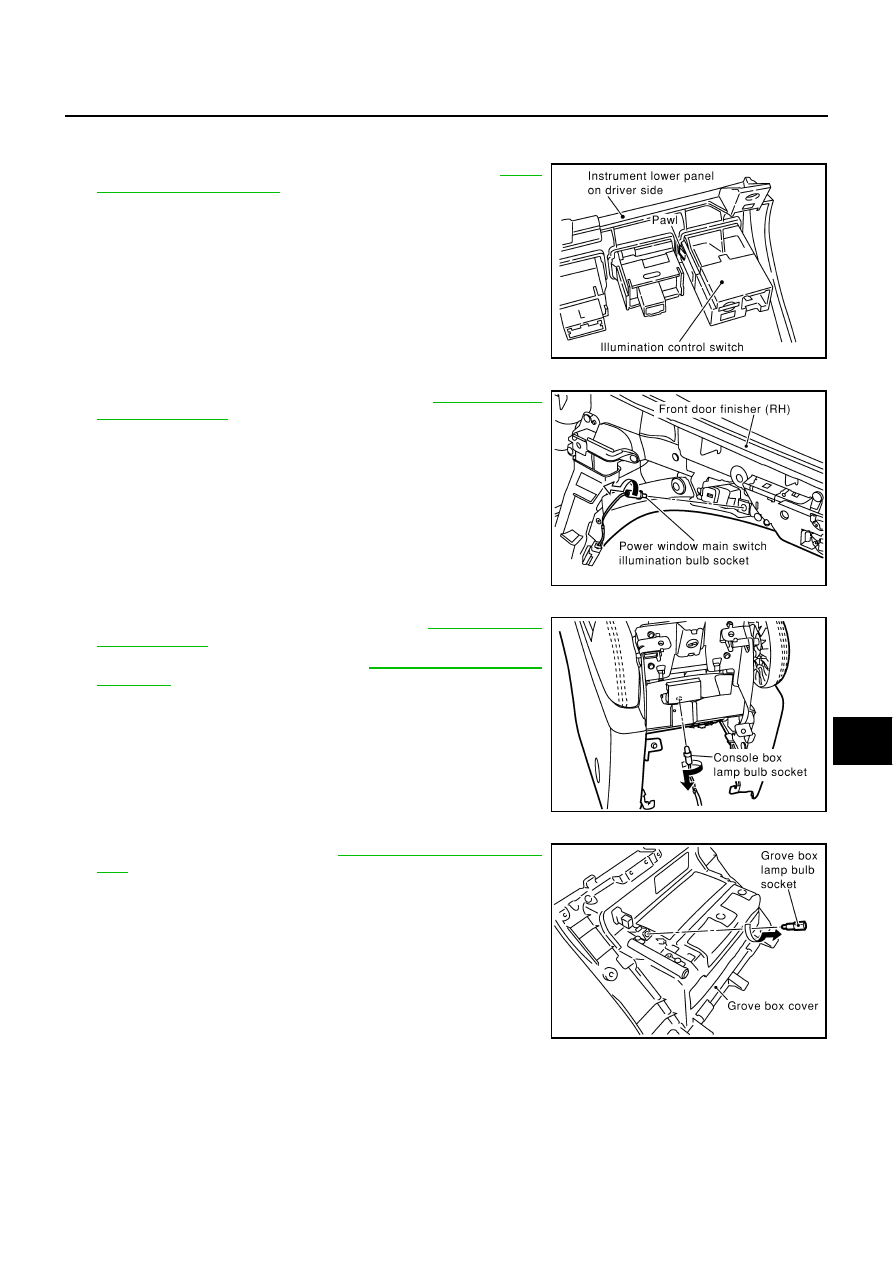

Removal and Installation

NKS001AR

ILLUMINATION CONTROL SWITCH

1.

Remove lower instrument panel (driver side). Refer to

IP-10,

"Removal and Installation"

 .

2.

Press illumination control switch fixing tabs and remove unit
from lower instrument panel (driver side).

POWER WINDOW MAIN SWITCH ILLUMINATION

1.

Remove the front door finisher (RH). Refer to

EI-36, "FRONT

DOOR FINISHER"

  in “EXTERIOR & INTERIOR (EI)” section.

2.

Turn the bulb socket counterclockwise and unlock it.

CONSOLE BOX LAMP

1.

Remove center console box assembly. Refer to

IP-10, "Removal

and Installation"

 .

2.

Remove console box finisher. Refer to

IP-17, "Disassembly and

Assembly"

 .

3.

Turn bulb socket and unlock it.

GLOVE BOX LAMP

1.

Remove glove box cover. Refer to

IP-10, "Removal and Installa-

tion"

 .

2.

Turn bulb socket counterclockwise and unlock it.

SKIA0466E

Power window main switch
illumination

: 12V-1.4W

PKIA0178E

Console box lamp

: 12V-2W

PKIA0079E

Glove box lamp

: 12V-1.4W

PKIA0179E

LT-182

ILLUMINATION

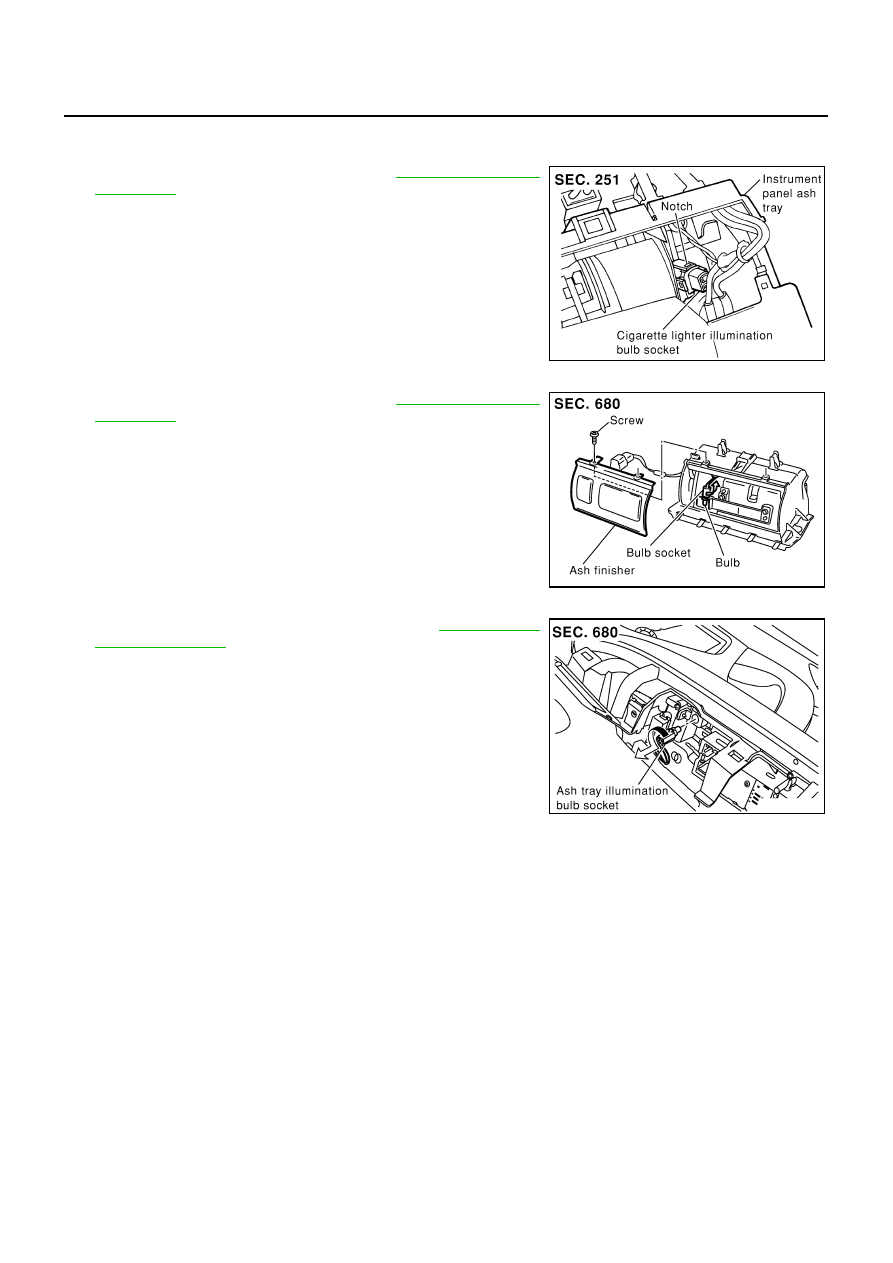

FRONT CIGARETTE LIGHTER ILLUMINATION
Cigarette Lighter Socket Illumination

1.

Remove instrument panel ashtray. Refer to

IP-10, "Removal and

Installation"

 .

2.

Unfold 3 notches and remove bulb socket.

Ashtray Illumination

1.

Remove instrument panel ashtray. Refer to

IP-10, "Removal and

Installation"

 .

2.

Remove ashtray finisher mounting screws and remove ashtray
finisher.

3.

Turn bulb socket counterclockwise and unlock it.

REAR ASHTRAY ILLUMINATION

1.

Remove rear door armrest finisher. Refer to

EI-37, "REAR

DOOR FINISHER"

 .

2.

Turn bulb socket counterclockwise and unlock it.

3.

Disconnect ashtray illumination connector.

Cigarette lighter illumination

: 12V-1.4W

PKIA0180E

Ashtray illumination

: 12V-1.4W

PKIA0181E

Ashtray illumination

: 12V-1.4W

PKIA0083E

VANITY MIRROR AND TRUNK ROOM LAMPS

LT-183

C

D

E

F

G

H

I

J

L

M

A

B

LT

VANITY MIRROR AND TRUNK ROOM LAMPS

PFP:26470

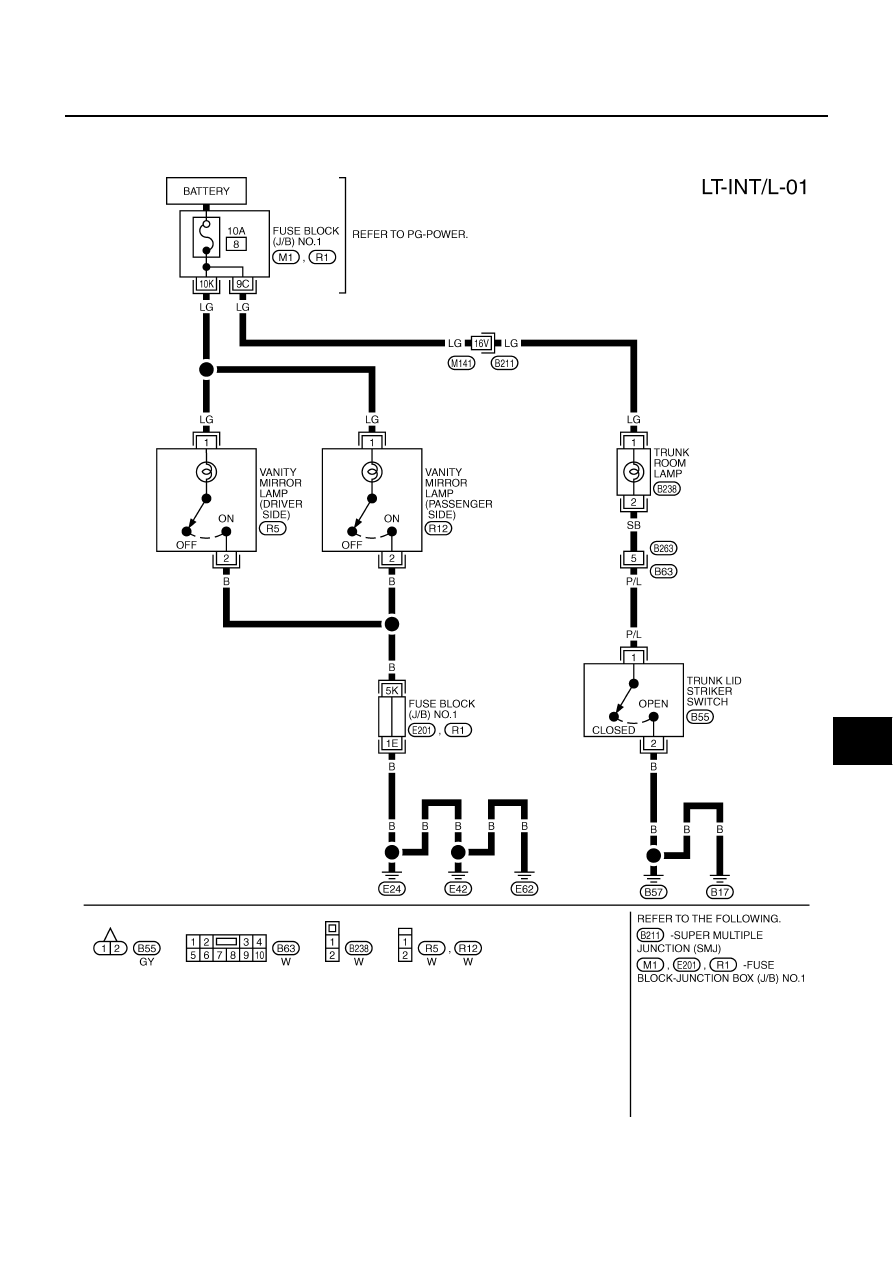

Wiring Diagram — INT/L —

NKS001AS

TKWM3217E

LT-184

VANITY MIRROR AND TRUNK ROOM LAMPS

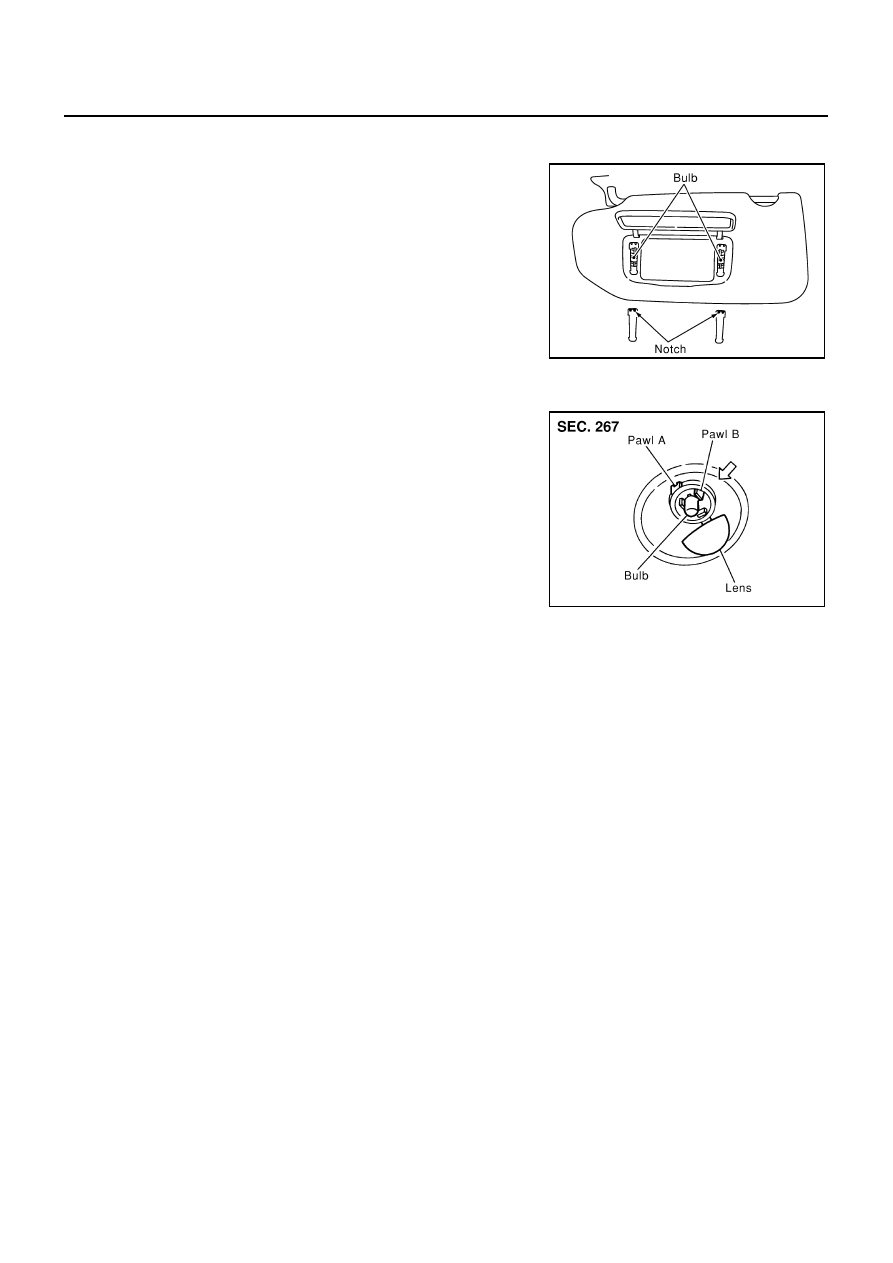

Bulb Replacement

NKS001AT

VANITY MIRROR LAMP

1.

Insert a thin blade in notch and remove lens.

2.

Remove bulb.

TRUNK ROOM LAMP

1.

Unfold pawl A and remove lens.

2.

Remove bulb.

3.

Remove trunk room lamp while pressing pawl B in the direction
of arrow.

4.

Disconnect trunk room lamp connector.

Vanity mirror lamp

: 12V-1.4W

PKIA0188E

Trunk room lamp

: 12V-3.4W

PKIA0182E
