DOOR MIRROR LAMP

LT-165

C

D

E

F

G

H

I

J

L

M

A

B

LT

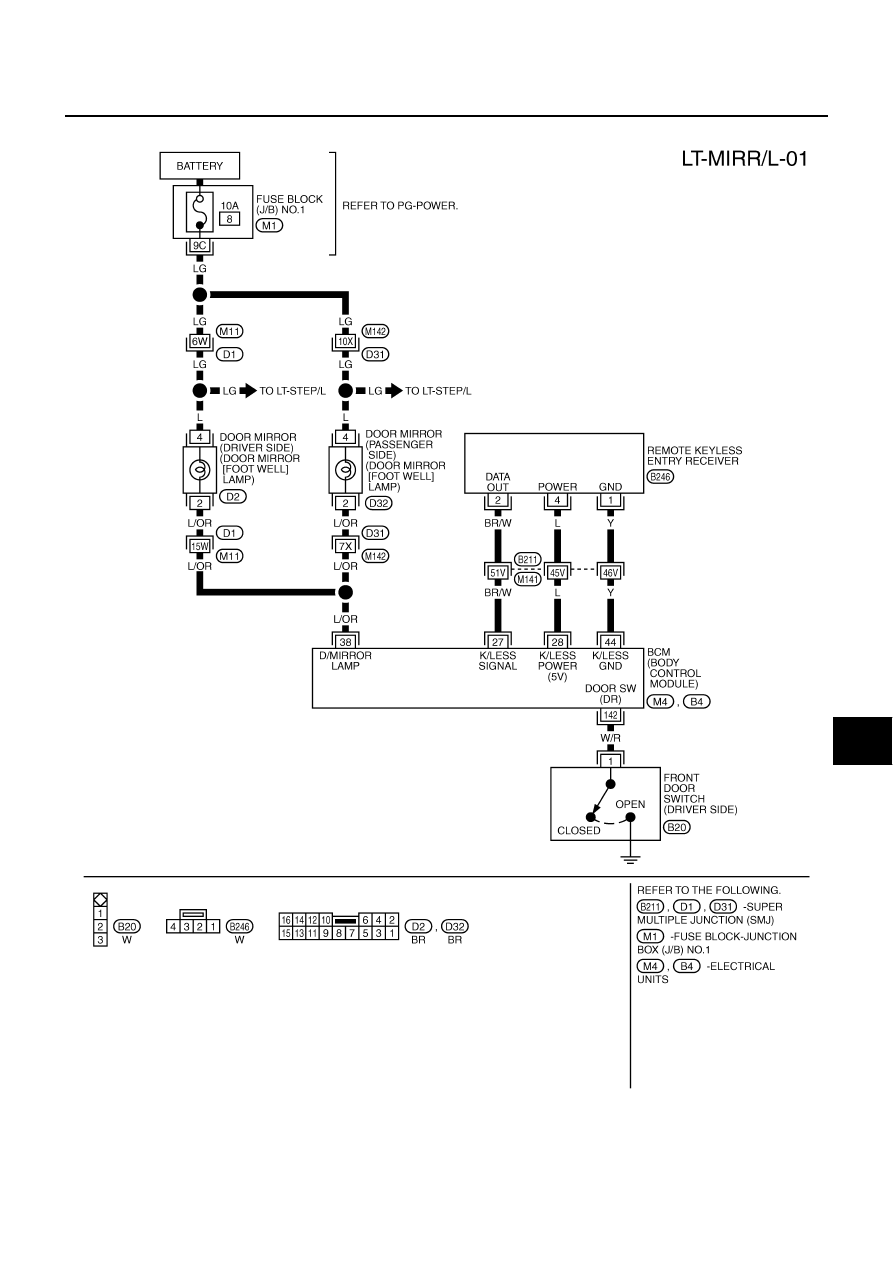

Wiring Diagram — MIRR/L —

NKS001AM

TKWM1527E

LT-166

DOOR MIRROR LAMP

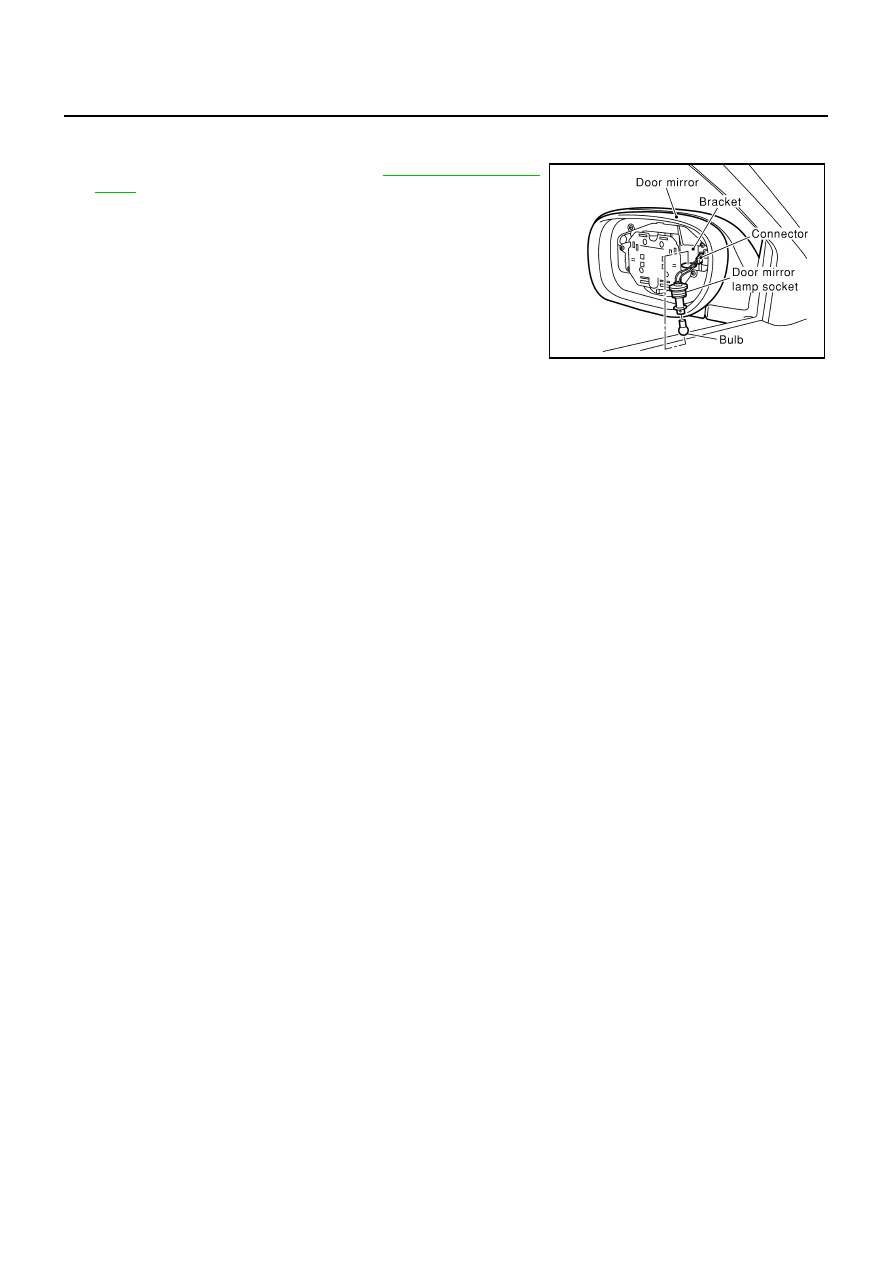

Bulb Replacement

NKS001AN

DOOR MIRROR LAMP

1.

Remove mirror from door mirror. Refer to

GW-116, "DOOR MIR-

ROR"

 .

2.

Remove lamp socket.

3.

Remove bulb from lamp socket.

Door mirror lamp

: 12V-8W

PKIA0084E

ILLUMINATION

LT-167

C

D

E

F

G

H

I

J

L

M

A

B

LT

ILLUMINATION

PFP:27545

System Description

NKS001AO

The illumination lamp operation is controlled by the lighting switch which is built into the spiral cable and head-
lamp battery saver control unit. The battery saver system is controlled by headlamp battery saver control unit
and BCM (body control module).
Power is supplied at all times

to tail lamp relay terminals 2 and 6

through 15A fuse [No. 54, located in fuse, fusible link and relay block (J/B)], and

to headlamp battery saver control unit terminal 7

through 10A fuse [No. 6, located in fuse block (J/B) No. 1].

When ignition switch is in ON or START position, power is supplied

to headlamp battery saver control unit terminal 1

through 10A fuse [No. 1, located in fuse block (J/B) No. 1].

Ground is supplied

to headlamp battery saver control unit terminals 4 and 11

through grounds M25 and M115.

LIGHTING OPERATION BY LIGHTING SWITCH

When lighting switch is 1ST (or 2ND) position, ground is supplied

to tail lamp relay terminal 1 from headlamp battery saver control unit terminals 6 and 14

through headlamp battery saver control unit terminals 5 and 13, and

through lighting switch and grounds M25 and M115.

Tail lamp relay is then energized and illumination lamps illuminate.
The lighting switch must be in the 1ST or 2ND position for illumination.
The illumination control switch that controls the amount of current to the illumination system. As the amount of
current increases, the illumination becomes brighter.
The ground for all of the components except for grove box lamp, cigarette lighter socket, ashtray, auto return
cancel switch, rear control switch, rear sunshade rear switch, rear power seat switch and console box lamp
are controlled through terminals 2 and 3 of the illumination control switch and body grounds M25 and M115.

BATTERY SAVER CONTROL

When the ignition switch is turned from ON (or START) to OFF (or ACC) positions while illumination lamps are
illuminated, the RAP signal is supplied to terminal 10 of the headlamp battery saver control unit from BCM ter-
minal 135.
After counting 45 seconds by the RAP signal from the BCM to headlamp battery saver control unit, the ground
supply to terminal 1 of the tail lamp relay from headlamp battery saver control unit terminals 6 and 14 is termi-
nated.
Then illumination lamps are turned off.
Illumination lamps are turned off when driver or passenger door is opened even if 45 seconds have not passed
after the ignition switch is turned from ON (or START) to OFF (or ACC) positions while illumination lamps are
illuminated.
When the lighting switch is turned from OFF to 1ST (or 2ND) after illumination lamps are turned off by the bat-
tery saver control, ground is supplied

to headlamp battery saver control unit terminals 5 and 13 from lighting switch terminal 11, and

to tail lamp relay terminal 1 from headlamp battery saver control unit terminals 6 and 14.

Then illumination lamps illuminate again.

LT-168

ILLUMINATION

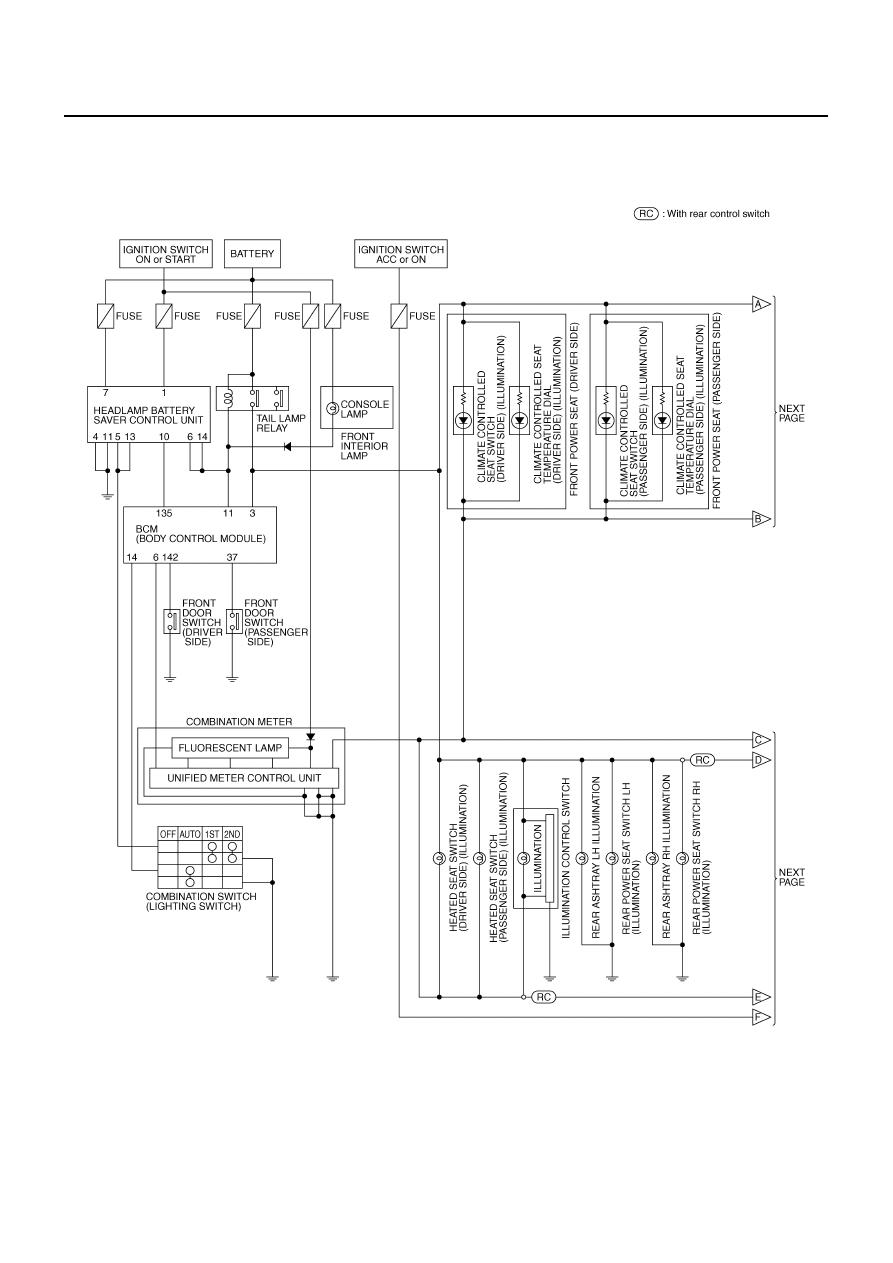

Schematic
