CAN SYSTEM (TYPE 3)

LAN-89

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

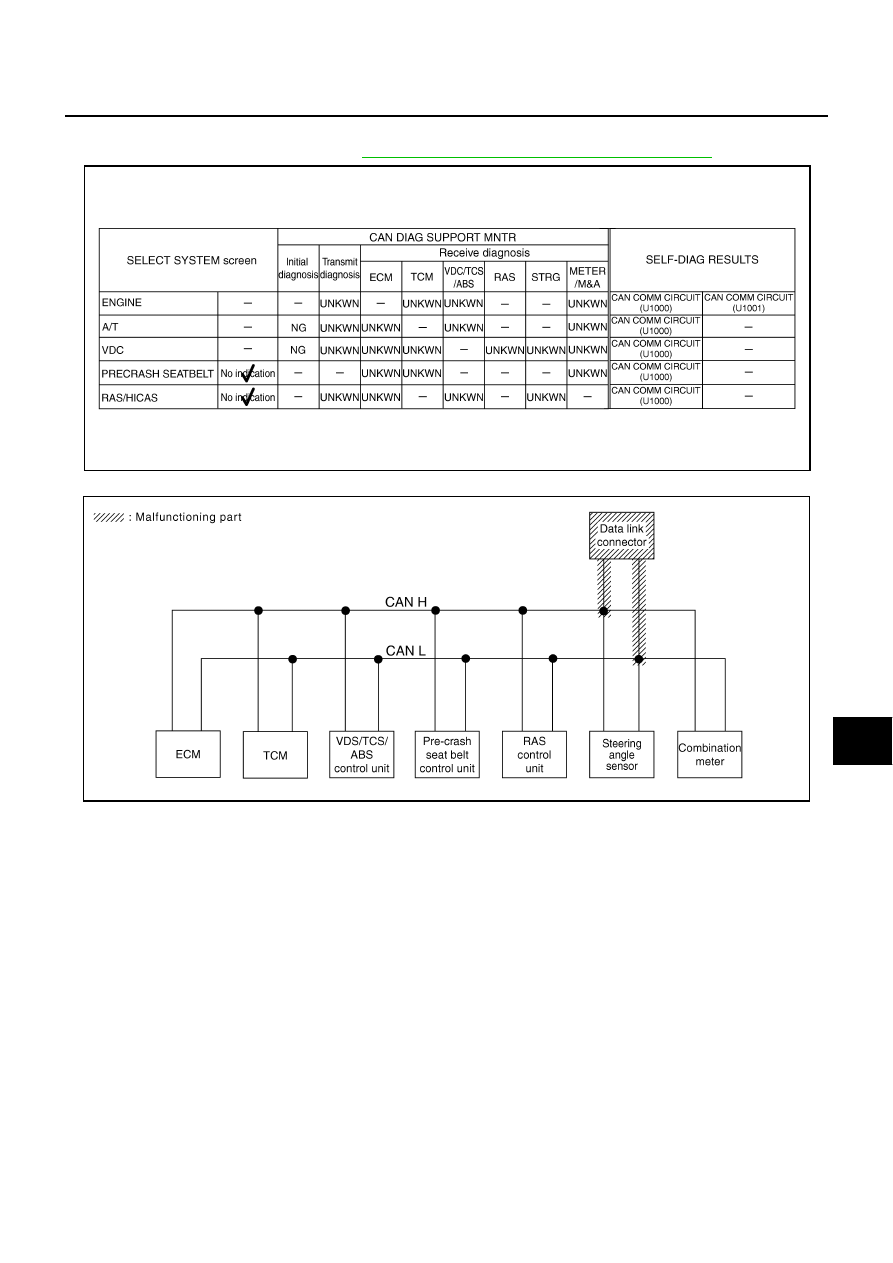

Case 9

Check RAS control unit circuit. Refer to

LAN-107, "RAS Control Unit Circuit Inspection"

 .

SKIB7513E

SKIB7526E

LAN-90

[CAN]

CAN SYSTEM (TYPE 3)

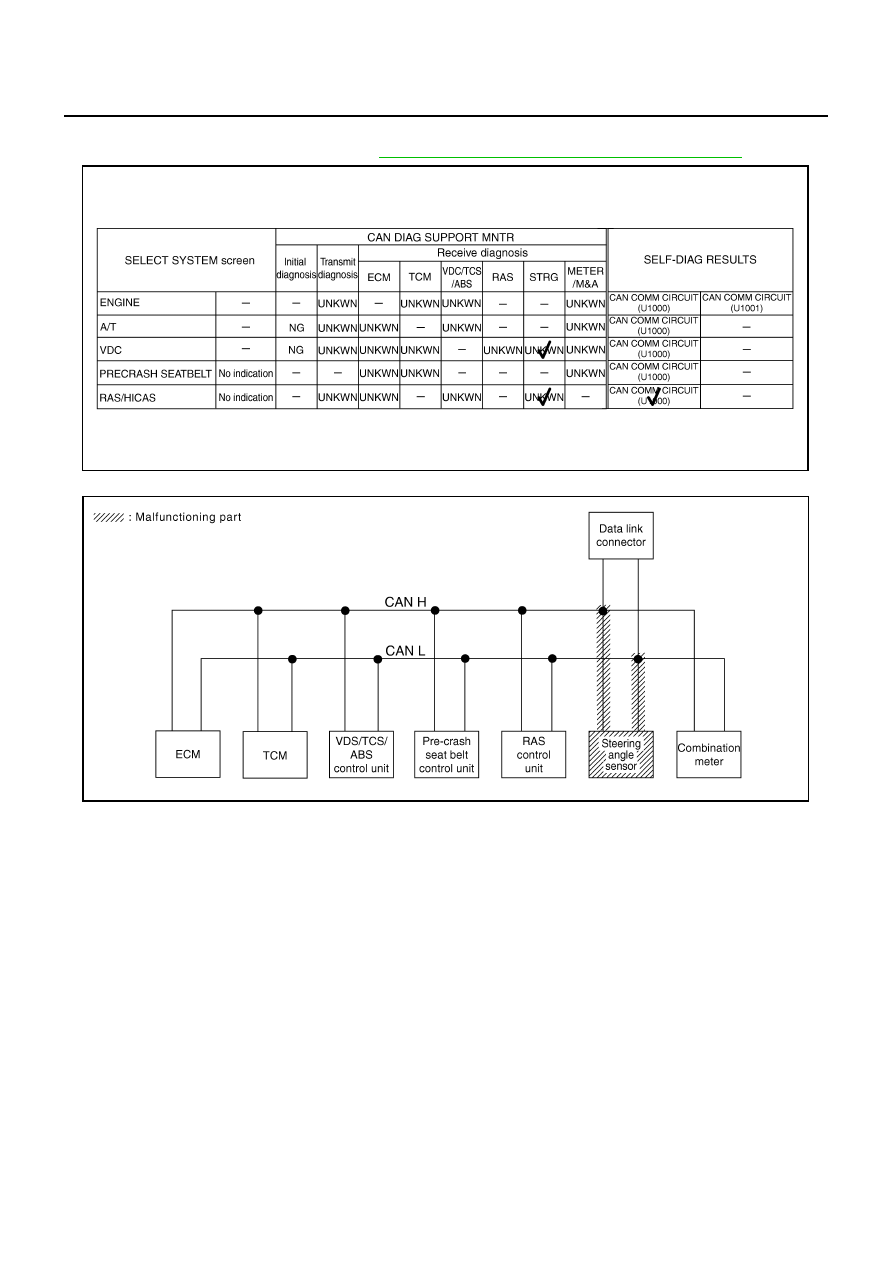

Case 10

Check steering angle sensor circuit. Refer to

LAN-108, "Steering Angle Sensor Circuit Inspection"

 .

SKIB7514E

SKIB7527E

CAN SYSTEM (TYPE 3)

LAN-91

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

Case 11

Check data link connector circuit. Refer to

LAN-108, "Data Link Connector Circuit Inspection"

 .

SKIB7515E

SKIB7528E

LAN-92

[CAN]

CAN SYSTEM (TYPE 3)

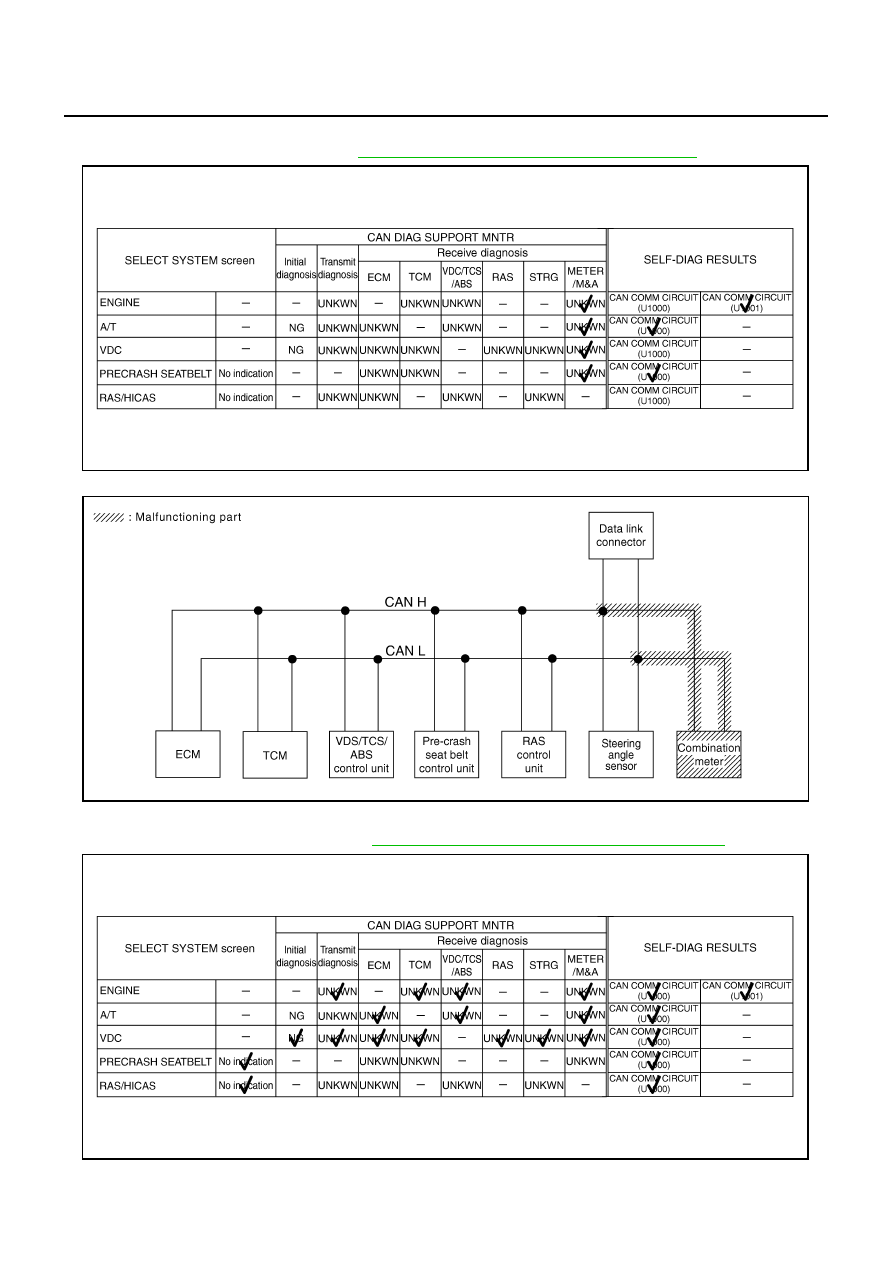

Case 12

Check combination meter circuit. Refer to

LAN-109, "Combination Meter Circuit Inspection"

 .

Case 13

Check CAN communication circuit. Refer to

LAN-109, "CAN Communication Circuit Inspection"

 .

SKIB7516E

SKIB7529E

SKIB7517E
