CAN SYSTEM (TYPE 2)

LAN-77

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

Case 16

Check combination meter circuit. Refer to

LAN-109, "Combination Meter Circuit Inspection"

 .

Case 17

Check CAN communication circuit. Refer to

LAN-109, "CAN Communication Circuit Inspection"

 .

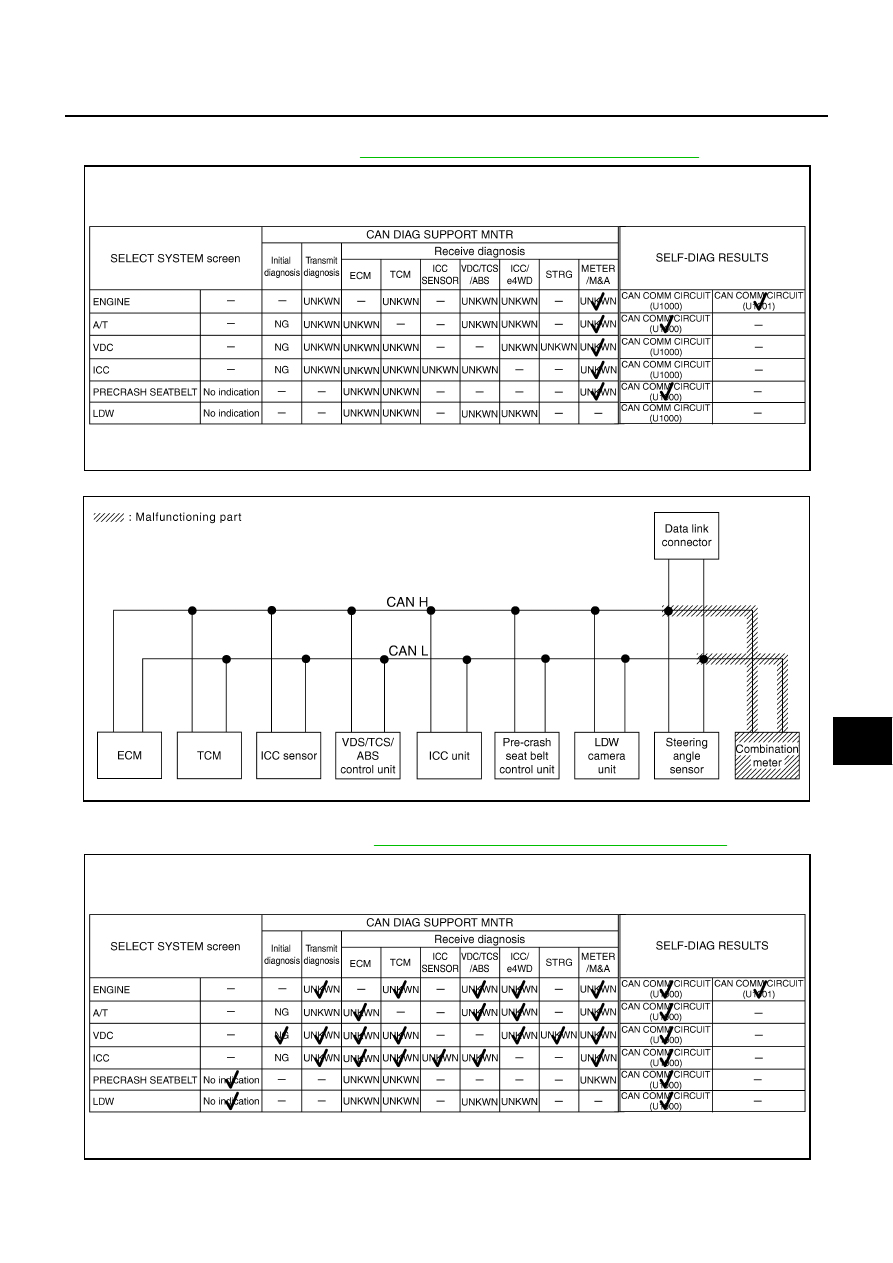

SKIB7485E

SKIB7502E

SKIB7486E

LAN-78

[CAN]

CAN SYSTEM (TYPE 3)

CAN SYSTEM (TYPE 3)

PFP:23710

Component Parts and Harness Connector Location

NKS002DS

Refer to

LAN-35, "Component Parts and Harness Connector Location"

 .

Schematic

NKS002DT

Refer to

LAN-36, "Schematic"

 .

Wiring Diagram — CAN —

NKS002DU

Refer to

LAN-37, "Wiring Diagram — CAN —"

 .

CAN SYSTEM (TYPE 3)

LAN-79

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

Check Sheet

NKS002DV

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

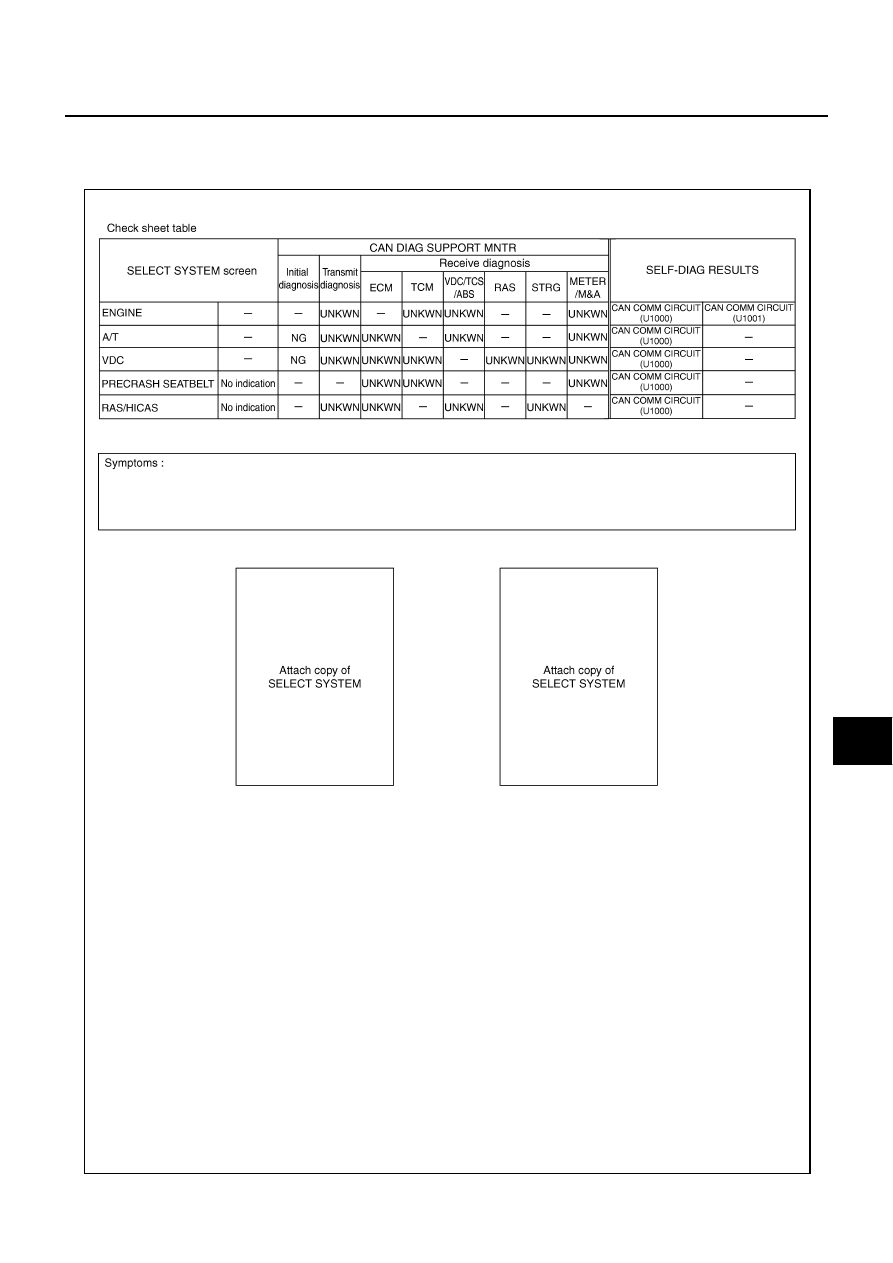

SKIB7503E

LAN-80

[CAN]

CAN SYSTEM (TYPE 3)

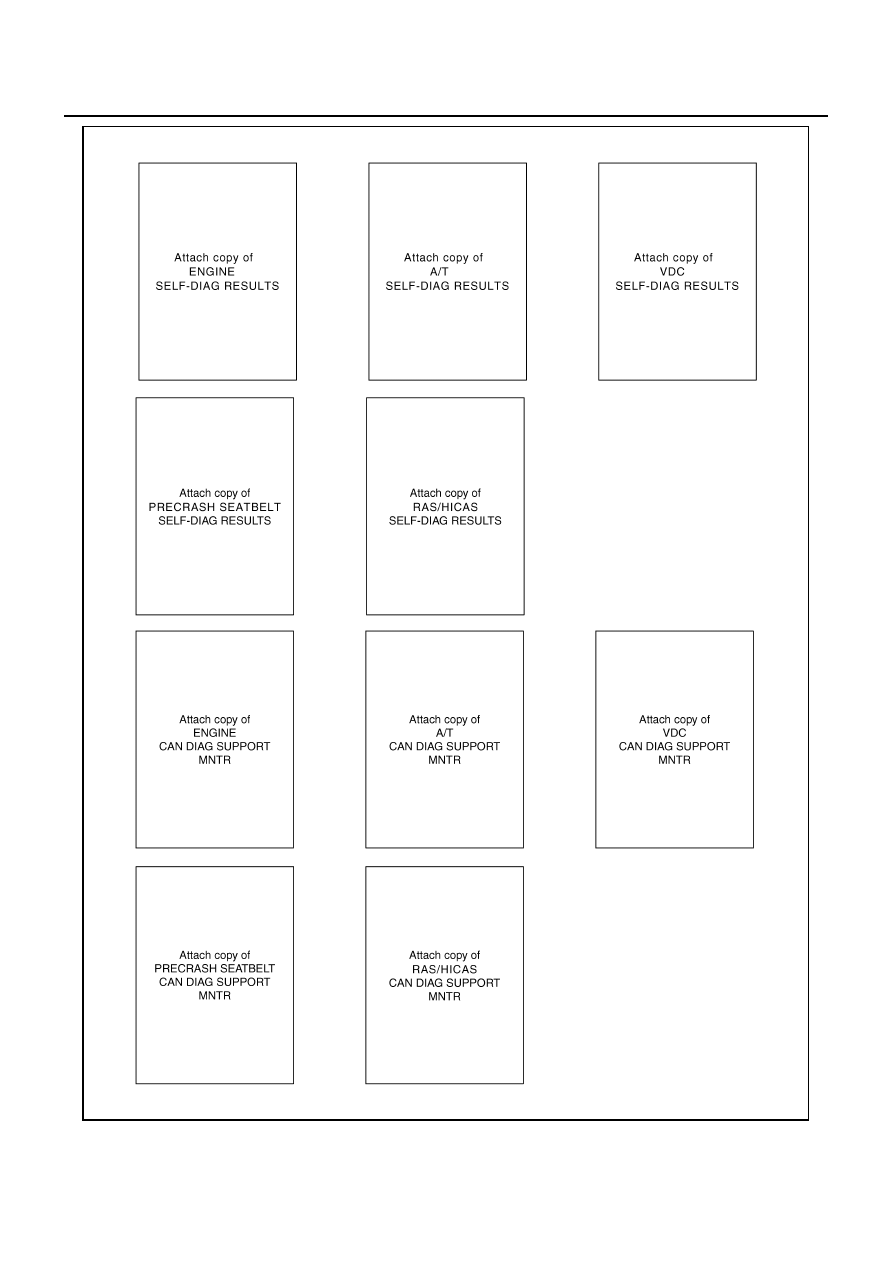

SKIB7504E
