CAN SYSTEM (TYPE 1)

LAN-57

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

Case 9

Check data link connector circuit. Refer to

LAN-105, "Pre-Crash Seat Belt Control Unit and Data Link Connec-

tor Circuit Inspection"

 .

SKIB7467E

PKIA9837E

LAN-58

[CAN]

CAN SYSTEM (TYPE 1)

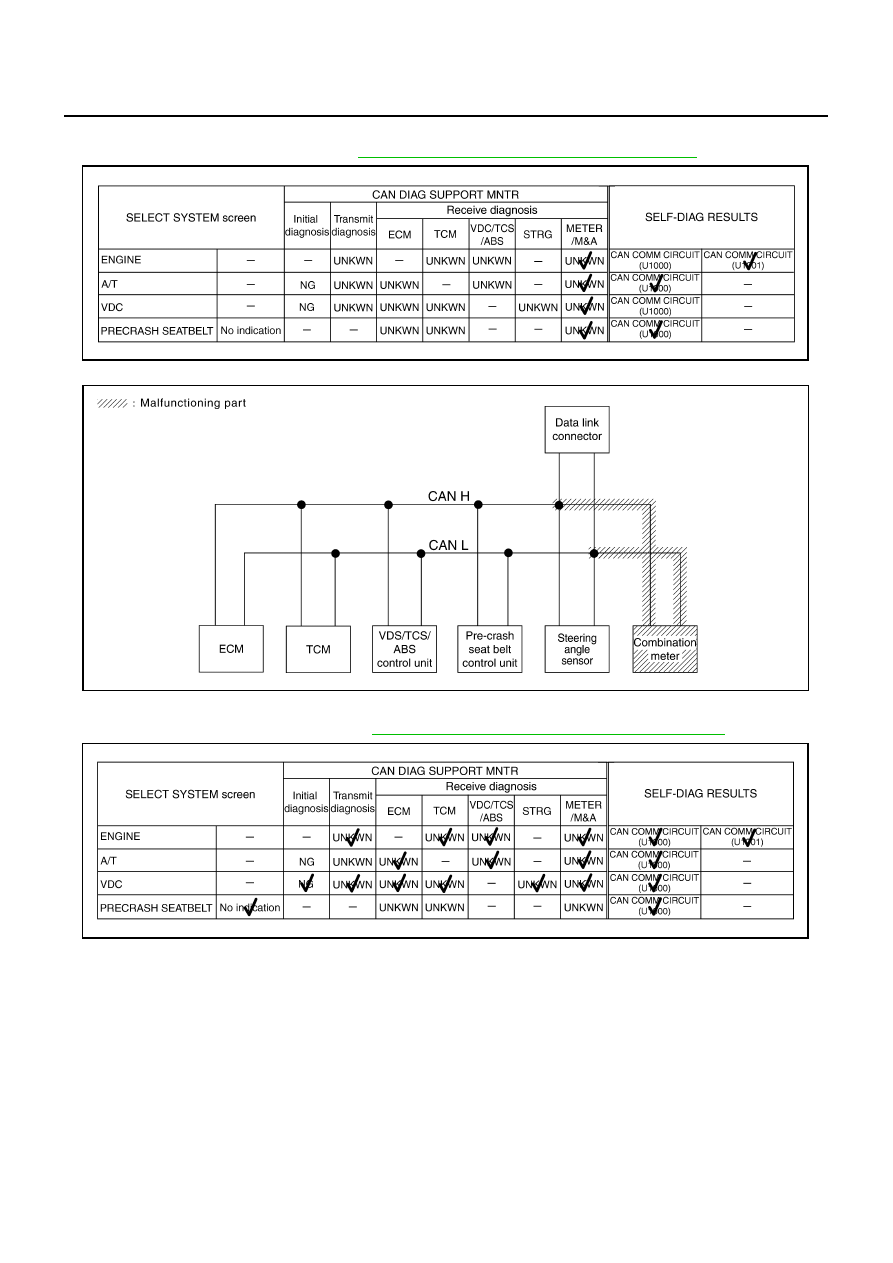

Case 10

Check combination meter circuit. Refer to

LAN-109, "Combination Meter Circuit Inspection"

 .

Case 11

Check CAN communication circuit. Refer to

LAN-109, "CAN Communication Circuit Inspection"

 .

SKIB7468E

PKIA9838E

SKIB7469E

CAN SYSTEM (TYPE 2)

LAN-59

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

CAN SYSTEM (TYPE 2)

PFP:23710

Component Parts and Harness Connector Location

NKS00260

Refer to

LAN-35, "Component Parts and Harness Connector Location"

 .

Schematic

NKS00261

Refer to

LAN-36, "Schematic"

 .

Wiring Diagram — CAN —

NKS00262

Refer to

LAN-37, "Wiring Diagram — CAN —"

 .

LAN-60

[CAN]

CAN SYSTEM (TYPE 2)

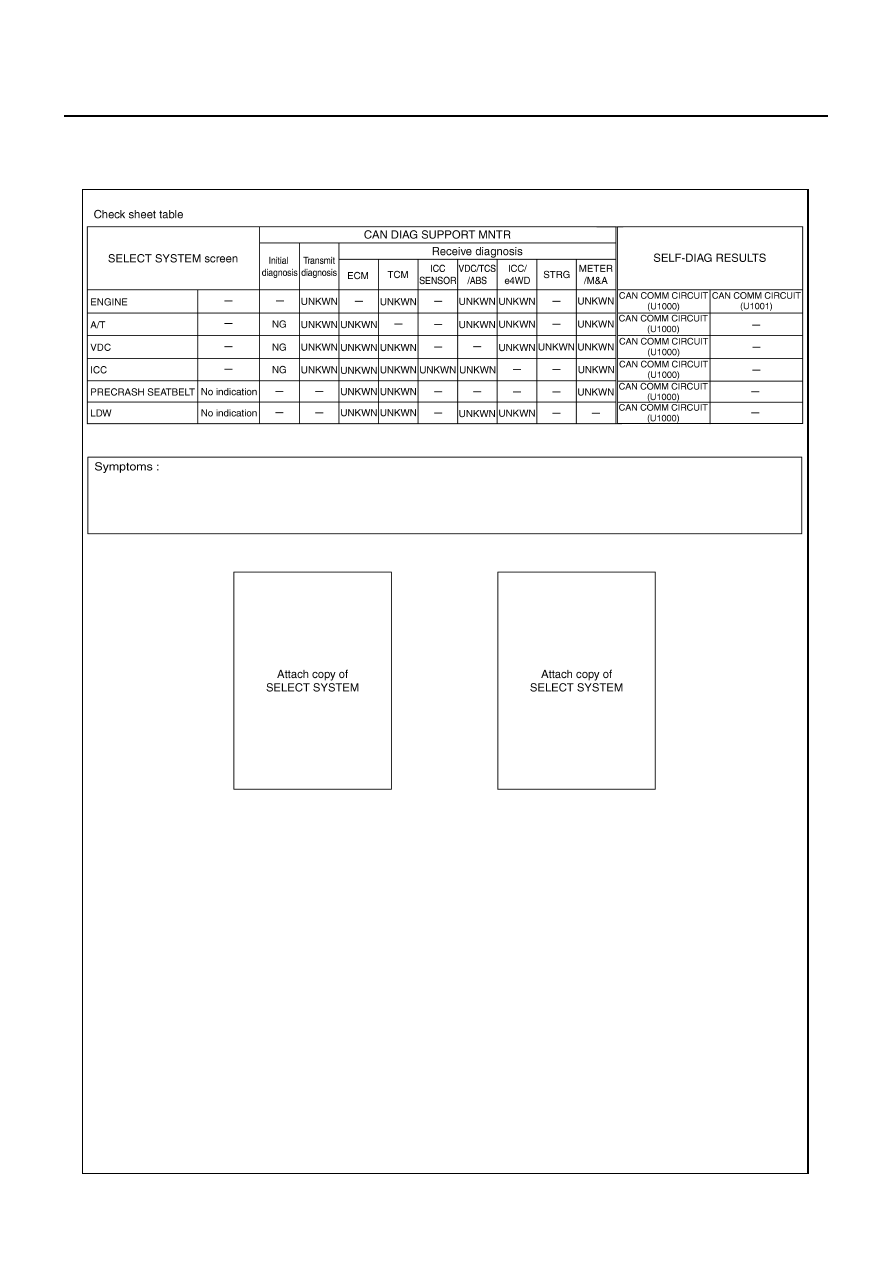

Check Sheet

NKS00263

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

SKIB6967E
