REAR DOOR GLASS AND REGULATOR

GW-57

C

D

E

F

G

H

J

K

L

M

A

B

GW

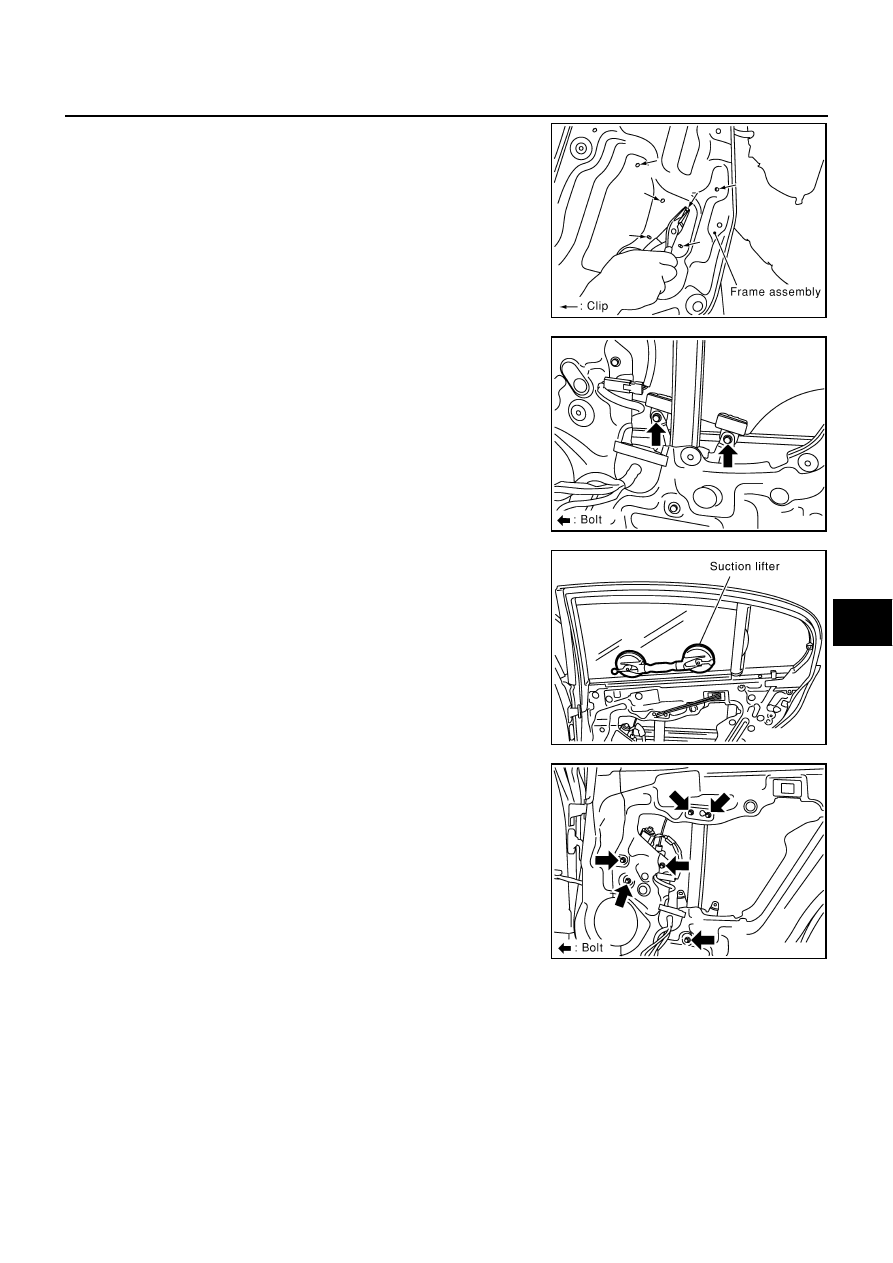

4.

Remove the harness connector routed on the frame assembly,
then remove the harness clip from the back.

5.

Operate the power window switch to raise/lower the door win-
dow until the glass mounting bolts can be seen.

6.

Remove the glass mounting bolts.

7.

Raise up the door glass and hold with a suction lifter.

8.

Remove the mounting bolts, and remove the regulator and guide
channel from the panel.

9.

Disconnect the connector for the regulator assembly.

Installation

Install in the reverse order of removal.

SIIA0289E

SIIA0290E

PIIB1881E

SIIA0291E

GW-58

REAR DOOR GLASS AND REGULATOR

Inspection after Removal

Check the regulator assembly for the following items. If a malfunc-
tion is detected, replace or grease it.

Wire wear

Regulator deformation

Grease condition for each sliding part

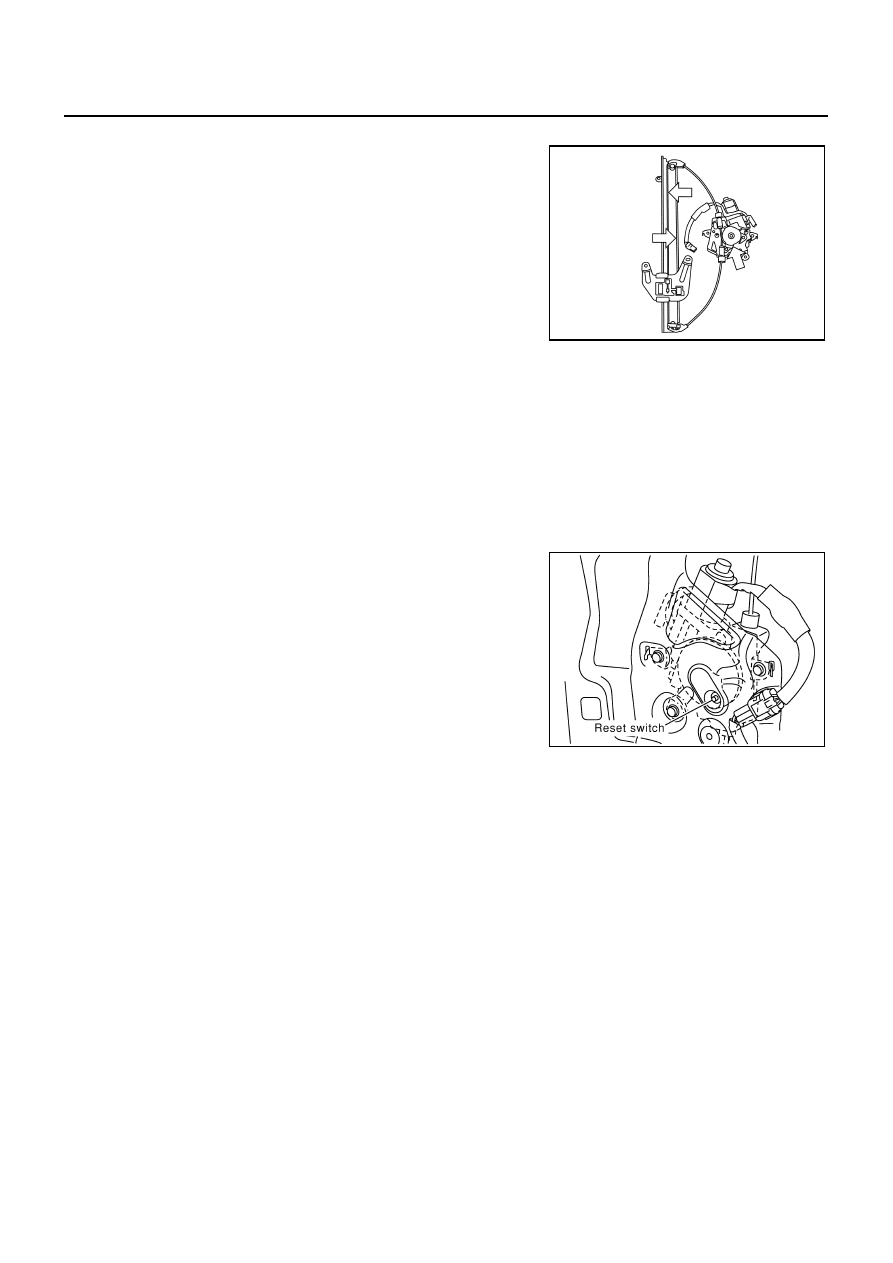

The arrows in the figure show the application points of the body
grease.

Inspection after Installation

NIS000ZB

SETTING OF LIMIT SWITCH

If any of the following work has been done, set the limit switch (integrated in the motor).

Removal and installation of the regulator.

Removal and installation of the motor from the regulator.

Operate the regulators a unit.

Removal and installation of the glass.

Removal and installation of the glass run.

Resetting

After installing each component to the vehicle, follow the steps
below.

CAUTION:

Do not install the frame assembly.

1.

Raise the glass to the top position.

2.

While pressing and holding the reset switch, lower the glass to
the bottom position.

3.

Release the reset switch, and check that the reset switch returns
to the original position, and then raise the glass to the top posi-
tion.

CAUTION:

Do not operate the glass automatically to raise the glass to the top position.

FITTING INSPECTION

Check that the glass is securely fit into the glass run groove.

Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the sash
is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,
the guide rail mounting bolts, and the glass and carrier plate mounting bolts to correct the glass position.

SIIA0294J

SIIA0296E

INSIDE MIRROR

GW-59

C

D

E

F

G

H

J

K

L

M

A

B

GW

INSIDE MIRROR

PFP:96321

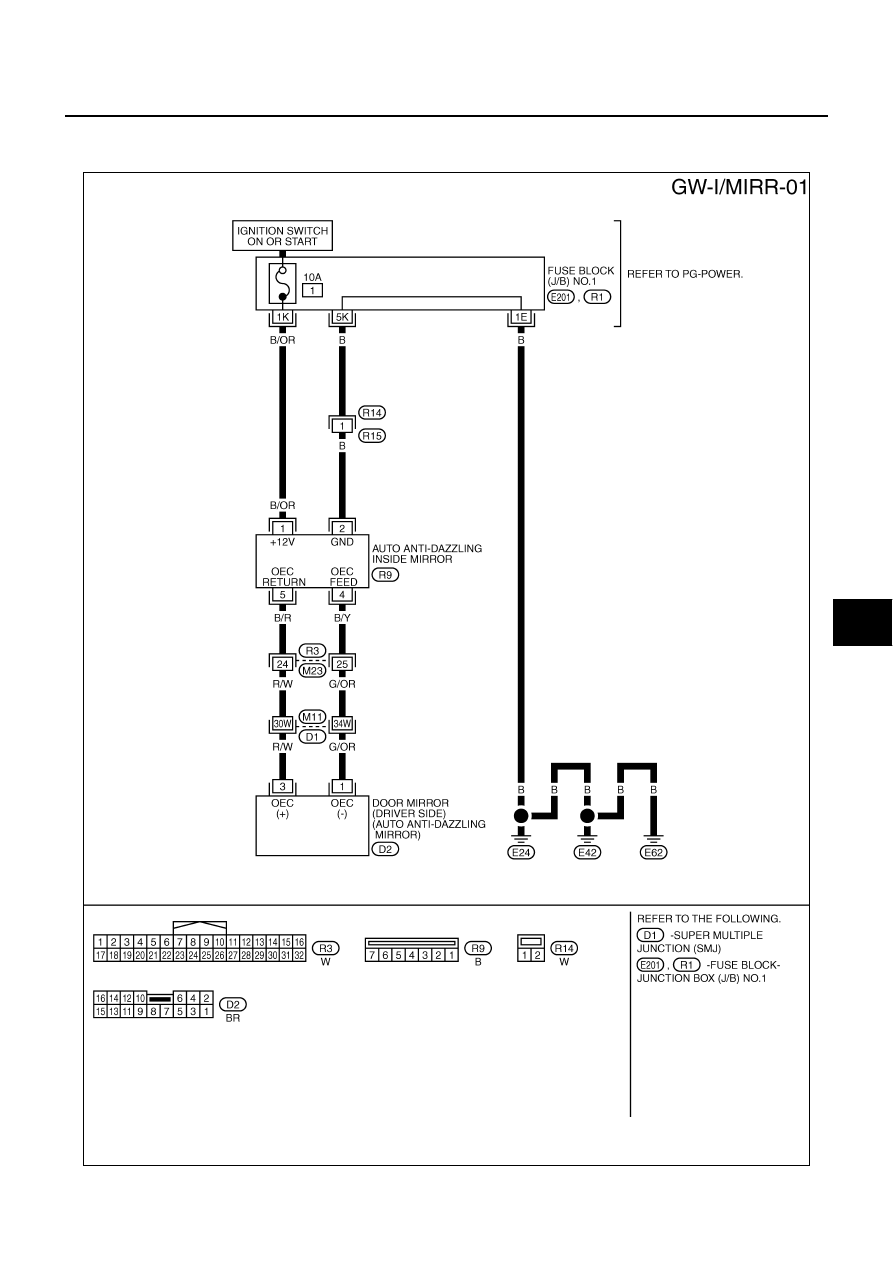

Wiring Diagram–I/MIRR–

NIS000ZC

TIWM1562E

GW-60

INSIDE MIRROR

Removal and Installation

NIS000ZD

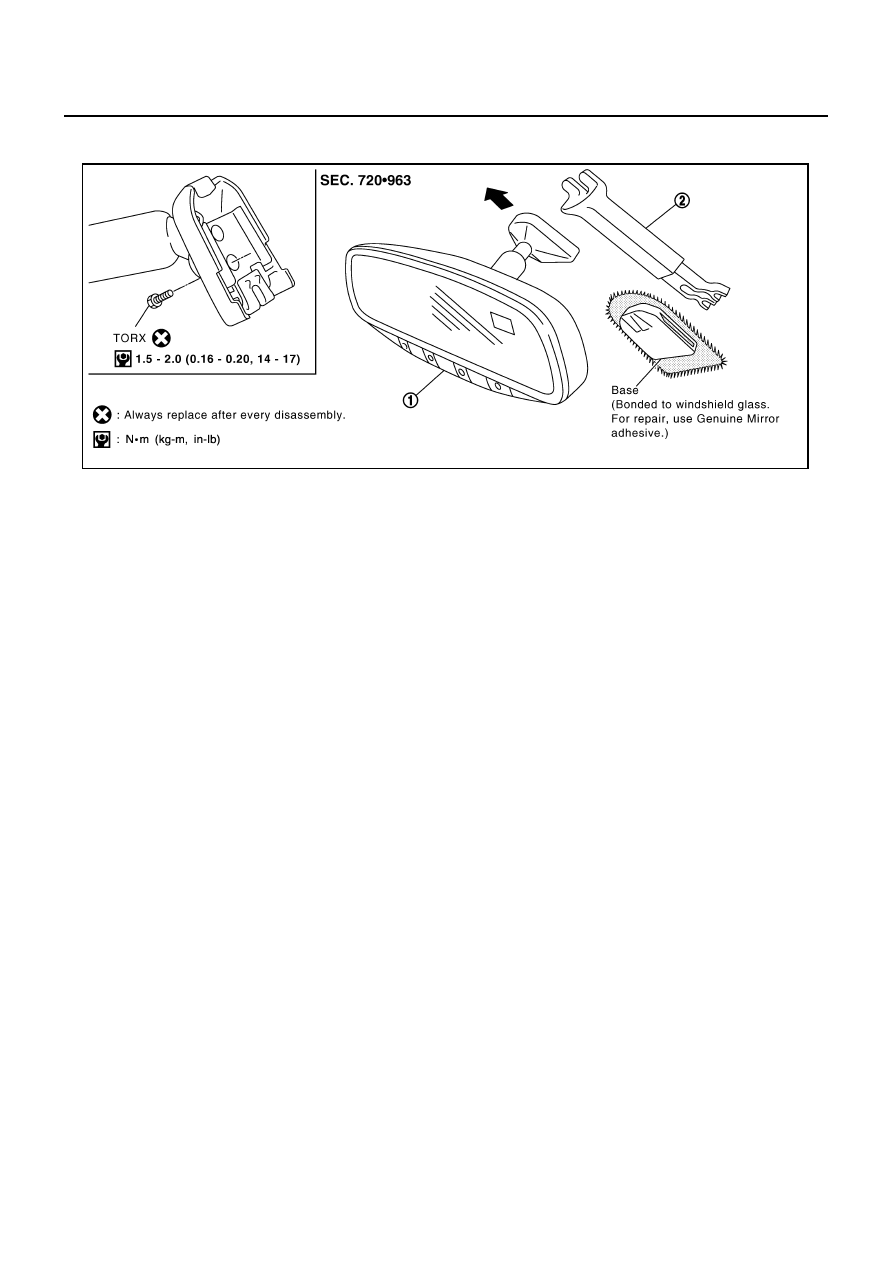

AUTO ANTI–DAZZLING INSIDE MIRROR

Removal

1.

Remove the connector cover.

2.

Remove TORX bolt (T20) of mirror base.

3.

Slide the mirror upward to remove, and disconnect the connector.

Installation

Install in the reverse order of removal.

1

Inside mirror

2

Connector cover

PIIA6421E
