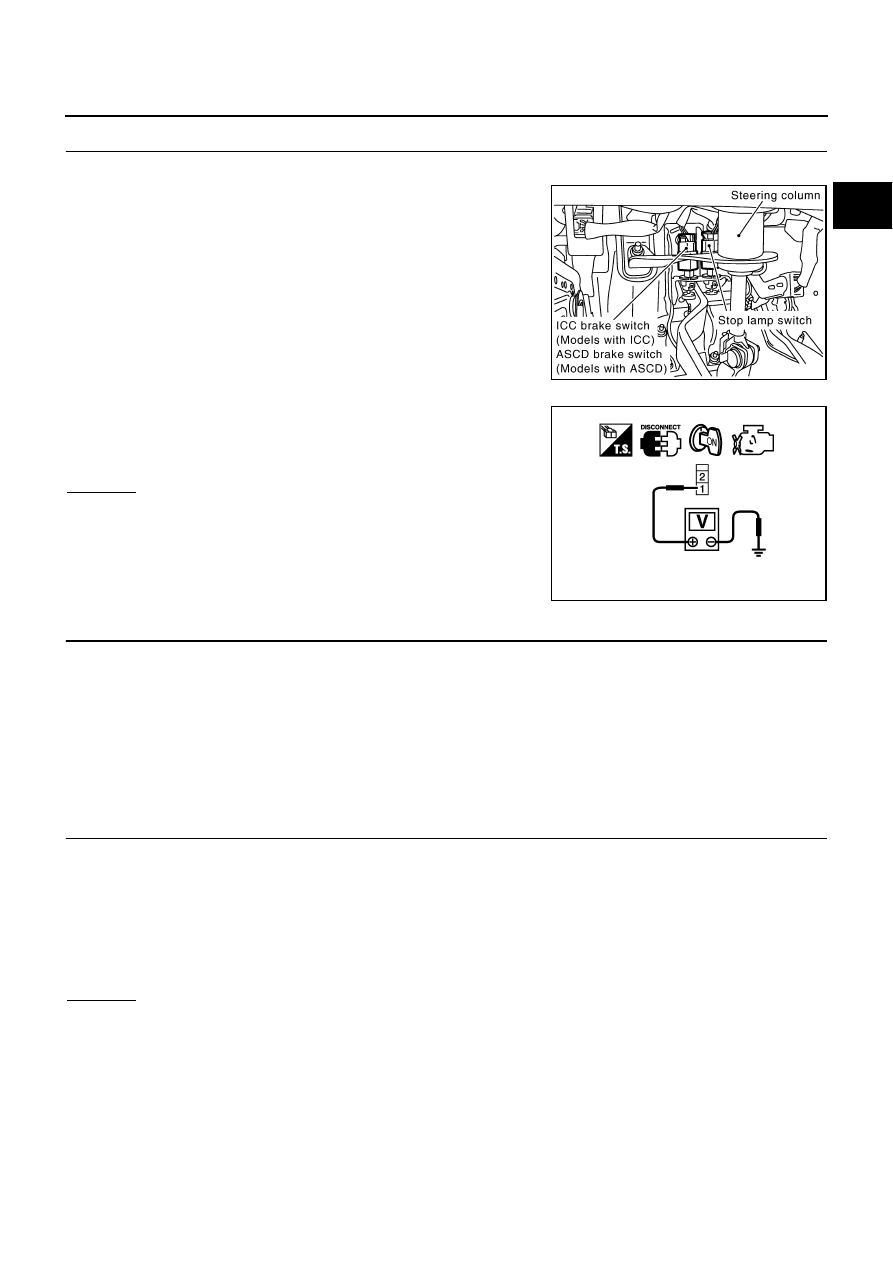

ASCD BRAKE SWITCH

EC-691

C

D

E

F

G

H

I

J

K

L

M

A

EC

3.

CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ASCD brake switch harness connector.

3.

Turn ignition switch ON.

4.

Check voltage between ASCD brake switch terminal 1 and
ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.

Fuse block (J/B) No. 1 connector M1

10A fuse

Harness connectors M61, M401

Harness for open or short between ASCD brake switch and fuse

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal 108 and ASCD brake switch terminal 2.
Refer to Wiring Diagram.

4.

Also check harness for short to ground or short to power.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

PBIB2433E

Voltage: Battery voltage

PBIB0857E

Continuity should exist.

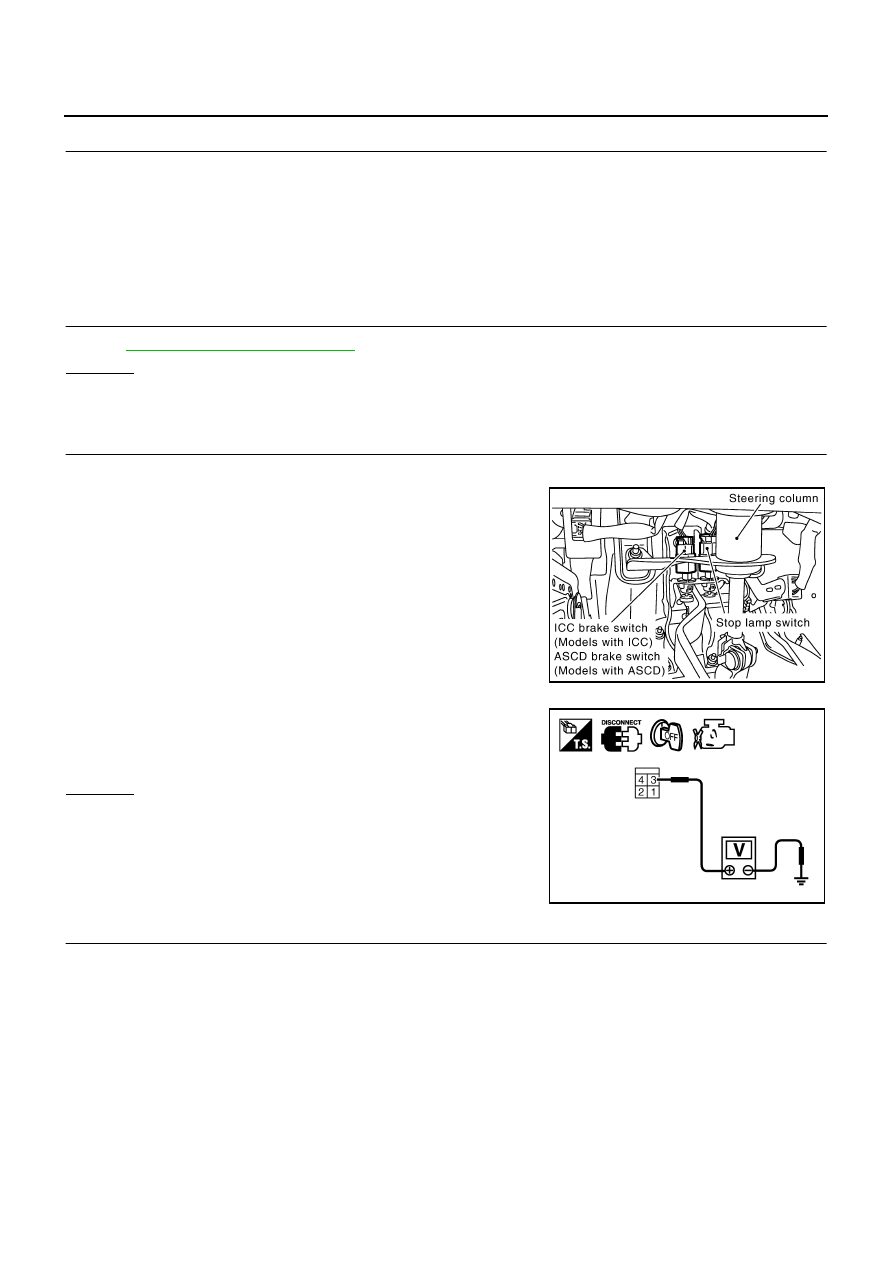

EC-692

ASCD BRAKE SWITCH

6.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors M401, M61

Harness connectors M135, F105

Harness for open or short between ECM and ASCD brake switch

>> Repair open circuit or short to ground or short to power in harness or connectors.

7.

CHECK ASCD BRAKE SWITCH

Refer to

EC-611, "Component Inspection"



OK or NG

OK

>> GO TO 13.

NG

>> Replace ASCD brake switch.

8.

CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp switch harness connector.

3.

Check voltage between stop lamp switch terminal 3 and ground
with CONSULT -II or tester.

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 9.

9.

DETECT MALFUNCTIONING PART

Check the following.

Fuse block (J/B) No. 1 connector M1

10A fuse

Harness connectors M61, M401

Harness for open or short between stop lamp switch and battery

>> Repair open circuit or short to ground or short to power in harness or connectors.

PBIB2433E

Voltage: Battery voltage

PBIB2102E

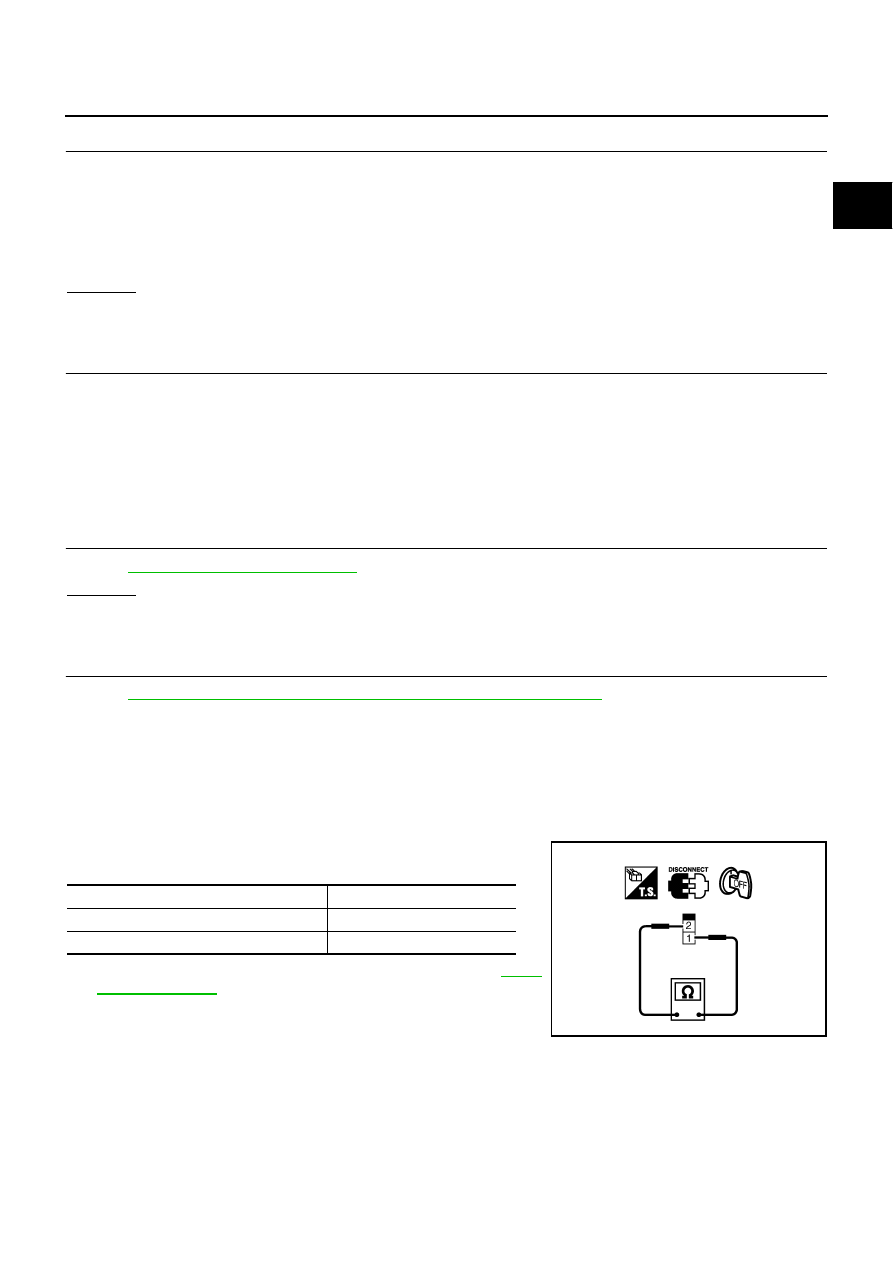

ASCD BRAKE SWITCH

EC-693

C

D

E

F

G

H

I

J

K

L

M

A

EC

10.

CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM harness connector.

2.

Check harness continuity between ECM terminal 101 and stop lamp switch terminal 4.
Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 12.

NG

>> GO TO 11.

11.

DETECT MALFUNCTIONING PART

Check the following.

Harness connectors M401, M61

Harness connectors M135, F105

Harness for open or short between ECM and stop lamp switch

>> Repair open circuit or short to ground or short to power in harness or connectors.

12.

CHECK STOP LAMP SWITCH

Refer to

EC-611, "Component Inspection"



OK or NG

OK

>> GO TO 13.

NG

>> Replace stop lamp switch.

13.

CHECK INTERMITTENT INCIDENT

Refer to

EC-145, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

Component Inspection

NBS0027W

ASCD BRAKE SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect ASCD brake switch harness connector.

3.

Check continuity between ASCD brake switch terminals 1 and 2
under the following conditions.

If NG, adjust ASCD brake switch installation, refer to

BR-6,

"BRAKE PEDAL"

 , and perform step 3 again.

Continuity should exist.

Condition

Continuity

When brake pedal: Fully released.

Should exist.

When brake pedal: Slightly depressed.

Should not exist.

PBIB1536E

EC-694

ASCD BRAKE SWITCH

STOP LAMP SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp switch harness connector.

3.

Check continuity between stop lamp switch terminals 3 and 4
under the following conditions.

If NG, adjust stop lamp switch installation, refer to

BR-6,

"BRAKE PEDAL"

 , and perform step 3 again.

Condition

Continuity

When brake pedal: Fully released.

Should not exist.

When brake pedal: Slightly depressed.

Should exist.

PBIB2103E
