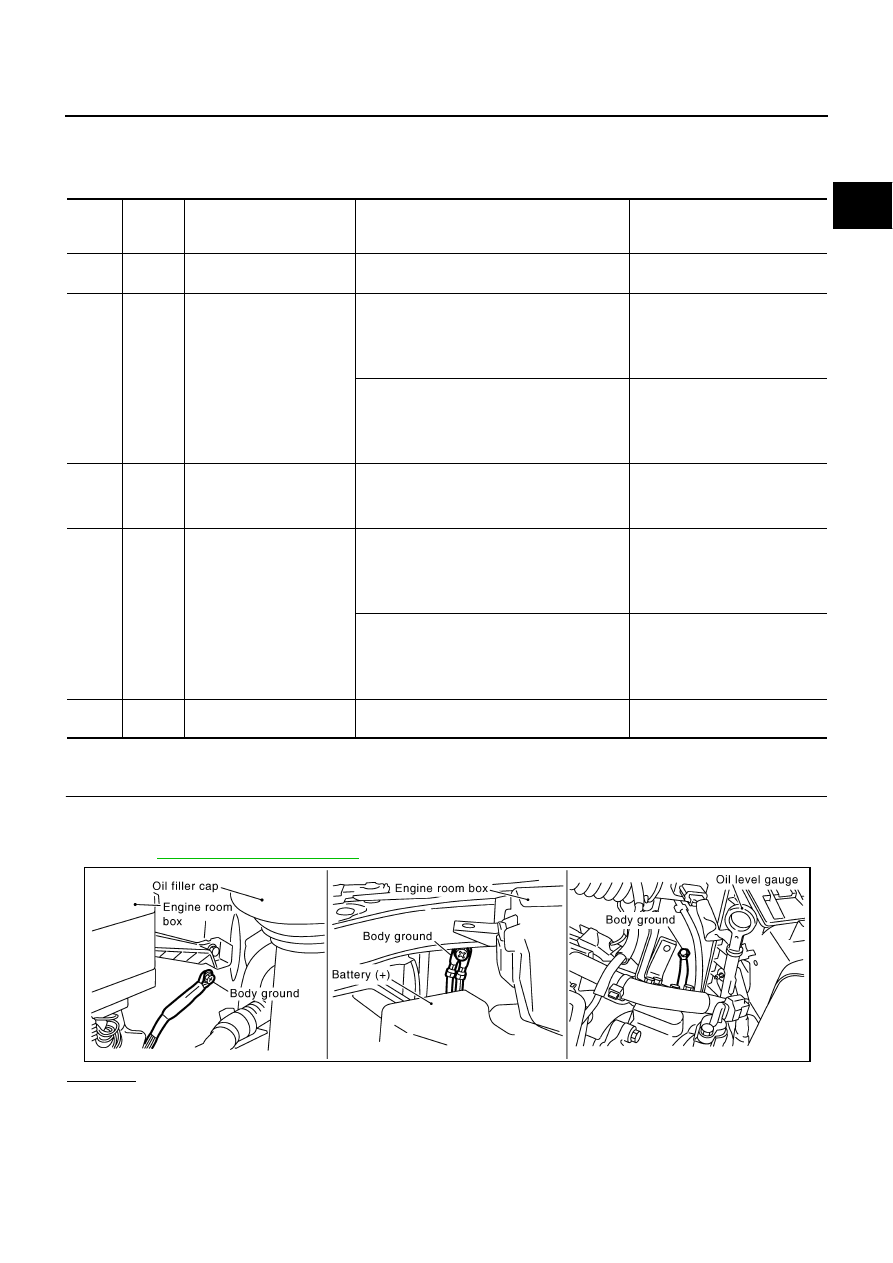

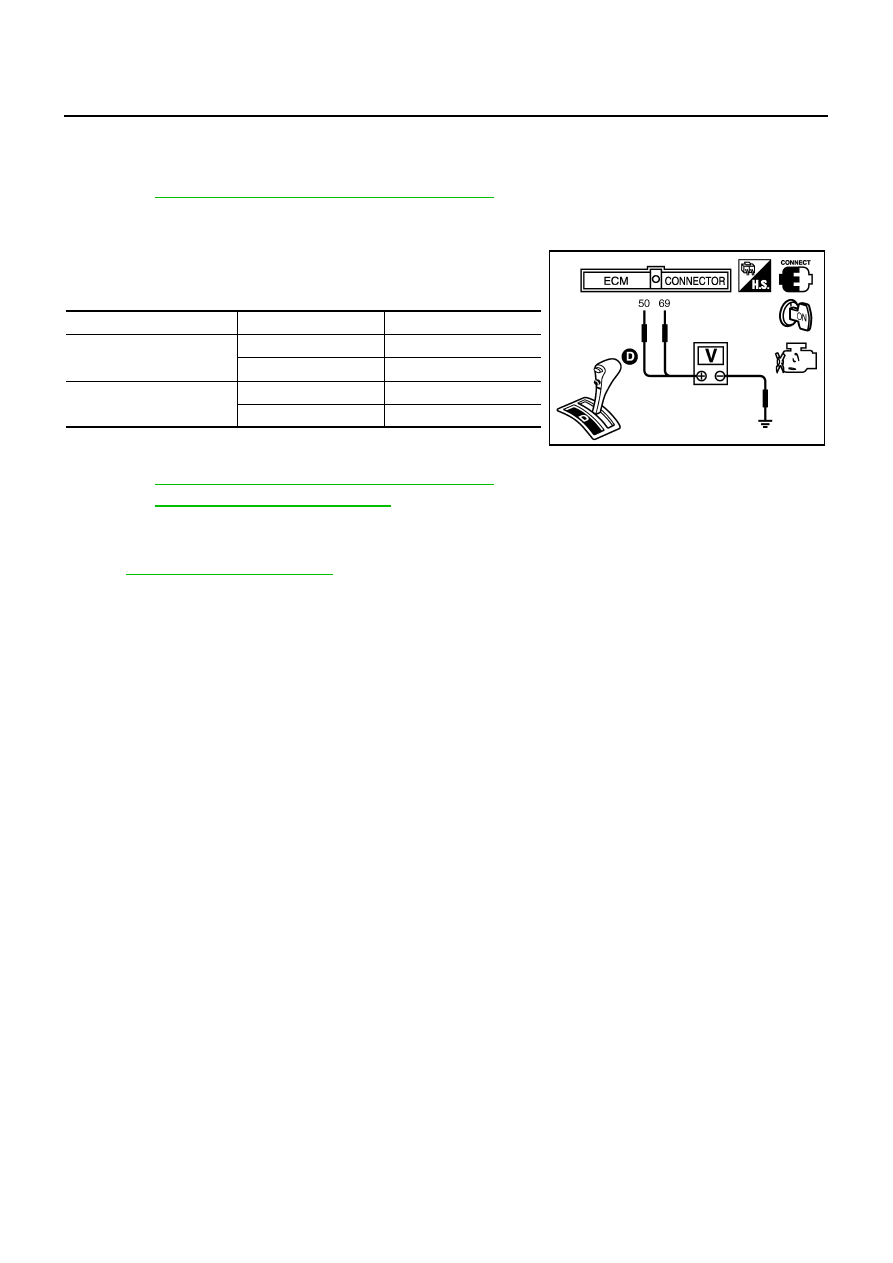

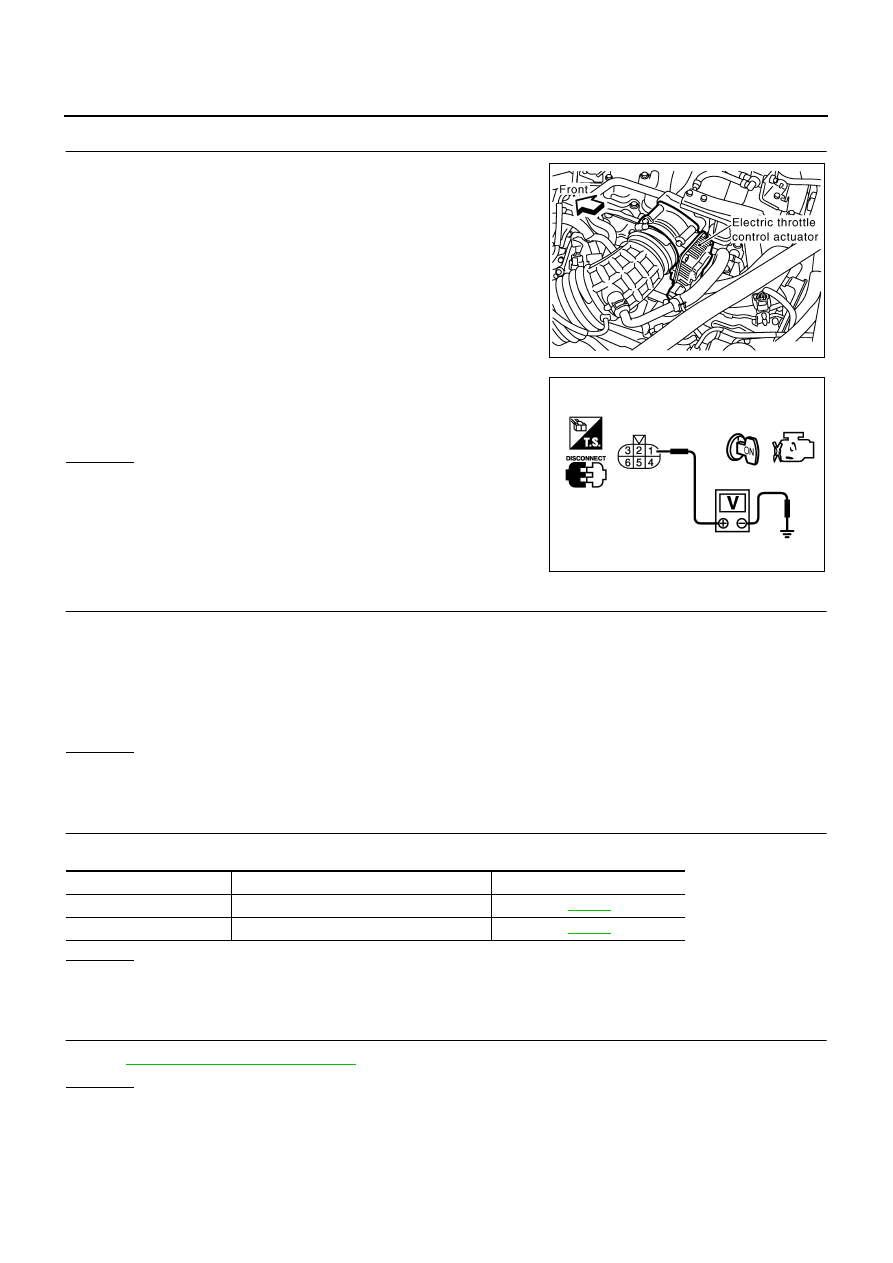

DTC P0222, P0223 TP SENSOR EC-351 C D E F G H I J K L M A EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam- Diagnostic Procedure NBS001VX 1. CHECK GROUND CONNECTIONS 1. Turn ignition switch OFF. 2. Loosen and retighten three ground screws on the body. OK or NG OK >> GO TO 2. NG >> Repair or replace ground connections. TER- MINAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage) 47 L/W Sensor power supply [Ignition switch: ON] Approximately 5V 50 B Throttle position sensor 1 [Ignition switch: ON] ● Engine stopped ● Selector lever: D ● Accelerator pedal: Fully released More than 0.36V [Ignition switch: ON] ● Engine stopped ● Selector lever: D ● Accelerator pedal: Fully depressed Less than 4.75V 66 R Sensor ground [Engine is running] ● Warm-up condition ● Idle speed Approximately 0V 69 W Throttle position sensor 2 [Ignition switch: ON] ● Engine stopped ● Selector lever: D ● Accelerator pedal: Fully released Less than 4.75V [Ignition switch: ON] ● Engine stopped ● Selector lever: D ● Accelerator pedal: Fully depressed More than 0.36V 91 B Sensor power supply [Ignition switch: ON] Approximately 5V PBIB2417E |
