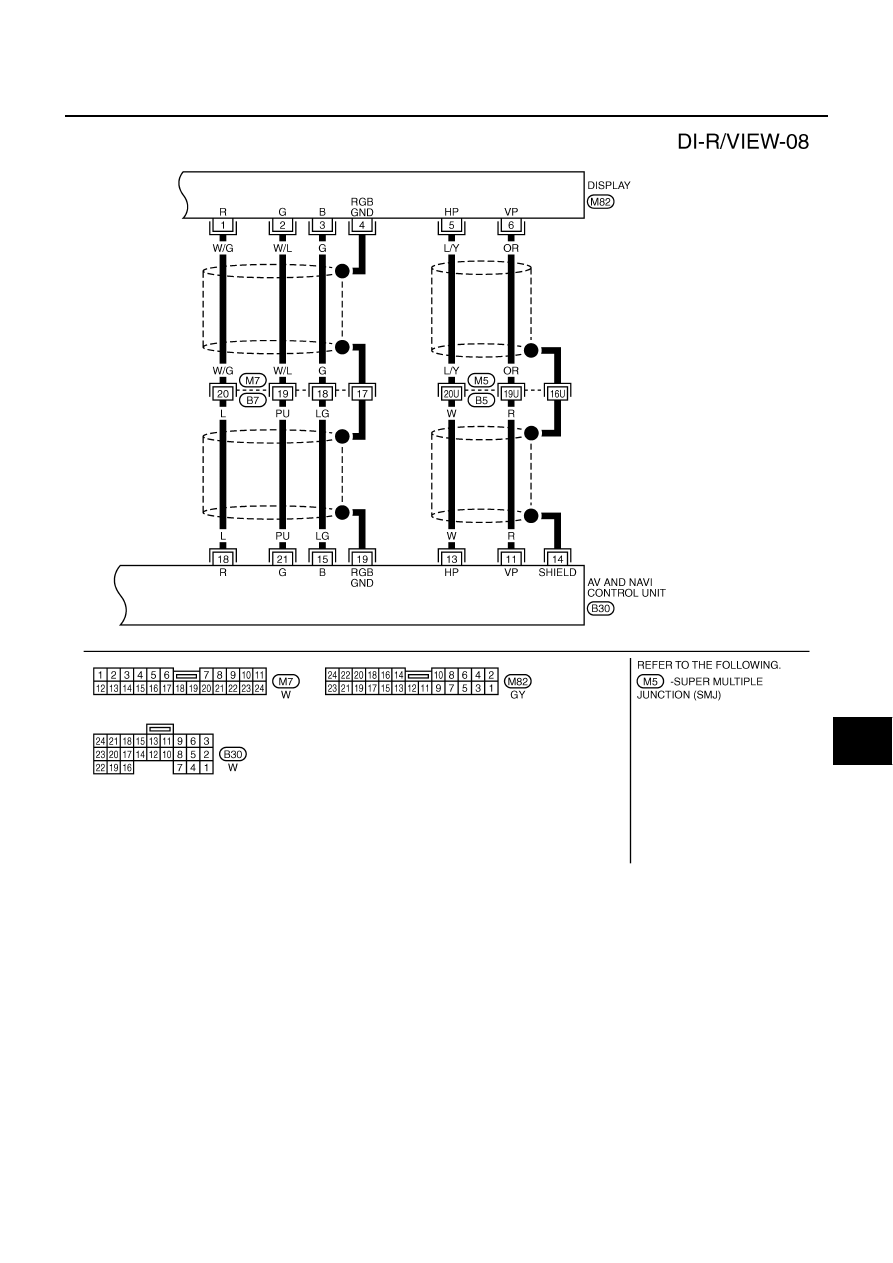

REAR VIEW MONITOR

DI-183

C

D

E

F

G

H

I

J

L

M

A

B

DI

TKWM3763E

DI-184

REAR VIEW MONITOR

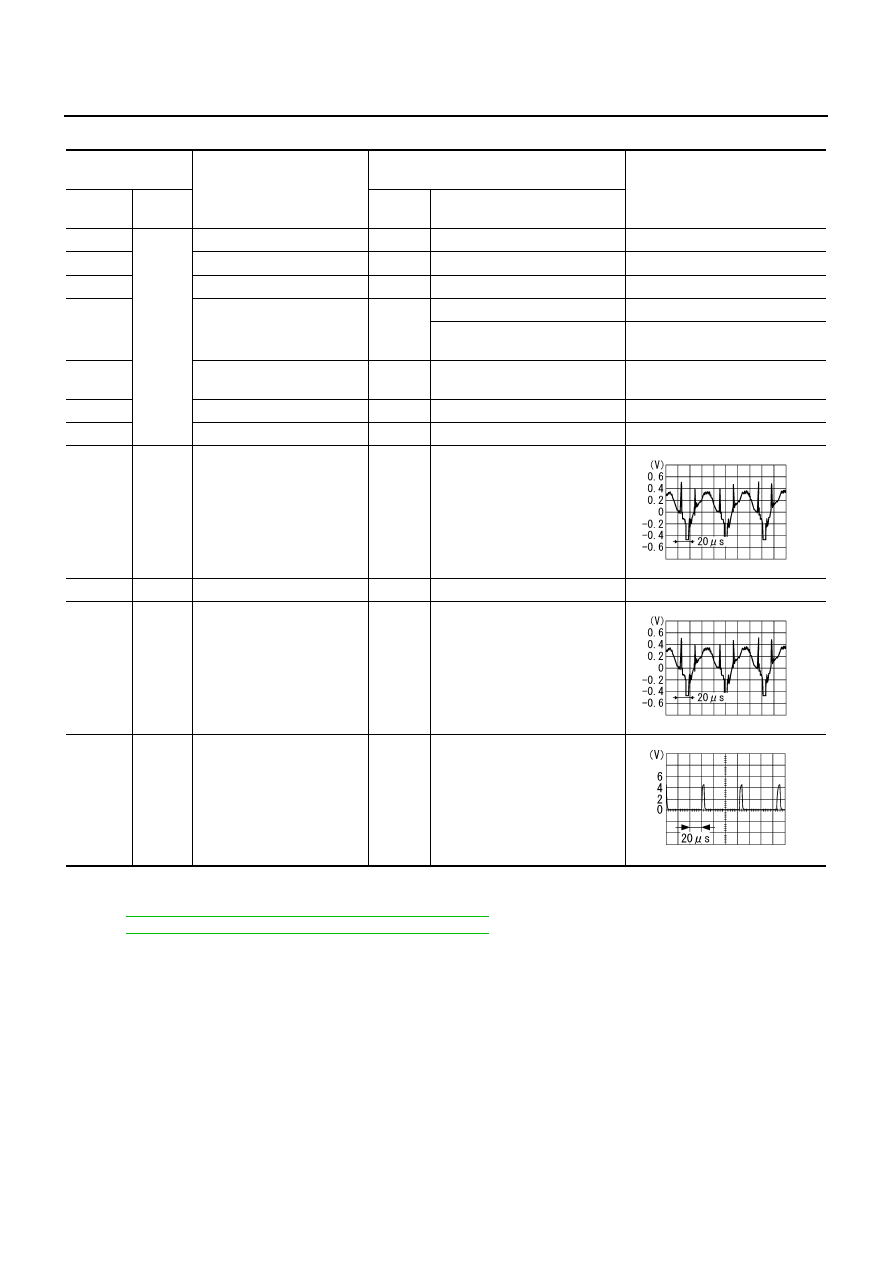

Terminals and Reference Value for Rear View Camera Control Unit

NKS001E5

Terminals and Reference Value for Display

NKS002JK

Refer to

DI-162, "Terminals and Reference Value for Display"

  (with NAVI).

Refer to

DI-123, "Terminals and Reference Value for Display"

  (without NAVI).

Terminal No.

(Wire color)

Item

Condition

Reference value

(Approx.)

(+)

(

)

Ignition

switch

Operation

1 (PU/W)

Ground

Battery power supply

OFF

Battery voltage

2 (OR/L)

ACC power supply

ACC

Battery voltage

3 (B/Y)

Ground

ON

0 V

4 (R/B)

Reverse signal input

ON

A/T selector lever “R” position

12 V

A/T selector lever in other than
“R” position

0 V

5 (L)

Rear view camera recogni-
tion signal

ON

0 V

8 (R/G)

Camera power output

ON

A/T selector lever “R” position

6 V

9

Camera image input (

)

ON

0  V

10 (W)

9

Camera image input (+)

ON

A/T selector lever “R” position

11

Ground

Composite ground

ON

0 V

12 (B)

11

Composite image output

ON

A/T selector lever “R” position

14 (W)

11

Composite image synchroni-
zation signal output

ON

A/T selector lever “R” position

SKIA4894E

SKIA4894E

SKIA5896E

REAR VIEW MONITOR

DI-185

C

D

E

F

G

H

I

J

L

M

A

B

DI

Side Distance Guideline Correction

NKS001E6

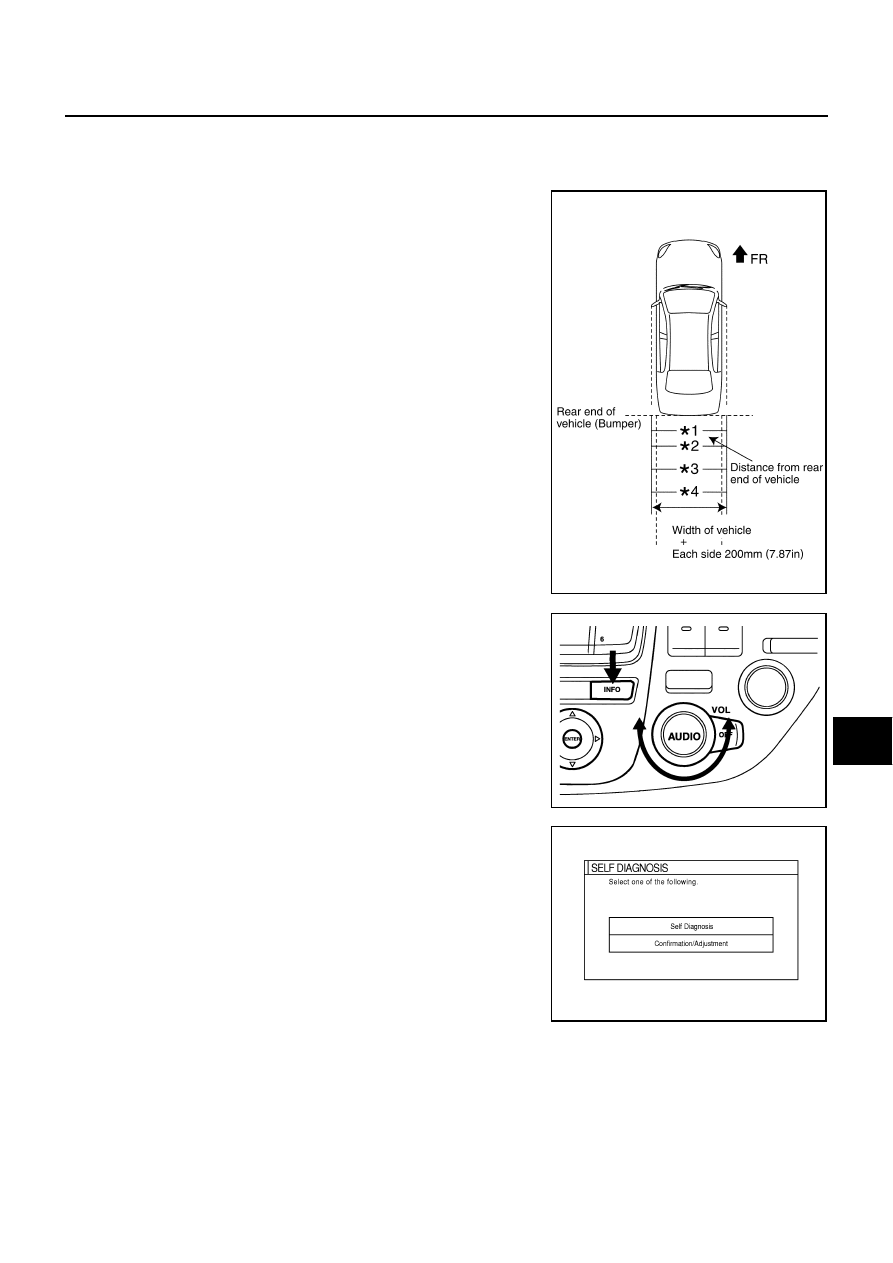

This mode is used to modify the side distance guidelines if they are dislocated from the rear view monitor
image, because of variations of body/camera mounting conditions.

1.

Create a correction line to modify the screen.
Draw lines on the backward of the vehicle passing through the
following points: 0.2 m (7.87 inch) from both sides of the vehicle,
and

*1: 0.5 m (1.64 feet)

*2: 1.0 m (3.28 feet)

*3: 2.0 m (6.56 feet)

*4: 3.0 m (9.84 feet)

 from the rear end of the bumper.

2.

Turn ignition switch ON.

3.

Turn OFF the audio system.

4.

While pressing the “INFO” switch, turn volume control dial clock-
wise or counterclockwise for 30 clicks or more. (When self-diag-
nosis mode is activated, a short beep will be heard.)

To return to the previous screen, press “PREV” switch.

5.

The initial trouble diagnosis screen is displayed for selecting
“Confirmation/Adjustment” mode.

PKIA0354E

PKIB0256E

SKIA0381E

DI-186

REAR VIEW MONITOR

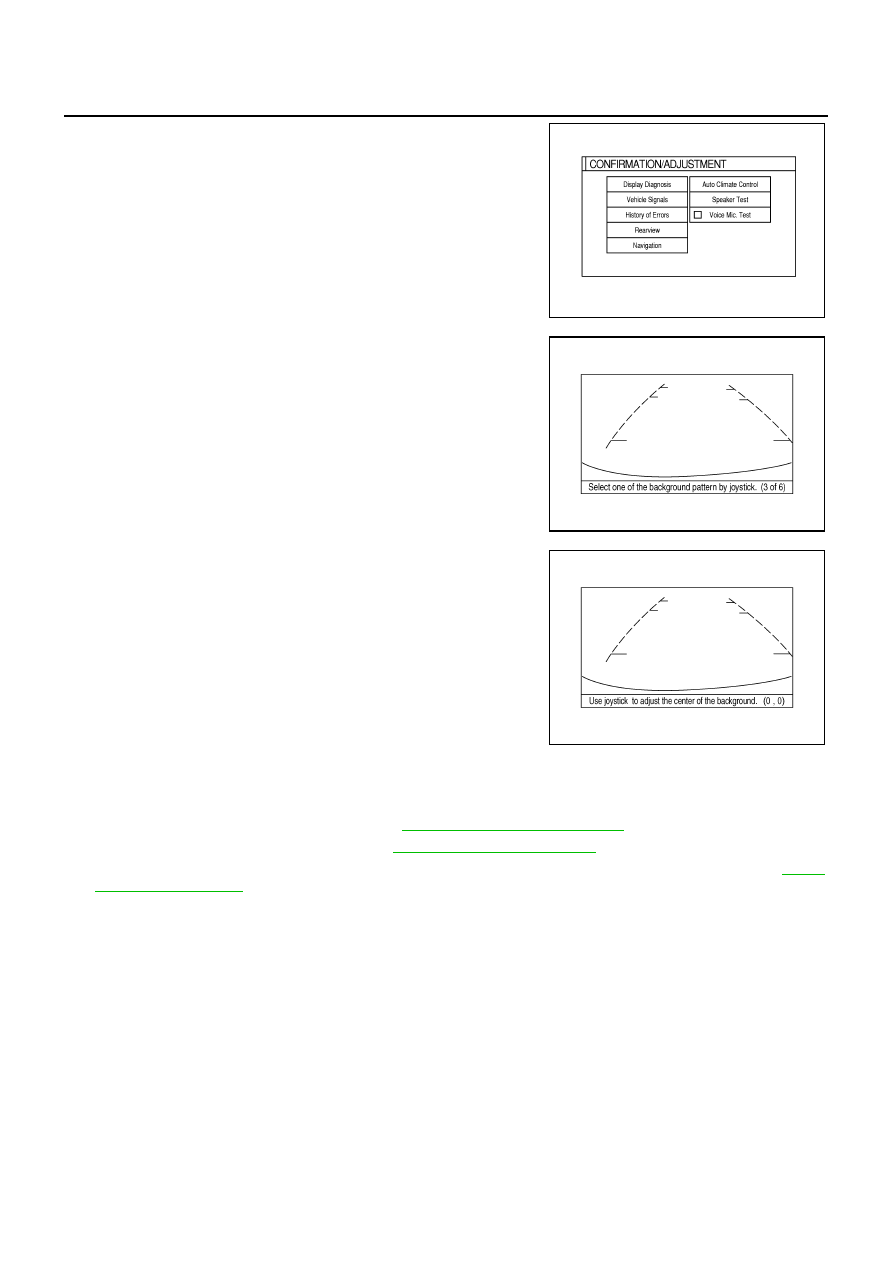

6.

Select “Rearview” in “CONFIRMATION/ADJUSTMENT”.

7.

Shift the A/T selector lever to “R” position.

8.

Using the joy stick, select the pattern closest to the prepared
correction line among the 6 guideline patterns, then press
“ENTER” button.

9.

Carefully adjust the center of the background vertically and hori-
zontally in the range of 8 - 8. Align it with the prepared line, and
press the “ENTER” button.

10. The adjustment is completed.

Trouble Diagnosis

NKS001E7

HOW TO PROCEED WITH TROUBLE DIAGNOSIS

1.

Confirm the symptom and customer complaint.

2.

Perform the preliminary inspection. Refer to

DI-187, "Preliminary Inspection"

 .

3.

Understand the outline of system. Refer to

DI-172, "System Description"

 .

4.

Referring to trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to

DI-62,

"SYMPTOM CHART"

 .

5.

Does rear view monitor system operate normally? If it operates normally, GO TO 6. If not, GO TO 4.

6.

INSPECTION END

SKIA0361E

SKIB0701E

SKIB0702E
