LANE DEPARTURE WARNING SYSTEM

DI-79

C

D

E

F

G

H

I

J

L

M

A

B

DI

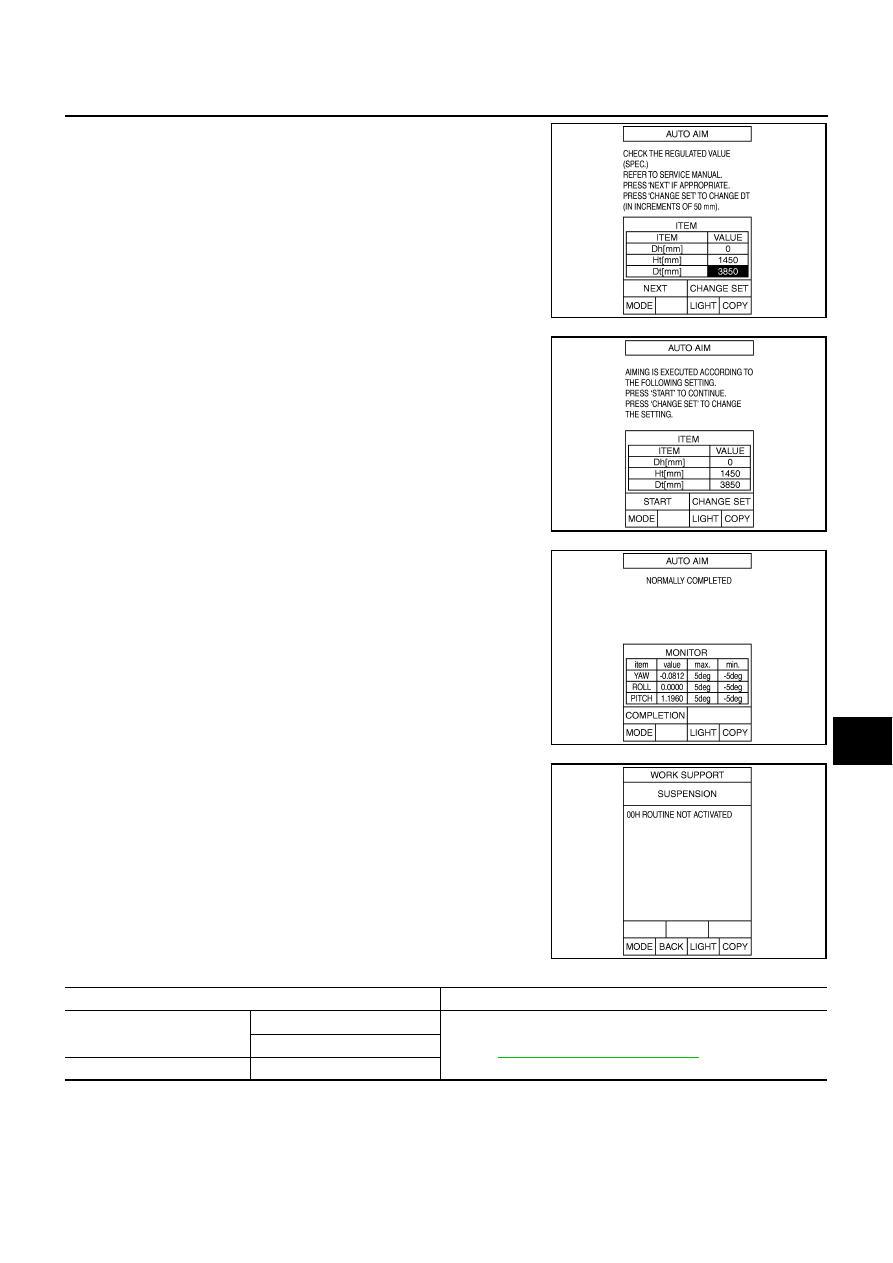

8.

Touch “NEXT”.

CAUTION:

Never change “Dt”.

9.

Touch “START”.

10. Check the display item.

a.

When “NORMALLY COMPLETED” is displayed, touch “COM-
PLETION”.

b.

Perform the following services when displayed “SUSPENSION”
or “ABNORMALLY COMPLETED”.

NOTE:
Replace camera unit if “suspension” is repeatedly indicated though the above two service is performed.

SKIB3173E

SKIB3150E

SKIB3151E

SKIB3152E

Displays item

Service procedure

SUSPENSION

00H Routine not activated

Position the target appropriately, and perform the aiming again.
Refer to

DI-74, "Camera Aiming Adjustment"

 .

10H Writing error

ABNORMALLY COMPLETED

—

DI-80

LANE DEPARTURE WARNING SYSTEM

11. Check if “NORMALLY COMPLETED” is displayed and close the

aiming adjustment procedure by touching “END”.

Check After The Adjustment

1.

Perform the LDW camera unit self-diagnosis. Refer to

DI-87, "CONSULT-II Function (LDW)"

 .

2.

Test the LDW system operation by running test. Refer to

DI-73, "LDW SYSTEM RUNNING TEST"

 .

SKIB3153E

LANE DEPARTURE WARNING SYSTEM

DI-81

C

D

E

F

G

H

I

J

L

M

A

B

DI

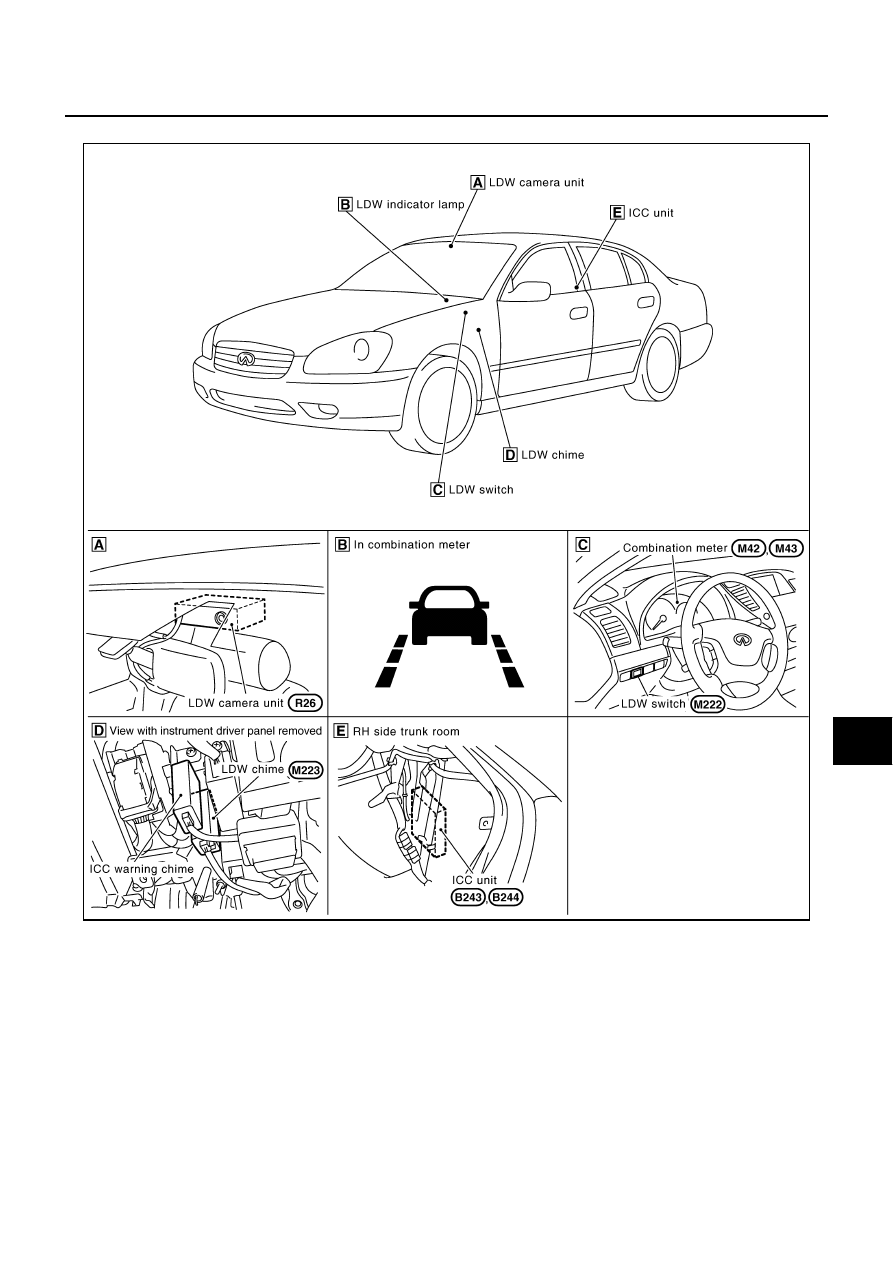

Component Parts and Harness Connector Location

NKS002BX

PKIC4885E

DI-82

LANE DEPARTURE WARNING SYSTEM

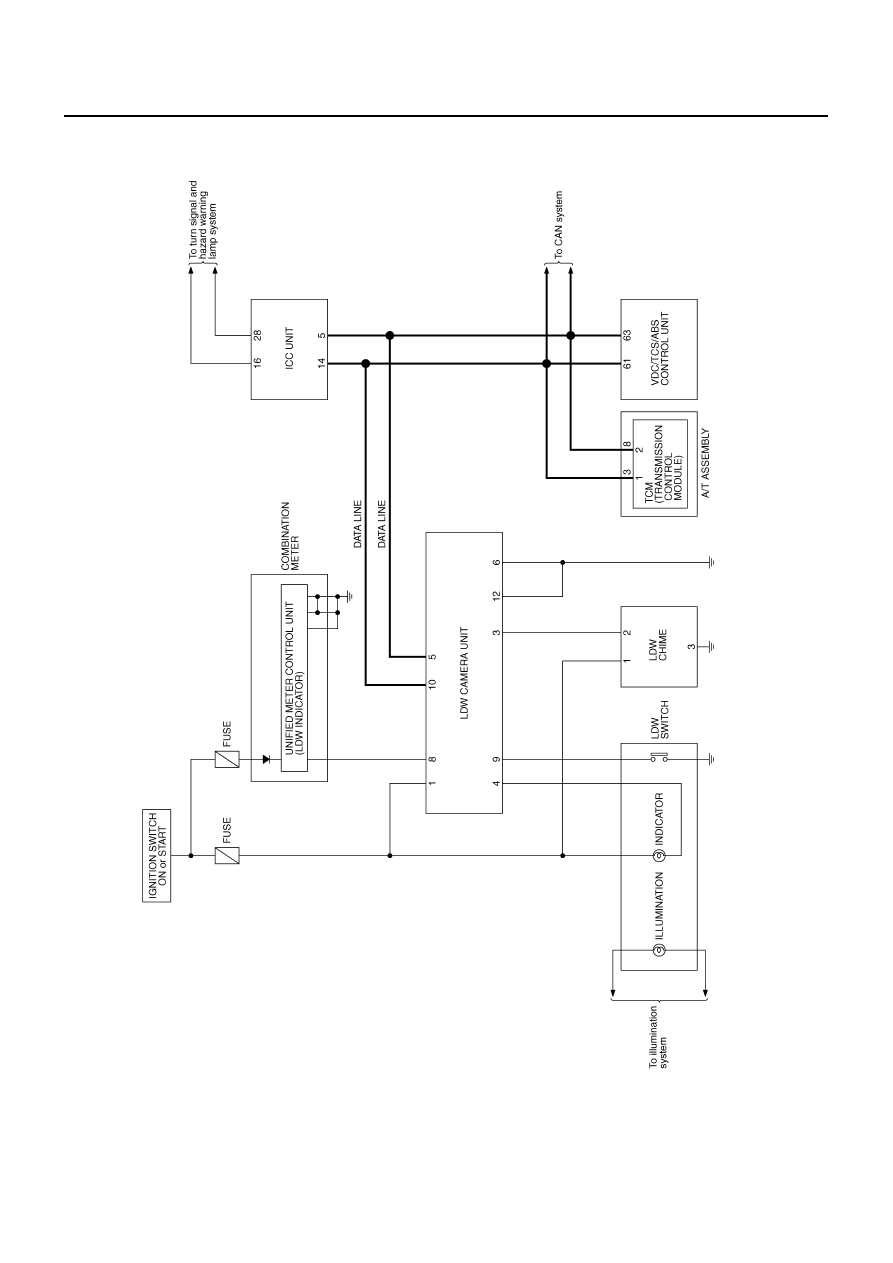

Schematic

AKS00C7L

TKWM3769E
