WARNING LAMPS

DI-27

C

D

E

F

G

H

I

J

L

M

A

B

DI

CHARGE WARNING LAMP

When an alternator malfunction occurs, ground is supplied at signal

to combination meter terminal 13

from alternator terminal 3.

When power and ground are supplied, the charge warning lamp illuminate.

LOW WASHER LEVEL WARNING MESSAGE ON DISPLAY

When the washer fluid level is low, ground is supplied at signal

to combination meter terminal 26

from washer level switch terminal 1.

When power and ground are supplied, the signal is sent

from combination meter terminals 6 and 7

through AV control unit terminals 35 and 34 (without NAVI)

through AV and NAVI control unit terminals 32 and 33 (with NAVI)

to display.

Then warning message appears display.

A/T CHECK INDICATOR LAMP

When an A/T system malfunction occurs, signal is sent

to combination meter terminals 15 and 16

from TCM (transmission control module) with CAN communication line.

When signal is received, the A/T CHECK indicator lamp blinks or illuminates.
For further information, refer to

AT-179, "A/T INDICATOR CIRCUIT"

 .

LOW-FUEL WARNING LAMP

The amount of fuel in the fuel tank is determined by the fuel level sensor in the fuel tank. A signal is sent

from fuel level sensor unit terminal 5

to combination meter terminal 30

through fuel level sensor unit terminal 6

to combination meter terminal 29.

After receiving the signal, if the combination meter judges that the fuel level is low, the combination meter illu-
minates the low-fuel warning lamp.

ABS WARNING LAMP

When an ABS malfunction occurs, signal is sent

to combination meter terminals 15 and 16

from VDC/TCS/ABS control unit with CAN communication line.

When signal is received, the ABS warning lamp illuminates.

NOTE:
The ABS warning lamp stays on when combination meter does not receive CAN communication signal.
For further information, refer to

BRC-35, "ABS WARNING LAMP, VDC OFF INDICATOR LAMP, AND SLIP

INDICATOR LAMP"

 .

DI-28

WARNING LAMPS

VDC OFF INDICATOR LAMP

When VDC OFF switch is in OFF position, or a VDC/TCS/ABS malfunction occurs, signal is sent

to combination meter terminals 15 and 16

from VDC/TCS/ABS control unit with CAN communication line.

When signal is received, the VDC OFF indicator lamp illuminates.

NOTE:
The VDC OFF indicator lamp stays on when combination meter does not receive CAN communication signal.
For further information, refer to

BRC-35, "ABS WARNING LAMP, VDC OFF INDICATOR LAMP, AND SLIP

INDICATOR LAMP"

 .

SLIP INDICATOR LAMP

When VDC is in operation, or a VDC malfunction occurs, signal is sent

to combination meter terminals 15 and 16

from VDC/TCS/ABS control unit with CAN communication line.

When signal is received, the SLIP indicator lamp illuminates.
NOTE:
The SLIP indicator lamp stays on when combination meter does not receive CAN communication signal.
For further information, refer to

BRC-35, "ABS WARNING LAMP, VDC OFF INDICATOR LAMP, AND SLIP

INDICATOR LAMP"

 .

SEAT BELT WARNING LAMP

When one of the following conditions causing,

When the driver seat belt is unfastened, ground is supplied

to combination meter terminal 50

from pre-crash seat belt control unit terminal 7

When the seat belt warning lamp illuminates.

When pre-crash seat belt system malfunction occurs, ground is supplied

to combination meter terminal 50

from pre-crash seat belt control unit terminal 7

When the seat belt warning lamp blinks.

For further information, refer to

SB-11, "System Description"

  in pre-crash seat belt.

When the passenger seat belt is unfastened and occupant is on passenger seat, ground is supplied.
(With passenger seat belt warning system)

to combination meter terminal 50

from air bag diagnosis sensor unit terminal 24

When the seat belt warning lamp illuminates.

BRAKE WARNING LAMP

When one of the following conditions causing,

When the parking brake is applied, ground is supplied

to combination meter terminal 68

from parking brake switch terminal 1

When the brake fluid level is low, ground is supplied

to combination meter terminal 51

from brake fluid level switch terminal 1

When the alternator malfunction occurs, ground is supplied

to combination meter terminal 13

from alternator terminal 3

power and ground are supplied, and then the brake warning lamp illuminates.

MALFUNCTION INDICATOR LAMP

When an engine control malfunction occurs, signal is sent

to combination meter terminals 15 and 16

WARNING LAMPS

DI-29

C

D

E

F

G

H

I

J

L

M

A

B

DI

from ECM with CAN communication line.

When signal is received, the malfunction indicator lamp illuminates.
For further information, refer to

EC-757, "MIL AND DATA LINK CONNECTOR"

 .

LOW TIRE PRESSURE WARNING LAMP

When a low tire pressure warning control malfunction occurs, ground is supplied at signal

to combination meter terminal 54

from low tire pressure warning control unit terminal 3.

When power and ground are supplied, the low tire pressure warning lamp illuminates.

NOTE:
The low tire pressure warning lamp stays on when air bag diagnosis sensor unit has malfunction or the circuit
is open.
For further information, refer to

WT-40, "TROUBLE DIAGNOSIS FOR SYMPTOMS"

 .

ASCD INDICATOR LAMP (SET LAMP)

When an ASCD malfunction occurs, signal is sent

to combination meter terminals 15 and 16

from ECM with CAN communication line.

When signal is received, the SET lamp will blink quickly.

ICC SYSTEM DISPLAY (ICC SYSTEM WARNING LAMP)

When an ICC system malfunction occurs, signal is sent

to combination meter terminals 15 and 16

from ICC unit with CAN communication line.

When signal is received, the ICC system warning lamp illuminates.

RAS WARNING LAMP

When RAS system malfunction occurs, ground is supplied at signal

to combination meter terminal 55

from RAS control unit terminal 26.

When power and ground are supplied, the RAS warning lamp illuminates.

LDW INDICATOR LAMP (ON THE ICC SYSTEM DISPLAY)

When LDW system is in operation or a LDW system malfunction occurs, signal is sent

to combination meter terminal 23

from LDW camera unit terminal 8.

When signal is received, the LDW indicator lamp illuminates.

DI-30

WARNING LAMPS

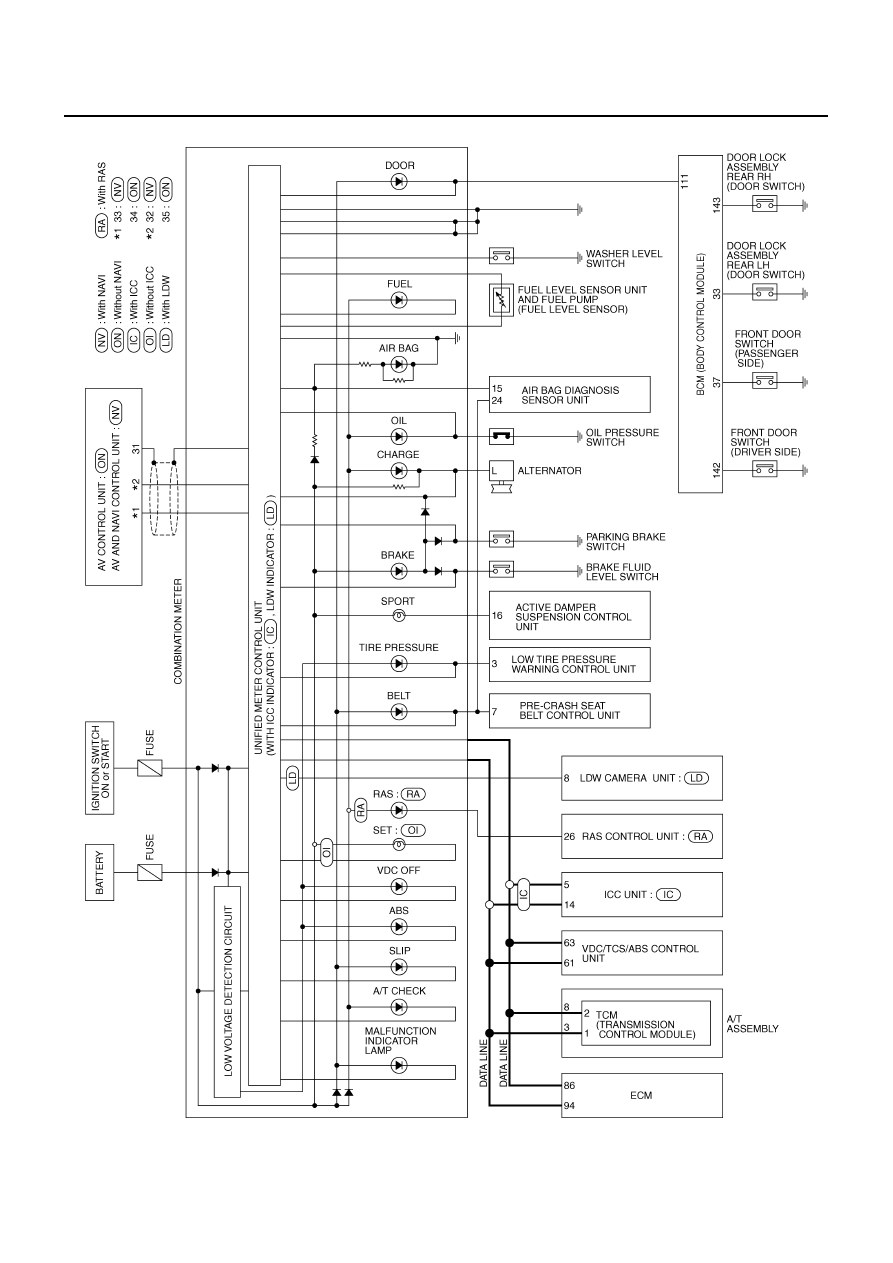

Schematic
