Infiniti Q45. Manual - part 286

COMBINATION METERS

DI-11

C

D

E

F

G

H

I

J

L

M

A

B

DI

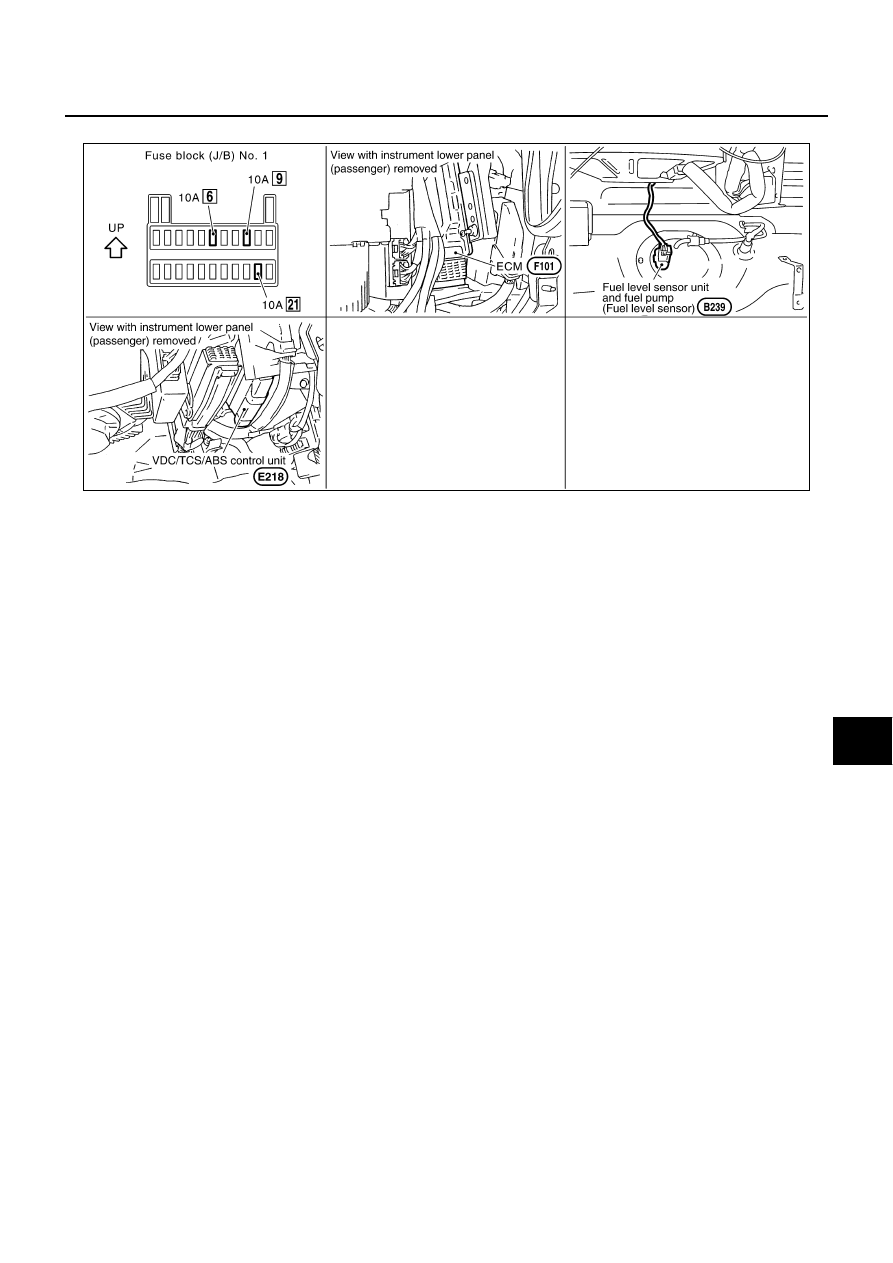

Component Parts and Harness Connector Location

NKS001B3

SKIB0661E

DI-12

COMBINATION METERS

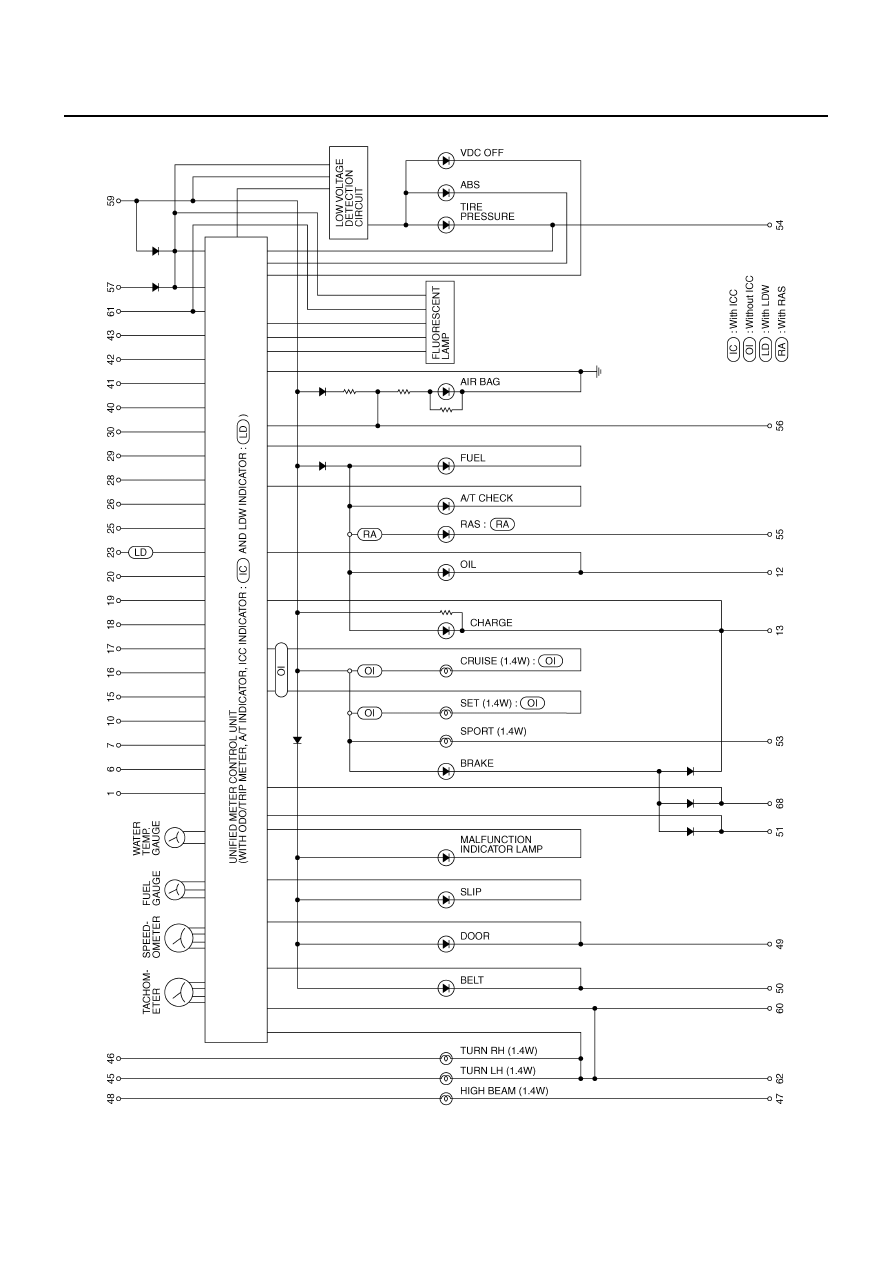

Internal Circuit

NKS001B4

TKWM3723E

COMBINATION METERS

DI-13

C

D

E

F

G

H

I

J

L

M

A

B

DI

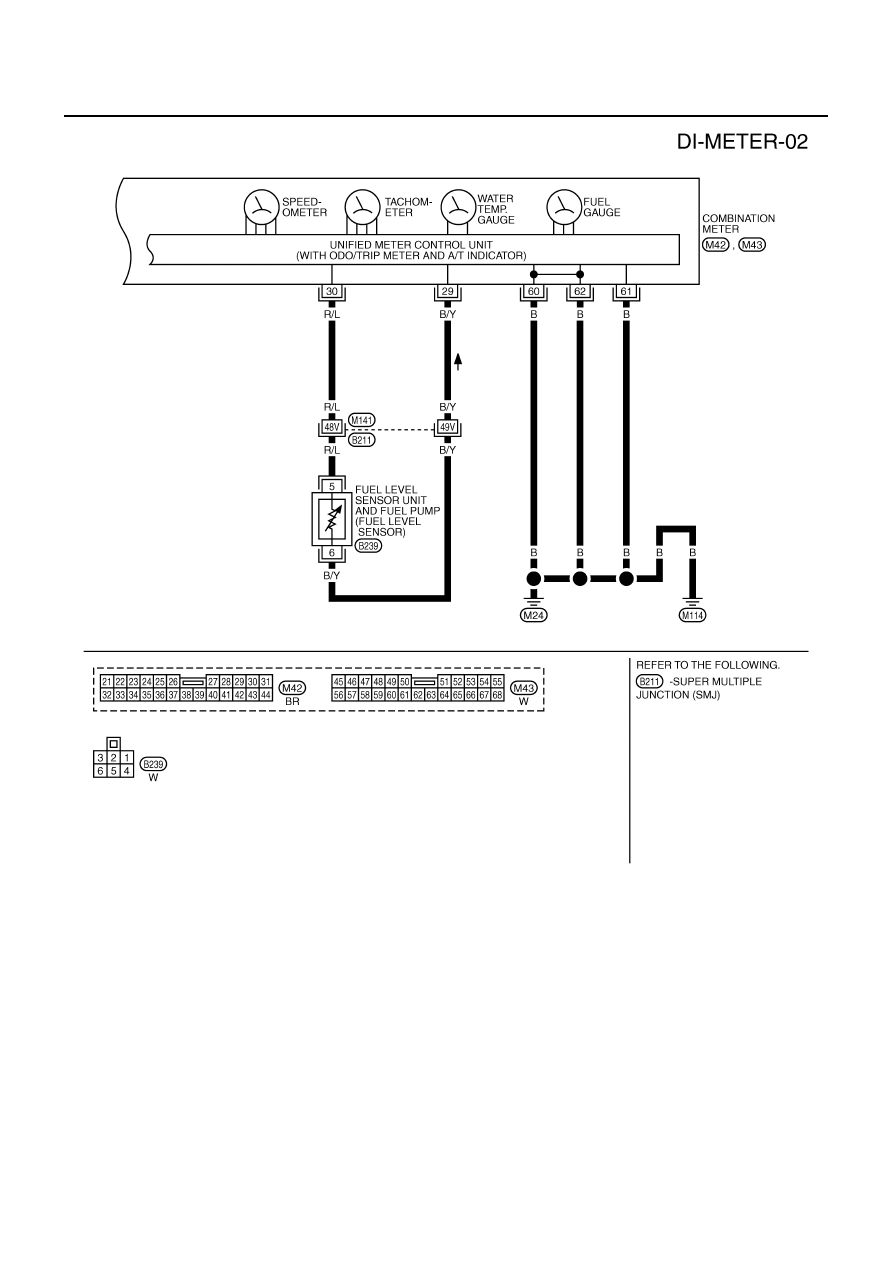

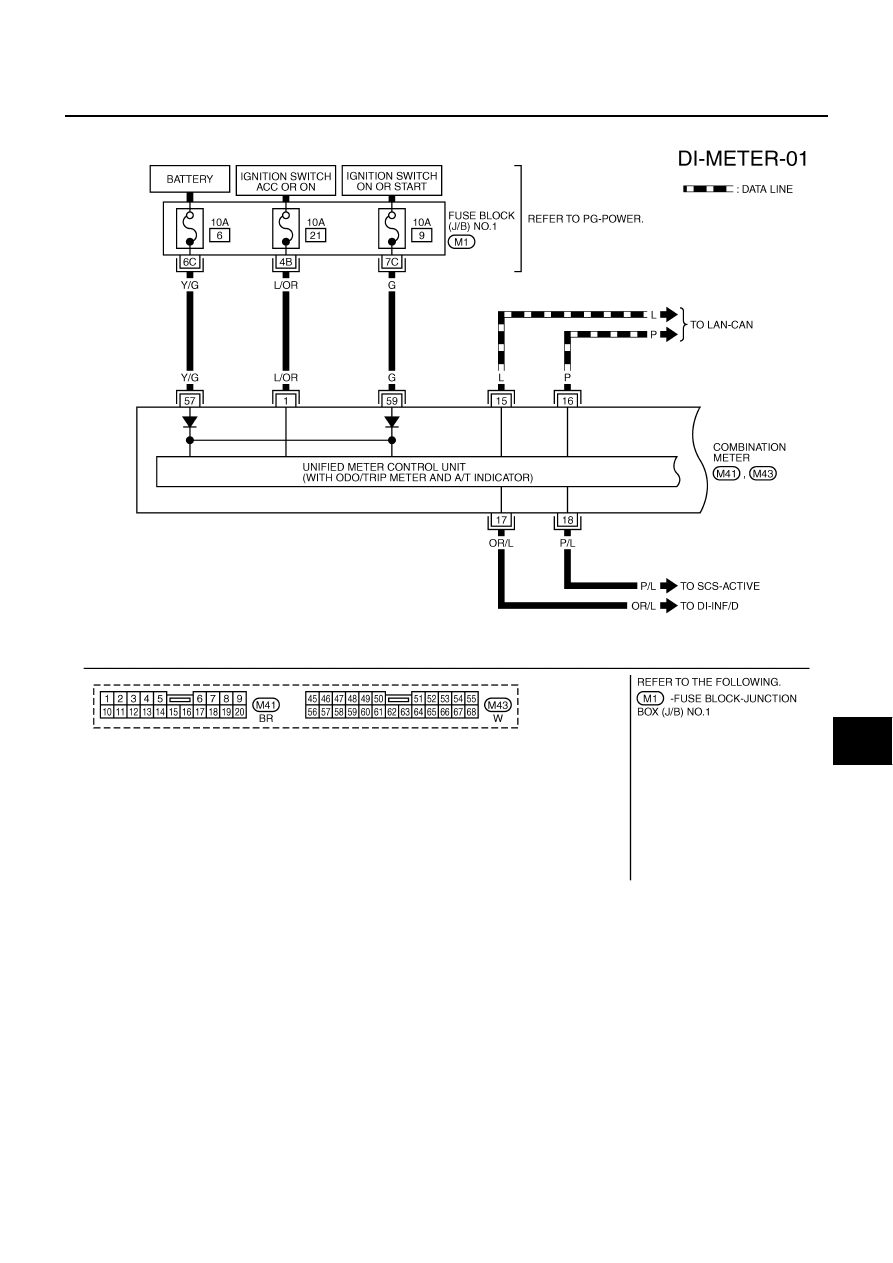

Wiring Diagram — METER —

NKS001B5

TKWM3724E

DI-14

COMBINATION METERS

TKWM3725E
