REMOTE KEYLESS ENTRY SYSTEM

BL-101

C

D

E

F

G

H

J

K

L

M

A

B

BL

ID Code Entry Procedure

NIS000V5

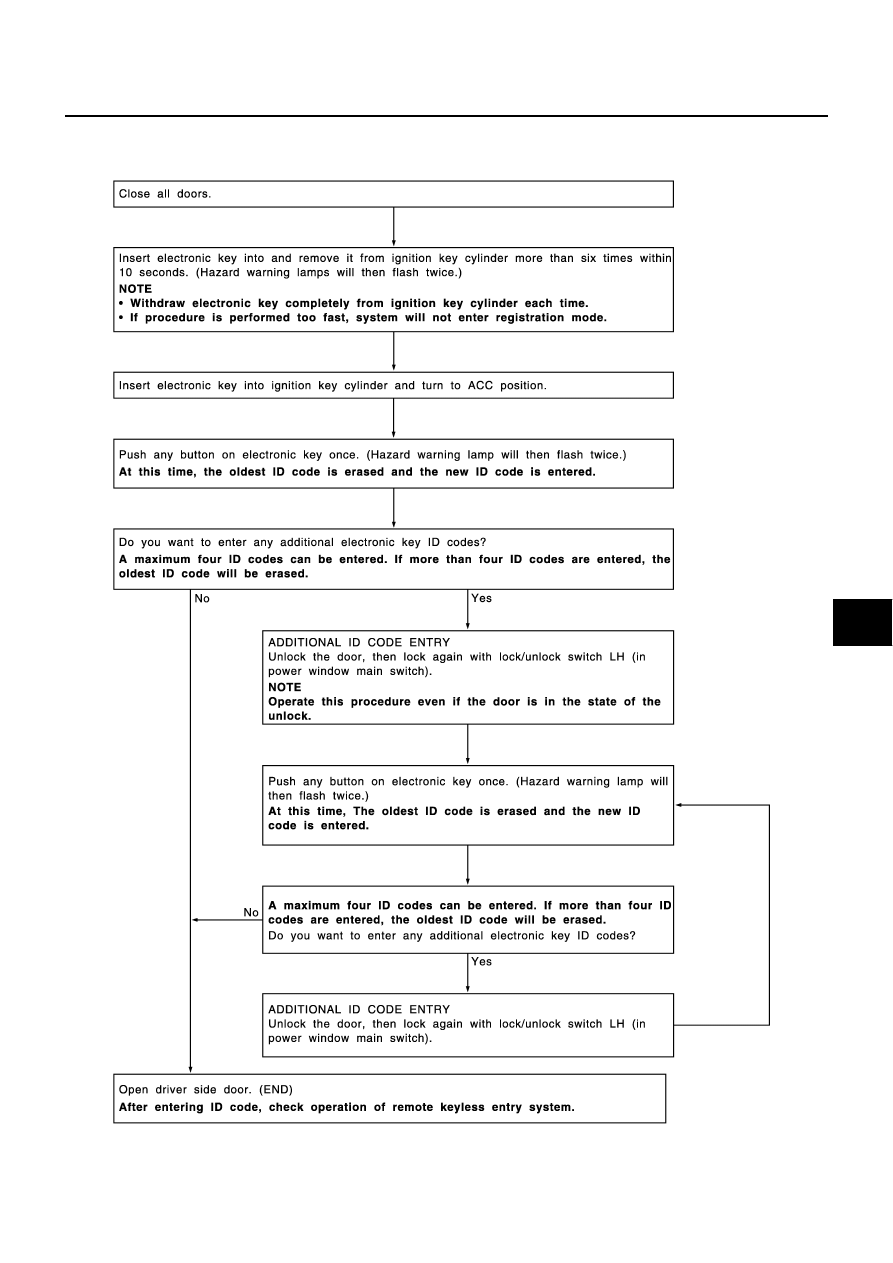

PROCEDURE 1 (WITHOUT CONSULT-II)

PIIA4474E

BL-102

REMOTE KEYLESS ENTRY SYSTEM

NOTE:

If a electronic key is lost, the ID code of the lost electronic key must be erased to prevent unauthorized
use. A specific ID code can be erased with CONSULT-II. However, when the ID code of a lost electronic
key is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of
all remaining and/or new electronic key must be re-registered. To erase all ID codes in memory, register
one ID code (electronic key) four times. After all ID codes are erased, the ID codes of all remaining and/or
new electronic keys must be re-registered.

When registering an additional electronic key, the existing ID codes in memory may or may not be erased.
If four ID codes are stored in memory, when an additional code is registered, only the oldest code is
erased. If less than four ID codes are stored in memory, when an additional ID code is registered, the new
ID code is added and no ID codes are erased.

If you need to activate more than two additional new electronic keys, repeat the procedure “Additional ID
code entry” for each new electronic key.

Entry of maximum four ID codes is allowed. When more than four ID codes are entered, the oldest ID
code will be erased.

Even if same ID code that is already in the memory is input, the same ID code can be entered. The code
is counted as an additional code.

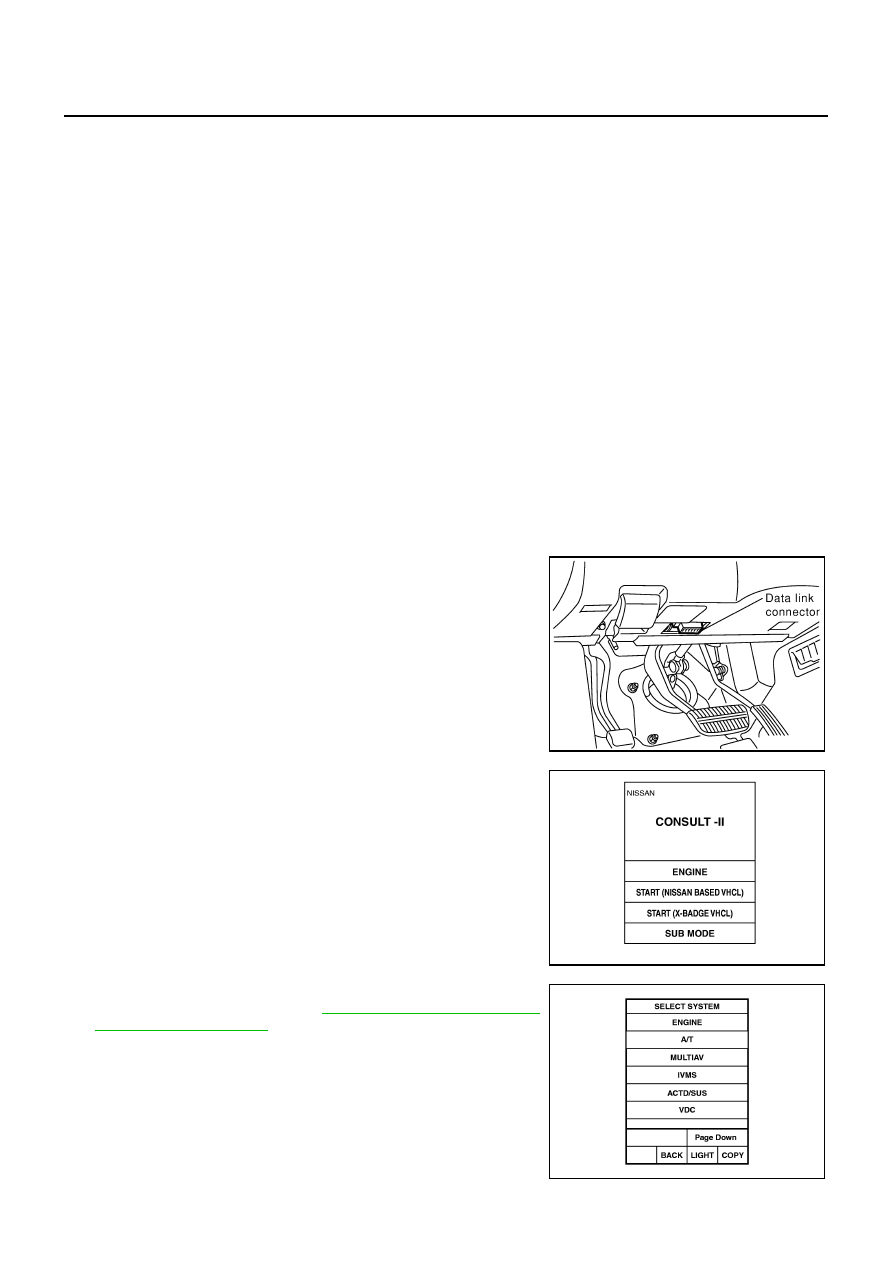

PROCEDURE 2 (WITH CONSULT-II)

NOTE:
If a electronic key is lost, the ID code of the lost electronic key must be erased to prevent unauthorized use.
When the ID code of a lost electronic key is not known, all controller ID codes should be erased. After all ID
codes are erased, the ID codes of all remaining and/or new electronic key must be re-registered.

1.

Turn ignition switch “OFF”.

2.

Connect “CONSULT-ll” and “CONSULT-ll CONVERTER” to the
data link connector.

3.

Turn ignition switch “ON”.

4.

Touch “START (NISSAN BASED VHCL)”

5.

Touch “IVMS”
If “IVMS” is not indicated, go to

GI-37, "CONSULT-II Data Link

Connector (DLC) Circuit"

 .

PBIB0196E

PBIB2276E

PIIA0183E

REMOTE KEYLESS ENTRY SYSTEM

BL-103

C

D

E

F

G

H

J

K

L

M

A

B

BL

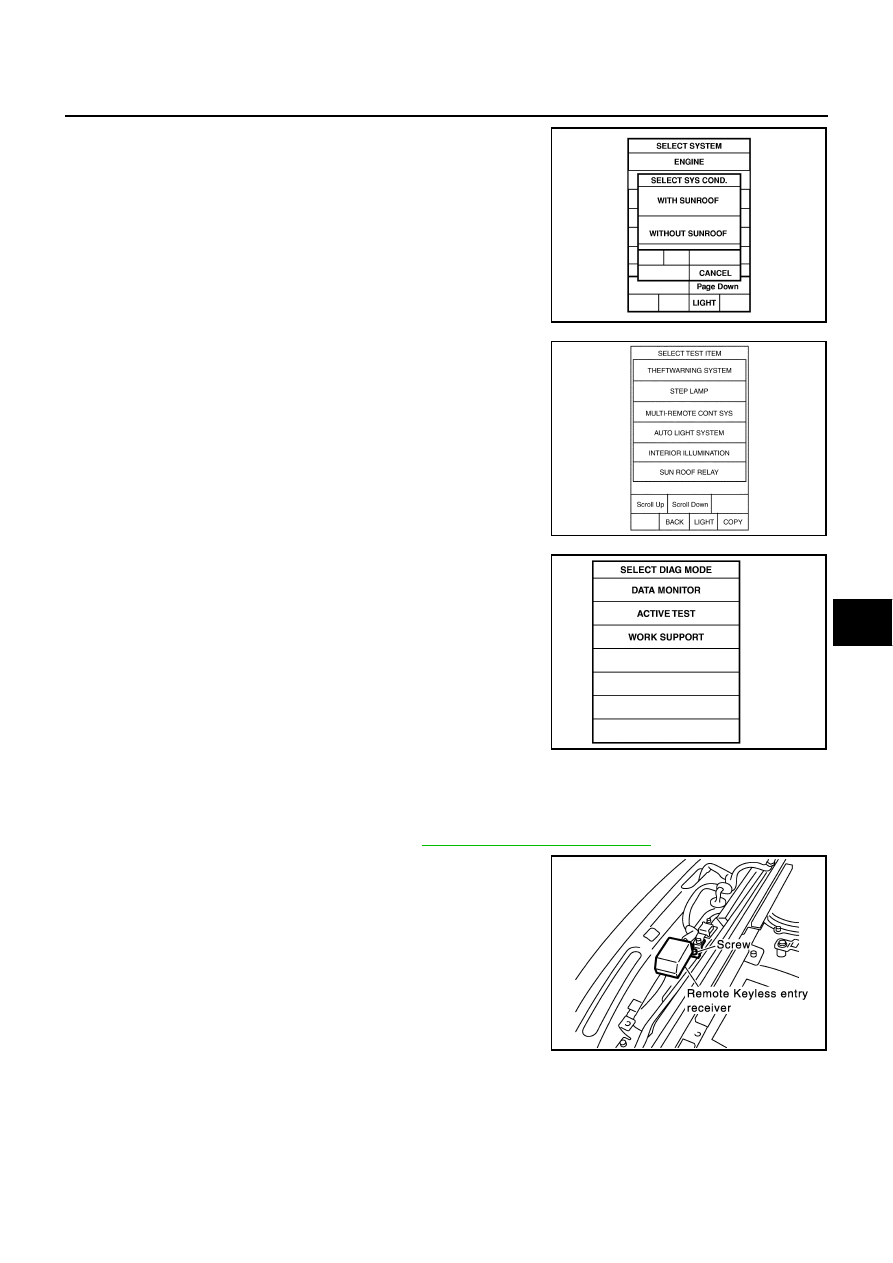

6.

Check the model specification, touch either “WITH SUNROOF”
or “WITHOUT SUNROOF”.

7.

Touch “OK”. If the selection is wrong, touch “CANCEL”.

8.

Touch “MULTI-REMOTE CONT SYS”.

9.

Touch “WORK SUPPORT”.

10. The item shown on the figure at right can be set up.

“REMO CONT ID CONFIR”
Use this mode to confirm if a electronic key ID code is registered
or not.

“REMO CONT ID REG” Use this mode to register a electronic
key ID code.

NOTE:
Register the ID code when electronic key or BCM is replaced, or
when additional electronic key is required.

“REMO CONT ID ERASUR” Use this mode to erase a electronic
key ID code.

Removal and Installation of Remote Keyless Entry Receiver

NIS000V6

REMOVE

1.

Remove the rear parcel shelf finisher. Refer to

EI-48, "Removal and Installation"

 .

2.

Disconnect the remote keyless entry receiver connector, mount-
ing screw and remove the remote keyless entry receiver.

INSTALLATION

Install in the reverse order of removal.

PIIA0184E

PIIA0373E

SEL274W

PIIA3445E

BL-104

DOOR

DOOR

PFP:80100

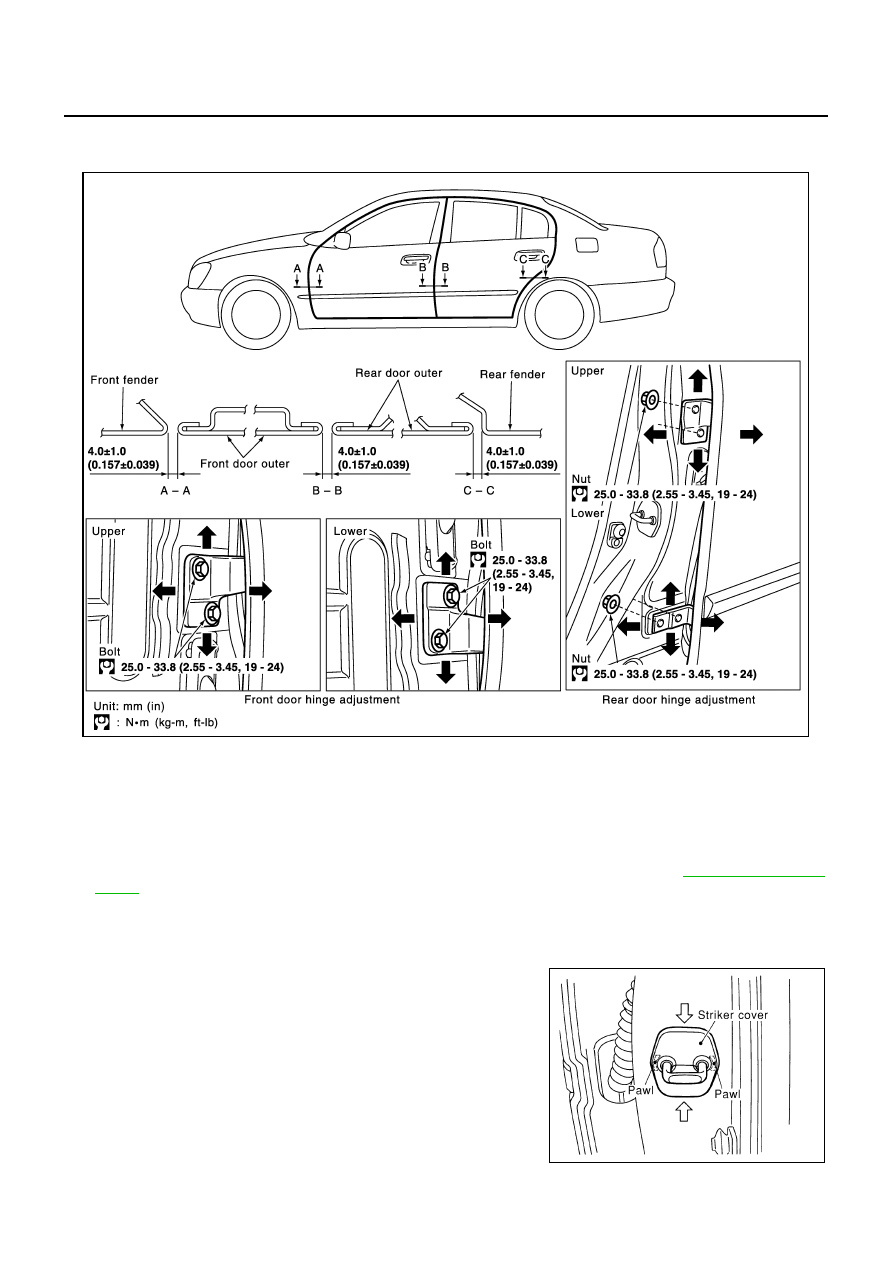

Fitting Adjustment

NIS000V7

FRONT DOOR
Longitudinal Clearance and Surface Height Adjustment at Front End

Accessing from inside the fender, loosen the hinge mounting bolts. Raise the front door at rear end to adjust.

REAR DOOR
Longitudinal Clearance and Surface Height Adjustment at Front End

1.

Remove the center pillar upper garnish and center pillar lower garnish. Refer to

EI-43, "BODY SIDE

TRIM"

 .

2.

Accessing from inside the vehicle, loosen the mounting nuts. Open the rear door, and raise the rear door
at rear end to adjust.

STRIKER ADJUSTMENT

1.

Remove the striker cover.

PIIA3411E

SIIA0886E
