NAVIGATION SYSTEM

AV-97

C

D

E

F

G

H

I

J

L

M

A

B

AV

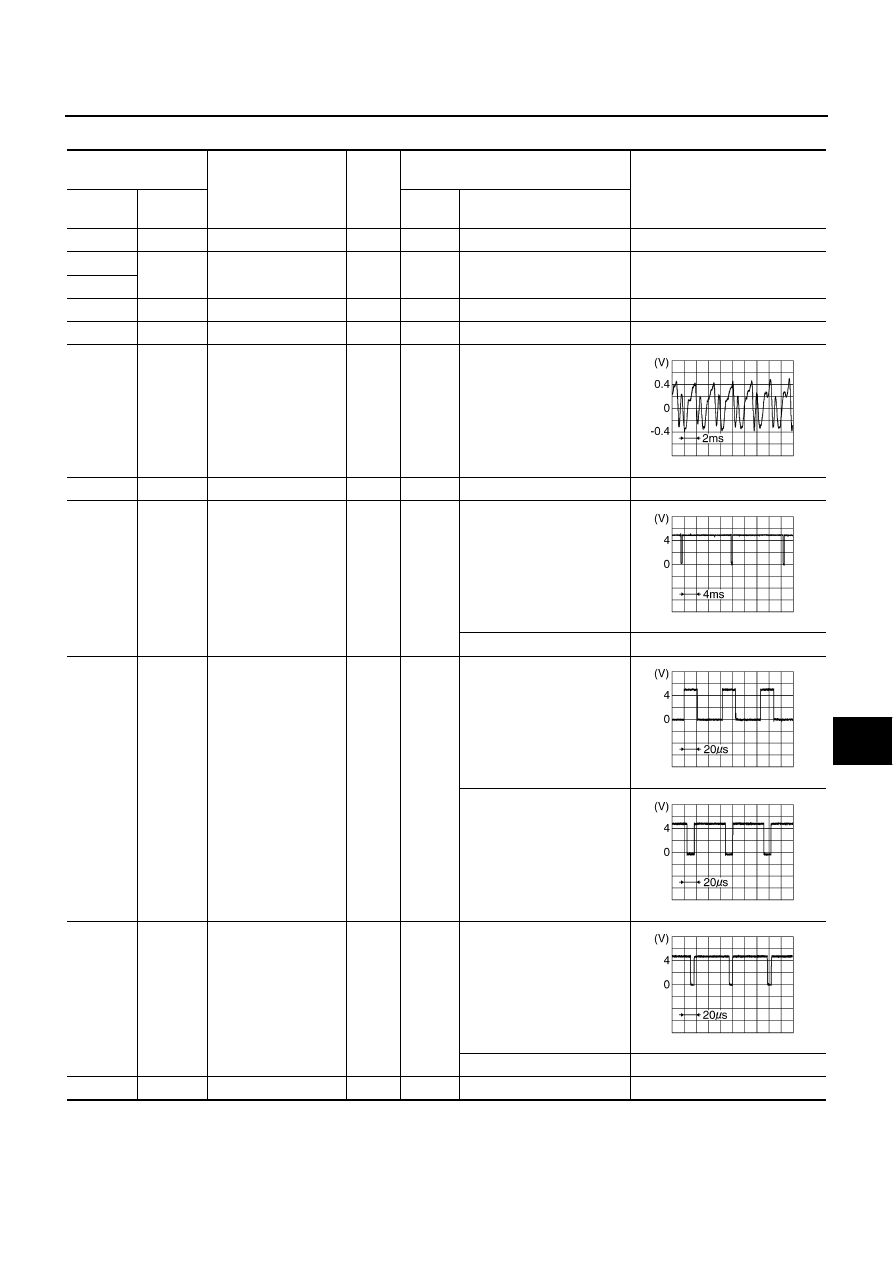

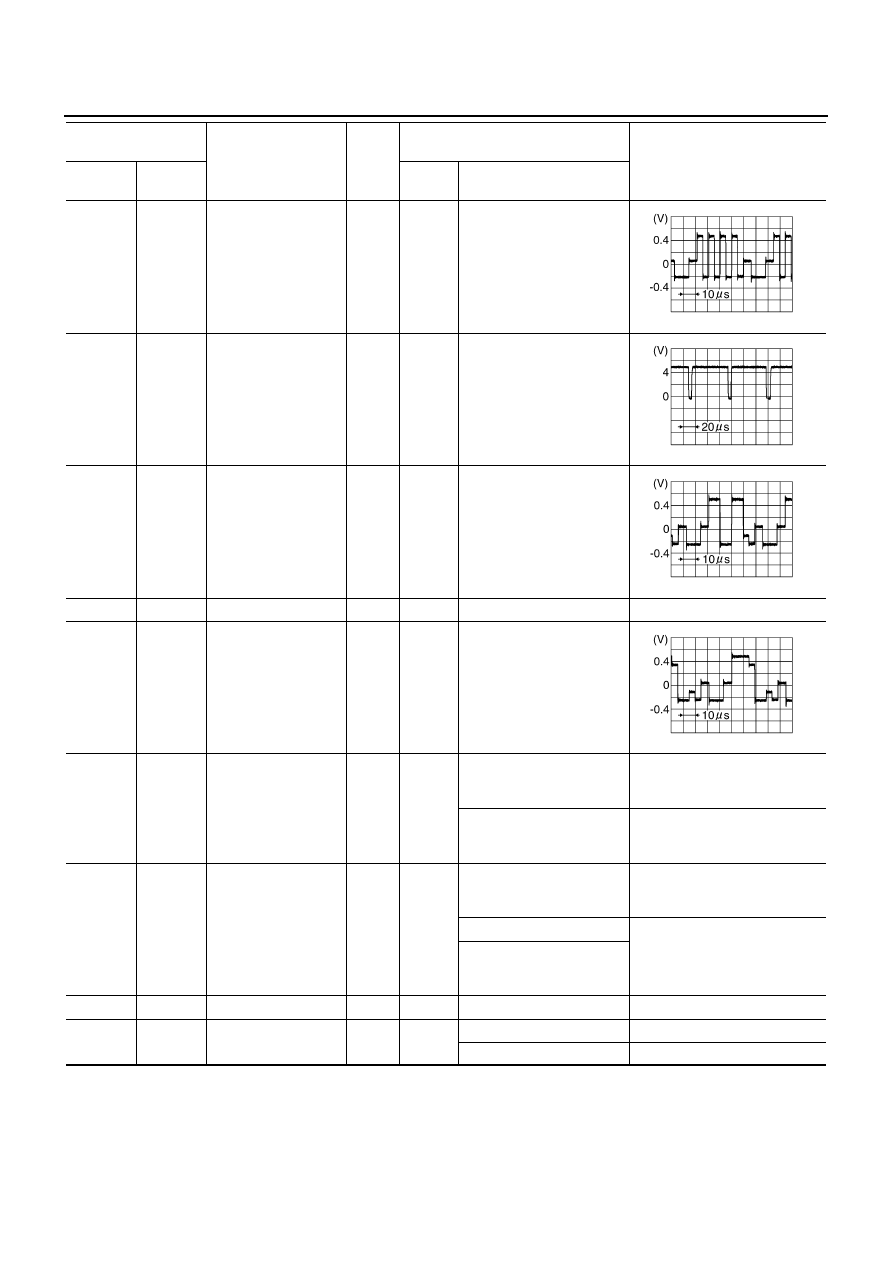

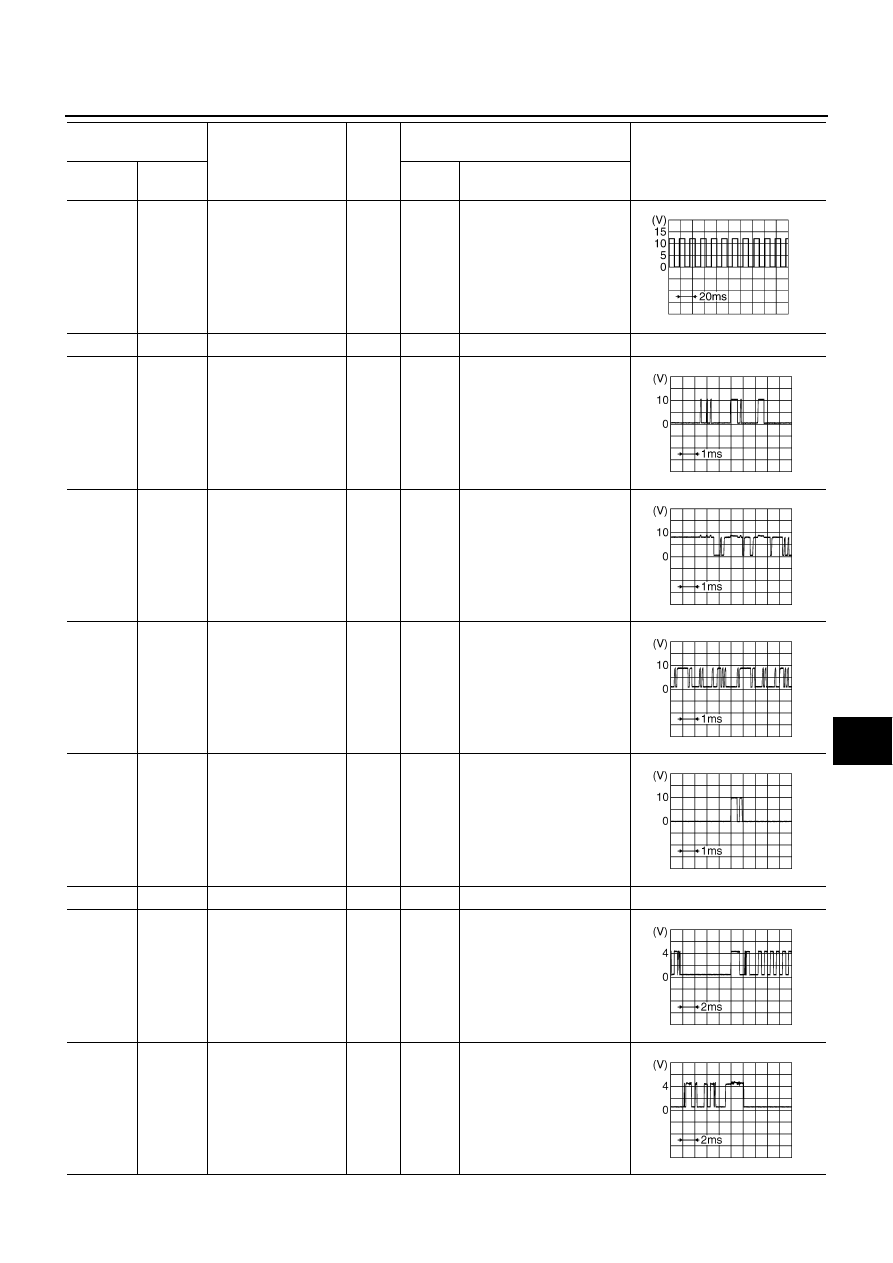

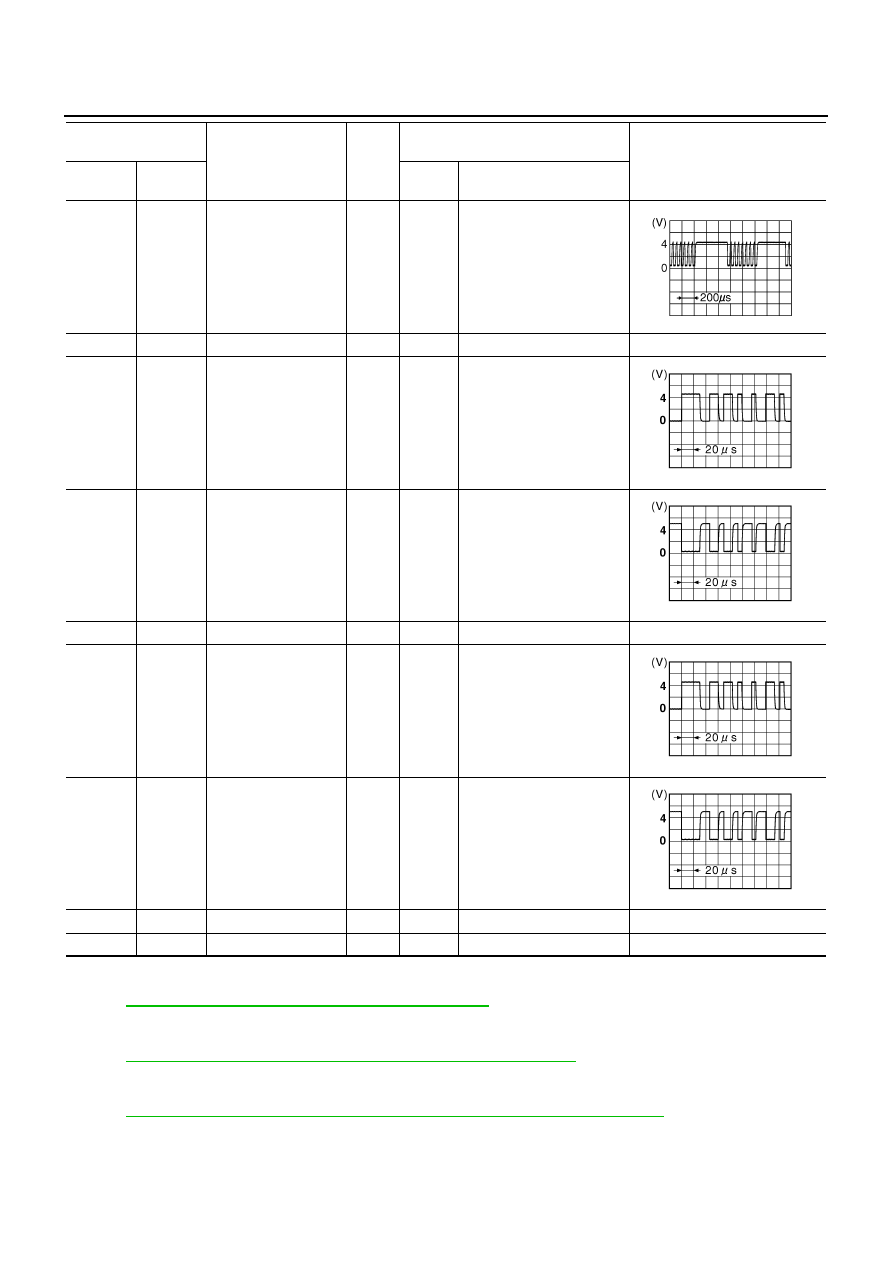

Terminals and Reference Value for AV and NAVI Control Unit

NKS001IT

Terminal

 (Wire color)

Item

Signal

input/

output

Condition

Reference value

+

Ignition

switch

Operation

1 (B)

Ground

Ground

ON

Approx. 0 V

2 (SB)

Ground

Battery power supply

Input

OFF

Battery voltage

3 (SB)

4 (B)

Ground

Ground

ON

Approx. 0 V

6 (L/OR)

Ground

ACC power supply

Input

ACC

Battery voltage

7 (R)

8 (L)

Voice guidance signal

Output

ON

Press “VOICE” button

9

Shield

11 (R)

Ground

Vertical synchronizing
(VP) signal

Input

ON

Set the selector lever in R
position, and then display
the rear view image

Other than the above

Approx. 0 V

12 (B)

Ground

RGB area (YS) signal

Output

ON

Set the selector lever in R
position, and then display
the rear view image

Other than the above

13 (W)

Ground

Horizontal
synchronizing (HP)
signal

Input

ON

Set the selector lever in R
position, and then display
the rear view image

Other than the above

Approx. 0 V

14

Shield

SKIB3597E

SKIB3598E

SKIB3599E

SKIB3600E

SKIB3601E

AV-98

NAVIGATION SYSTEM

15 (LG)

Ground

RGB signal (B: blue)

Output

ON

Start Confirmation/Adjust-
ment mode, and then dis-
play color bar by selecting
“Display Color Spectrum
Bar” on DISPLAY DIAGNO-
SIS screen

16 (G)

Ground

RGB synchronizing
signal

Output

ON

When displaying RGB

18 (L)

Ground

RGB signal (R: red)

Output

ON

Start Confirmation/Adjust-
ment mode, and then dis-
play color bar by selecting
“Display Color Spectrum
Bar” on DISPLAY DIAGNO-
SIS screen

19

Shield

21 (PU)

Ground

RGB signal (G: green)

Output

ON

Start Confirmation/Adjust-
ment mode, and then dis-
play color bar by selecting
“Display Color Spectrum
Bar” on DISPLAY DIAGNO-
SIS screen

22 (W)

Ground

Camera-connection
recognition signal

Input

ON

Connected to rear view
camera control unit connec-
tor

Approx. 0 V

Not connected rear view
camera control unit connec-
tor

Approx. 5 V

25 (R/L)

Ground

Illumination dimmer
signal

Input

ON

Lighting switch is ON, and
then optical sensor is not
illuminated

Approx. 12 V

Lighting switch OFF

Approx. 0 V

Lighting switch is ON, and
then optical sensor is illumi-
nated

26 (W/G)

Ground

Ignition signal

Input

ON

Battery voltage

27 (R/B)

Ground

Reverse signal

Input

ON

Select R position

Approx. 12 V

Other position

Approx. 0 V

Terminal

 (Wire color)

Item

Signal

input/

output

Condition

Reference value

+

Ignition

switch

Operation

SKIB3602E

SKIB3603E

SKIB3604E

SKIB3605E

NAVIGATION SYSTEM

AV-99

C

D

E

F

G

H

I

J

L

M

A

B

AV

28 (OR/L)

Ground

Vehicle speed signal
(8-pulse)

Input

ON

When vehicle speed is
approx. 40 km/h (25 MPH)

31

Shield —

32 (PU)

Ground

Communication signal
(ME-AV)

Input

ON

33 (LG)

Ground

Communication signal
(AV-ME)

Output

ON

34 (P)

Ground

Communication signal
(AV-CN)

Output

ON

Perform CONSULT-II

35 (BR/Y)

Ground

Communication signal
(CN-AV)

Input

ON

Perform CONSULT-II

36

Shield

37 (W)

Ground

Communication signal
(AC-AV)

Input

ON

38 (R)

Ground

Communication signal
(AV-AC)

Output

ON

Terminal

 (Wire color)

Item

Signal

input/

output

Condition

Reference value

+

Ignition

switch

Operation

PKIA1935E

SKIB7619E

SKIB7620E

SKIB7621E

SKIB7622E

SKIB7623E

SKIB7624E

AV-100

NAVIGATION SYSTEM

Terminals and Reference Value for Display

NKS001IU

Refer to

DI-162, "Terminals and Reference Value for Display"

 .

Terminals and Reference Value for Multifunction Switch

NKS001IV

Refer to

DI-164, "Terminals and Reference Value for Multifunction Switch"

 .

Terminals and Reference Value for Voice Activated Control Module

NKS001IW

Refer to

DI-210, "Terminals and Reference Values for Voice Activated Control Module"

 .

39 (B)

Ground

A/C clock signal

Input

ON

43

Shield —

44 (Y)

Ground

Communication
signal (+)

Input/

Output

ON

45 (BR)

Ground

Communication
signal (–)

Input/

Output

ON

46

Shield

47 (LG)

Ground

Communication
signal (+)

Input/

Output

ON

48 (PU)

Ground

Communication
signal (–)

Input/

Output

ON

66

Ground

GPS signal

Input

ON

Connector is not connected

Approx. 5 V

67

Shield

Terminal

 (Wire color)

Item

Signal

input/

output

Condition

Reference value

+

Ignition

switch

Operation

SKIB7625E

SKIB7378E

SKIB7379E

SKIB7378E

SKIB7379E
