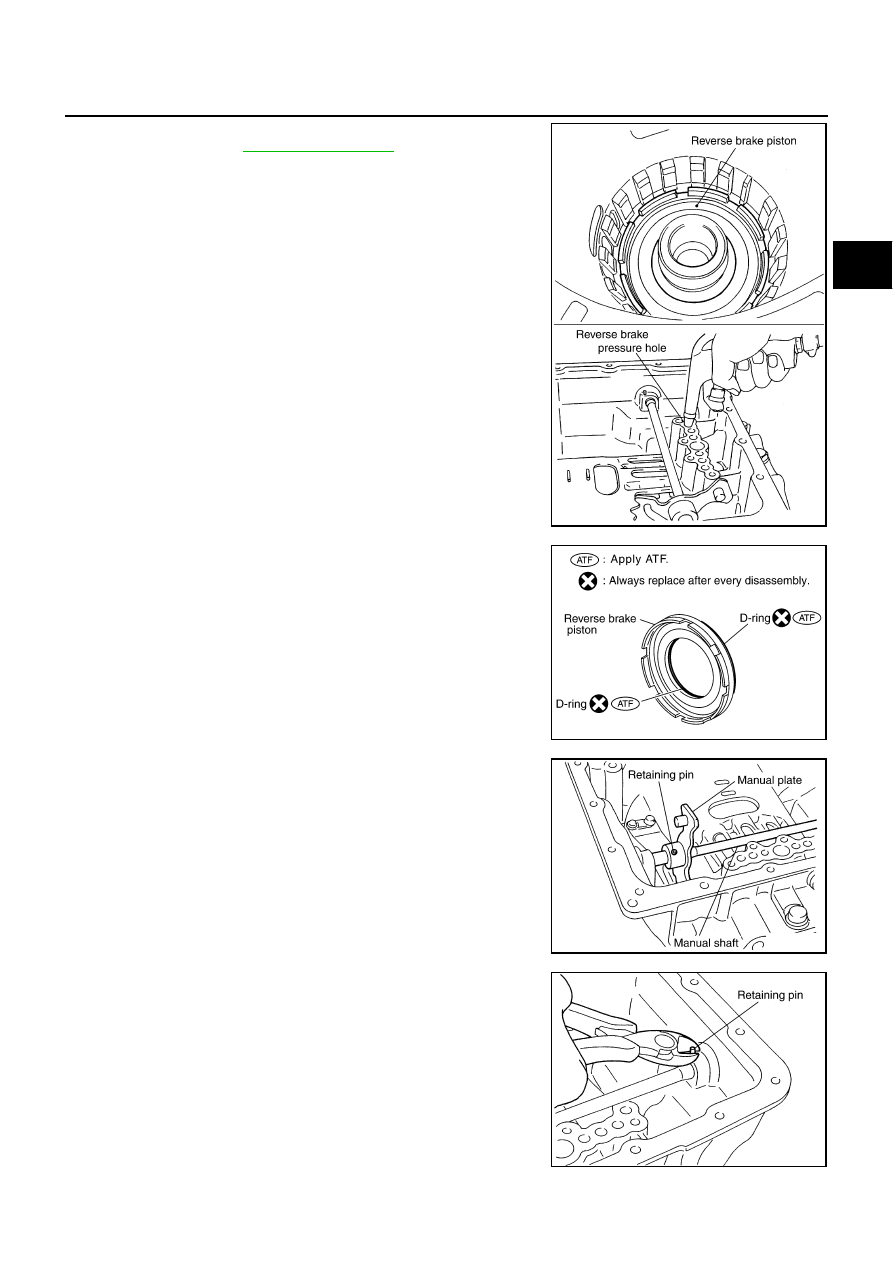

58. Remove reverse brake piston from transmission case with com-

pressed air. Refer to

AT-259, "Oil Channel"

 .

CAUTION:

Care should be taken not to abruptly blow air. It makes pis-
tons incline, as the result, it becomes hard to disassemble
the pistons.

59. Remove D-rings from reverse brake piston.

60. Use a pin punch [4mm (0.16 in) dia. commercial service tool] to

knock out retaining pin.

61. Remove manual shaft retaining pin with a pair of nippers.

SCIA5047E

SCIA6330E

SCIA2328E

SCIA2329E

AT-274

DISASSEMBLY

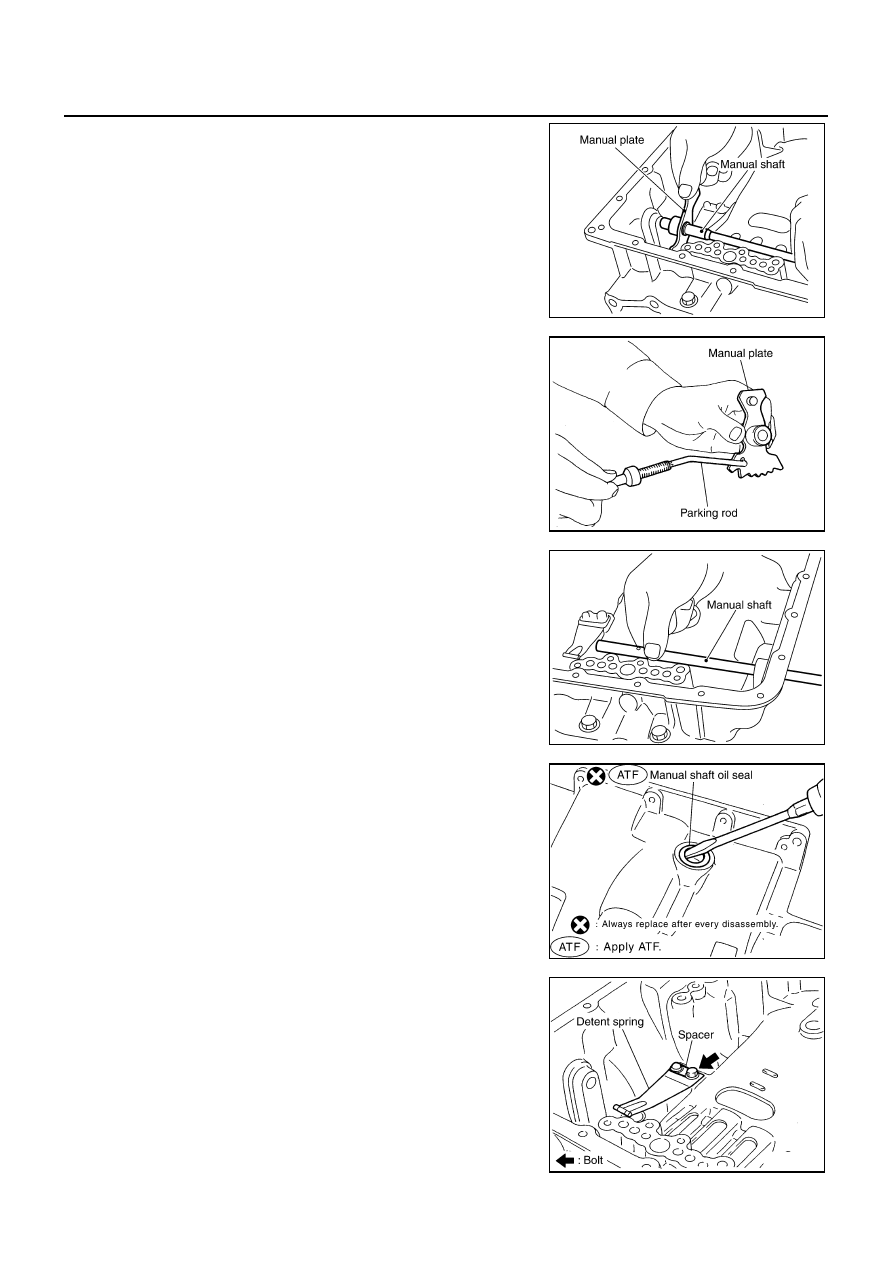

62. Remove manual plate (with parking rod) from manual shaft.

63. Remove parking rod from manual plate.

64. Remove manual shaft from transmission case.

65. Remove manual shaft oil seals using a flat-bladed screwdriver.

CAUTION:

Be careful not to scratch transmission case.

66. Remove detent spring and spacer from transmission case.

SCIA5715E

SCIA5220E

SCIA5716E

SCIA2331E

SCIA5248E

DISASSEMBLY

AT-275

D

E

F

G

H

I

J

K

L

M

A

B

AT

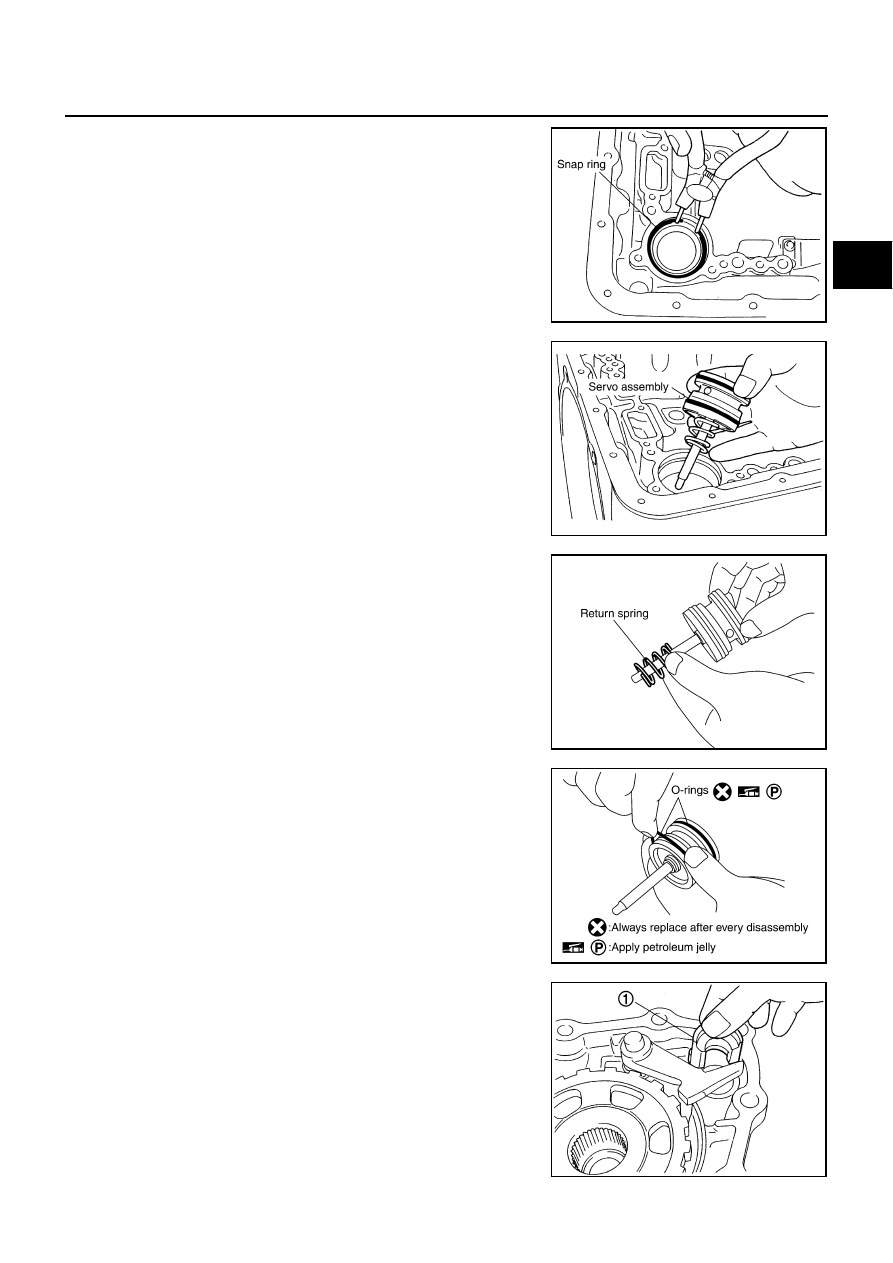

67. Using a pair of snap ring pliers, remove snap ring from transmis-

sion case.

68. Remove servo assembly (with return spring) from transmission

case.

69. Remove return spring from servo assembly.

70. Remove O-rings from servo assembly.

71. Remove parking actuator support (1) from output shaft & com-

panion flange complement.

SCIA2333E

SCIA5679E

SCIA5717E

SCIA5719E

SCIA7065E

AT-276

DISASSEMBLY

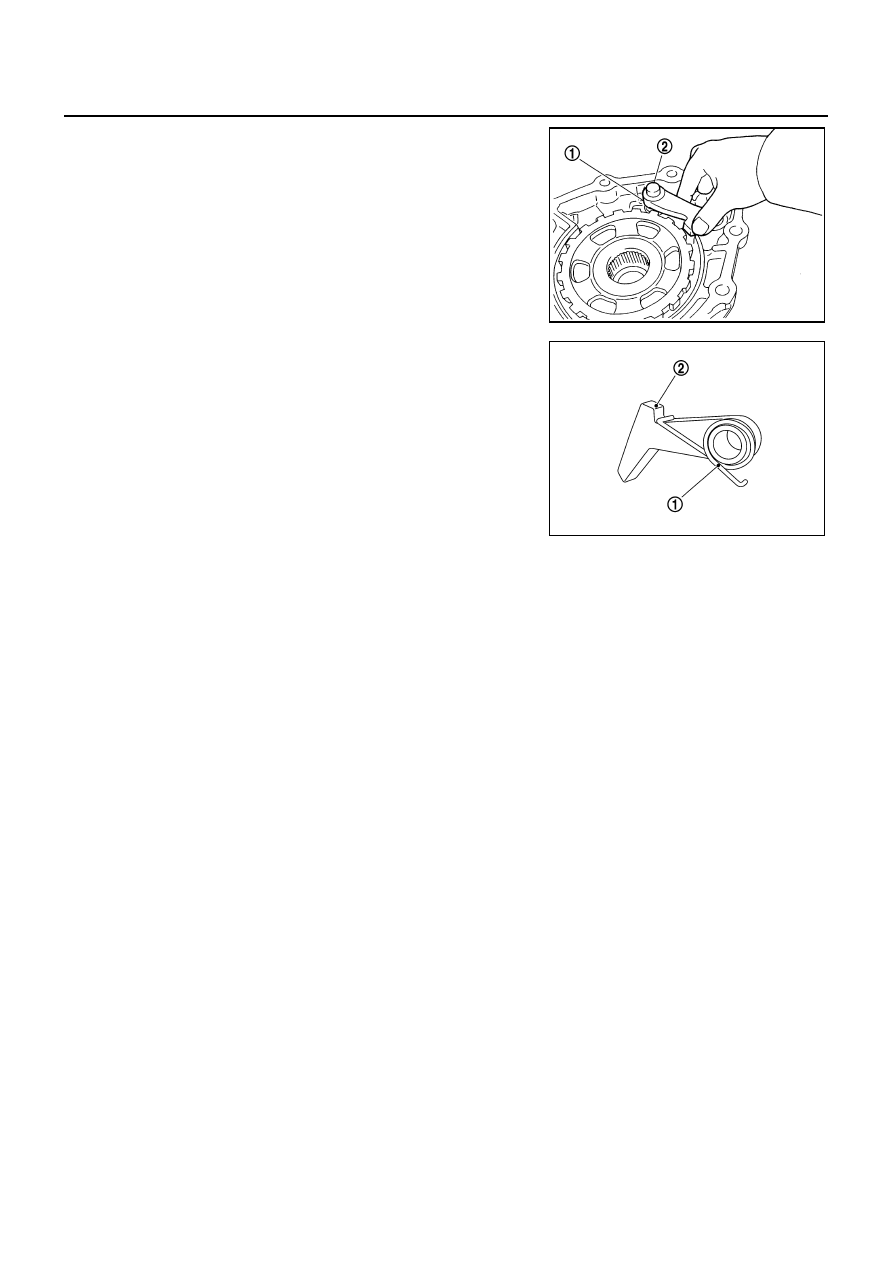

72. Remove parking pawl (with return spring) (1) and pawl shaft (2)

from output shaft & companion flange complement.

73. Remove return spring (1) from parking pawl (2).

SCIA7066E

SCIA6180J
