ON-VEHICLE SERVICE

AT-229

D

E

F

G

H

I

J

K

L

M

A

B

AT

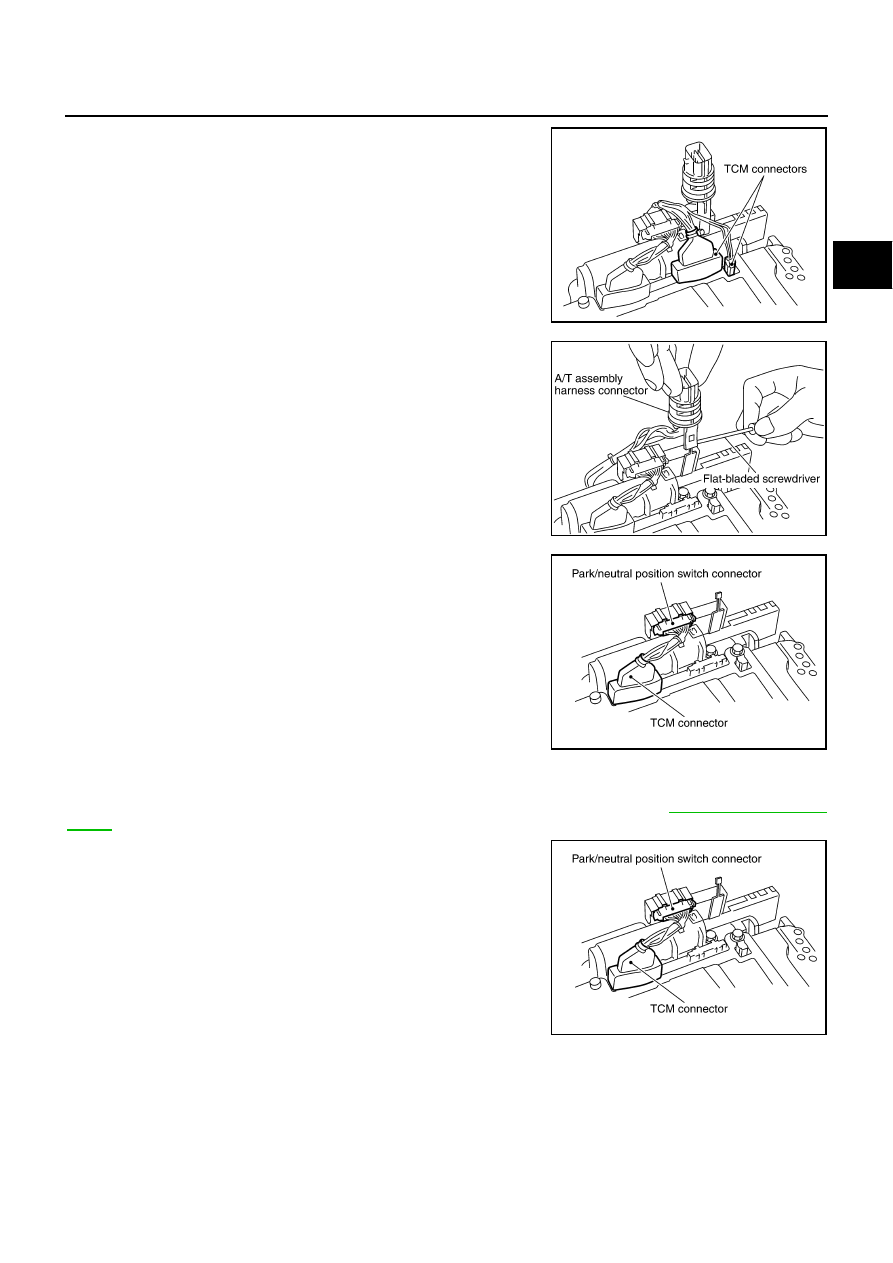

19. Disconnect TCM connectors.

CAUTION:

Be careful not to damage connectors.

20. Remove A/T assembly harness connector from control valve

with TCM using a flat-bladed screwdriver.

21. Disconnect TCM connector and park/neutral position switch

connector.

CAUTION:

Be careful not to damage connectors.

Installation

CAUTION:

After completing installation, check A/T fluid leakage and A/T fluid level. Refer to

AT-13, "Checking A/T

Fluid"

 .

1.

Connect TCM connector and park/neutral position switch con-
nector.

SCIA5447E

SCIA5448E

SCIA5449E

SCIA5449E

AT-230

ON-VEHICLE SERVICE

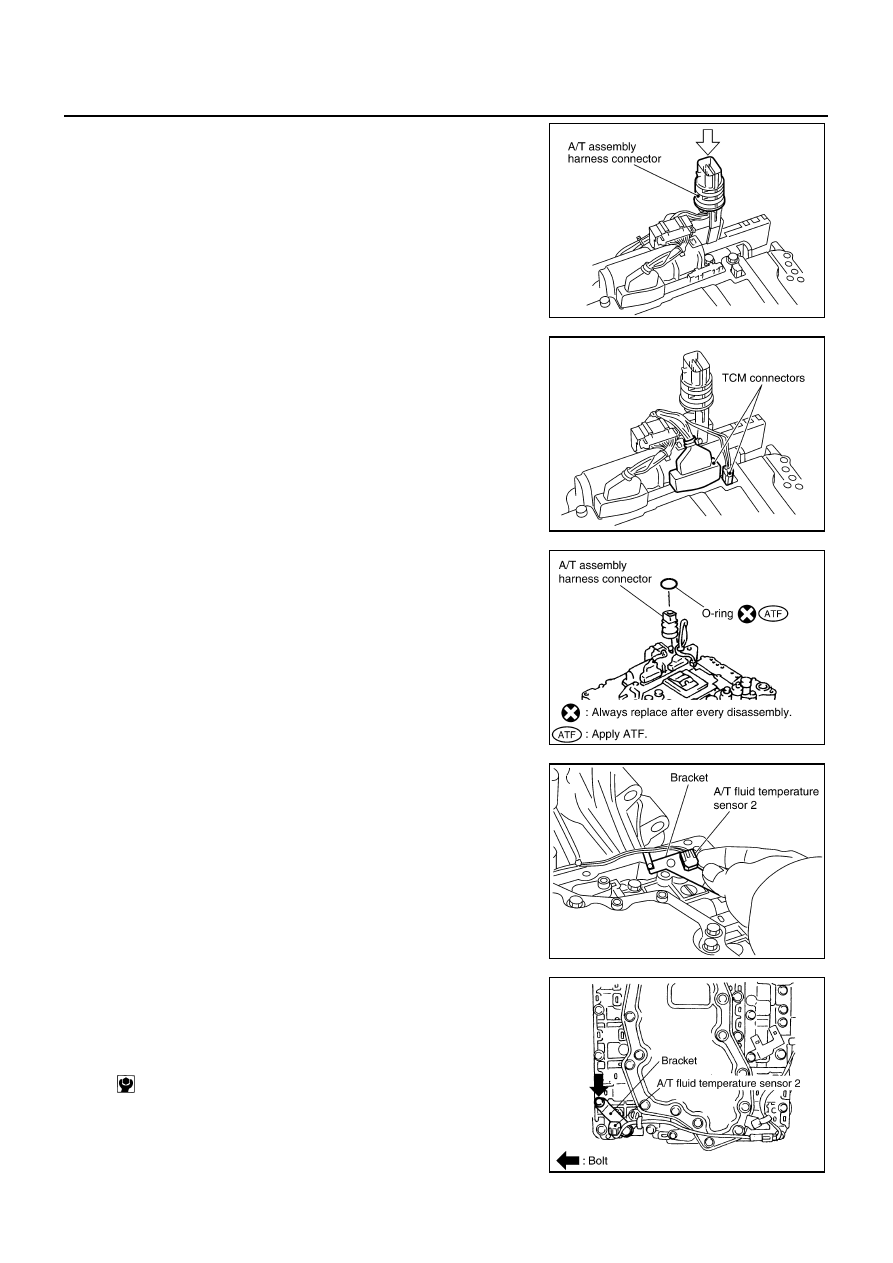

2.

Install A/T assembly harness connector from control valve with
TCM.

3.

Connect TCM connectors.

4.

Install O-ring in A/T assembly harness connector.

CAUTION:

Do not reuse O-ring.

Apply ATF to O-ring.

5.

Install A/T fluid temperature sensor 2 to bracket.

6.

Install A/T fluid temperature sensor 2 (with bracket) in control
valve with TCM.

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve with
TCM.

SCIA5450E

SCIA5447E

SCIA5155E

SCIA5264E

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA5301E

ON-VEHICLE SERVICE

AT-231

D

E

F

G

H

I

J

K

L

M

A

B

AT

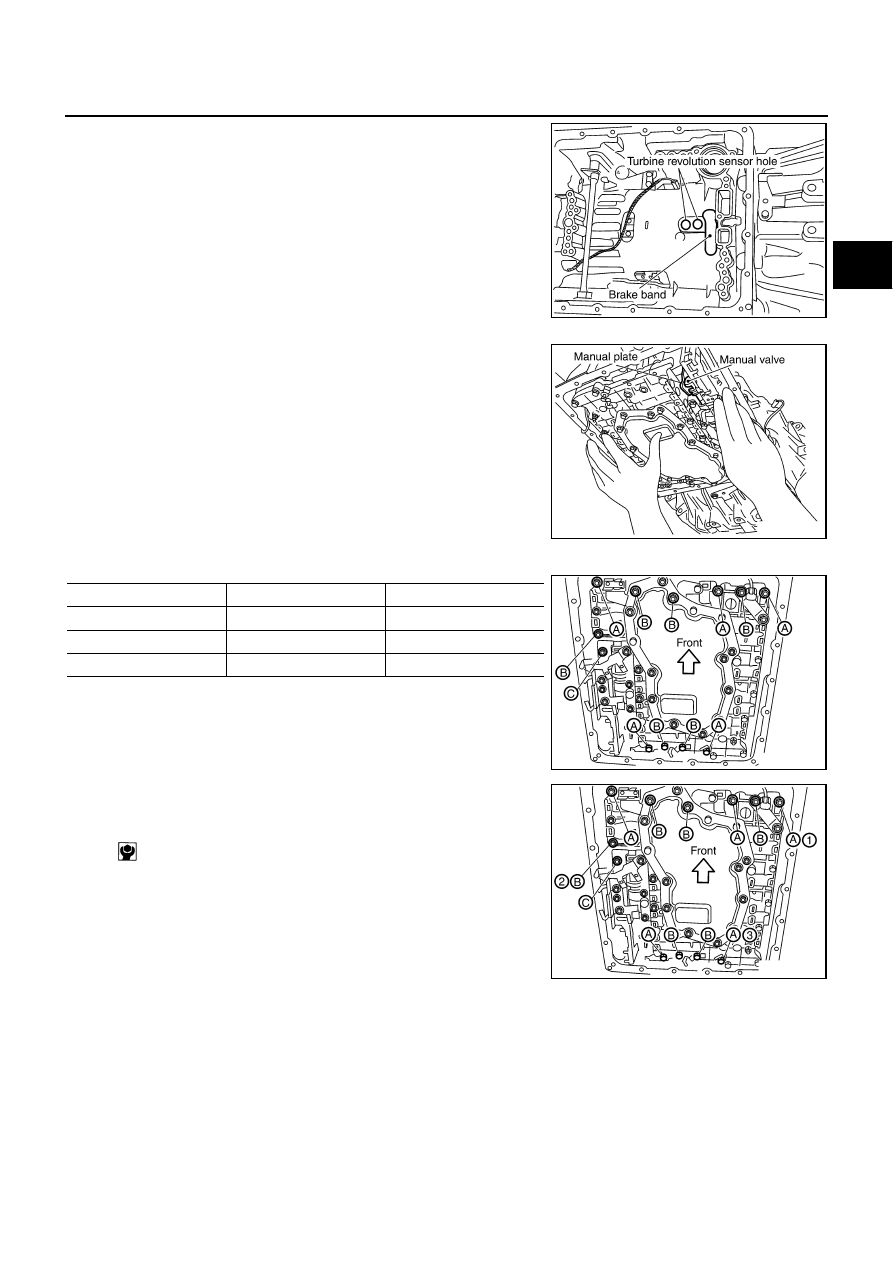

7.

Install control valve with TCM in transmission case.

CAUTION:

Make sure that turbine revolution sensor securely installs
turbine revolution sensor hole.

Hang down revolution sensor harness toward outside so
as not to disturb installation of control valve with TCM.

Adjust A/T assembly harness connector of control valve
with TCM to terminal hole of transmission case.

Assemble it so that manual valve cutout is engaged with
manual plate projection.

8.

Install bolts A, B and C in control valve with TCM.

9.

Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After
that tighten them in order (1

 2

 3), and then tighten other

bolts.

SCIA5034E

SCIA5142E

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA5139E

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA5140E

AT-232

ON-VEHICLE SERVICE

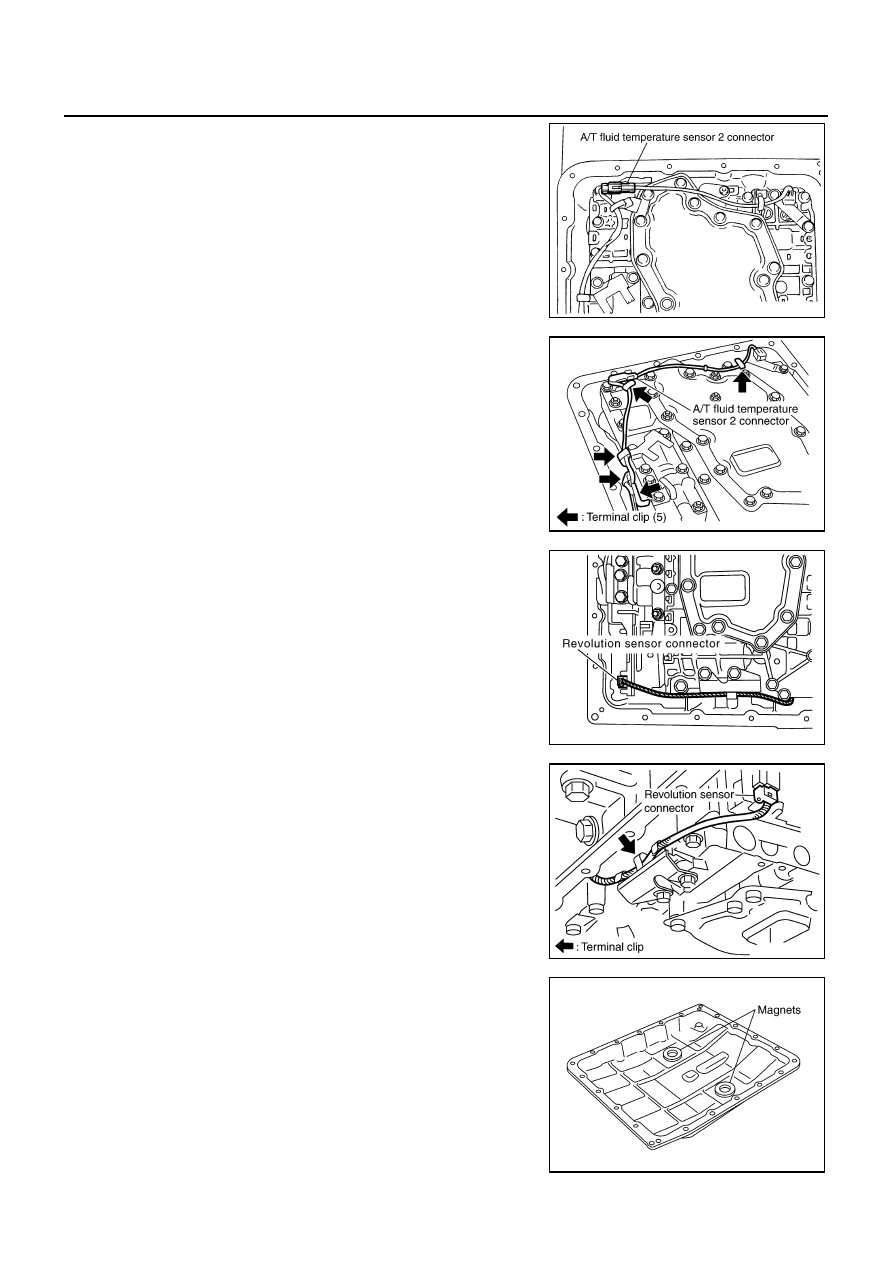

10. Connect A/T fluid temperature sensor 2 connector.

11. Securely fasten terminal cord assembly and A/T fluid tempera-

ture sensor 2 harness with terminal clips.

12. Connect revolution sensor connector.

13. Securely fasten revolution sensor harness with terminal clip.

14. Install magnets in oil pan.

SCIA5023E

SCIA5446E

SCIA7518E

SCIA7525E

SCIA5200E
