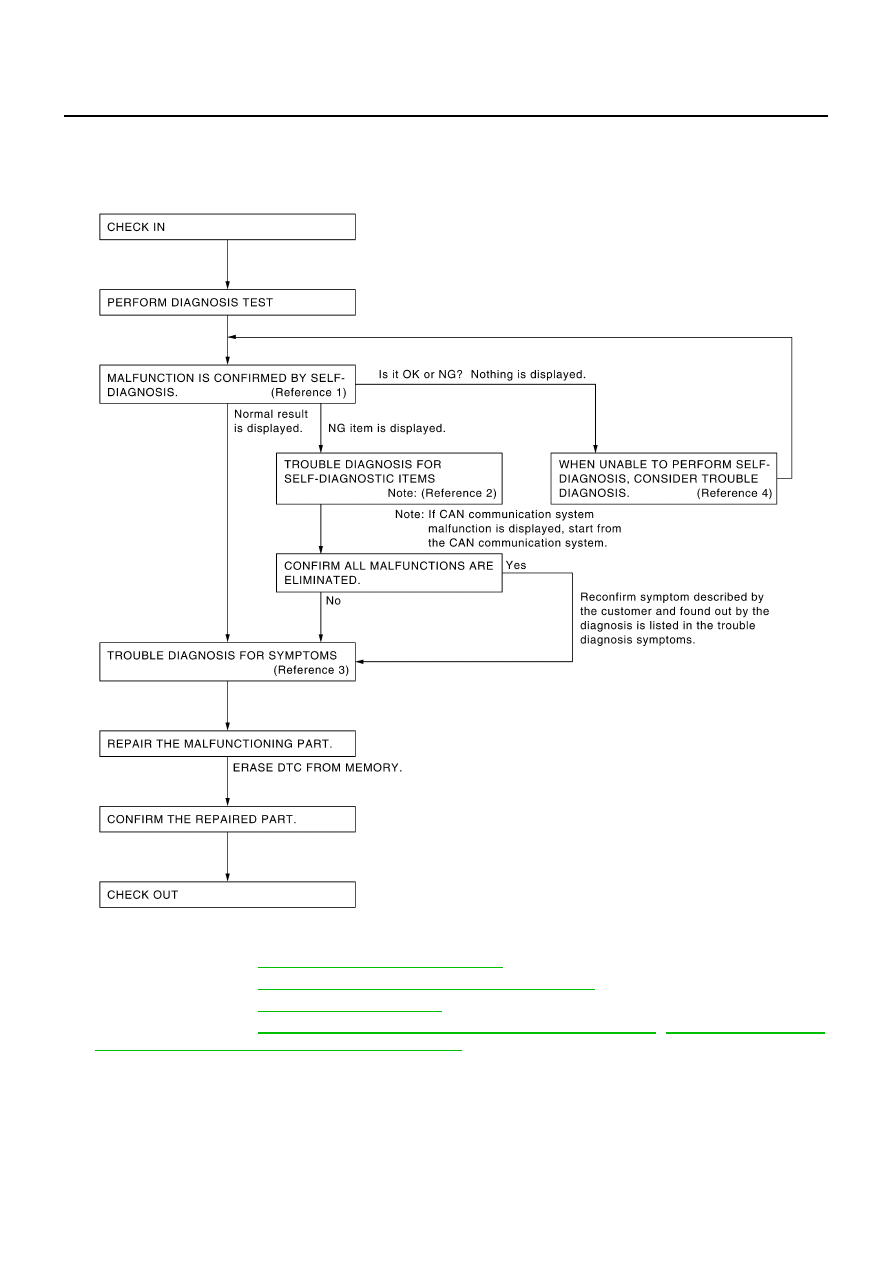

ACS
TERMINALS AND REFERENCE VALUE
PFP:00000

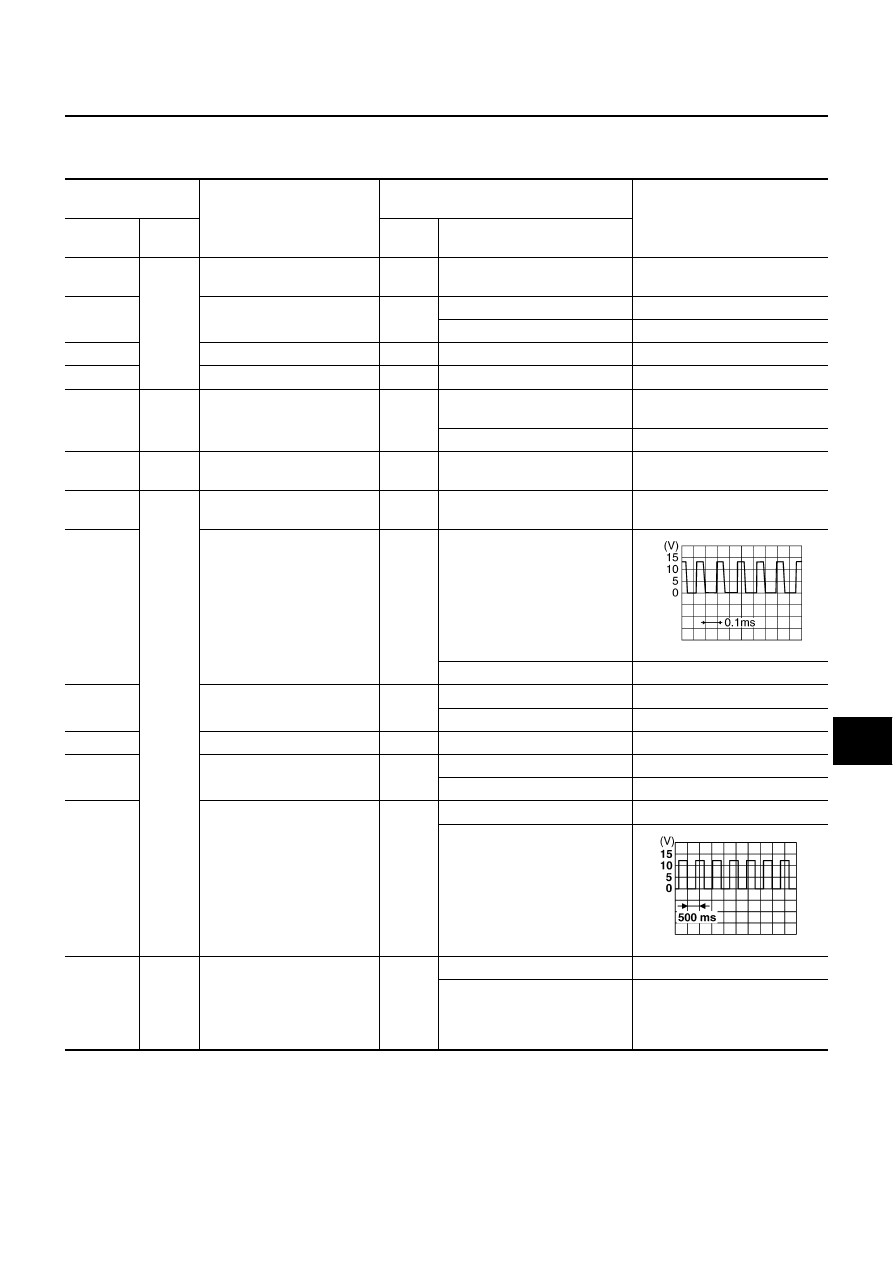

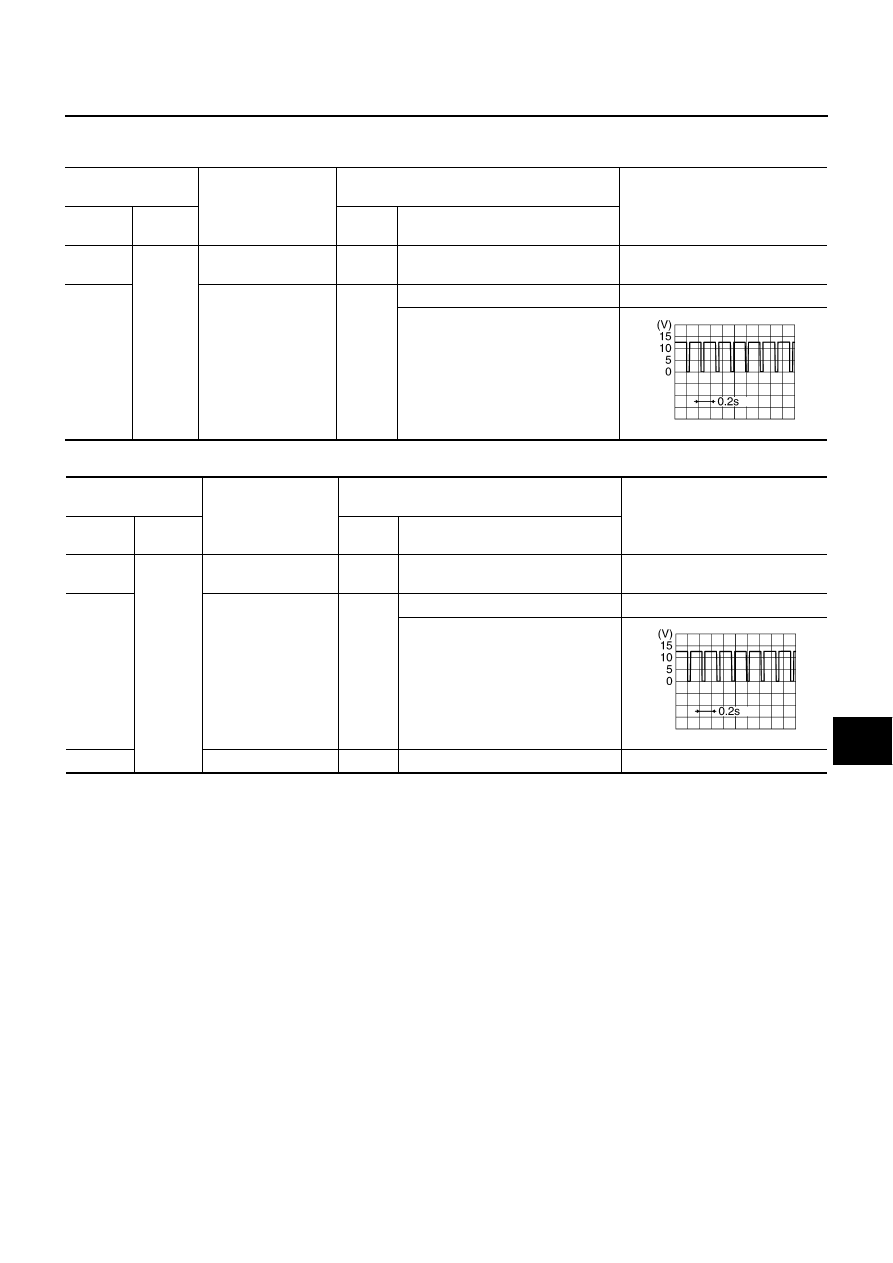

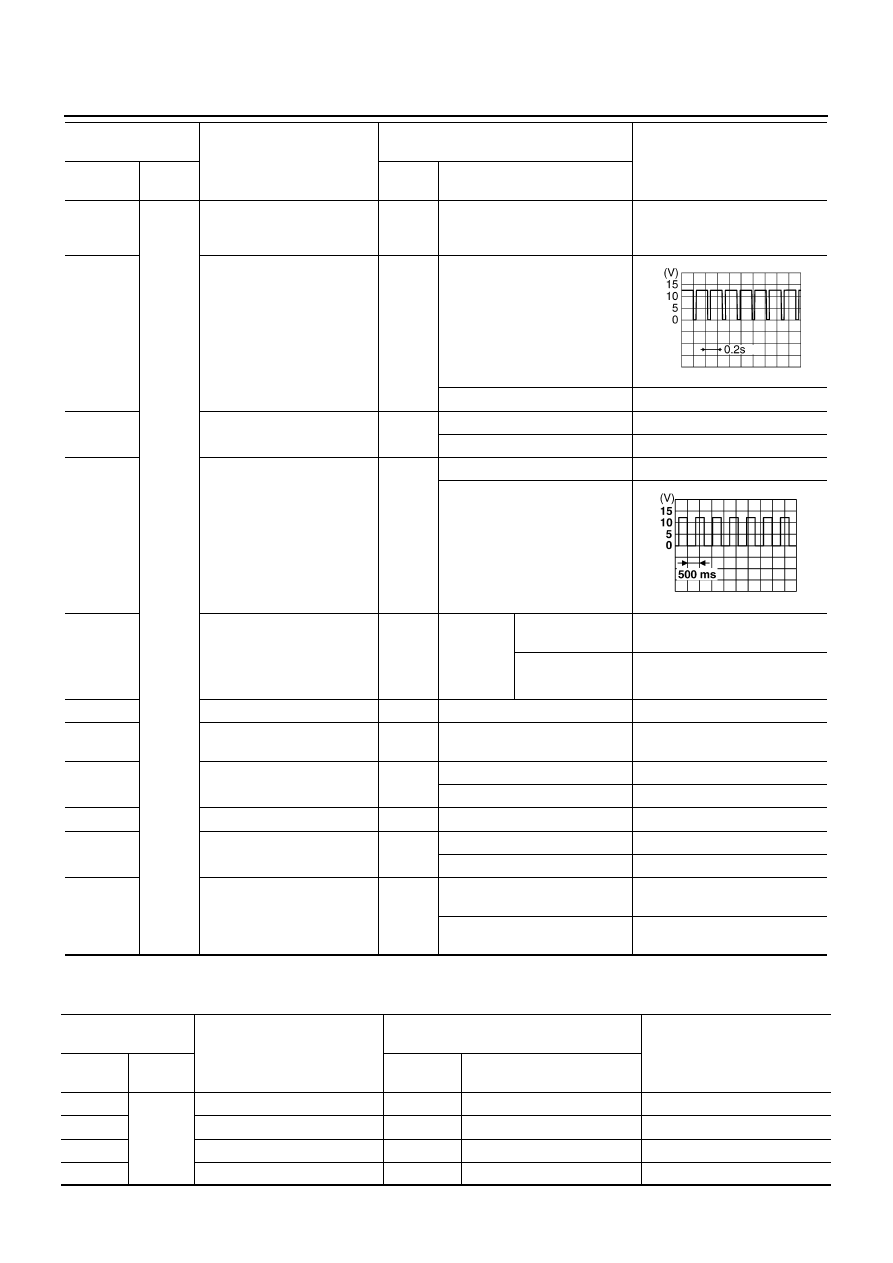

Terminals and Reference Value for ICC Unit
NKS001K8
Terminals
(Wire color)
Item
Condition
Voltage (V)
+
−
Ignition
switch
Operation
1 (B/R)
2 (W/R)
Ground
Battery power supply
OFF
—
Battery voltage
4 (L/W)
Wiper motor HI signal
ON
Wiper HI operating
Approx. 0
Wiper HI not operating
Approx. 12
5 (P)
CAN-L
ON
—
—
6 (BR/W)
Release switch power supply
ON
—
Approx. 10
7 (B/W)
Ground
Park/neutral position relay
signal
ON
Selector lever in “N” or “P” posi-
tions
Approx. 12
Selector lever in other positions
Approx. 0
8 (PU)
24
(OR)
Brake pressure sensor power
supply
ON
—
Approx. 5
10 (L/Y)
Ground
Brake booster solenoid
(+) side
ON
—
Approx. 12
12 (P)
Brake booster solenoid
(–) side
ON
Solenoid operating
Solenoid not operating
Approx. 12
13 (W)
Wiper motor LO signal
ON
Wiper LO operating
Approx. 0
Wiper LO not operating
Approx. 12
14 (L)
CAN-H
ON
—
—
15 (SB)
Brake release switch signal
(normal closed)
ON
Depress the brake pedal
Approx. 0
Release the brake pedal
Approx. 10
16 (G/Y)*
Turn Signal (Right)
ON
Turn signal switch OFF
Approx. 0
Turn signal switch to Right
17 (B/Y)
24
(OR)
Brake pressure sensor signal
ON
Release the brake pedal
Approx. 0.5
Depress the brake pedal
Approx. 0.5 - 5
(Note) Voltage becomes higher
depending on effectiveness of
depressing brakes.
