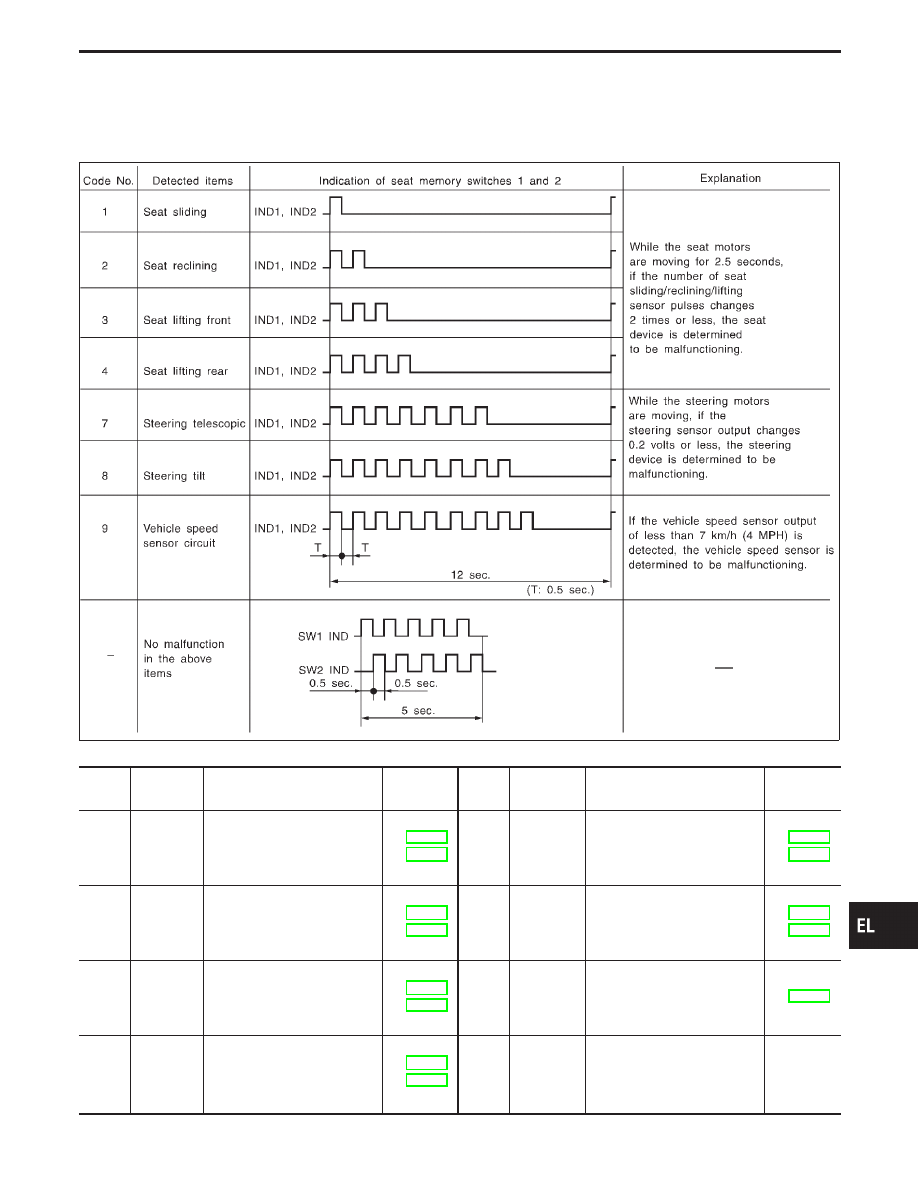

MALFUNCTION CODE TABLE

In this mode, a malfunction code is indicated by the number of flashes from the automatic drive positioner
indicator lamps (indicator lamp 1, indicator lamp 2) as shown below.

SEL015VA

Code

No.

Detected

items

Diagnostic procedure

Reference

page

Code

No.

Detected

items

Diagnostic procedure

Reference

page

Seat slid-

ing

PROCEDURE 5

(Sliding sensor check)

PROCEDURE 11

(Sliding motor check)

EL-468
EL-474

Steering

telescopic

PROCEDURE 4

(Telescopic sensor check)

PROCEDURE 10

(Telescopic motor check)

EL-467
EL-473

Seat

reclining

PROCEDURE 6

(Reclining sensor check)

PROCEDURE 12

(Reclining motor check)

EL-469
EL-475

Steering tilt

PROCEDURE 3

(Tilt sensor check)

PROCEDURE 9

(Tilt motor check)

EL-466
EL-472

Seat lifting

front

PROCEDURE 7

[Lifting sensor (front) check]

PROCEDURE 13

[Lifting motor (front) check]

EL-470
EL-476

Vehicle

speed sen-

sor

PROCEDURE 19

(Vehicle speed sensor check)

EL-482

Seat lifting

rear

PROCEDURE 8

[Lifting sensor (rear) check]

PROCEDURE 14

[Lifting motor (rear) check]

EL-471
EL-477

IDX

AUTOMATIC DRIVE POSITIONER — IVMS

On board Diagnosis — Mode IV (Automatic
drive positioner operation) (Cont’d)

EL-459

Trouble Diagnoses

WORK FLOW

CHECK IN

LISTEN TO CUSTOMER COMPLAINT

IVMS COMMUNICATION DIAGNOSIS (EL-291 or EL-297)
Do self-diagnostic results exist?

Yes

SYMPTOM
BASIS

Repair/Replace according to
the self-diagnostic results.
(EL-293)

Perform diagnostic procedure
according to the symptom chart
on the next page.

IVMS COMMUNICATION
DIAGNOSIS (EL-291 or
EL-297)

REPAIR/REPLACE

FINAL CHECK
Confirm that the malfunction is completely fixed by operating the
system.

CHECK OUT

NOTICE:

When LCU connectors are disconnected for more than 1 minute such as during trouble diagnoses,
the “disconnected” data will be memorized by the BCM. (While BCM memorizes the “disconnected”
data, IVMS communication diagnosis of CONSULT-II will display “PAST NO RESPONSE”.)
Therefore, after reconnecting the LCU connectors, erase the memory.

To erase the memory, perform the procedure below.
Erase the memory with CONSULT-II (Refer to EL-291.) or turn the ignition switch to “OFF” position
and remove 7.5A fuse [No.

located in the fuse block (J/B)].

AUTOMATIC DRIVE POSITIONER — IVMS

EL-460

PRELIMINARY CHECK

Are automatic operation
and manual operation
effected?

NG (Both operation)

No seat system functions oper-
ate.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

No steering system functions
operate.

Some of the seat system func-
tions do not operate.

Some of the steering system
functions do not operate.

SYMPTOM 1

SYMPTOM 2

SYMPTOM 3

SYMPTOM 4

No functions operate during auto-
matic operation and some/all
functions do not operate during
manual operation.

SYMPTOM 5

NG (Automatic
operation)*2

Inoperative
functions

Some
functions

Some of the seat system func-
tions do not operate.

Some of the steering system
functions do not operate.

SYMPTOM 6

Problem may be
due to mechanical
tilt/telescopic
mechanism failure.

All functions

No automatic operation functions
operate.

Only storing memory function
does not operate.

Memorized position set (proce-
dure B), automatic exiting and
automatic set return functions do
not operate.

SYMPTOM 7

SYMPTOM 8

Perform initializa-
tion*1

NG (Manual operation)

Seat system

Steering system

SYMPTOM 9

SYMPTOM 10

Can be cancellation performed during
automatic operation?

SYMPTOM 11

Does memory indicator light up?

SYMPTOM 12

INSPECTION END

*1: After reconnecting battery cable, perform initialization procedure A or B.

If initialization has not been performed, automatic drive positioner will not operate.

PROCEDURE A
(1) Insert key in the ignition key cylinder. (Ignition switch is in “OFF” position.)
(2) Open

open driver side door. (Do not perform with the door switch operation.)

(3) End
PROCEDURE B
(1) Drive the vehicle at more than 30 km/h (19 MPH).
(2) End
*2: If only seat slide operates during automatic exit setting, the problem may be due to mechanical tilt mechanism failure. (In this

case, all other automatic operation items do not operate.)

After performing preliminary check, go to symptom chart on next page.

IDX

AUTOMATIC DRIVE POSITIONER — IVMS

Trouble Diagnoses (Cont’d)

EL-461

Before starting trouble diagnoses below, perform preliminary check, EL-461. Symptom numbers in the
symptom chart correspond with those of preliminary check.

SYMPTOM CHART

PROCEDURE

Self-diagno-

sis

Diagnostic procedure

REFERENCE PAGE

SYMPTOM

CONSUL

-II

board

diagnosis

(Mode

DIAGNOSTIC

PROCEDURE

(Power

supply

and

ground

circuit

for

LCU05)

DIAGNOSTIC

PROCEDURE

(Power

supply

and

ground

circuit

for

tilt/telescopic

motor)

DIAGNOSTIC

PROCEDURE

ilt

sensor

check)

DIAGNOSTIC

PROCEDURE

elescopic

sensor

check)

DIAGNOSTIC

PROCEDURE

(Sliding

sensor

check)

DIAGNOSTIC

PROCEDURE

(Reclining

sensor

check)

DIAGNOSTIC

PROCEDURE

[Lifting

sensor

(front)

check]

DIAGNOSTIC

PROCEDURE

[Lifting

sensor

(rear)

check]

DIAGNOSTIC

PROCEDURE

ilt

motor

check)

DIAGNOSTIC

PROCEDURE

elescopic

motor

check)

No seat system functions operate.

No steering system functions oper-
ate.

Some of the seat sys-
tem functions do not
operate during
automatic/manual
operation.

Sliding

Reclining

Lifting
(Front)

Lifting
(Rear)

Some of the steering
system functions do not
operate during
automatic/manual
operation.

Tilt

Telescopic

No functions operate during auto-
matic operation, and some/all func-
tions do not operate during manual
operation.

Some of the seat sys-
tem functions do not
operate during auto-
matic operation.

Sliding

Reclining

Lifting
(Front)

Lifting
(Rear)

No automatic operation functions
operate.

Drive position cannot be retained in
the memory.

Does not
operate dur-
ing manual
operation.
(Operates
during auto-
matic opera-
tion.)

Seat

Sliding

Reclining

Lifting
(Front)

Lifting
(Rear)

Lumber
support

Steering

Tilt

Telescopic

Automatic operation cannot be can-
celed.

12 Memory indicator does not light up.

X: Applicable

AUTOMATIC DRIVE POSITIONER — IVMS

Trouble Diagnoses (Cont’d)

EL-462
