FRONT WIPER AND WASHER SYSTEM

WW-23

C

D

E

F

G

H

I

J

L

M

A

B

WW

Check grease conditions of the motor arm and wiper link joint (at retainer). Apply grease if nec-
essary.

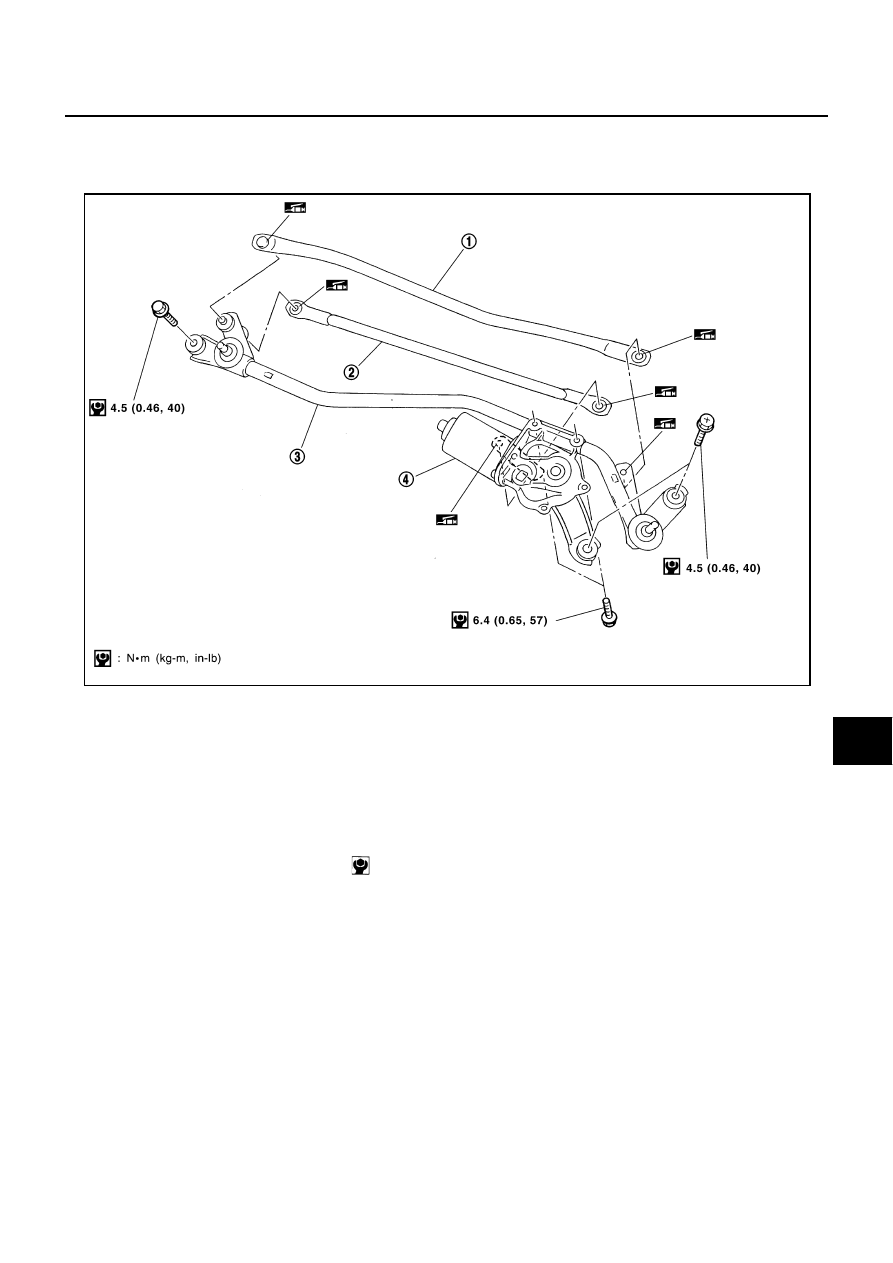

Disassembly and Assembly of Front Wiper Motor and Linkage

AKS003WF

DISASSEMBLY

1.

Remove wiper link from wiper frame and motor arm.

2.

Remove wiper motor mounting bolts, and remove wiper motor from wiper frame.

ASSEMBLY

Paying attention to the work listed below, assemble in reverse order of disassembly.

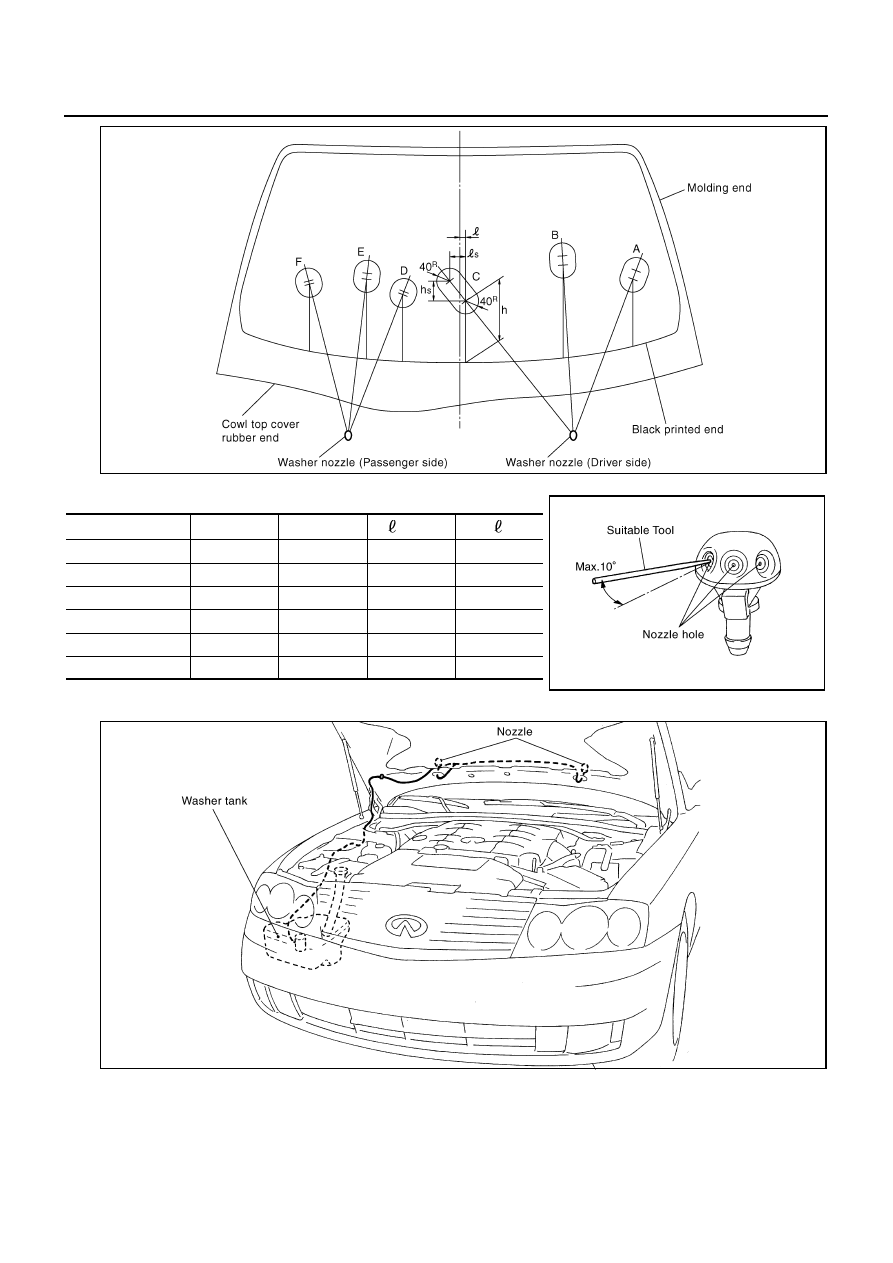

Washer Nozzle Adjustment

AKS003WG

1.

When wiper blade position is in auto stop condition, remove wiper motor connector to ensure wiper arms
do not move.

2.

Adjust each nozzle position so that spray positions are in the range of shaded parts.

1.

Wiper link 1

2.

Wiper link 2

3.

Wiper frame

4.

Wiper motor

PKIA5988E

Wiper motor mounting bolts

: 6.4 N·m (0.65 kg-m, 57 in-lb)

WW-24

FRONT WIPER AND WASHER SYSTEM

Unit: mm (in)

Washer Tube Layout

AKS003WH

PKIA2276E

Spray position

h (height)

hs

 (width)

s

A

212 (8.35)

26 (1.02)

539 (21.22)

10.5 (0.41)

B

290 (11.42)

30 (1.18)

319 (12.56)

–1.7 (0.07)

C

192 (7.56)

63 (2.48)

19 (0.75)

–49.5 (1.95)

D

153 (6.02)

3.4 (0.13)

151 (5.94)

5.1 (0.20)

E

246 (9.69)

19.9 (0.78)

290 (11.42)

2.4 (0.09)

F

208 (8.19)

9.7 (0.38)

474 (18.66)

–2.4 (0.09)

PKIA2277E

PKIA2278E

FRONT WIPER AND WASHER SYSTEM

WW-25

C

D

E

F

G

H

I

J

L

M

A

B

WW

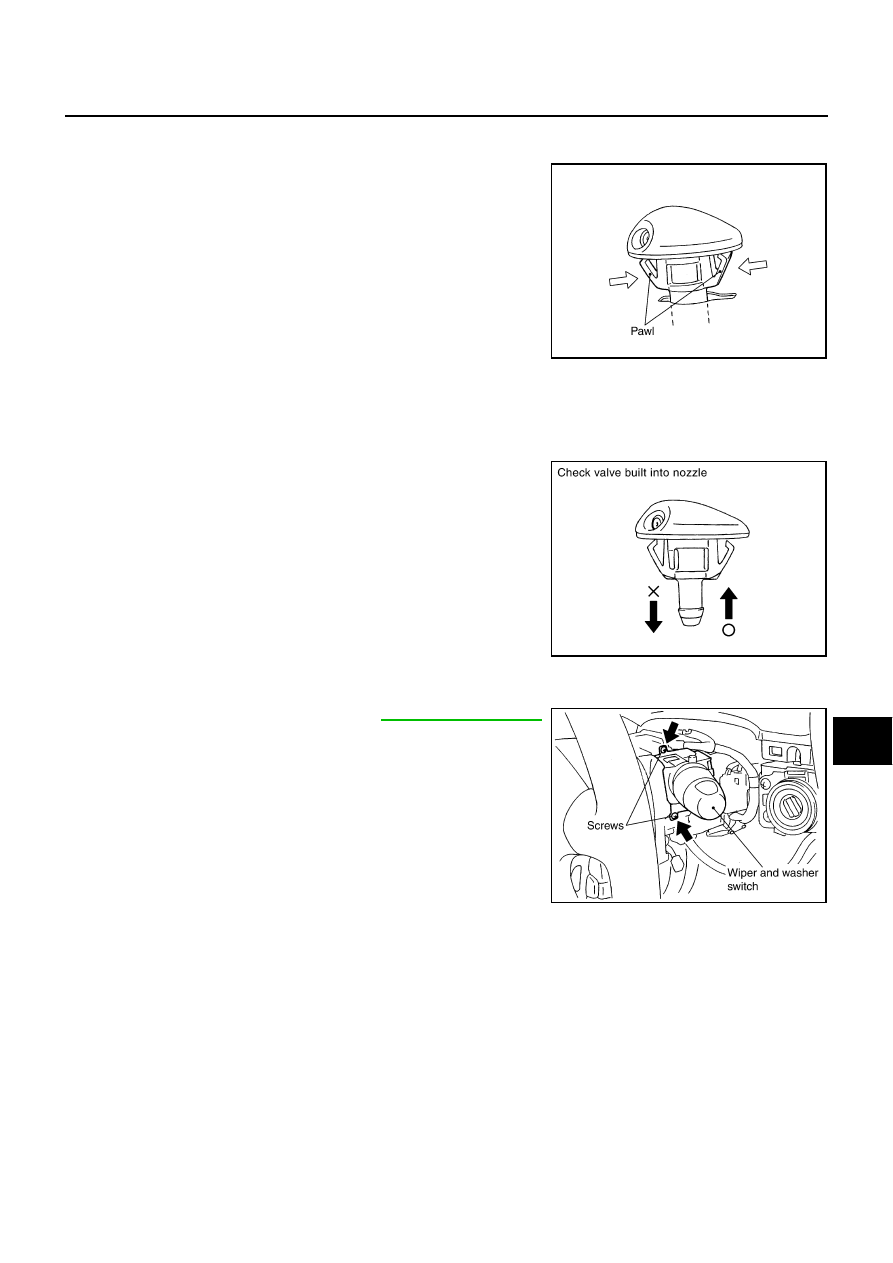

Removal and Installation of Front Washer Nozzle

AKS003WJ

REMOVAL

1.

Remove upwards while pressing the pawls on reverse side.

2.

Remove washer tube.

INSTALLATION

Install in the reverse order of removal.

Inspection of Washer Nozzle

AKS003WK

CHECK VALVE

Blow air in the injection direction, and make sure that air flows only
one way. Make sure that the reverse direction (inhale) is not possi-
ble.

Removal and Installation of Front Wiper and Washer Switch

AKS003WL

REMOVAL

1.

Remove steering column cover. Refer to

IP-11, "WORK STEPS"

in “IP” section.

2.

Disconnect wiper and washer switch connector.

3.

Pull wiper and washer switch toward the passenger door while
removing screws in direction shown by the arrow in the figure,
and remove it from the base.

INSTALLATION

Install in the reverse order of removal.

PKIA2279E

PKIA2280E

PKIA2281E

WW-26

FRONT WIPER AND WASHER SYSTEM

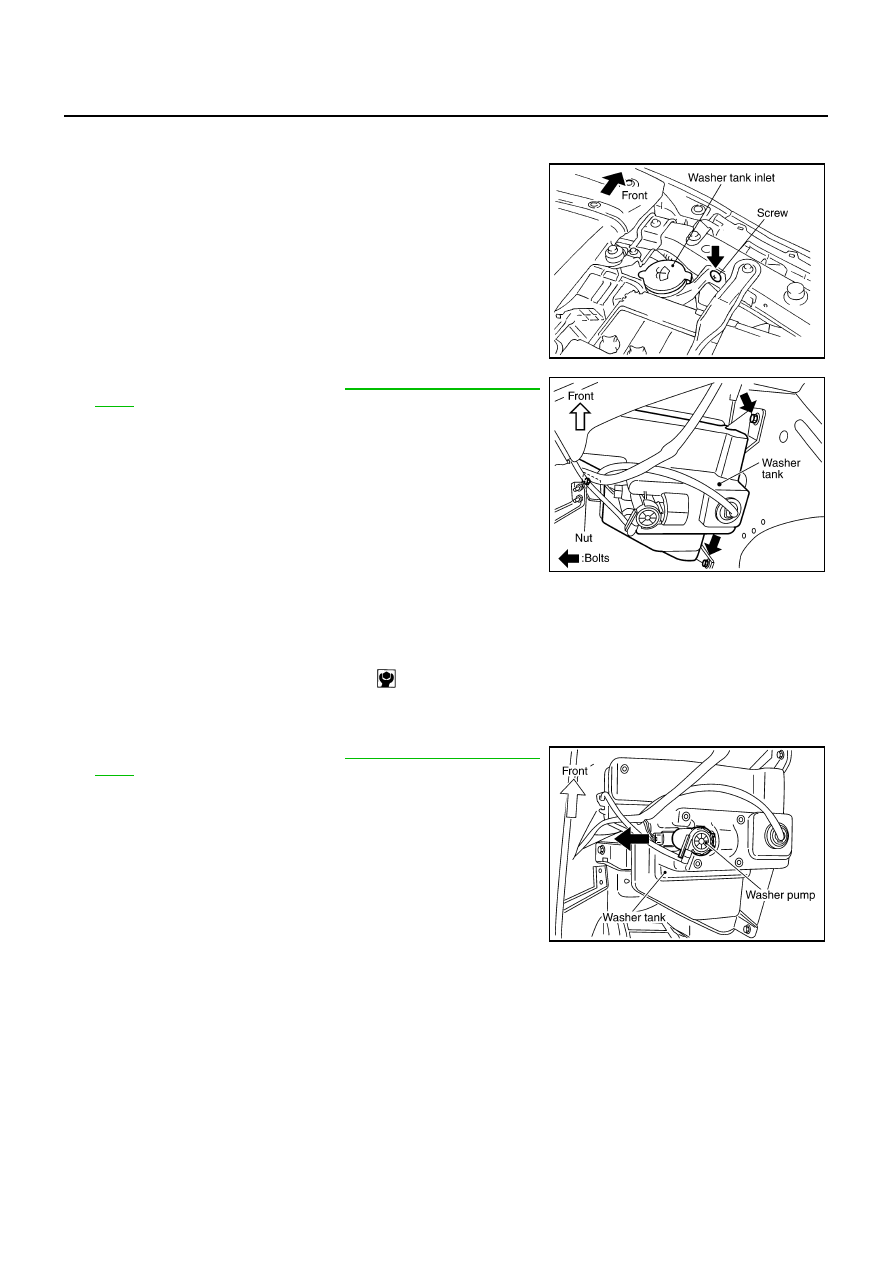

Removal and Installation of Washer Tank

AKS003WM

REMOVAL

1.

Remove screw and pull out washer tank inlet.

2.

Remove fender protector. Refer to

EI-21, "FENDER PROTEC-

TOR"

  in “EI” section.

3.

Disconnect washer pump and water level sensor connector.

4.

Remove washer tank mounting bolts and nut.

5.

Remove washer tube, and remove washer tank from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

After installation, add water up to the upper level of the washer tank inlet, and check for water leaks.

Removal and Installation of Washer Pump

AKS003WN

REMOVAL

1.

Remove fender protector. Refer to

EI-21, "FENDER PROTEC-

TOR"

  in “EI” section.

2.

Disconnect washer pump connector and tube.

3.

Pull out washer pump in direction shown by the arrow in the fig-
ure. Remove washer pump from washer tank.

INSTALLATION

Paying attention to the following, install in the reverse order of removal.

CAUTION:

When installing washer pump, there should be no packing twists, etc.

PKIA5989E

PKIA5990E

Washer tank mounting screw

: 4.5 N·m (0.46 kg-m, 40 in-lb)

PKIA2285E
