TROUBLE DIAGNOSES

PFP:00004

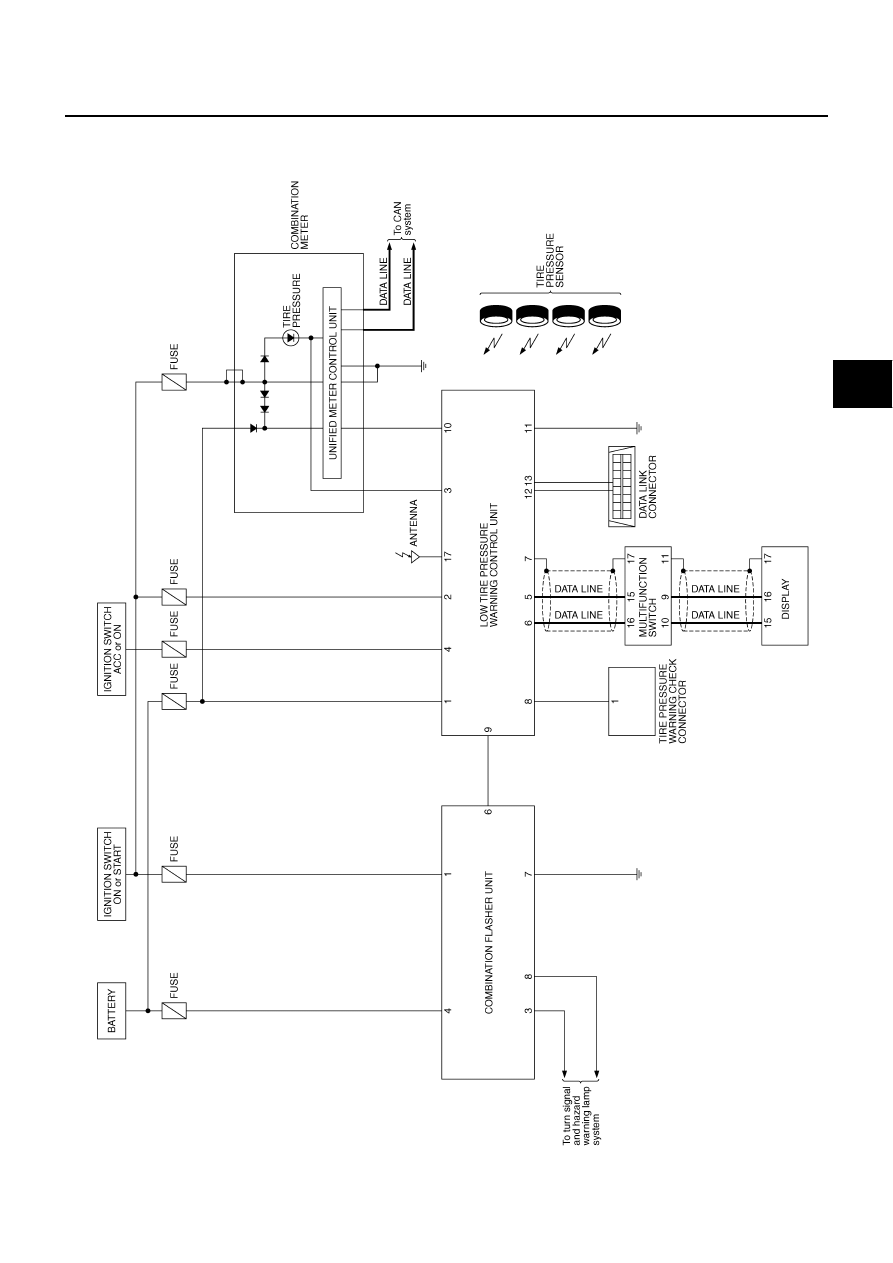

Schematic

AES0008A

TEWA0009E

WT-10

TROUBLE DIAGNOSES

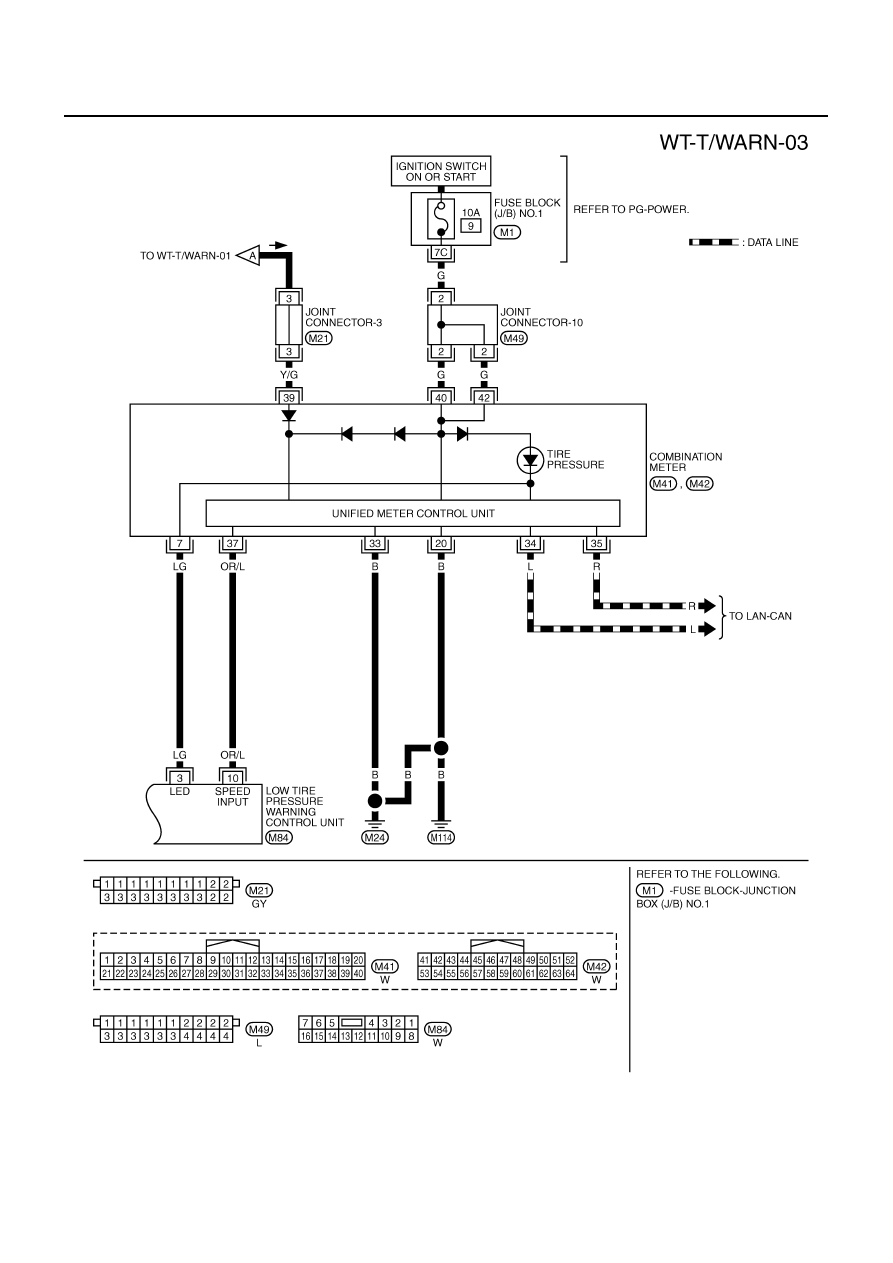

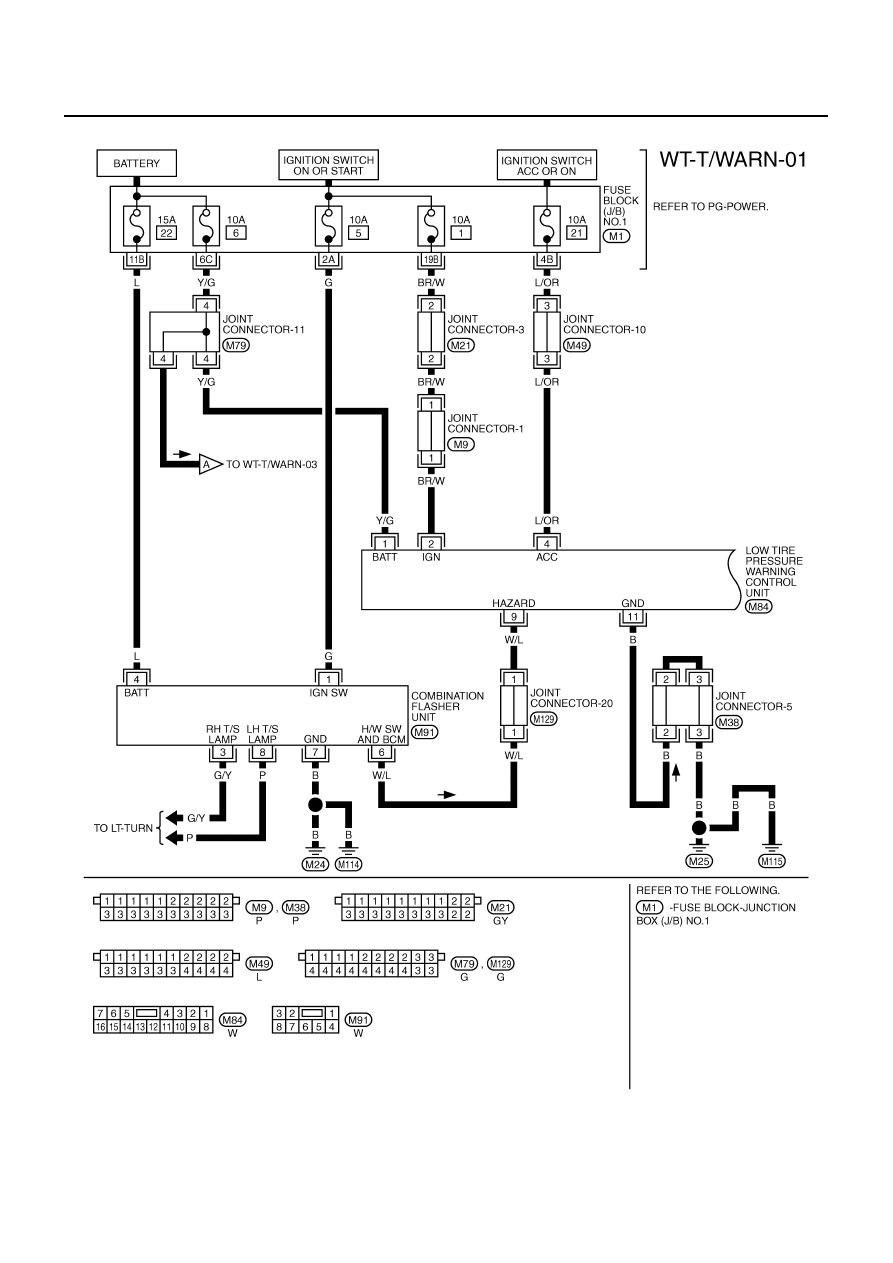

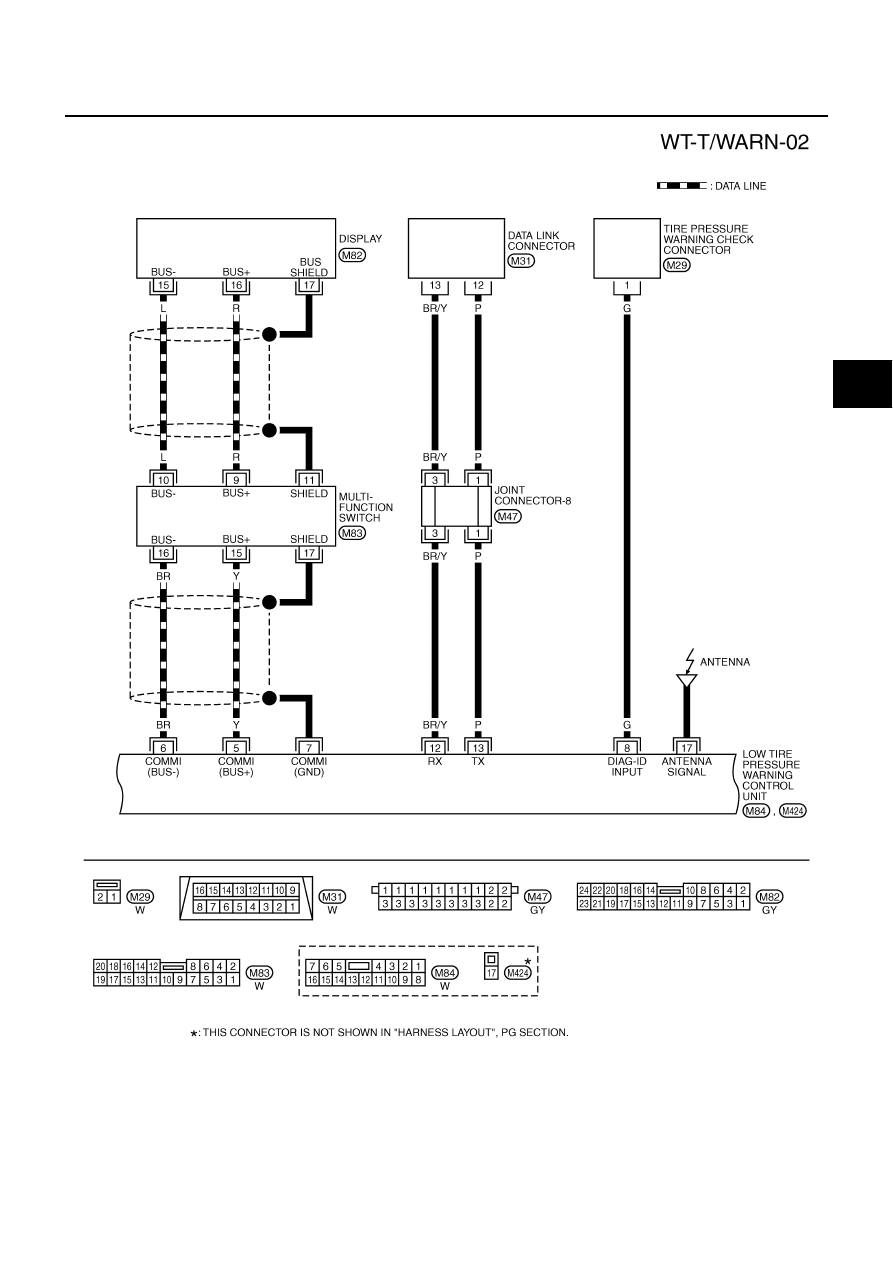

Wiring Diagram

AES00042

TEWA0010E

TROUBLE DIAGNOSES

WT-11

C

D

F

G

H

I

J

K

L

M

A

B

WT

TEWA0011E

WT-12

TROUBLE DIAGNOSES

TEWA0012E
