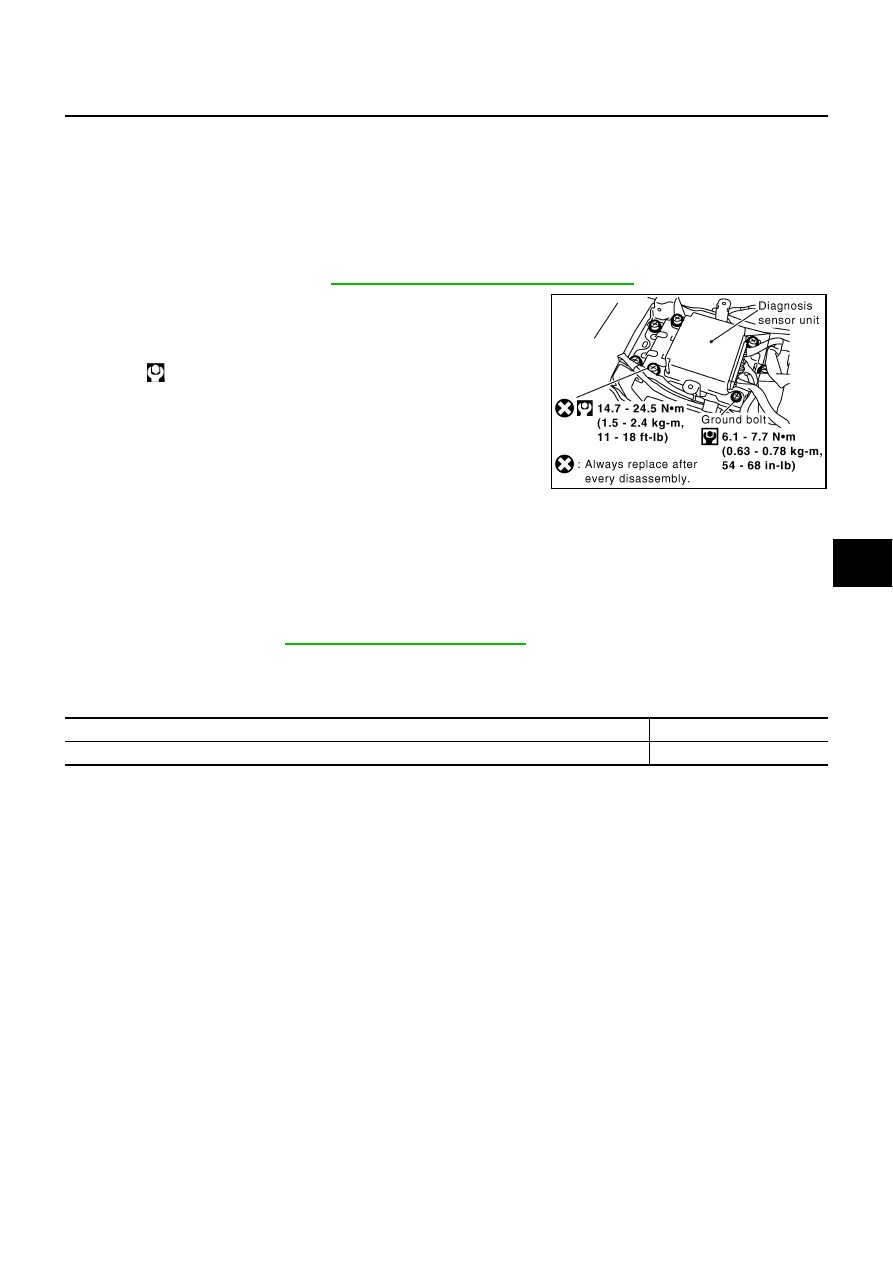

DIAGNOSIS SENSOR UNIT SRS-51 C D E F G I J K L M A B SRS DIAGNOSIS SENSOR UNIT PFP:28556 Removal and Installation AHS00092 REMOVAL CAUTION: Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 1. Disconnect each harness connector for the air bag module and seat belt pre-tensioner. 2. Remove center console. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" 3. Disconnect diagnosis sensor unit connector. 4. Remove special hex bolts from the diagnosis sensor unit. CAUTION: ● Do not use old bolts. Replace with new ones. ● Check diagnosis sensor unit bracket to ensure it is free ● Replace diagnosis sensor unit if it has been dropped or INSTALLATION Install in the reverse order of removal. CAUTION: ● Check the diagnosis sensor unit for proper installation. ● After replacement of diagnosis sensor unit, perform self-diagnosis to make sure that no malfunc- . ECU DISCRIMINATED NO. After replacing the diagnosis sensor unit, confirm that the diagnosis sensor unit identification is correct for the Hex bolt: : 24.5 N·m (2.5 kg-m, 18 ft-lb) PHIA0203E Specification ECU DISCRIMINATED No. Driver air bag module, passenger air bag module, side air bag module and side curtain air bag module FA67 |
