Infiniti M45 (Y34). Manual - part 777





FRONT SEAT

SE-129

C

D

E

F

G

H

J

K

L

M

A

B

SE

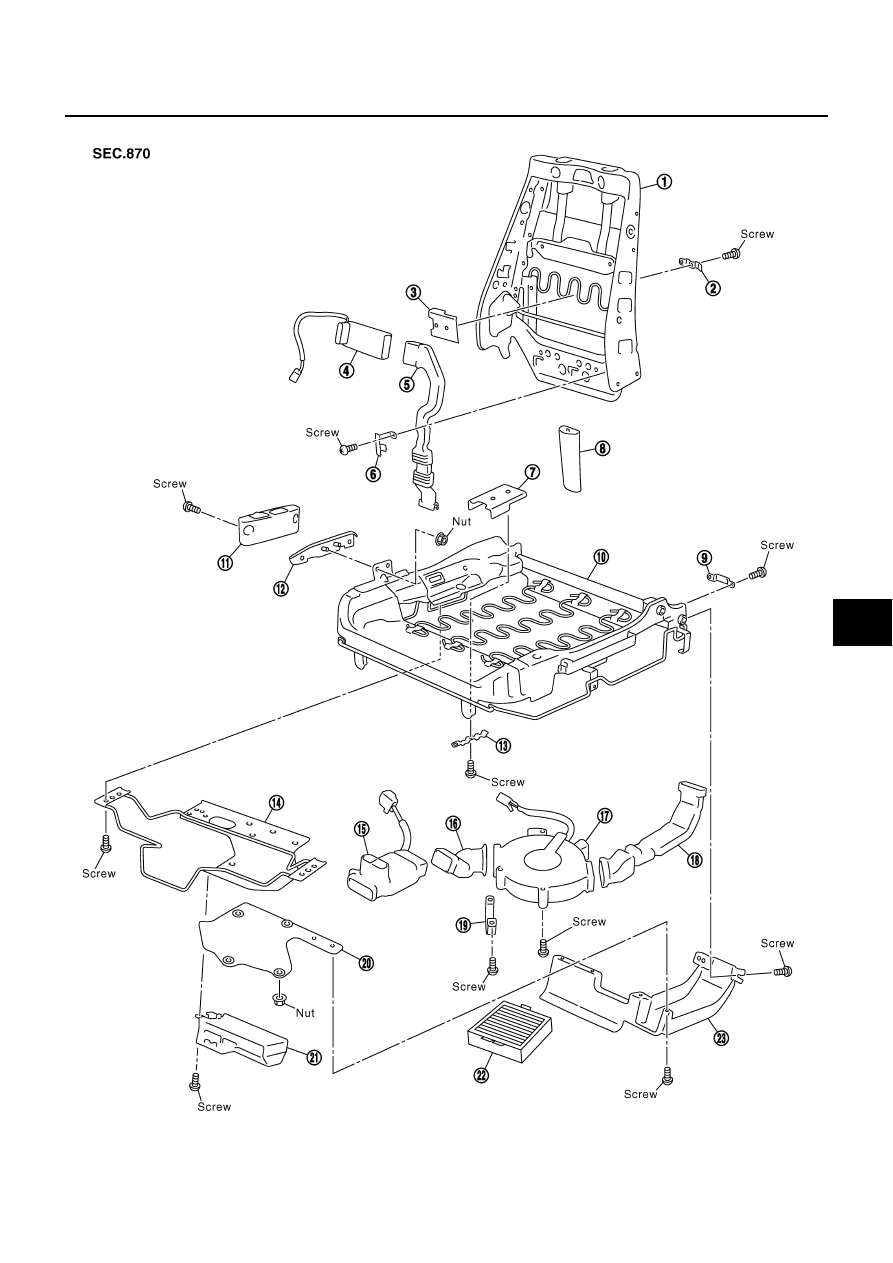

CLIMATE CONTROLLED SEAT

PIIB0731E

SE-130

FRONT SEAT

REMOVAL

When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.

CAUTION:

Before removing the front seat, turn the ignition switch off, disconnect both battery cables and
wait and least 3 minutes.

When checking the power seat circuit for continuity using a circuit tester, do not confuse its con-
nector with the side air bag module connector. Such an error may cause the air bag to deploy.

Do not drop, tilt, or bump the side air bag module installing in the seat. Always handle it with care.

1.

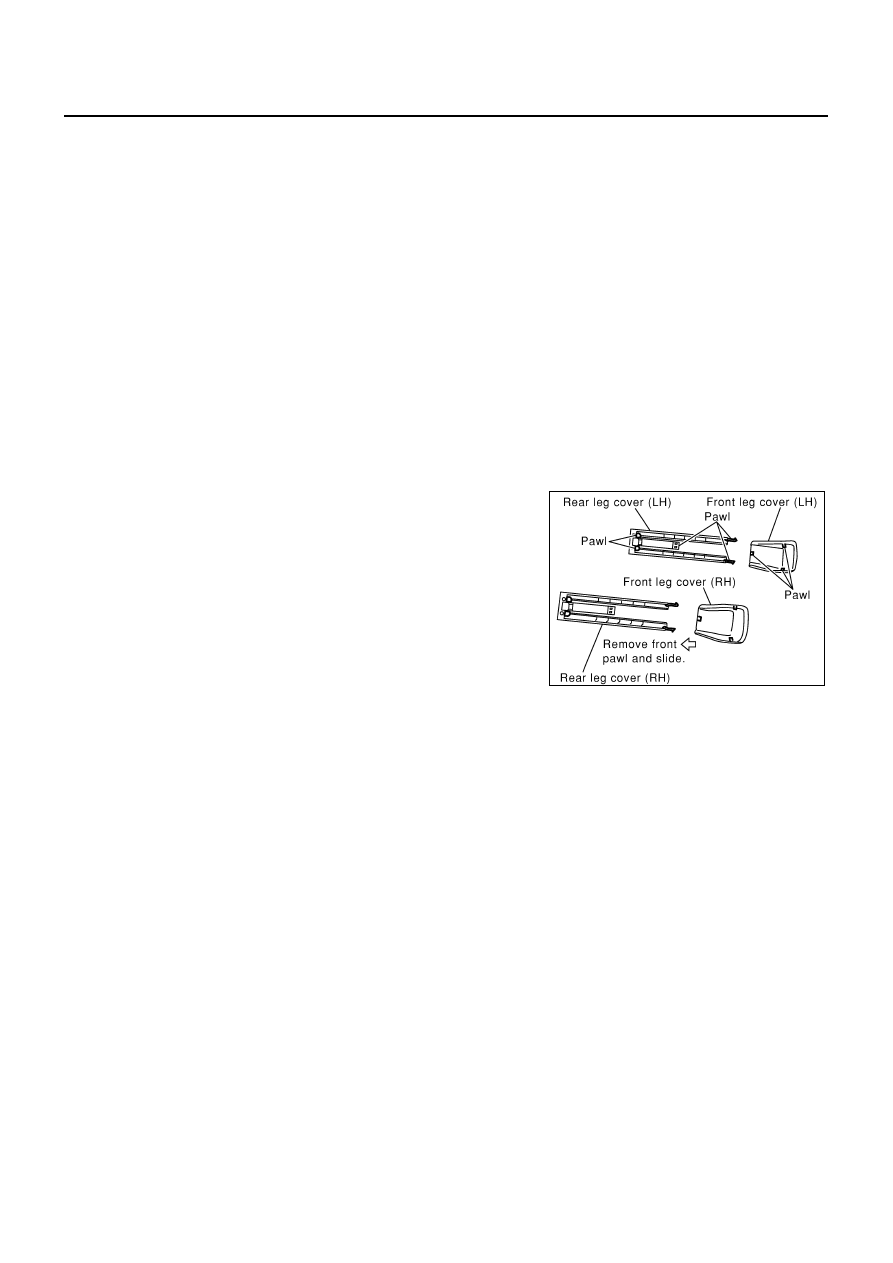

Remove the front leg cover and rear leg cover (LH/RH).

NOTE:

Slide the seat backward, and disconnect the front tabs on the
front leg cover. Then move the cover toward the rear of the
vehicle, and pull up to remove.

Slide the seat forward, then disengage the tabs on the front
LH/RH of the rear leg cover and tabs engaged into the rail.
Then pull the cover toward the rear of the vehicle.

2.

Slide the seat until the body mounting bolts are visible and a tool can be inserted.

NOTE:
When disassembling the driver seat after removal, set the front/rear cushion lifter to the top position.

3.

Remove the body mounting bolts.

4.

Disconnect both battery cables.

5.

Remove the harness connector for the side air bag module.

6.

Remove the power seat harness connector and vehicle harness fixing clip out of the vehicle.

NOTE:
When removing and installing, using shop clothes, protect the parts from damage where it may interfere
with others.

INSTALLATION

Install in the reverse order of removal.

NOTE:
Be sure to insert the rear end tab of the rear leg cover under the rail.

1.

Seatback frame

2.

Seatback outer bracket

3.

Seatback inner bracket

4.

Seatback thermal electric device

5.

Seatback duct

6.

Seatback duct upper bracket

7.

Seat cushion inner bracket

8.

Seatback duct cover

9.

Seatback duct lower bracket

10. Seat cushion frame

11.

Climate controlled seat switch
assembly

12.

Climate controlled seat switch
bracket

13. Seat cushion outer bracket

14.

Seat cushion mounting upper
bracket

15. Seat cushion thermal electric device

16. Seat cushion front duct

17. Climate controlled seat blower motor 18. Seat cushion rear duct

19. Seat cushion duct lower bracket

20. Seat cushion mounting lower bracket 21. Climate controlled seat control unit

22. Climate controlled seat filter

23. Seat cushion rear duct protector

SIIA0490E

FRONT SEAT

SE-131

C

D

E

F

G

H

J

K

L

M

A

B

SE

Disassembly and Assembly

AIS001KX

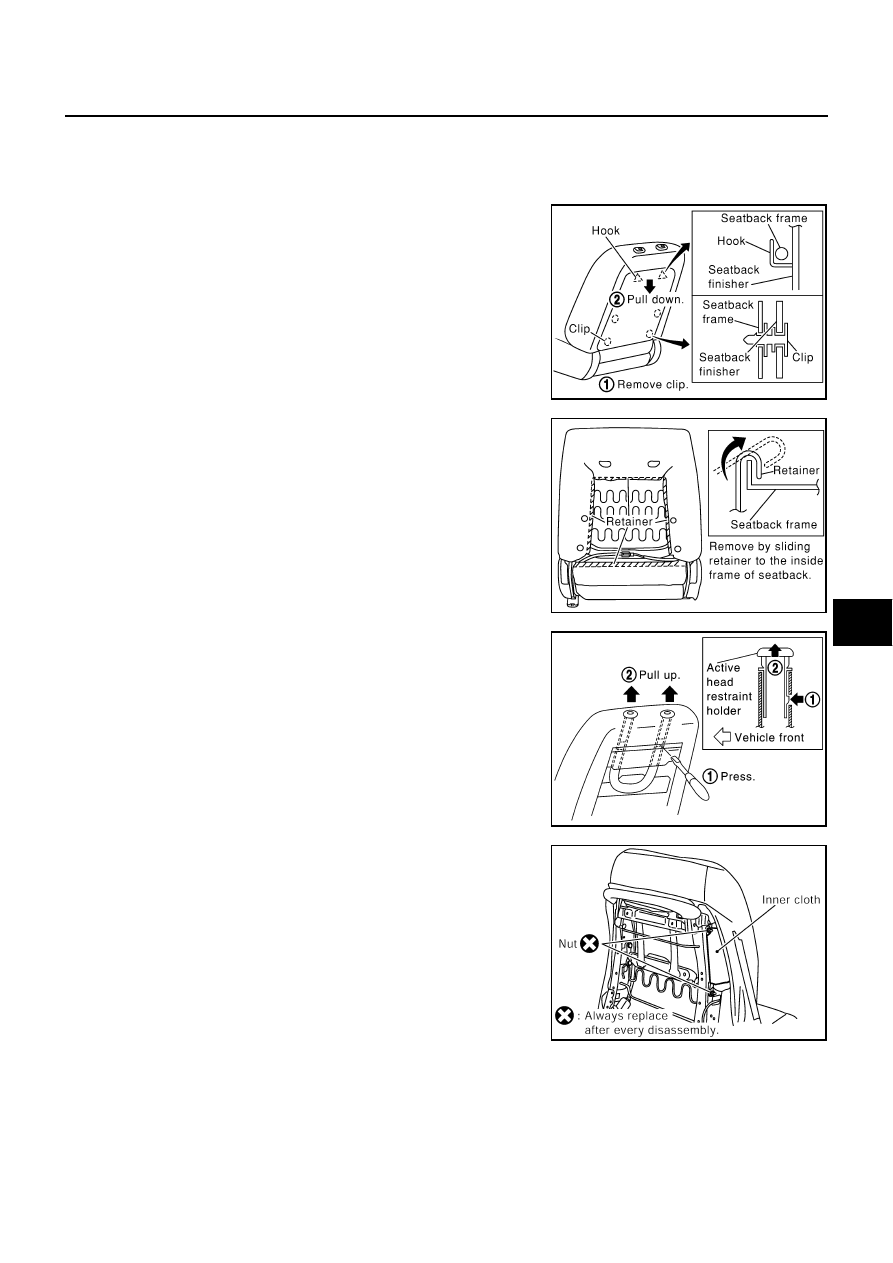

SEATBACK TRIM AND PAD

NOTE:
Be sure to set the front/rear cushion lifter to the top position.

1.

Remove the seatback board from the back of the seatback.

2.

Remove the retainer.

3.

From the back of the seatback, press the headrest holder tab of
the stay pipe hole to disengage. Then pull the headrest holder
up to remove.

NOTE:
Before installing the headrest holder, check its orientation (front/
rear and right/left).

4.

Remove the stay securing the inner cloth.

5.

After removing the seatback trim & pad, remove the hog ring to separate the trim and pad.

PIIA0163E

SIIA0113E

PIIA0164E

SIIA0579E

SE-132

FRONT SEAT

REMOVAL OF SEATBACK ASSEMBLY

1.

 After completing the steps 1 and 2 of “Seatback trim and pad”, remove the harness connectors for the
reclining motor and lumbar support motor (driver seat only).

2.

Pull out the harness connector for the side air bag from the seat cushion.

3.

Remove the reclining device mounting bolts on the seatback frame, and remove the seatback assembly.

NOTE:
When assembling the seatback frame, make sure that the reclining device are, and be sure to temporarily
tighten the bolts, then tighten them finally.

INSTALLATION OF SEATBACK ASSEMBLY

Install in the reverse order of removal.

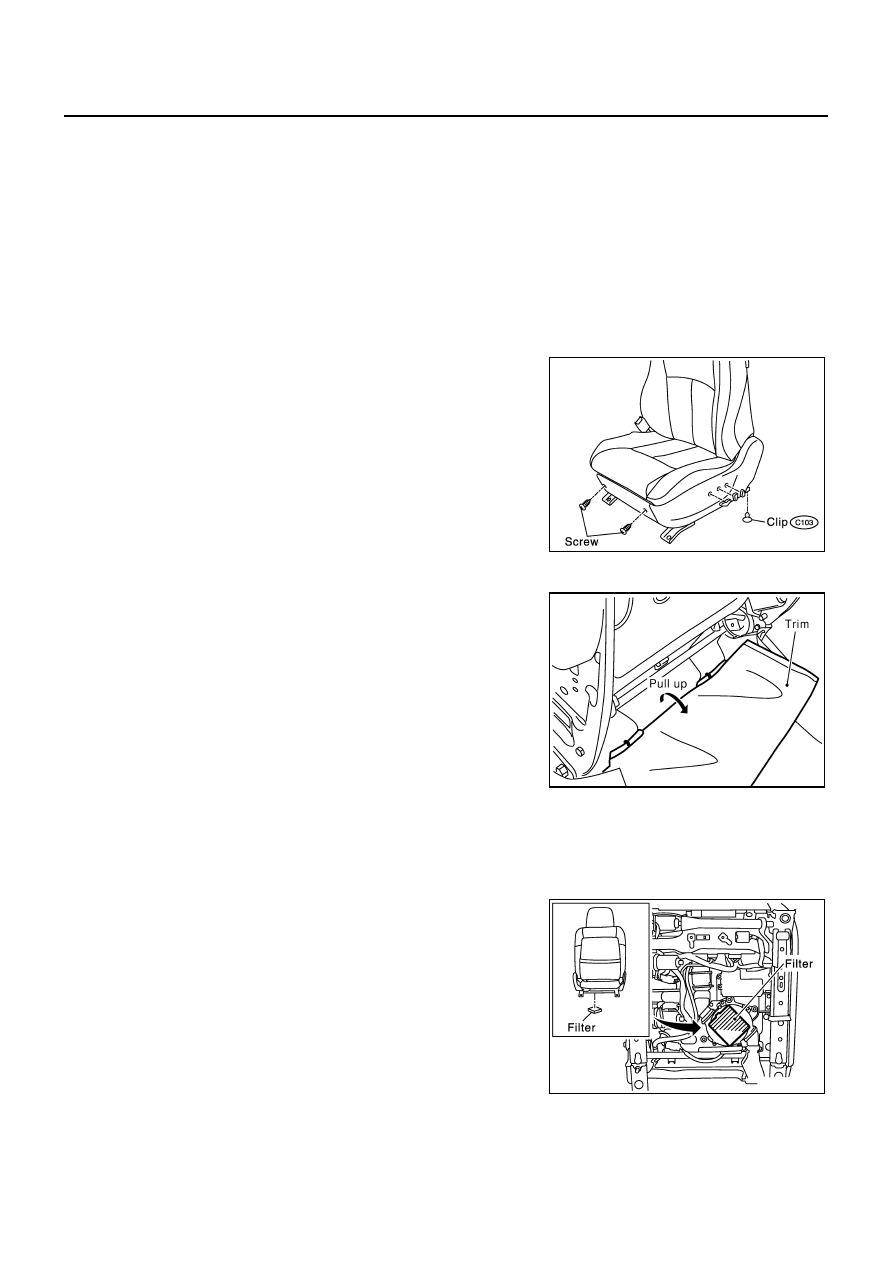

SEAT CUSHION TRIM AND PAD

1.

Remove the seat cushion front finisher.

2.

Remove the power seat switch knob.

3.

Remove the seat cushion outer finisher.

4.

Remove the power seat switch assembly.

5.

Partially pull off the trim at the rear of the seat cushion forward,
and remove the hog rings on the seat cushion pad.

6.

Remove the retainer on the seat cushion frame.

7.

After removing the seat cushion trim & pad, remove the hog rings to separate the trim and pad.

CLIMATE CONTROLLED SEAT
Blower Filter Replacement

Put your hand behind front seat cushion, pull filter downward and
remove it. Replace filter with a new one.

NOTE:

When replacing, be sure to set the front/rear driver seat lifter to
the top position.

When installing, do not confuse up-down direction of the filter.

PIIA3241E

SIIA0503E

PIIA3242E
