AUTOMATIC DRIVE POSITIONER

SE-29

C

D

E

F

G

H

J

K

L

M

A

B

SE

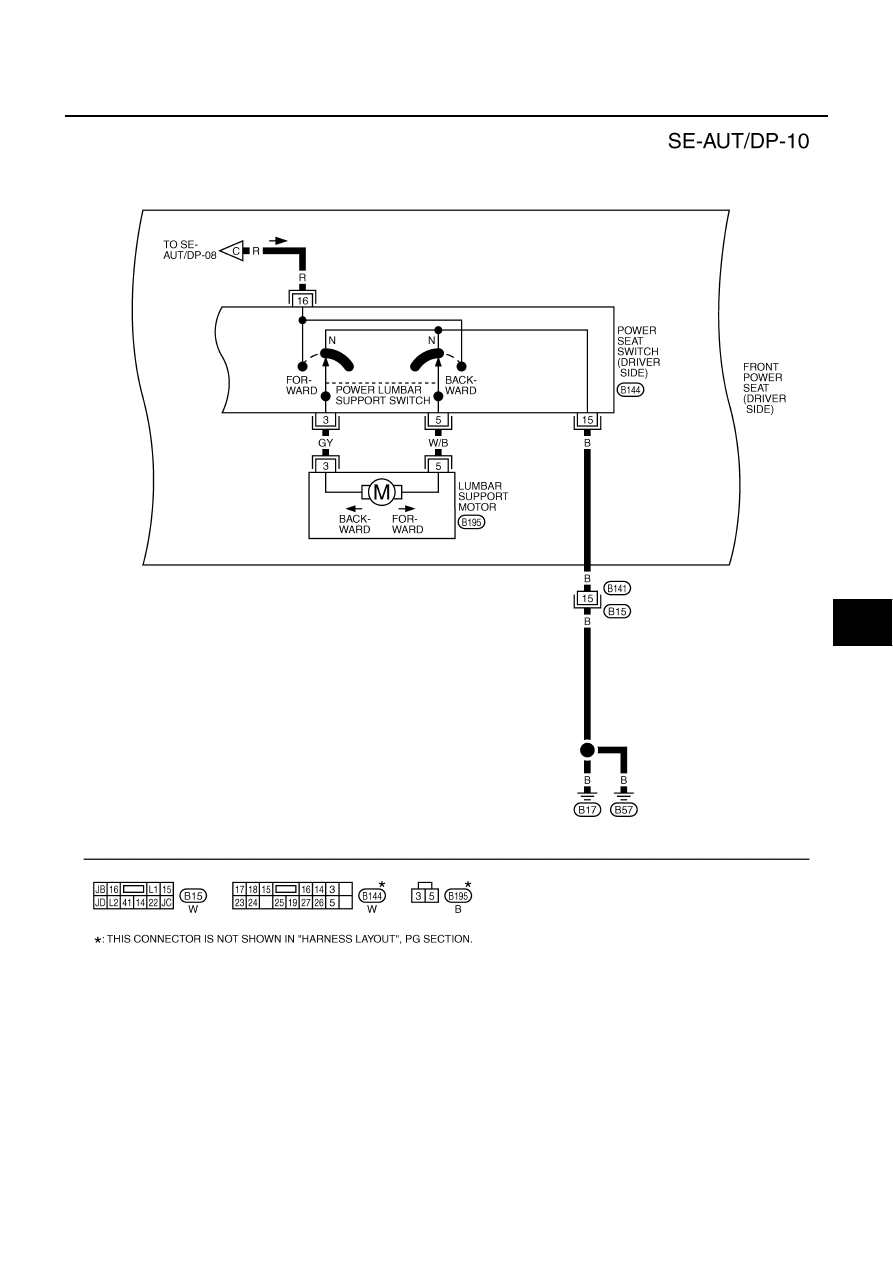

TIWA0300E

SE-30

AUTOMATIC DRIVE POSITIONER

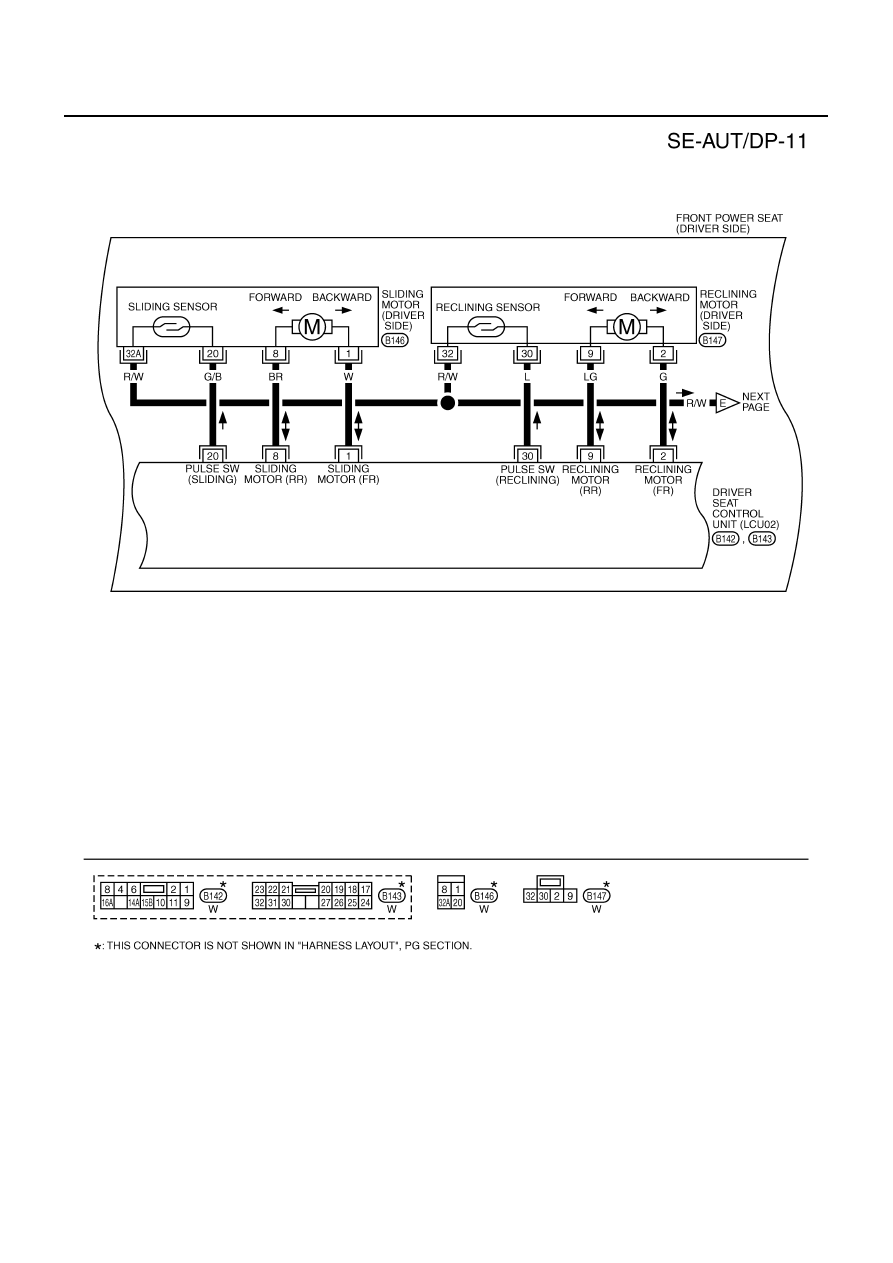

TIWA0249E

AUTOMATIC DRIVE POSITIONER

SE-31

C

D

E

F

G

H

J

K

L

M

A

B

SE

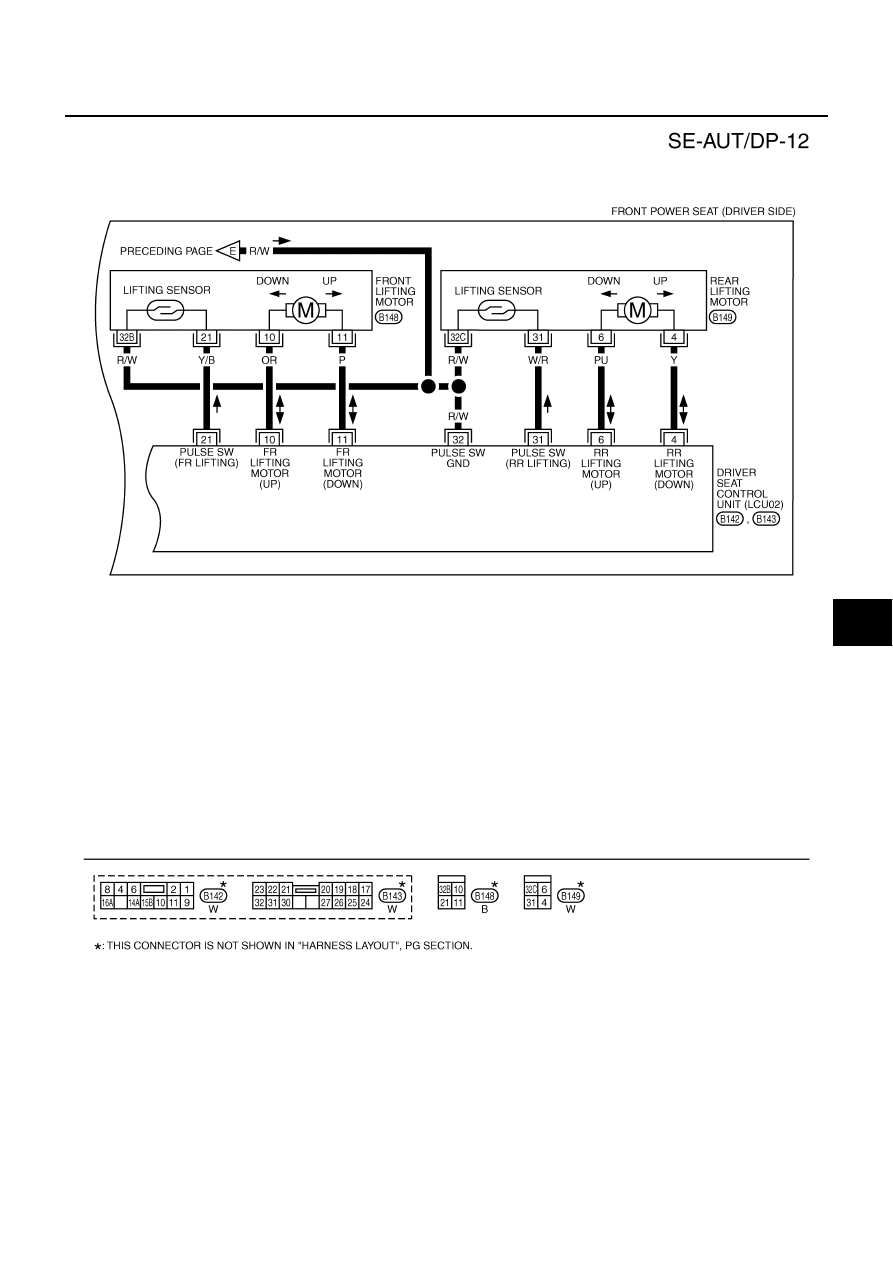

TIWA0250E

SE-32

AUTOMATIC DRIVE POSITIONER

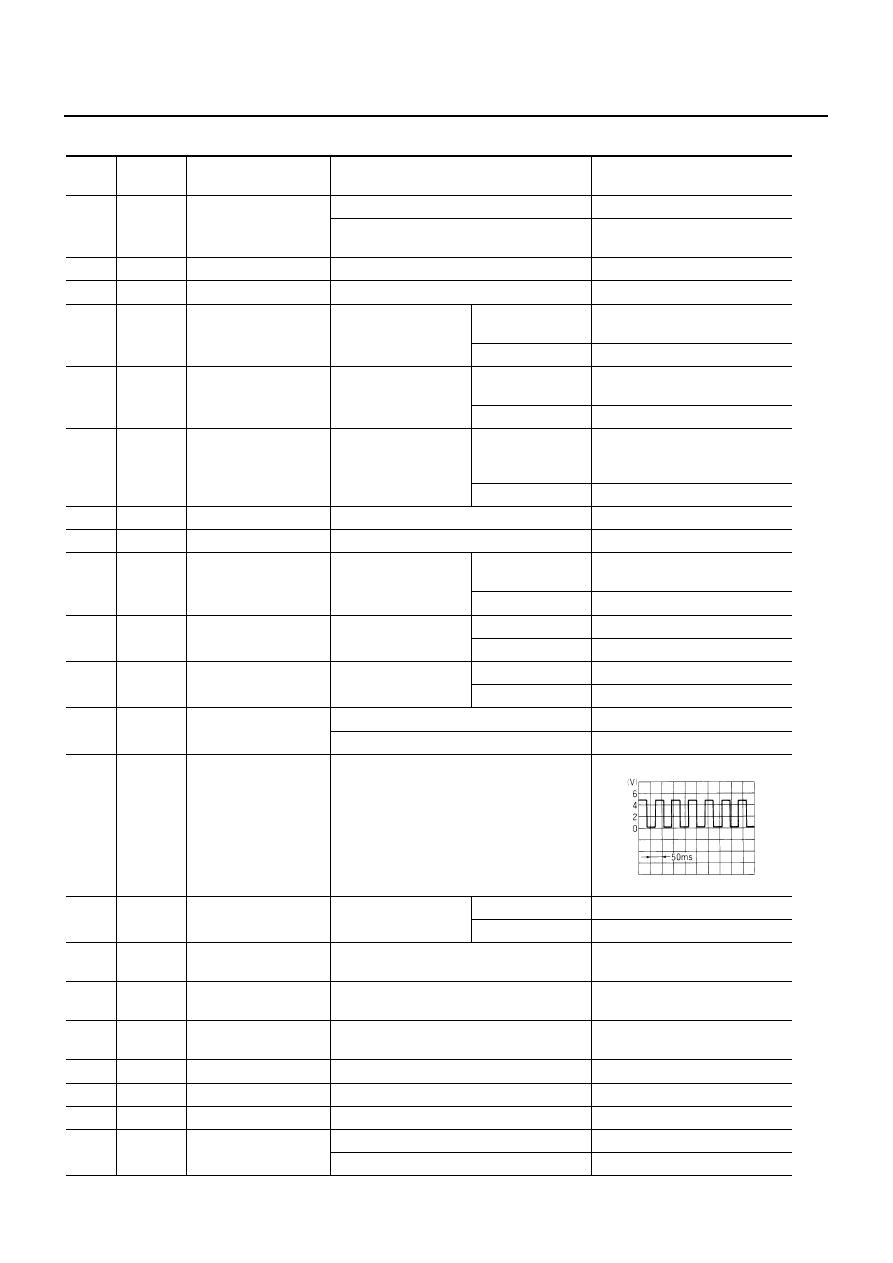

Terminals and Reference Values for BCM

AIS001JP

Termi-

nal

WIRE

COLOR

ITEM

CONDITION

VOLTAGE (V)

(Approx)

8

G/OR

Detente switch signal.

Selector lever in P-position.

 0

Selector lever in other than P-position.

With ignition key in ignition key cylinder

Battery voltage

17

BR/Y

Data link (RX line)

—

—

18

P

Data link (TX line)

—

—

22

R/B

Telescopic switch

FR

signal

Telescoping switch

Forward operation
(Motor operated)

 0

OFF

5

23

PU/R

Tilt switch

DOWN

signal

Tilt switch

DOWN operation
(Motor operated)

 0

OFF

5

26

G/B

Telescopic switch

RR

signal

Telescoping switch

Backward opera-
tion
(Motor operated)

0

OFF

5

30

PU

Monitor line (TX)

—

—

31

LG

Monitor line (RX)

—

—

36

P/L

Tilt switch

UP signal

Tilt switch

UP operation
(Motor operated)

0

OFF

5

39

G

Memory switch 1 sig-
nal

Memory switch 1

ON

0

OFF

5

43

OR/L

Memory switch 2 sig-
nal

Memory switch 2

ON

 0

OFF

5

46

LG/R

Tilt sensor input/output

Tilt position, top

2

Tilt position, bottom

4

49

PU/W

Vehicle speed signal
(2-pulse)

When vehicle speed is approx. 40 km/h (25

MPH).

50

P/L

Seat memory setting
switch signal

Setting switch

ON

0

OFF

5

53

L/B

Tilt and telescopic sen-
sor ground

Ignition switch ON

0

54

R

Tilt and telescopic sen-
sor power supply

Ignition switch OFF

5

55

B/W

IGN START power
supply

Ignition switch START

Battery voltage

56

B

ground

Ignition switch ON

0

60

L/OR

ACC power supply

Ignition switch ACC

Battery voltage

61

R/B

Data link A-2

—

—

62

P/B

Telescopic sensor
input/output

Telescoping position, top

2

 Telescoping position, bottom

4
