8.

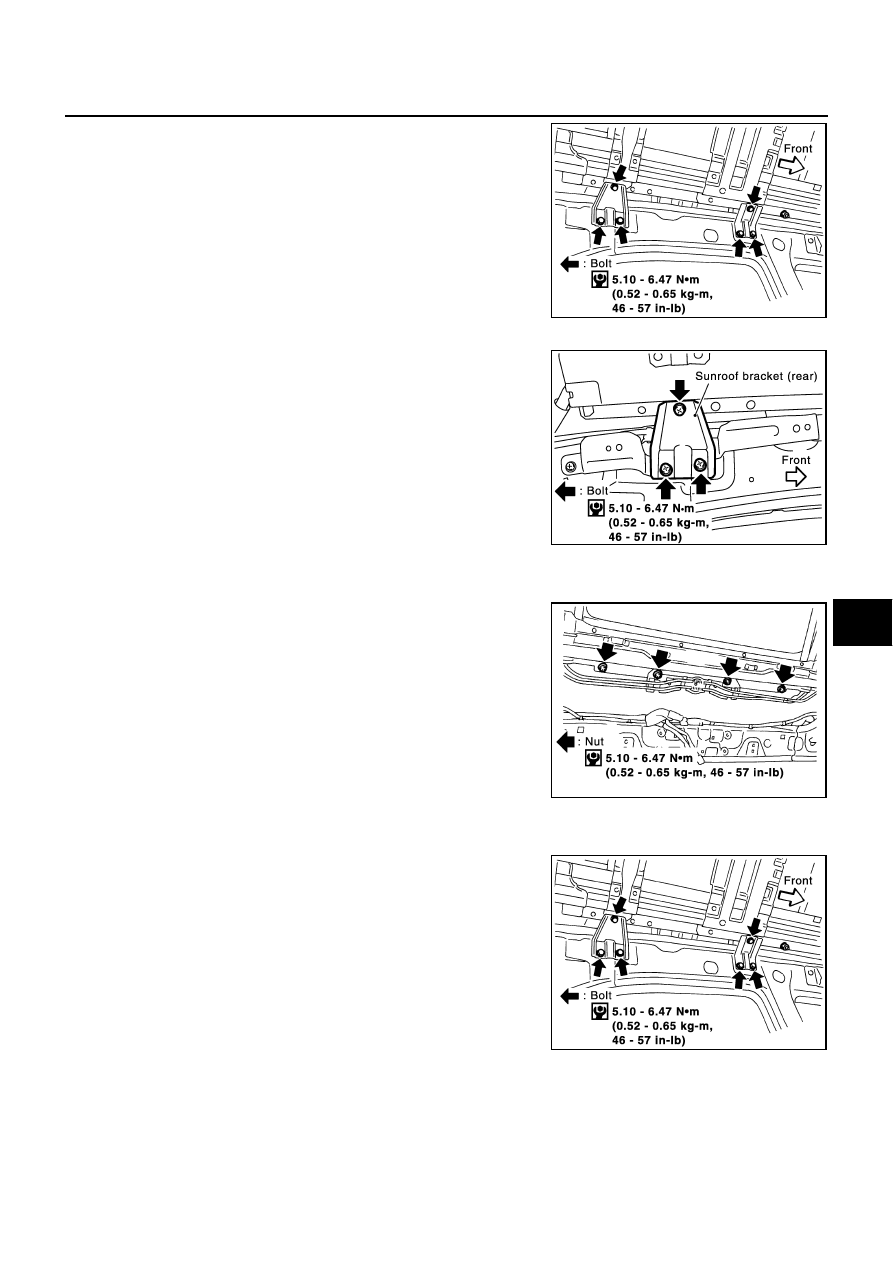

Remove front sunroof bracket bolts.

9.

Remove rear sunroof bracket bolts, then remove sunroof unit
from roof panel.

10. Remove sunroof unit through the passenger compartment while

being careful not to damage the seats and trim.

Installation

1.

Temporarily tighten the mounting bolts to the rear sunroof brack-
ets (RH/LH).

2.

Bring sunroof unit into passenger compartment and then place the rear end of the rail onto the rear sun-
roof brackets.

3.

Temporarily tighten the mounting nuts to the front end of sunroof
unit.

4.

Tighten the installation points diagonally excluding the installation point of the sunroof bracket around the
roof opening.

5.

Tighten the front sunroof bracket bolts of the vehicle side, and
then tighten the bolt of the rail side.

6.

Tighten the rear sunroof bracket bolts of the vehicle side, and
then tighten the bolt of the rail side.

PIIA3051E

PIIA3054E

PIIA3055E

PIIA3051E

RF-26

SUNROOF

GLASS LID
Removal

1.

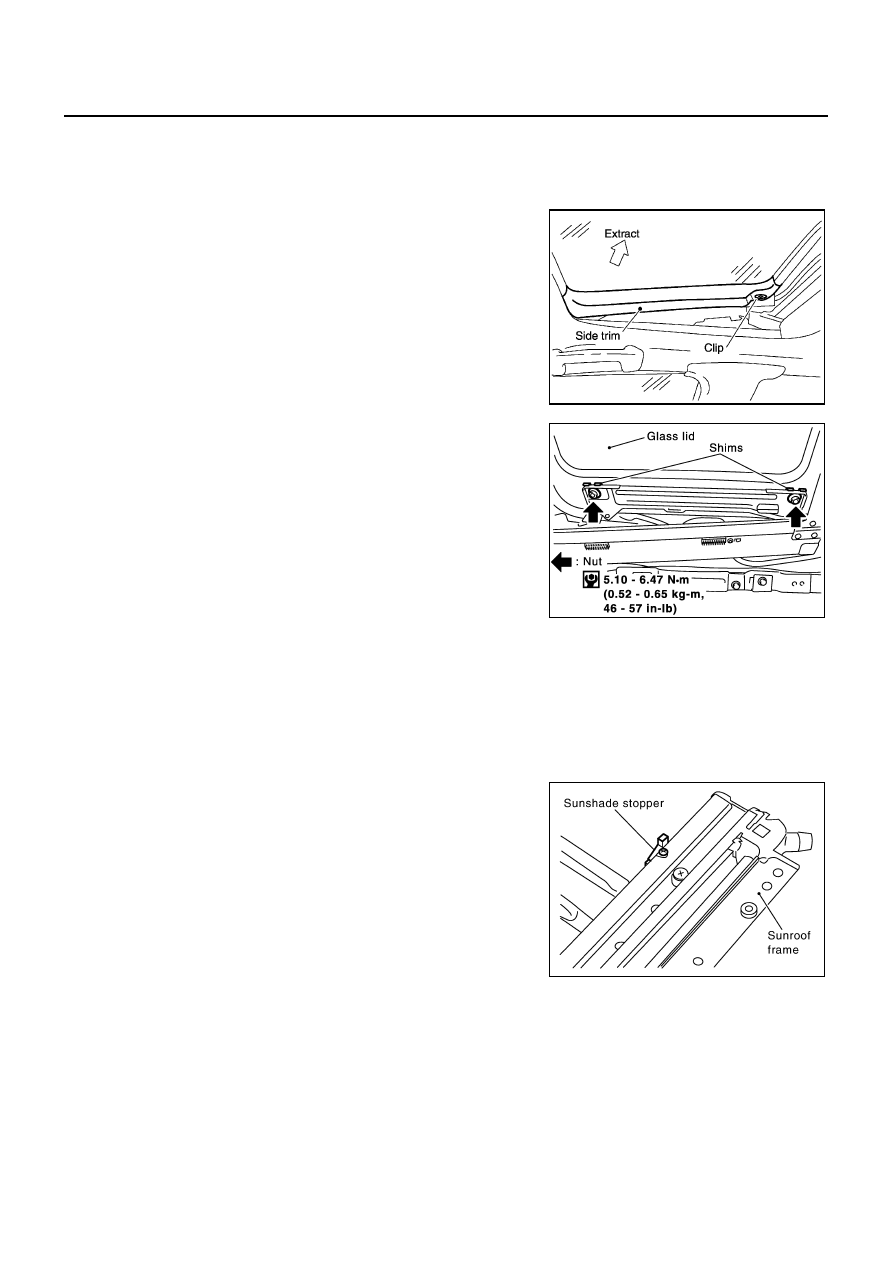

Tilt up glass lid.

2.

Remove clip.

3.

Pull the side trim inside of the retainer and then remove side
trim.

4.

Check the number of shims between glass lid and link.

5.

Remove mounting bolt and then remove glass lid.

Installation

1.

Tighten bolts diagonally on the glass lid.

2.

After installation, carry out fitting adjustment.

SUNSHADE
Removal

CAUTION:

Before removing or installing the sunshade, be sure to remove the sunroof unit from the vehicle.

1.

Remove sunshade stopper mounting screws from the rear end
of the sunroof frame and then remove sunshade stopper.

2.

Remove sunshade from the rear end of the sunroof frame.

Installation

Install in the reverse order of removal.

SBT249A

PIIA3052E

PIIB1538E

SUNROOF

RF-27

C

D

E

F

G

H

J

K

L

M

A

B

RF

WIND DEFLECTOR
Removal

1.

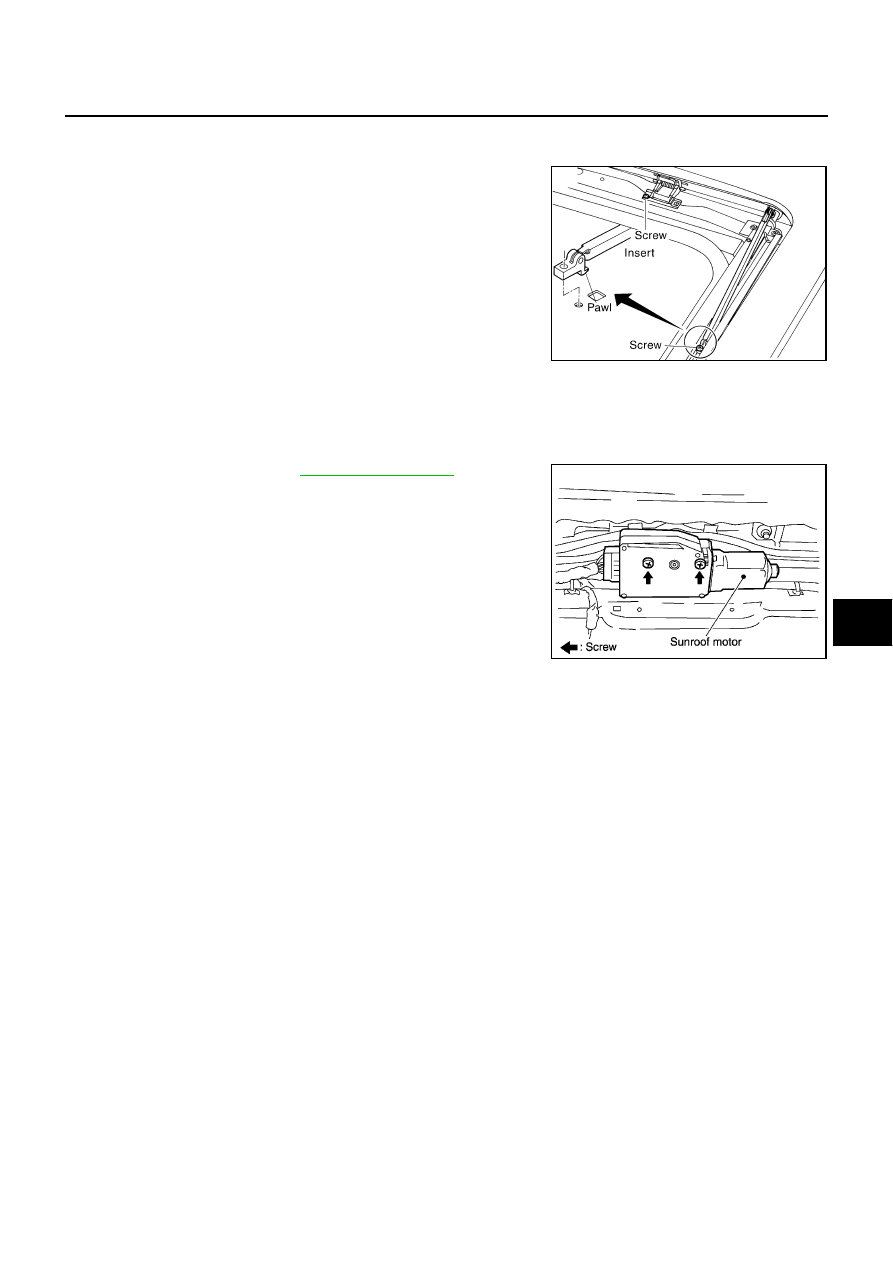

Remove screws from left and right sides of each wind deflector
holder. Extract pawls through rail holes, then remove left and
right sides of wind deflector holder.

2.

Remove screws from front end of sunroof unit. Extract pawls
through frame holes, then remove wind deflector from frame
assembly.

Installation

Install in the reverse order of removal.

SUNROOF MOTOR
Removal

1.

Remove headlining. Refer to

EI-40, "HEADLINING"

 .

2.

Remove sunroof motor mounting screw.

3.

Disconnect harness connector from sunroof motor and then
remove sunroof motor.

CAUTION:

●

When removing the sunroof motor, be sure that the sun-
roof is in the fully open position.

●

After removing sunroof motor, do not attempt to rotate
sunroof motor as a single unit.

Installation

Move the sunroof motor laterally little by little so that the gear is completely engaged into the wire on the sun-
roof unit and the mounting surface becomes parallel. Then secure the sunroof motor with screws.

CAUTION:

Before installing the sunroof motor, be sure to place the link and wire assembly in the symmetrical
and fully closed position.

SBT827

SBT250A
