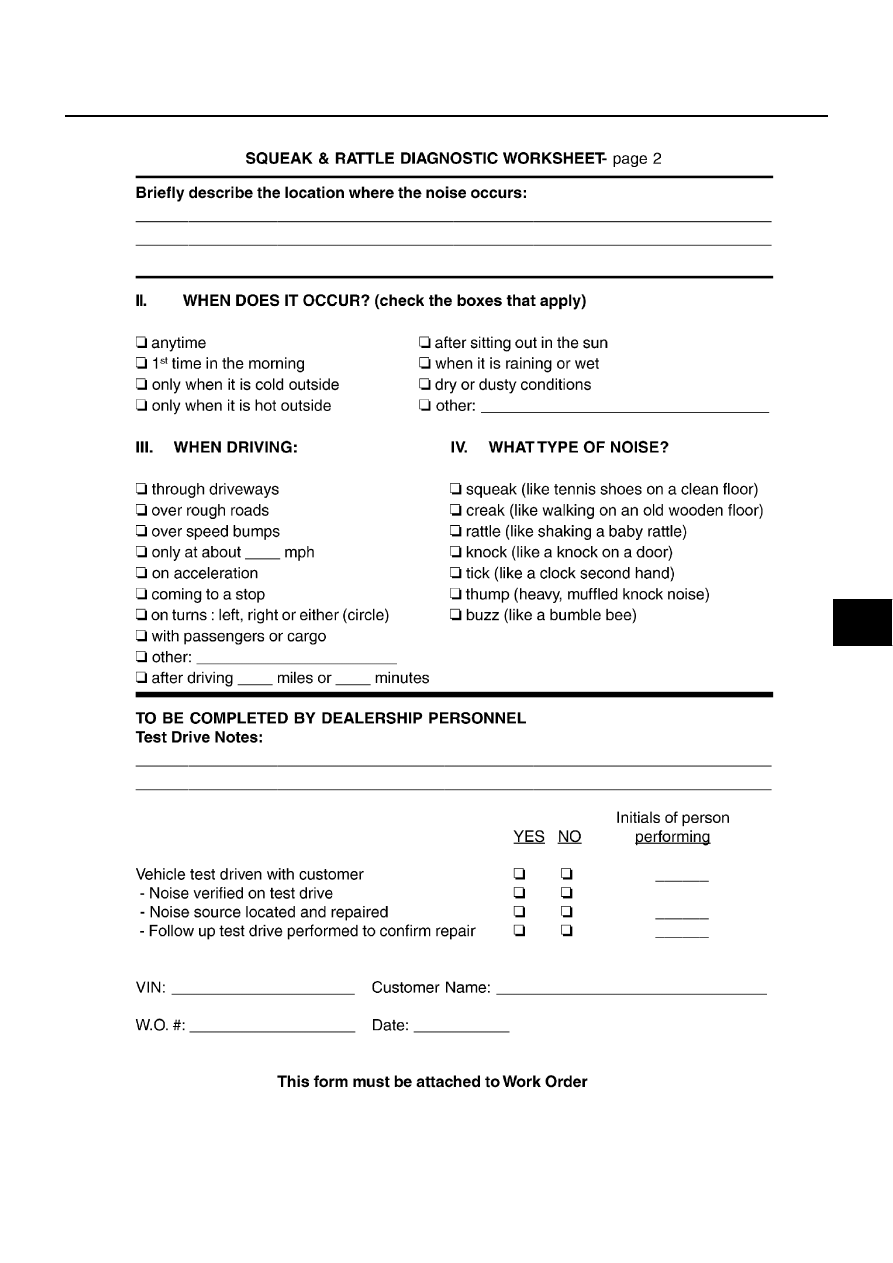

SQUEAK AND RATTLE TROUBLE DIAGNOSES

RF-9

C

D

E

F

G

H

J

K

L

M

A

B

RF

SBT844

RF-10

SUNROOF

SUNROOF

PFP:91210

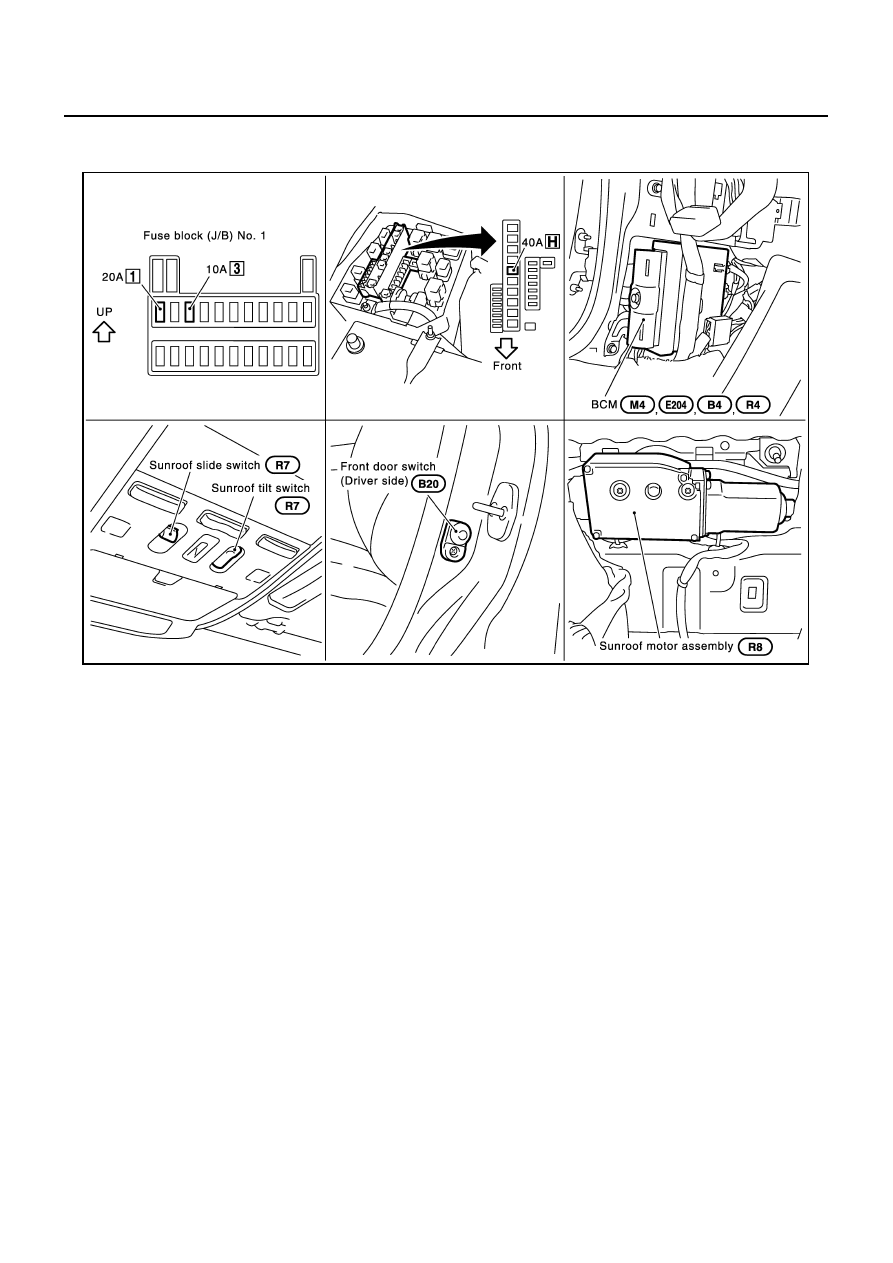

Component Parts and Harness Connector Location

AIS001HW

System Description

AIS001HX

OUTLINE

Electric sunroof system consists of

●

Sunroof switch

●

Sunroof motor assembly

●

Front door switches

●

BCM (Body Control Module)

BCM is controls power supply for the operation of sunroof motor. Power is supplied to sunroof motor assembly
from BCM. Sunroof will be operated depending on sunroof switch condition.

OPERATION

●

The sunroof can be tilted up or down with the sunroof switch.

●

The sunroof can be opened or closed automatically with the sunroof switch.

PIIA3046E

SUNROOF

RF-11

C

D

E

F

G

H

J

K

L

M

A

B

RF

DELAYED POWER OPERATION

When the ignition switch is turned to OFF position from ON or START position, power is supplied for approxi-
mately 45 seconds

●

to sunroof motor assembly terminal 6

●

from BCM terminal 135.

Then the electrical sunroof can be operated.
The retained power operation is canceled when the driver or passenger side door is opened.

ANTI – PINCH SYSTEM

The CPU of sunroof motor monitors the sunroof motor operation and the sunroof position (full closed or other)
by the signals from sunroof motor. When sunroof motor detects interruption during the following close opera-
tion, sunroof switch controls the motor for open and the sunroof will operate about 150 mm (5.91 in).
The operation condition is the following

●

automatic close operation when ignition switch is in the ON position

●

automatic close operation during retained power operation.

INITIALIZATION PROCEDURE

If the battery is disconnected or the sunroof motor harness connector is disconnected or the sunroof cannot
close or open automatically, use the following procedure to return sunroof operation to normal.

1.

 Make sure that glass lid is in CLOSE state.

NOTE:
When glass lid is not in CLOSE state, repeat and operate the CLOSE switch or TILT switch, and make it
operate to CLOSE state.

2.

Pressing the CLOSE switch or TILT switch to CLOSE for approximately 1 second or more.

3.

Operate the sunroof switch and make sure that auto operation functions normally.

RF-12

SUNROOF

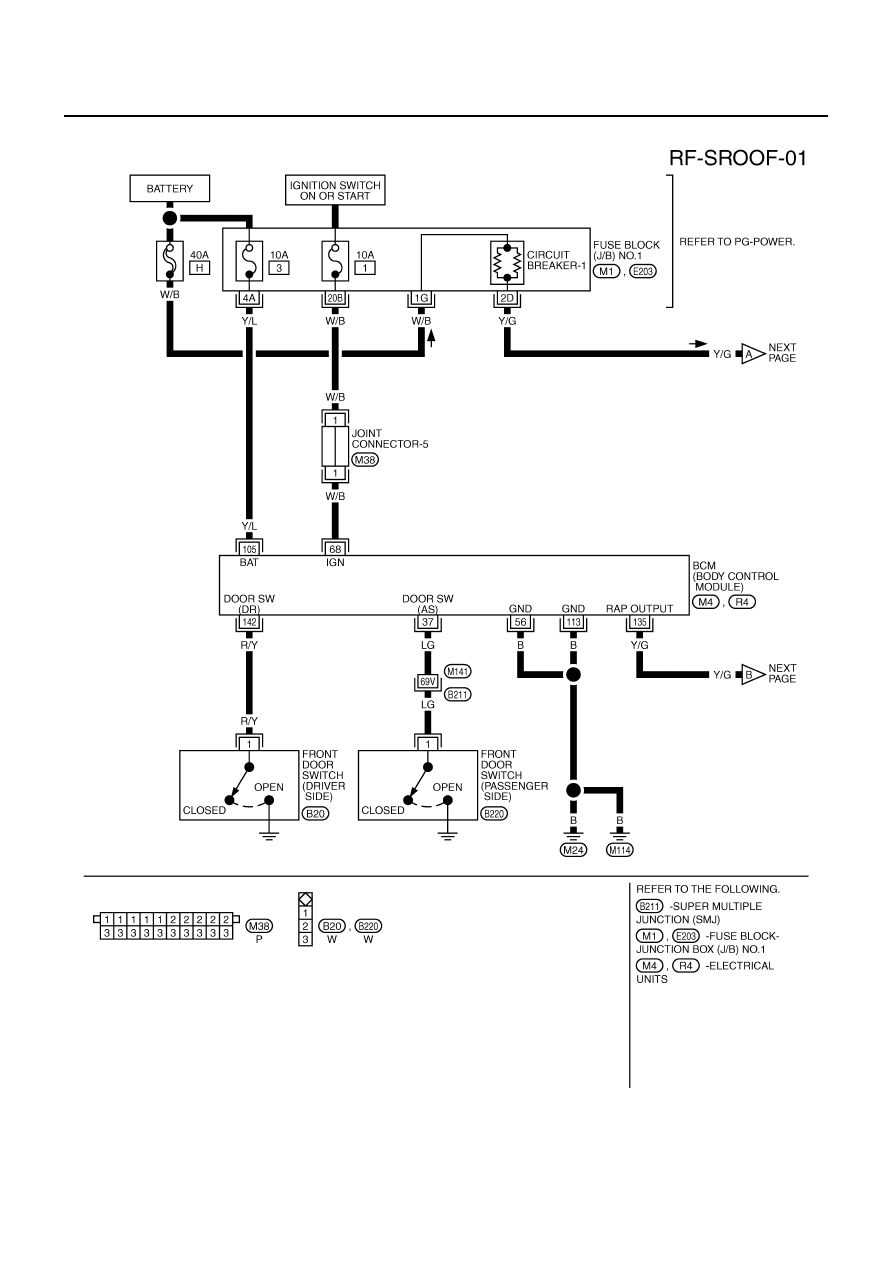

Wiring Diagram — SROOF —

AIS001HY

TIWA0233E
