Infiniti M45 (Y34). Manual - part 646





TURN SIGNAL AND HAZARD WARNING LAMPS

LT-91

C

D

E

F

G

H

I

J

L

M

A

B

LT

to door mirror (driver side) terminal 7

to combination meter terminal 19.

Power is supplied

through combination flasher unit terminal 3

to front combination lamp RH terminal 3

to rear combination lamp RH terminal 5

to door mirror (passenger side) terminal 7

to combination meter terminal 41.

Ground is supplied

to front combination lamp LH and RH terminals 2 through grounds E24, E42 and E62

to rear combination lamp LH and RH terminals 6 through grounds B17 and B57

to door mirror driver side and passenger side terminals 5 through grounds M24 and M114

to combination meter terminal 45 through grounds M24 and M114.

With power and ground supplied, the BCM controls the flashing of the hazard warning lamps.

LOW TIRE PRESSURE WARNING CONTROL SYSTEM

When ID is normally registered to each transmitter in the low tire pressure warning control unit, the hazard
warning lamp flashes twice. Refer to

WT-14, "ID Registration Procedure"

  in WT section.

LT-92

TURN SIGNAL AND HAZARD WARNING LAMPS

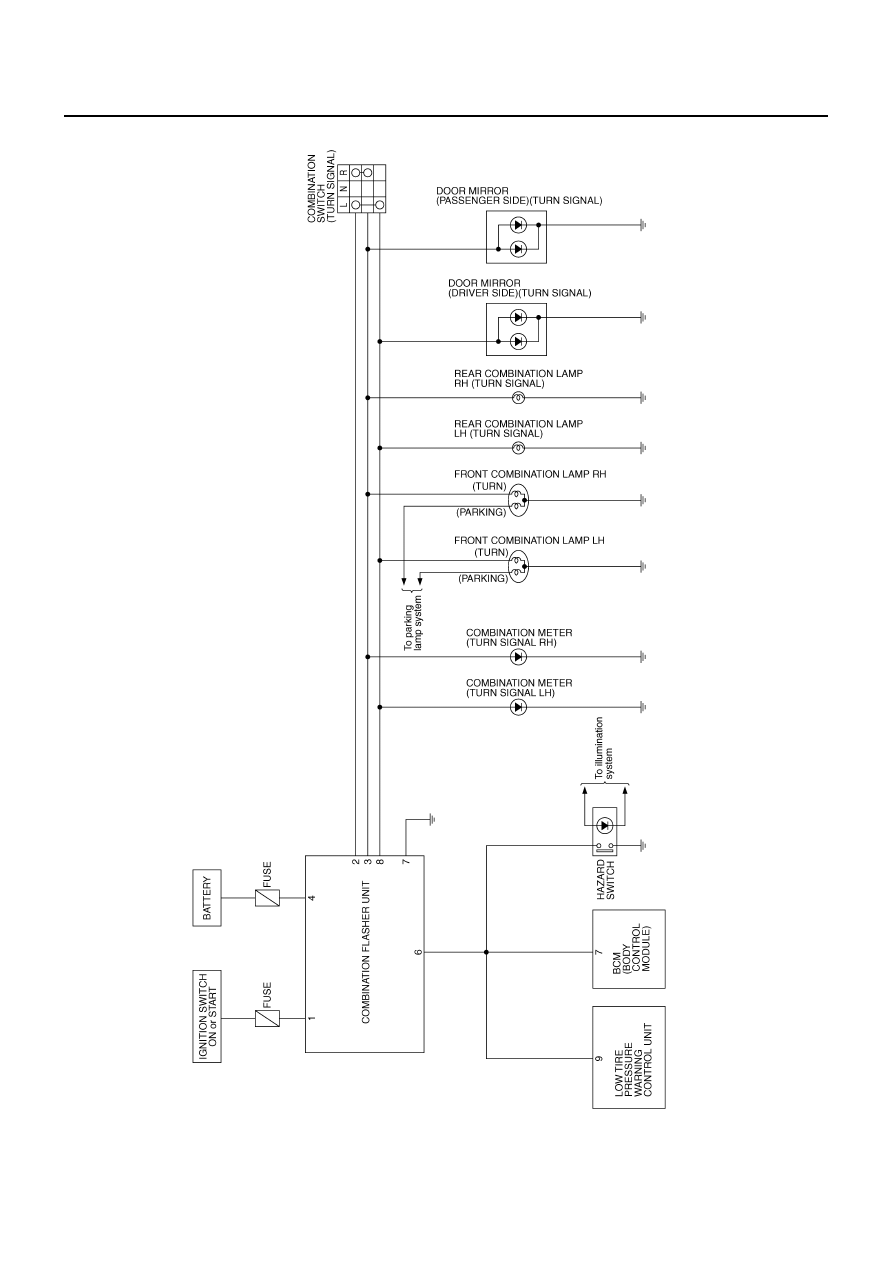

Schematic

AKS002FU

TKWA0547E

TURN SIGNAL AND HAZARD WARNING LAMPS

LT-93

C

D

E

F

G

H

I

J

L

M

A

B

LT

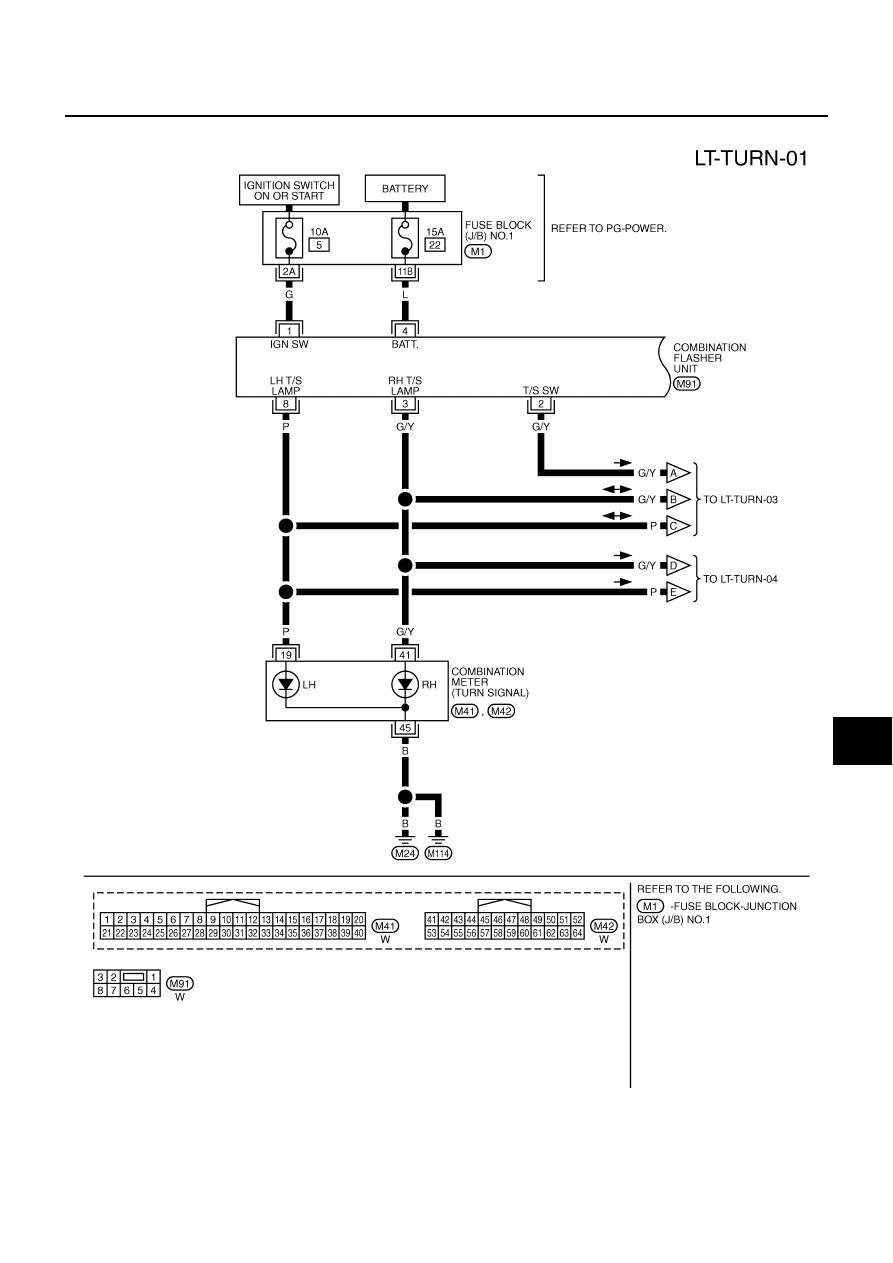

Wiring Diagram — TURN —

AKS002FV

TKWA0548E

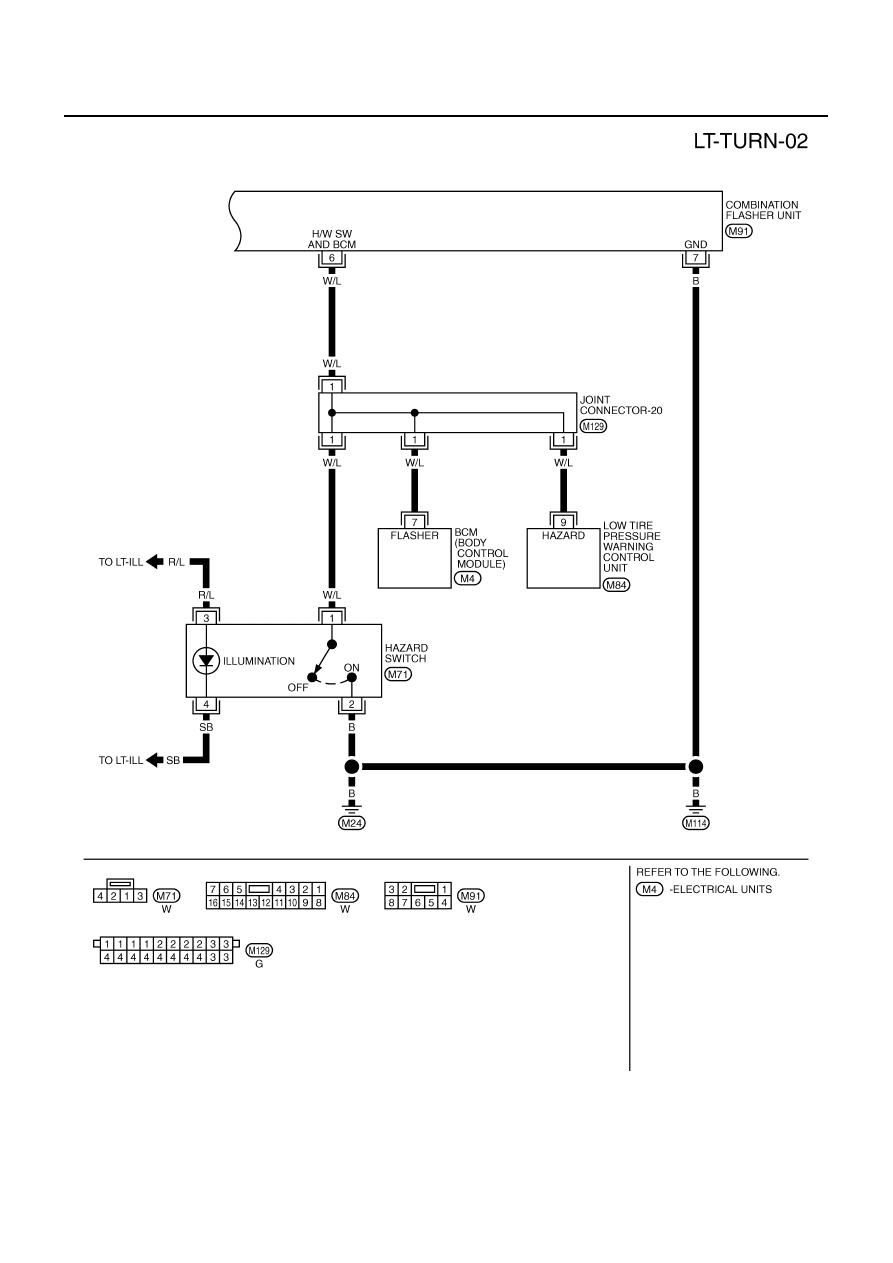

LT-94

TURN SIGNAL AND HAZARD WARNING LAMPS

TKWA0549E
