CAN COMMUNICATION

LAN-23

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

Engine and A/T integrated control signal

T

R

R

T

Fuel consumption monitor signal

T

R

A/T CHECK indicator lamp signal

T

R

A/T position indicator signal

T

R

Current gear position signal

R

R

R

T

R

Next gear position signal

R

R

T

Shift change signal

R

R

T

Shift pattern signal

R

R

T

Steering angle sensor signal

R

T

Air conditioner switch signal

R

T

Headlamp switch signal

R

T

Rear window defogger switch signal

R

T

OD cancel switch signal

R

T

Vehicle speed signal

T

R

R

R

R

T

Output shaft revolution signal

R

R

T

A/T self-diagnosis signal

R

T

Turbine revolution signal

R

R

T

Manual mode signal

R

R

T

Not manual mode signal

R

T

Manual mode shift up signal

R

T

Manual mode shift down signal

R

T

Manual mode indicator signal

T

R

VDC operation signal

T

R

TCS operation signal

T

R

ABS operation signal

T

R

Stop lamp switch signal

R

T

Signals

ECM

VDC/

TCS/ABS

control

unit

ICC sen-

sor

ICC unit

TCM

Steering

angle

sensor

Combina-

tion meter

LAN-24

[CAN]

CAN SYSTEM (TYPE 1)

CAN SYSTEM (TYPE 1)

PFP:23710

System Description

AKS003WP

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

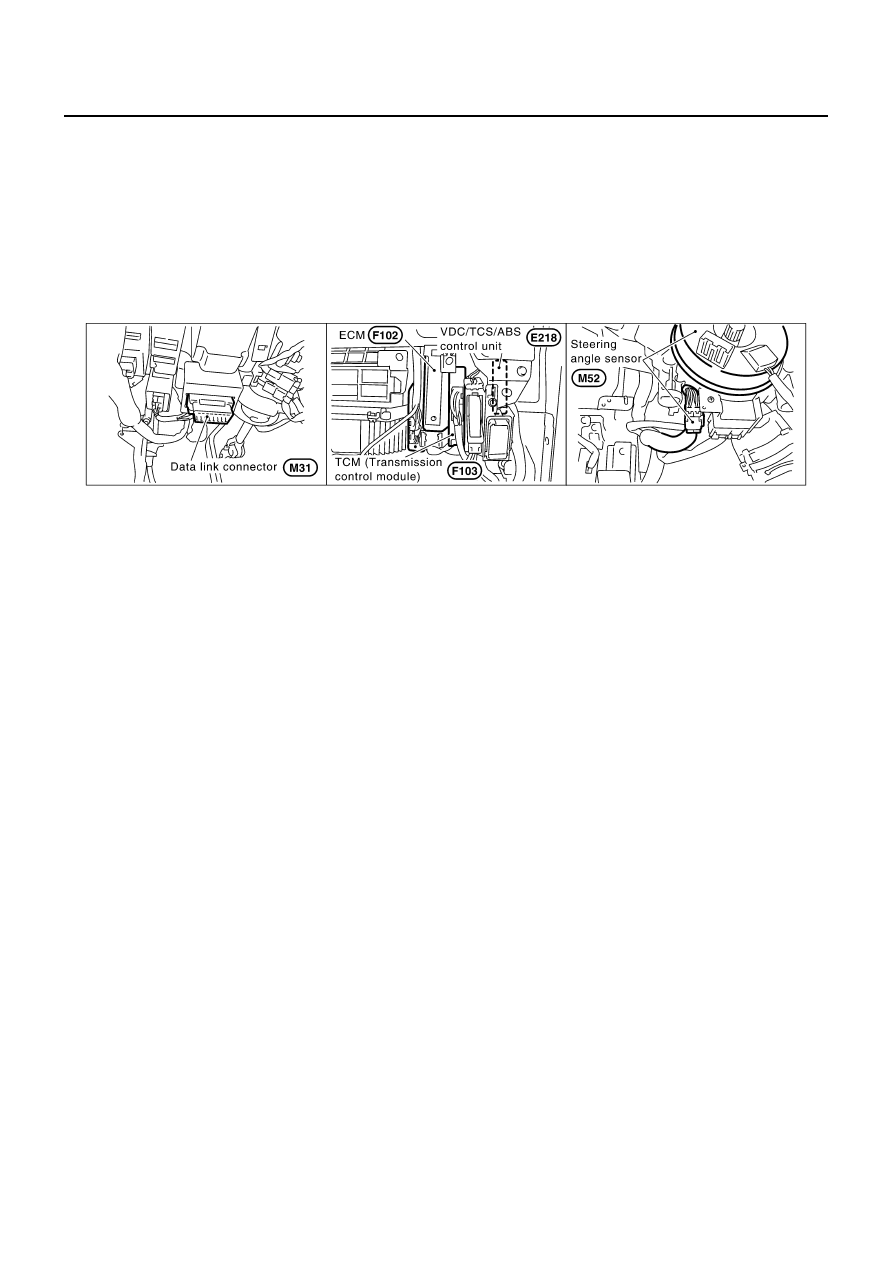

Component Parts and Harness Connector Location

AKS003WQ

SKIA3772E

CAN SYSTEM (TYPE 1)

LAN-25

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

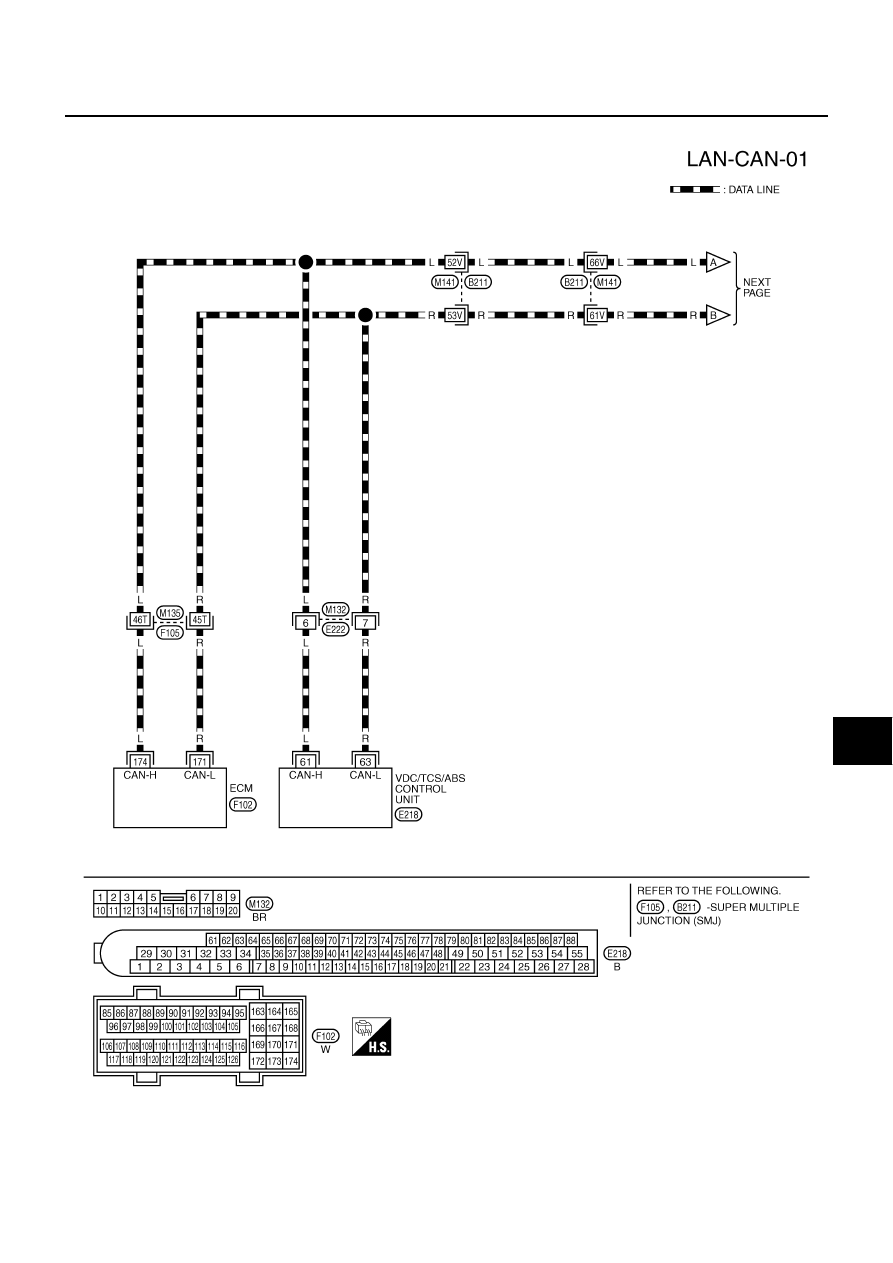

Wiring Diagram — CAN —

AKS003WR

TKWA0644E

LAN-26

[CAN]

CAN SYSTEM (TYPE 1)

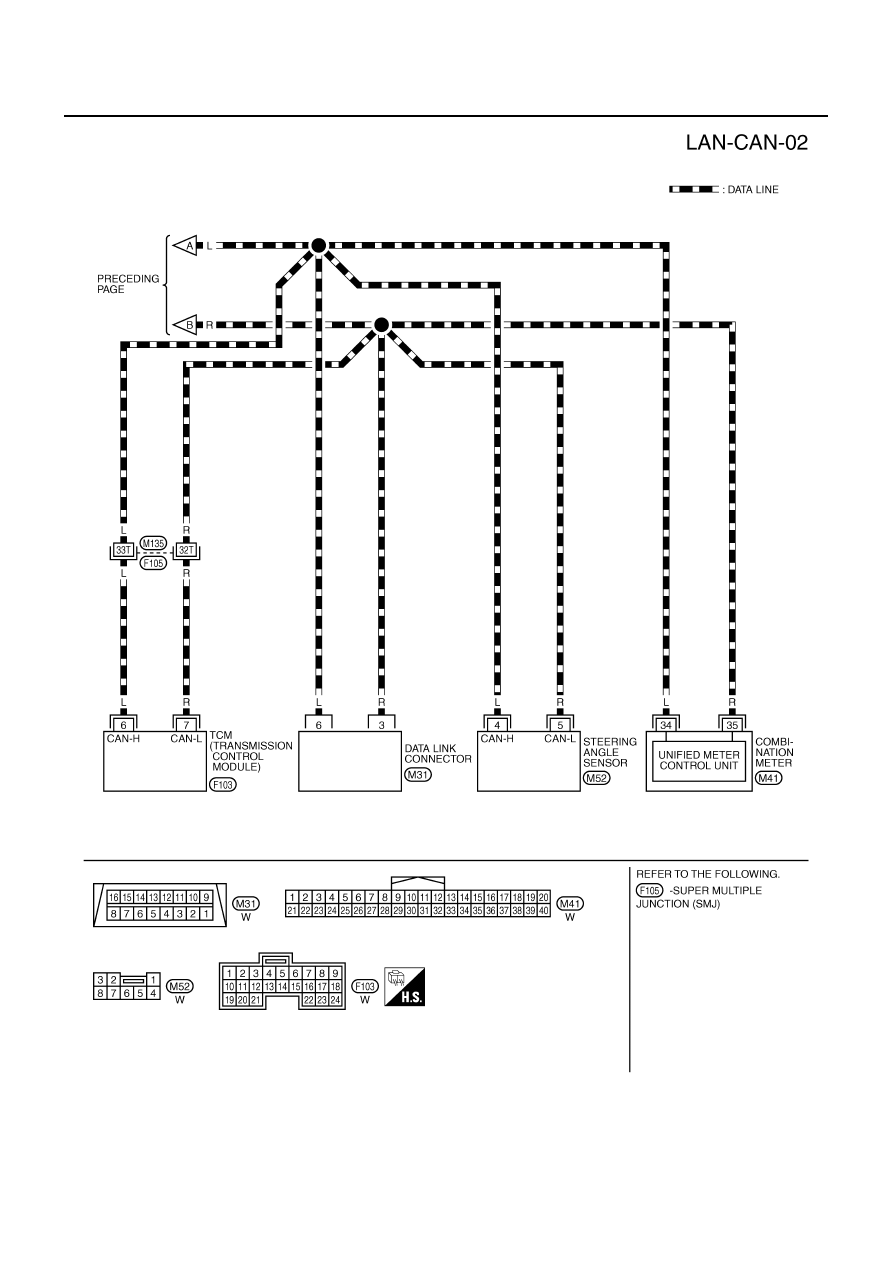

TKWA0645E
