Infiniti M45 (Y34). Manual - part 563





HOW TO USE THIS MANUAL

GI-17

C

D

E

F

G

H

I

J

K

L

M

B

GI

14

Wire color

This shows a code for the color of the wire.

B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light Green

BR = Brown
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green

When the wire color is striped, the base color is given first, followed by the stripe color as shown
below:
Example: L/W = Blue with White Stripe

15

Option description

This shows a description of the option abbreviation used on the page.

16

Switch

This shows that continuity exists between terminals 1 and 2 when the switch is in the A posi-
tion. Continuity exists between terminals 1 and 3 when the switch is in the B position.

17

Assembly parts

Connector terminal in component shows that it is a harness incorporated assembly.

18

Cell code

This identifies each page of the wiring diagram by section, system and wiring diagram page
number.

19

Current flow arrow

Arrow indicates electric current flow, especially where the direction of standard flow (vertically
downward or horizontally from left to right) is difficult to follow.

A double arrow “

 ” shows that current can flow in either direction depending on cir-

cuit operation.

20

System branch

This shows that the system branches to another system identified by cell code (section and
system).

21

Page crossing

This arrow shows that the circuit continues to another page identified by cell code.

The C will match with the C on another page within the system other than the next or preced-
ing pages.

22

Shielded line

The line enclosed by broken line circle shows shield wire.

23

Component box in
wave line

This shows that another part of the component is also shown on another page (indicated by
wave line) within the system.

24

Component name

This shows the name of a component.

25

Connector number

This shows the connector number.

The letter shows which harness the connector is located in.

Example: M : main harness. For detail and to locate the connector, refer to PG section "Main
Harness", “Harness Layout”. A coordinate grid is included for complex harnesses to aid in
locating connectors.

26

Ground (GND)

The line spliced and grounded under wire color shows that ground line is spliced at the
grounded connector.

27

Ground (GND)

This shows the ground connection. For detailed ground distribution information, refer to
"Ground Distribution" in PG section.

28

Connector views

This area shows the connector faces of the components in the wiring diagram on the page.

29

Common component

Connectors enclosed in broken line show that these connectors belong to the same compo-
nent.

30

Connector color

This shows a code for the color of the connector. For code meaning, refer to wire color codes,
Number 14 of this chart.

31

Fusible link and fuse
box

This shows the arrangement of fusible link(s) and fuse(s), used for connector views of
"POWER SUPPLY ROUTING" in PG section.
The open square shows current flow in, and the shaded square shows current flow out.

32

Reference area

This shows that more information on the Super Multiple Junction (SMJ) and Joint Connectors
(J/C) exists on the PG section. Refer to "Reference Area" for details.

Num-

ber

Item

Description

GI-18

HOW TO USE THIS MANUAL

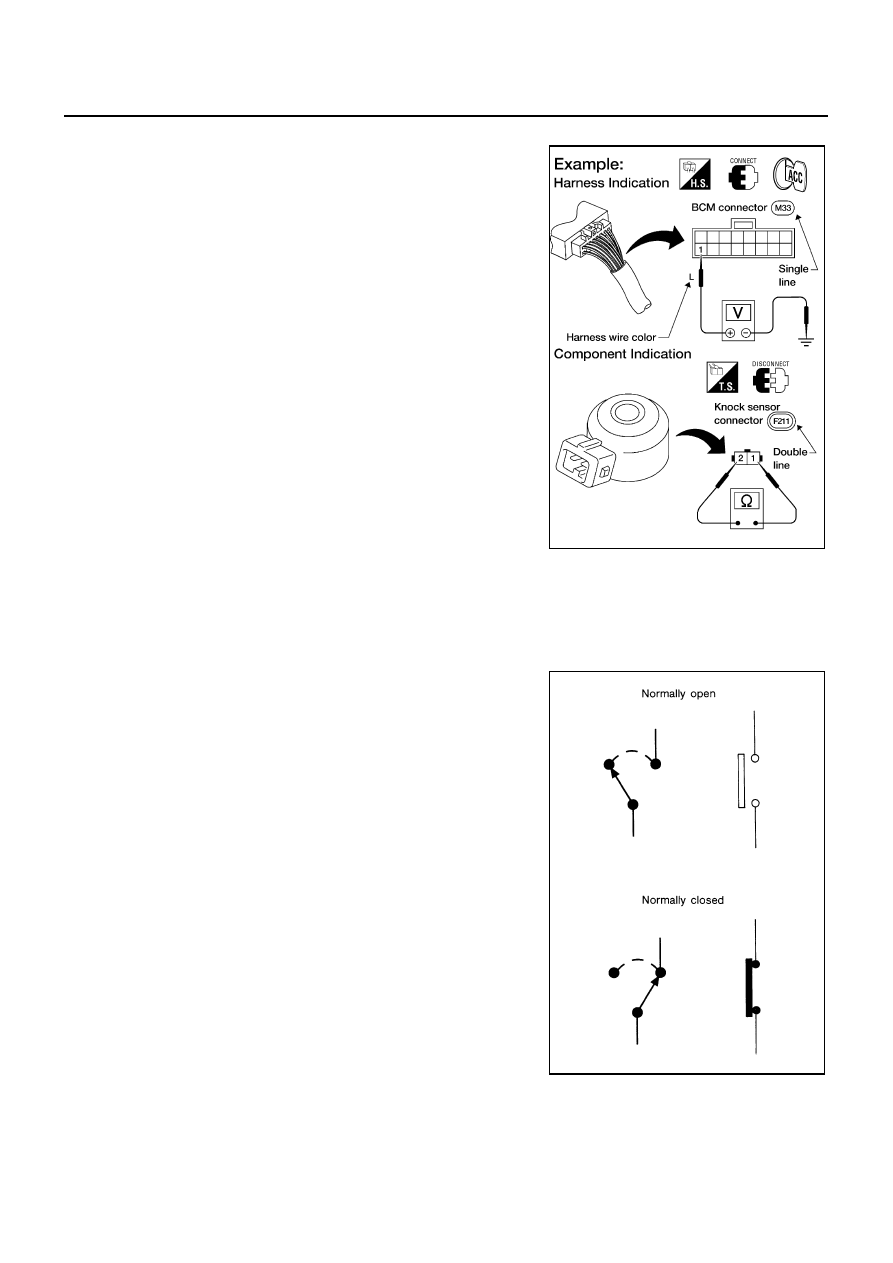

Harness Indication

Letter designations next to test meter probe indicate harness
(connector) wire color.

Connector numbers in a single circle M33 indicate harness con-
nectors.

Component Indication

Connector numbers in a double circle F211 indicate component connectors.

Switch Positions

Switches are shown in wiring diagrams as if the vehicle is in the “normal” condition.
A vehicle is in the “normal” condition when:

ignition switch is “OFF”,

doors, hood and trunk lid/back door are closed,

pedals are not depressed, and

parking brake is released.

AGI070

SGI860

HOW TO USE THIS MANUAL

GI-19

C

D

E

F

G

H

I

J

K

L

M

B

GI

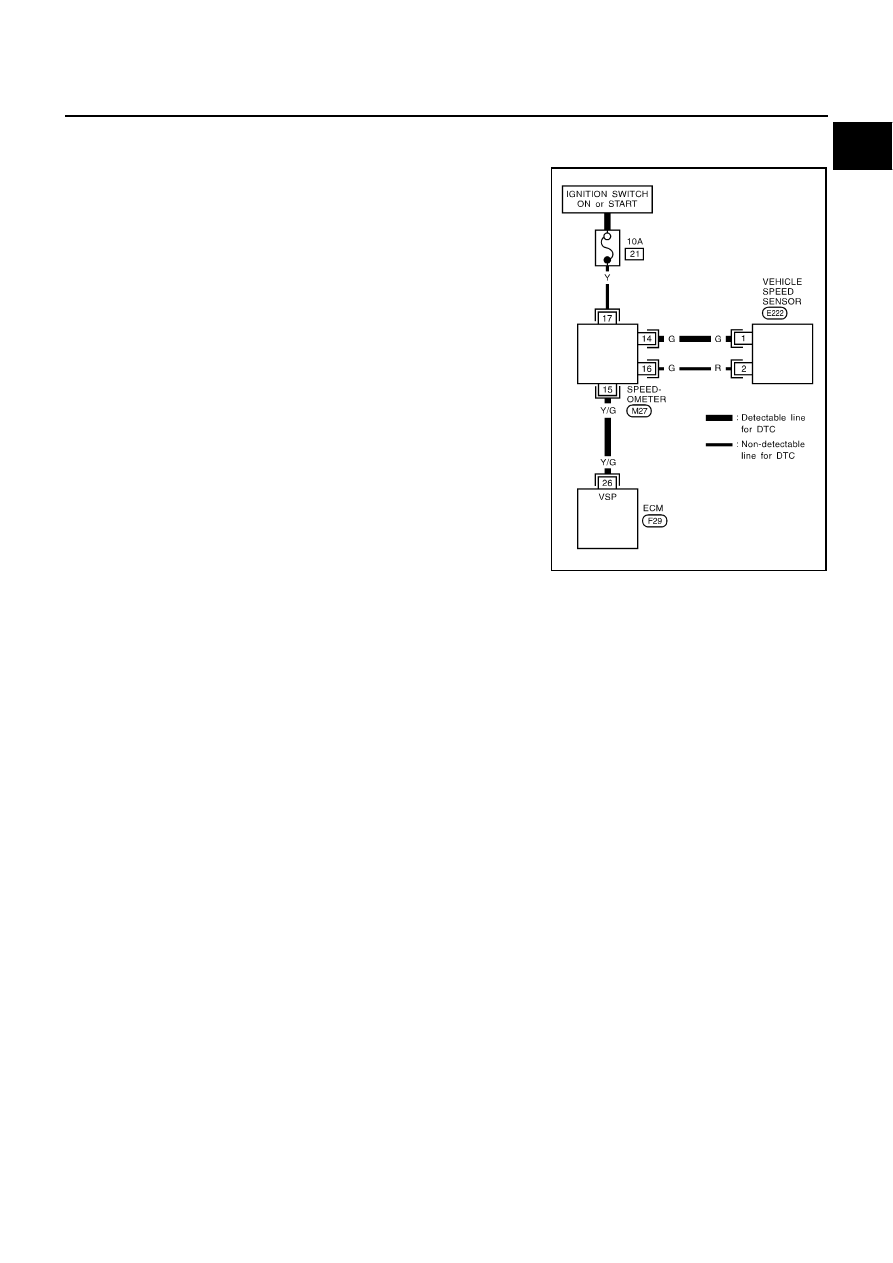

Detectable Lines and Non-Detectable Lines

In some wiring diagrams, two kinds of lines, representing wires, with different weight are used.

A line with regular weight (wider line) represents a “detectable
line for DTC (Diagnostic Trouble Code)”. A “detectable line for
DTC” is a circuit in which ECM can detect its malfunctions with
the on board diagnostic system.

A line with less weight (thinner line) represents a “non-detect-
able line for DTC”. A “non-detectable line for DTC” is a circuit in
which ECM cannot detect its malfunctions with the on board
diagnostic system.

SGI862-B

GI-20

HOW TO USE THIS MANUAL

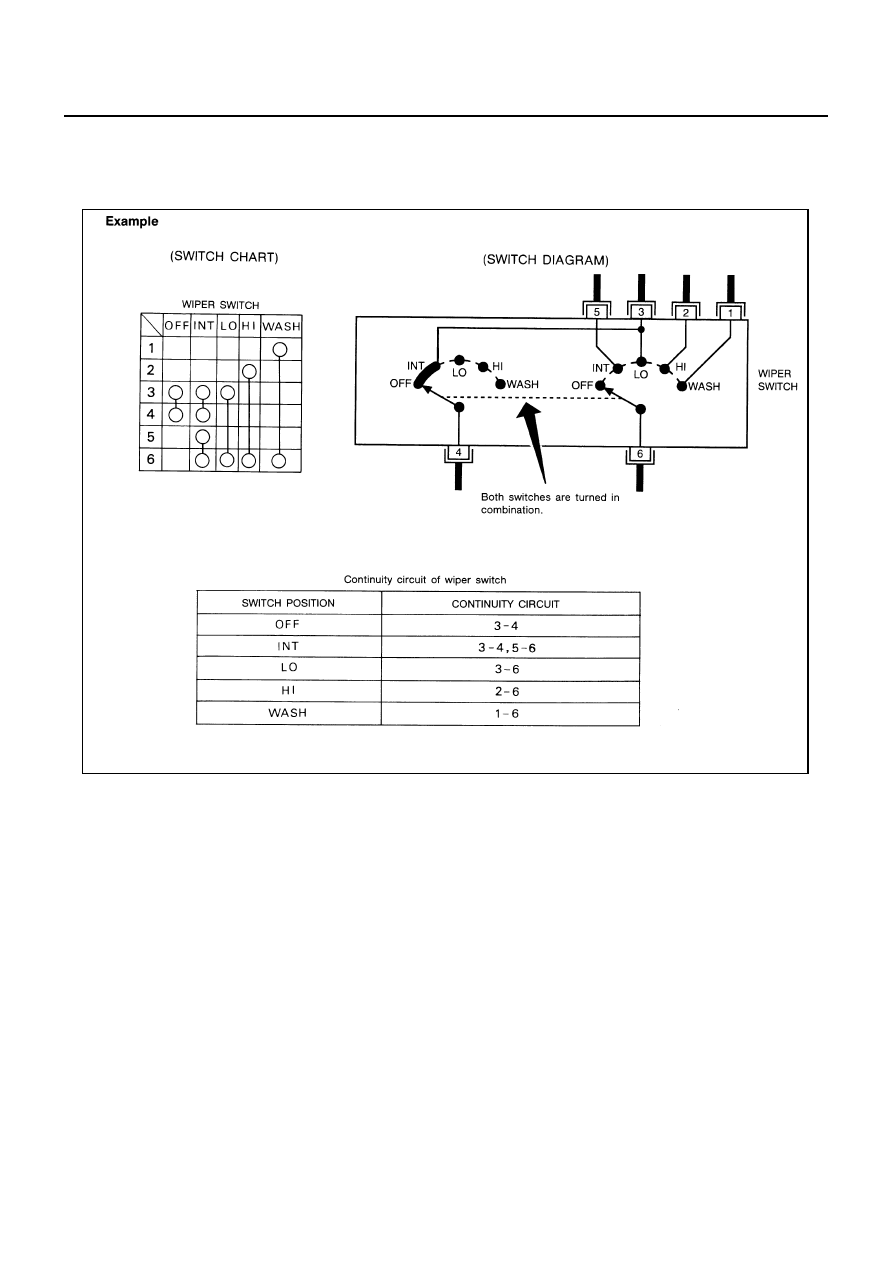

Multiple Switch

The continuity of multiple switch is described in two ways as shown below.

The switch chart is used in schematic diagrams.

The switch diagram is used in wiring diagrams.

SGI875
