CYLINDER HEAD

EM-73

C

D

E

F

G

H

I

J

K

L

M

A

EM

6.

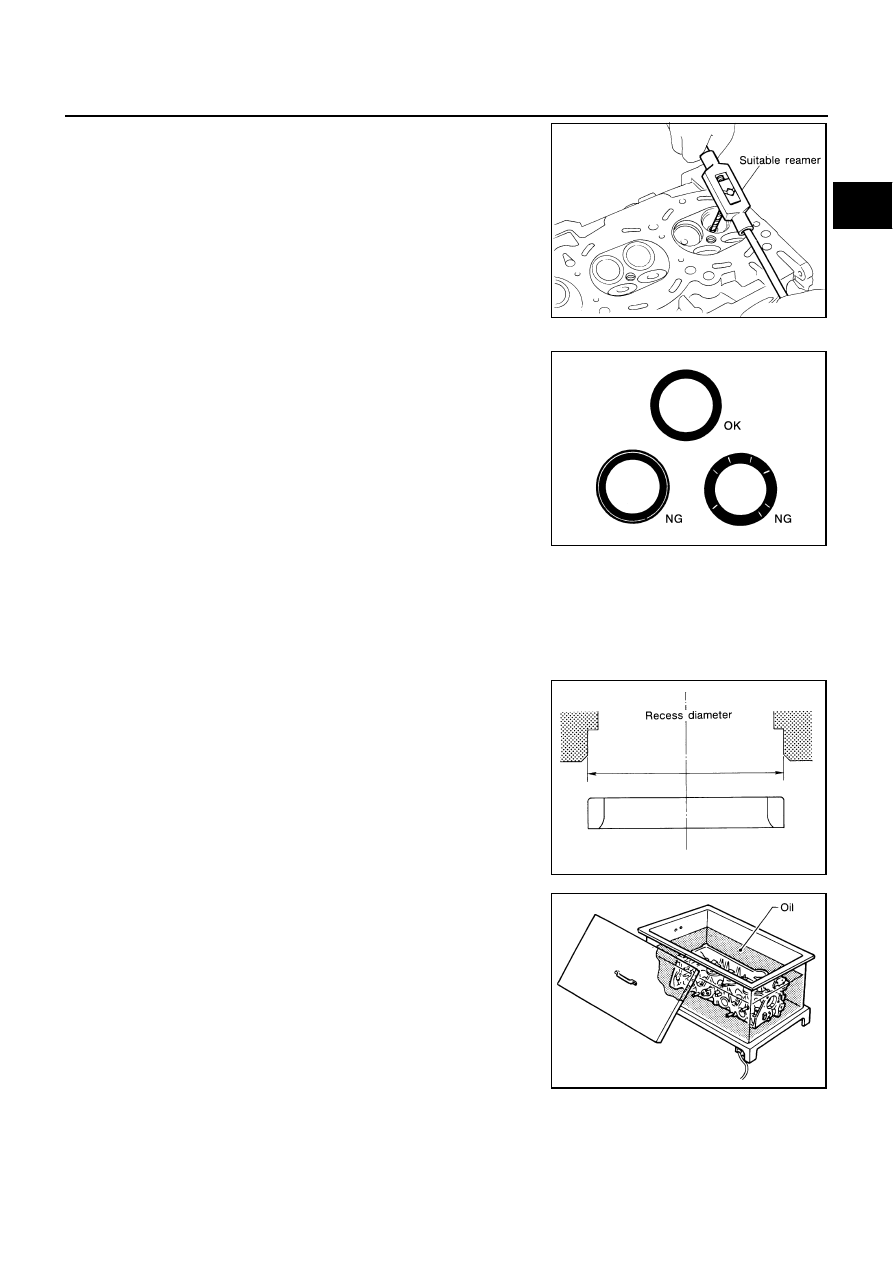

Using the valve guide reamer (commercial service tool), apply
reamer finish to valve guide.

VALVE SEAT CONTACT

After confirming that the dimensions of valve guides and valves
are within specifications, perform this procedure.

Apply prussian blue (or white lead) onto contacting surface of
valve seat to check the condition of the valve contact on the sur-
face.

Check if the contact area band is continuous all around the cir-
cumference.

If not, grind to adjust valve fitting and check again. If the contact-
ing surface still has NG conditions even after the re-check,
replace valve seat.

VALVE SEAT REPLACEMENT

When valve seat is removed, replace with oversized (0.5 mm, 0.020 in) valve seat.
1.

Bore out old seat until it collapses. Boring should not continue beyond the bottom face of the seat recess
in cylinder head. Set the machine depth stop to ensure this.

CAUTION:

Prevent to scratch cylinder head by excessive boring.

2.

Ream cylinder head recess diameter for service valve seat.

Be sure to ream in circles concentric to the valve guide center.

This will enable valve seat to fit correctly.

3.

Heat cylinder head to 110 to 130

°

C (230 to 266

°

F) by soaking in

heated oil.

4.

Provide valve seats cooled well with dry ice. Force fit valve seat into cylinder head.

CAUTION:

Avoid directly touching cold valve seats.

Cylinder head contains heat, when working, wear protective equipment to avoid getting burned.

Standard

Intake and exhaust

: 6.000 - 6.018 mm(0.2362- 0.2369in)

SEM932C

SBIA0322E

Oversize [0.5 mm (0.020 in)]:

  Intake  37.500 - 37.516 mm (1.4764 - 1.4770 in)

  Exhaust  32.700 - 32.716 mm (1.2874 - 1.2880 in)

SEM795A

SEM008A

EM-74

CYLINDER HEAD

5.

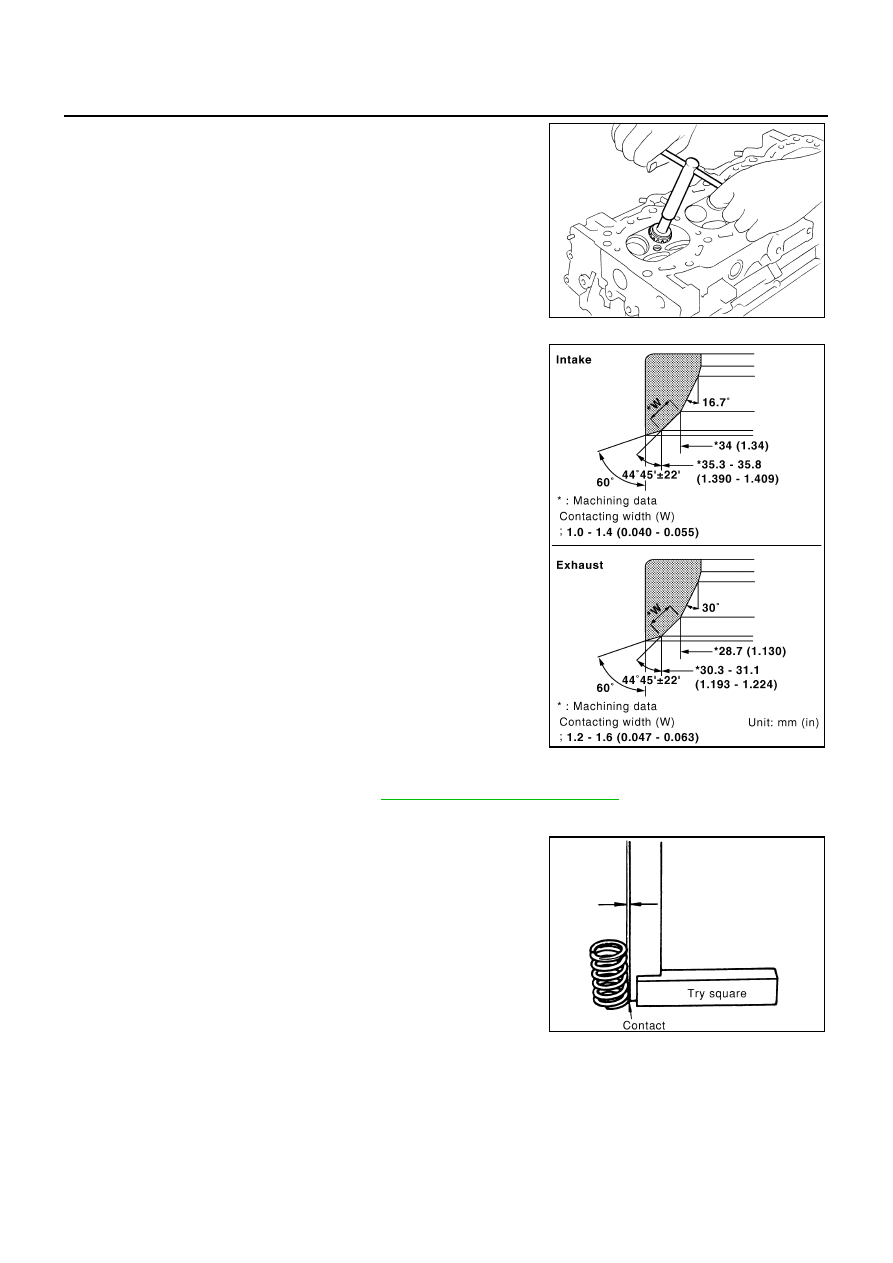

Using the valve seat cutter set (commercial service tool) and
valve seat grinder, finish the seat to the specified dimensions.

CAUTION:

When using the valve seat cutter, firmly grip the cutter han-
dle with both hands. Then, press on the contacting surface
all around the circumference to cut in a single drive.
Improper pressure on with the cutter or cutting many differ-
ent times may result in stage valve seat.

Grind to obtain the dimensions indicated in the figure.

6.

Using compound, grind to adjust valve fitting.

7.

Check again for normal contact. Refer to

EM-73, "VALVE SEAT CONTACT"

 .

VALVE SPRING SQUARENESS

 Set try square along the side of valve spring and rotate the spring.
Measure the maximum clearance between the top face of spring and
try square.

If it exceeds the limit, replace valve spring.

SEM934C

PBIC2363E

Limit

: 2.0 mm (0.079 in)

PBIC0080E

CYLINDER HEAD

EM-75

C

D

E

F

G

H

I

J

K

L

M

A

EM

VALVE SPRING DIMENSIONS AND VALVE SPRING PRESSURE LOAD

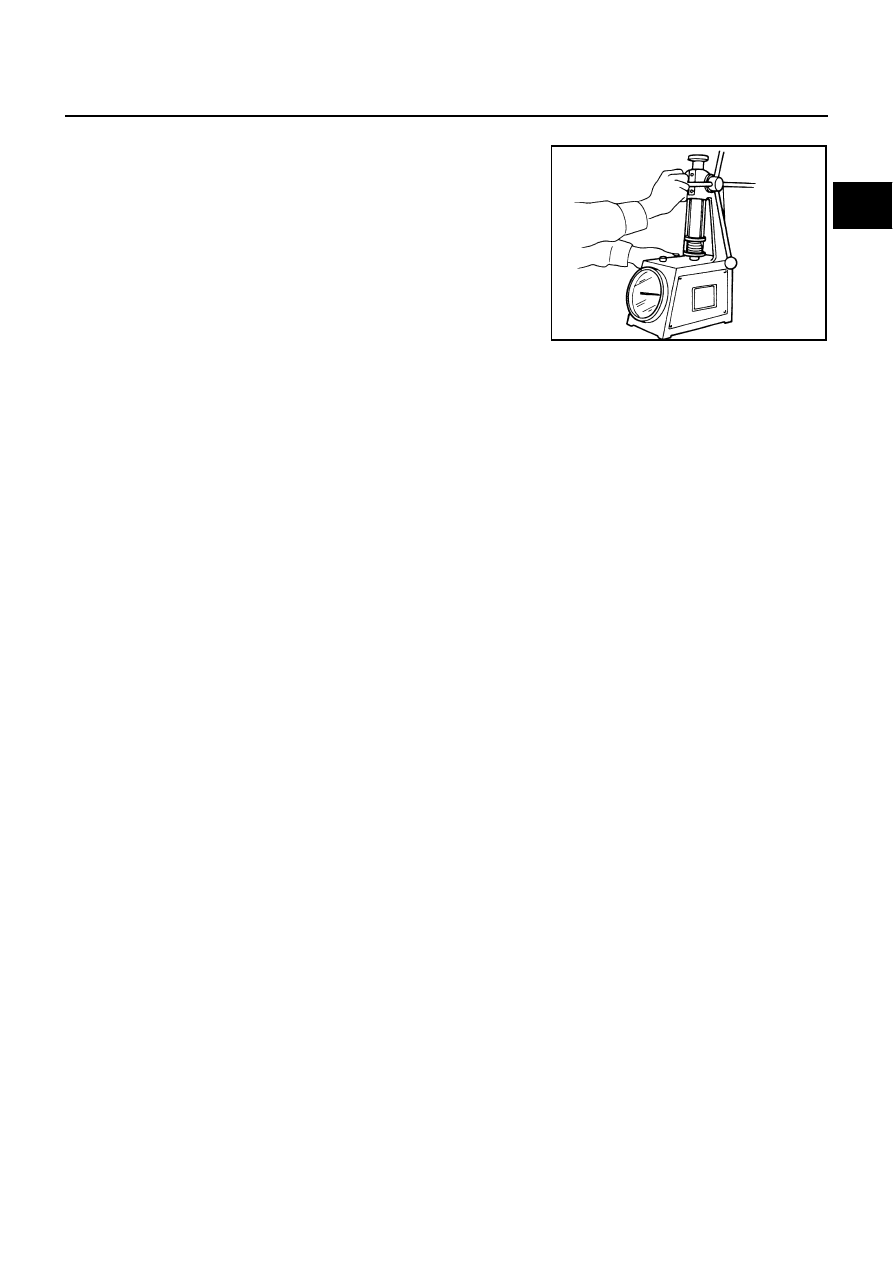

Check valve spring pressure at specified spring height.

CAUTION:

Do not remove valve spring seat from valve spring (parts for
assy).

If the dimensions exceed the standard, replace the valve spring.

Standard:

Free height 46.35 - 46.85 mm (1.8247 - 1.8444 in)

Installation height 33.8 mm (1.331 in)

Installation load 165- 189 N (16.8 - 19.3 kg, 37- 42 lb)

Height during valve open 24.4 mm (0.961 in)

Load with valve open 290- 330 N (29.6- 33.7 kg, 65 - 74 lb)

SEM113

EM-76

ENGINE ASSEMBLY

ENGINE ASSEMBLY

PFP:10001

Removal and Installation

ABS000M0

WARNING:

Situate vehicle on a flat and solid surface.

Place chocks at front and back of rear wheels.

For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.

CAUTION:

Always be careful to work safely, avoid forceful or uninstructed operations.

Do not start working until exhaust system and engine coolant are cool enough.

If items or work required are not covered by the engine section, refer to the applicable sections.

Always use the support point specified for lifting.

Use either 2-point lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.

For supporting points for lifting and jacking point at rear axle, refer to

GI-40, "Garage Jack and

Safety Stand"

 .

REMOVAL
Outline

At first, engine and transmission assembly with suspension member downward. Then separate engine and
transmission.

Preparation

1.

Release fuel pressure. Refer to

EC-46, "FUEL PRESSURE RELEASE"

 .

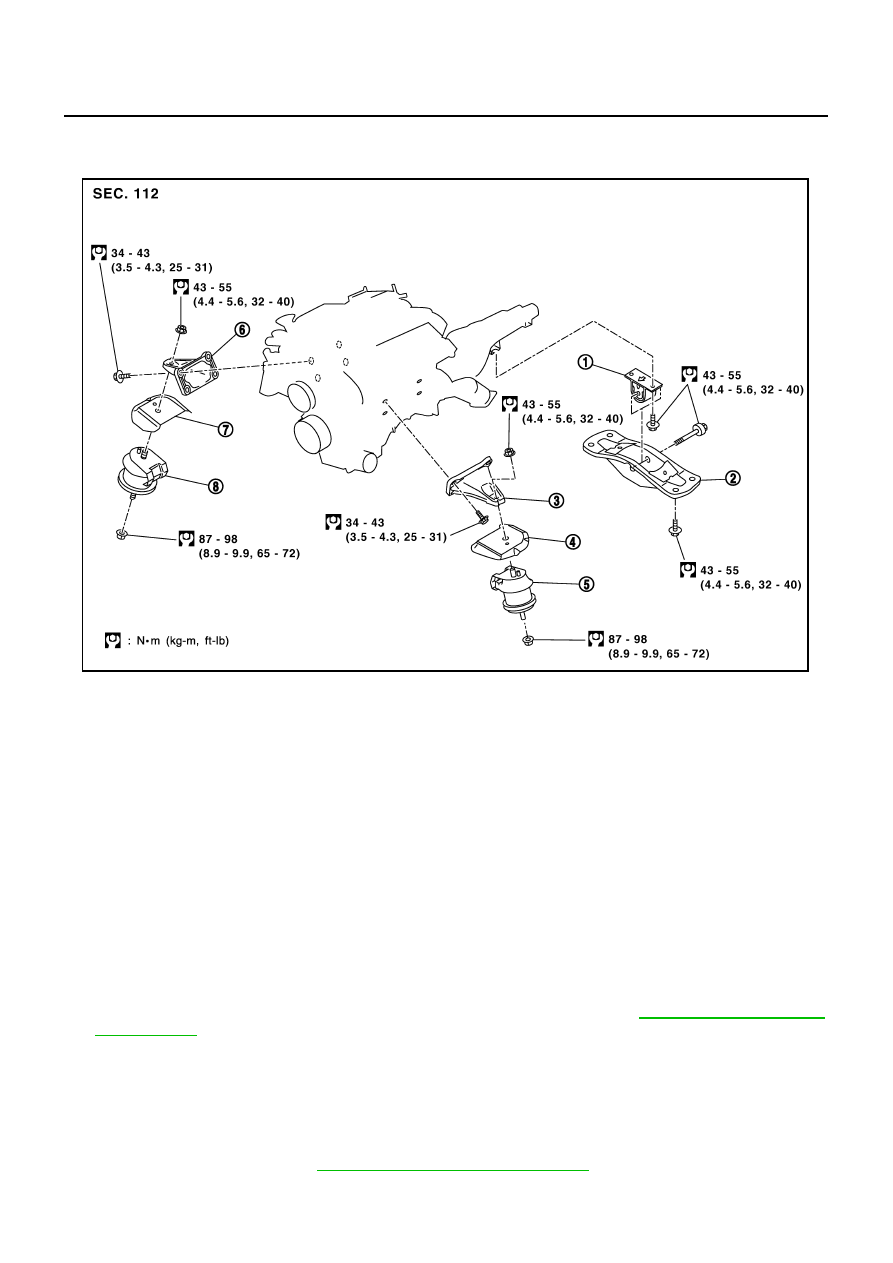

1.

Rear engine mounting insulator

2.

Rear member

3.

Left engine mounting bracket

4.

Heat insulator

5.

Left engine mounting insulator

6.

Right engine mounting bracket

7.

Heat insulator

8.

Right engine mounting insulator

PBIC0081E
