Infiniti M45 (Y34). Manual - part 509

REAR BUMPER

EI-17

C

D

E

F

G

H

J

K

L

M

A

B

EI

REAR BUMPER

PFP:H5022

Removal and Installation

AIS004VE

CAUTION:

Bumper fascia is made of resin; do not apply pressure to or let oils contact its surface.

REMOVAL

1.

Remove trunk room trim. Refer to

EI-42, "TRUNK ROOM TRIM & TRUNK LID FINISHER"

 .

2.

Remove rear combination lamp assembly. Refer to

LT-127, "REAR COMBINATION LAMP"

 .

3.

Remove screw of bumper fascia from both right/left rear fender.

4.

Remove clips of bumper fascia upper portion.

5.

Remove bolts of bumper fascia from both right/left rear fender.

6.

Pull out center of bumper fascia, and remove bumper fascia from clips (A).

7.

Remove bumper fascia.

8.

Remove nuts of bumper reinforcement.

CAUTION:

To remove rear bumper molding, remove rear bumper center molding first, then rear bumper side
molding, respectively.

INSTALLATION

Install in the reverse order of removal.

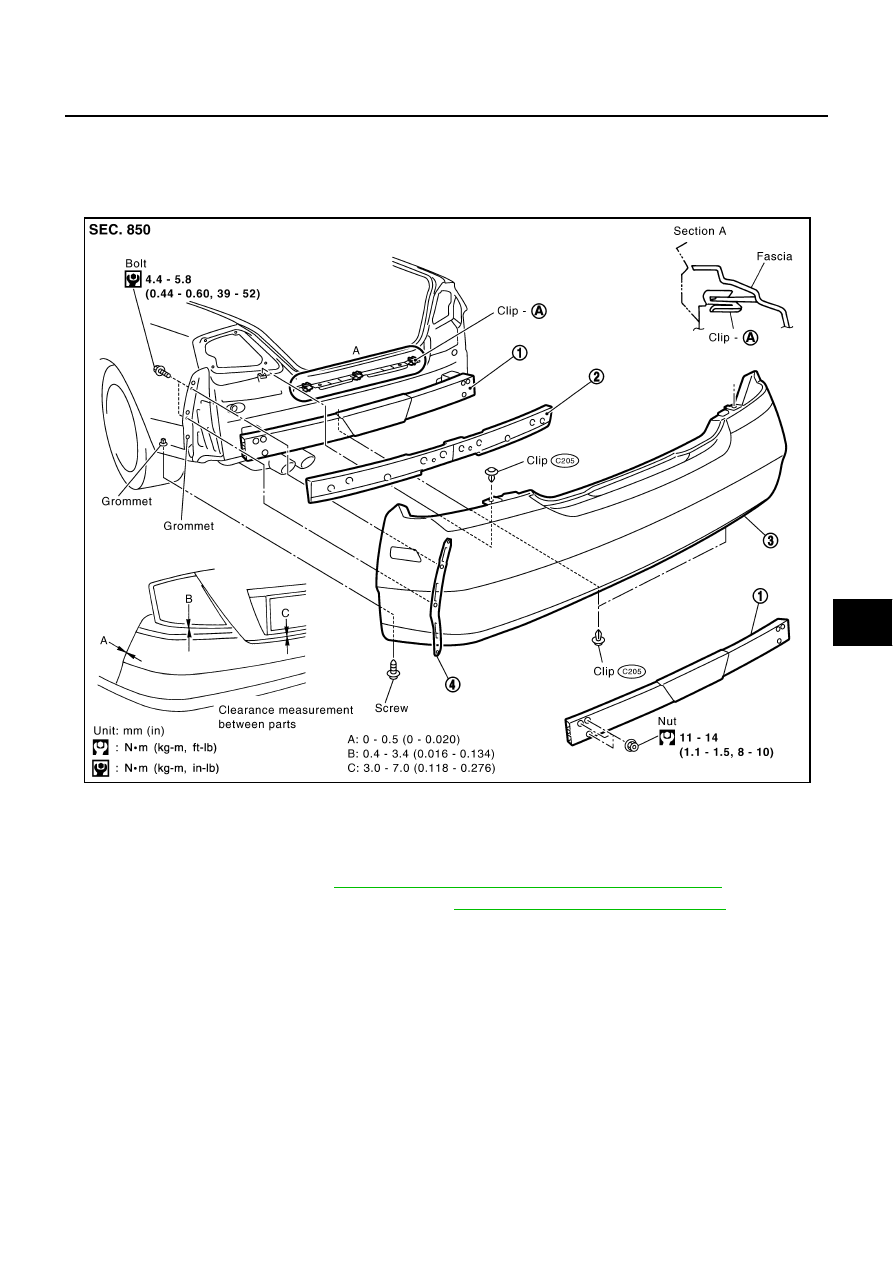

1.

Bumper reinforcement

2.

Energy absorber

3.

Bumper fascia

4.

Bumper side bracket

PIIA2708E

EI-18

REAR BUMPER

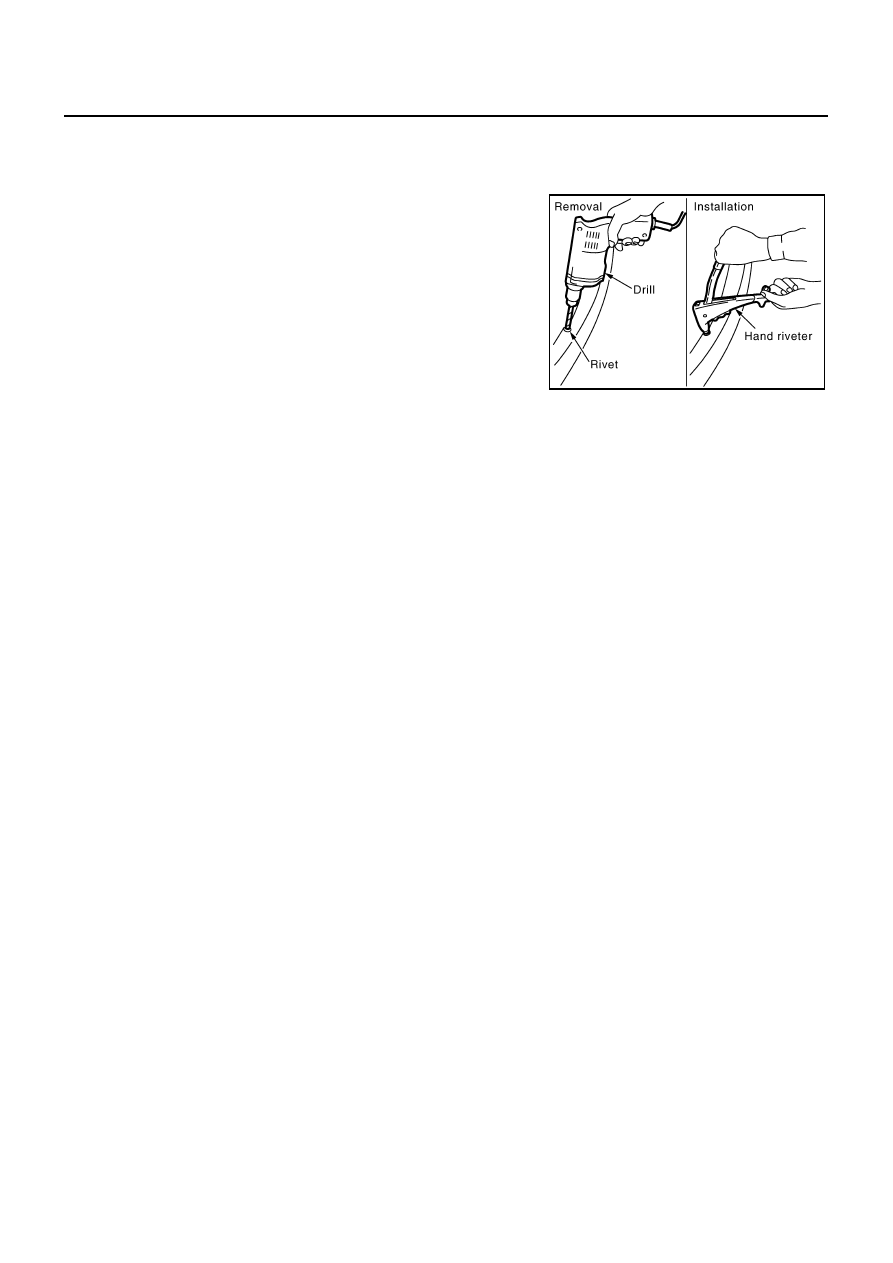

Removal of Bumper Side Brackets

Shave head of rivet with drill [4.0 to 4.5 mm (0.157 to 0.177 in) dia.]

Installation of Bumper Side Brackets

Install bracket to fascia firmly with hand rivetter.

PIIA0216E

FRONT GRILLE

EI-19

C

D

E

F

G

H

J

K

L

M

A

B

EI

FRONT GRILLE

PFP:62310

Removal and Installation

AIS004VF

REMOVAL

1.

Remove clips of front air cover.

2.

Remove clips on upper side of front grille.

3.

Pull out front grille from bumper fascia.

INSTALLATION

Install in the reverse order of removal.

PIIA2710E

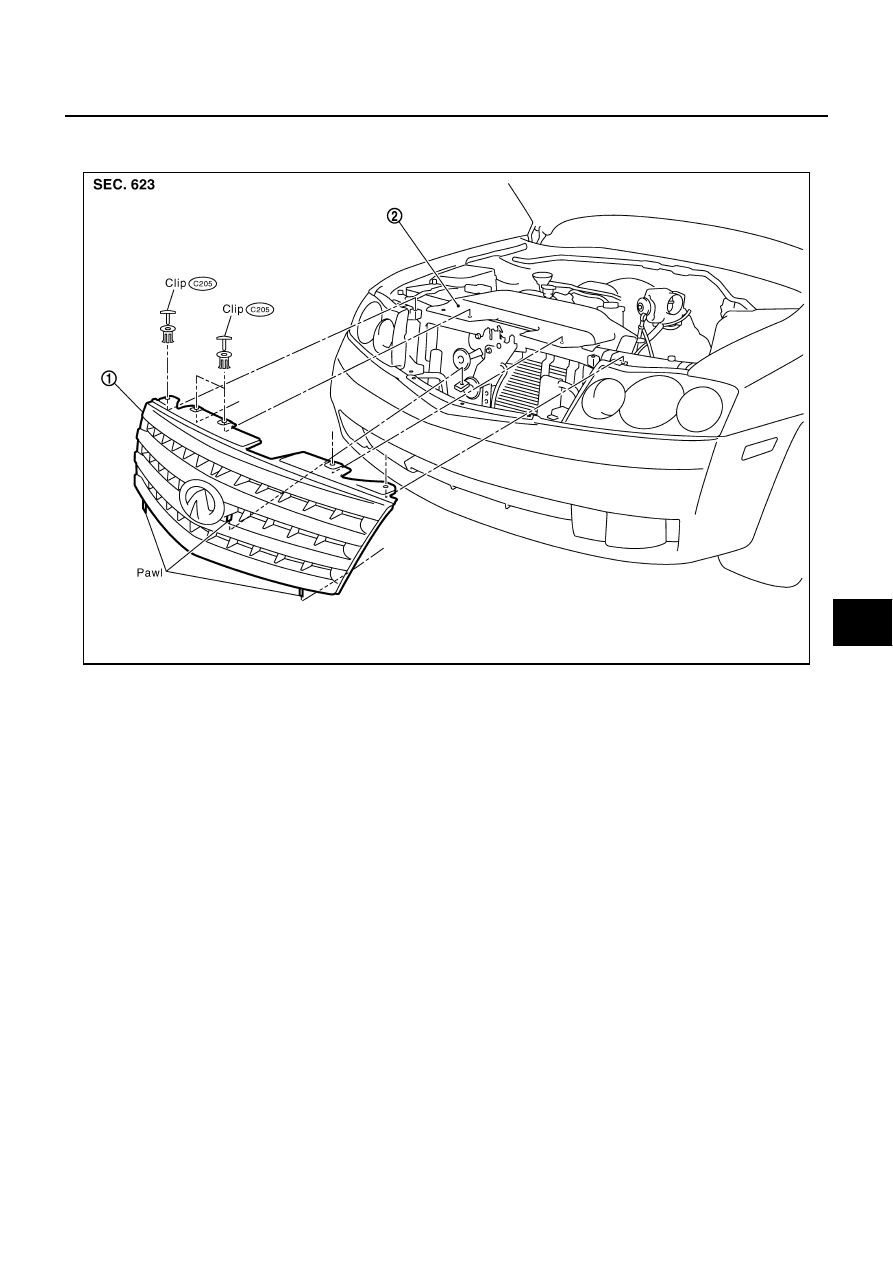

1.

Front grille

2.

Air cover

EI-20

COWL TOP

COWL TOP

PFP:66100

Removal and Installation

AIS001IK

REMOVAL

1.

Remove right/left wiper arms. Refer to

WW-22, "Removal and Installation of Front Wiper Motor and Link-

age"

  .

2.

Remove clips of cowl top seal rubber.

3.

Remove clips of cowl top cover right and remove cowl top cover right.

4.

Remove clips of cowl top cover left and remove cowl top cover left.

INSTALLATION

Install in the reverse order of removal.

PIIA2711E

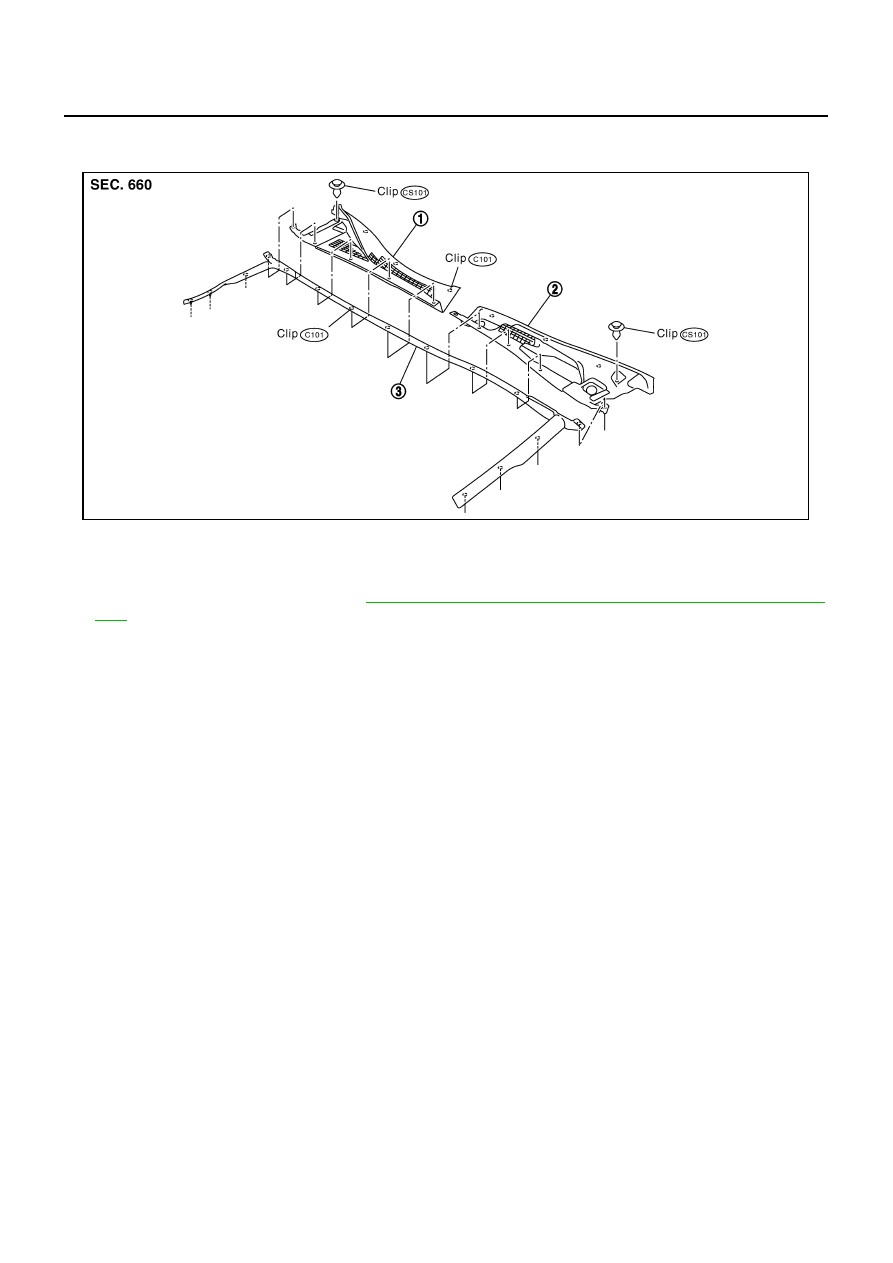

1.

Cowl top cover (right)

2.

Cowl top cover (left)

3.

Cowl top seal rubber
