DTC P0132, P0152 HO2S1

EC-221

C

D

E

F

G

H

I

J

K

L

M

A

EC

5.

CHECK HO2S1 CONNECTOR FOR WATER

Check connectors for water.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace harness or connectors.

6.

CHECK HEATED OXYGEN SENSOR 1

Refer to

EC-222, "Component Inspection"

 .

OK or NG

OK

>> GO TO 7.

NG

>> Replace malfunctioning heated oxygen sensor 1.

7.

CHECK INTERMITTENT INCIDENT

Refer to

EC-132, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

Water should not exist.

EC-222

DTC P0132, P0152 HO2S1

Component Inspection

ABS002GS

HEATED OXYGEN SENSOR 1

 With CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Select “MANU TRIG” and adjust “TRIGGER POINT” to 100% in
“DATA MONITOR” mode with CONSULT-II.

3.

Select “HO2S1 (B1)/(B2)” and “HO2S1 MNTR (B1)/(B2)”.

4.

Hold engine speed at 2,000 rpm under no load during the follow-
ing steps.

5.

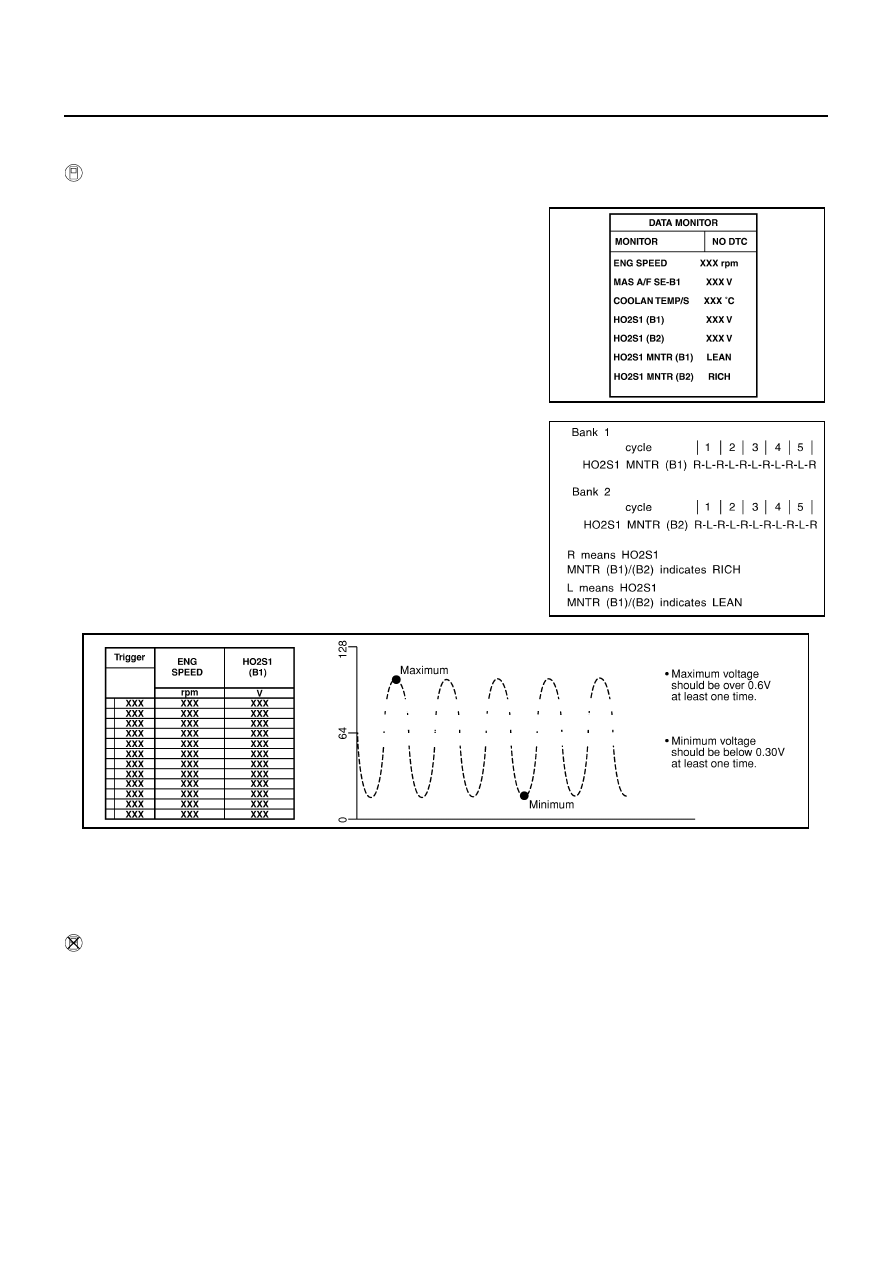

Touch “RECORD” on CONSULT-II screen.

6.

Check the following.

●

“HO2S1 MNTR (B1)/(B2)” in “DATA MONITOR” mode
changes from “RICH” to “LEAN” to “RICH” more than 5 times
in 10 seconds.
5 times (cycles) are counted as shown at right.

●

“HO2S1 (B1)/(B2)” voltage goes above 0.6V at least once.

●

“HO2S1 (B1)/(B2)” voltage goes below 0.3V at least once.

●

“HO2S1 (B1)/(B2)” voltage never exceeds 1.0V.

CAUTION:

●

Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a concrete floor; use a new one.

●

Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor
Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

 Without CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

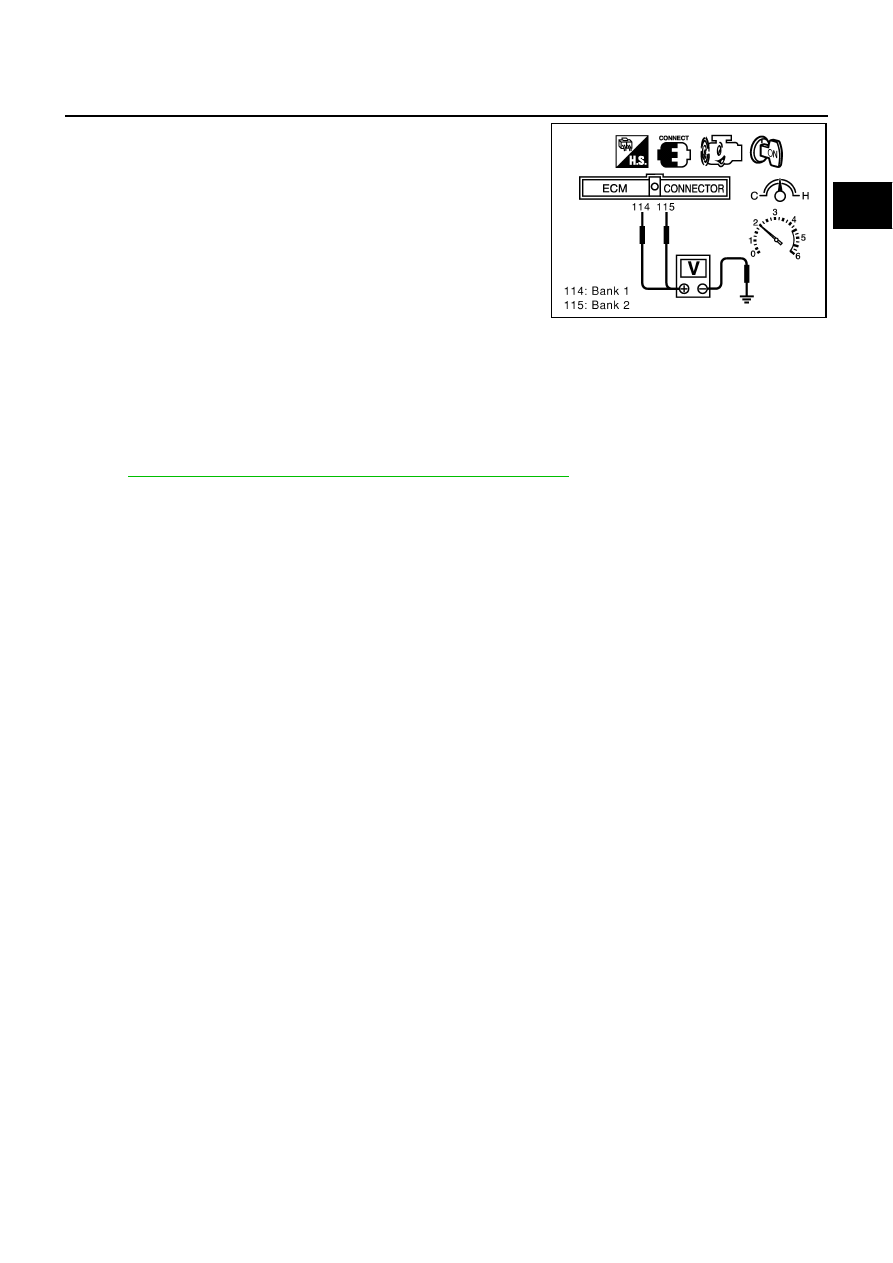

Set voltmeter probes between ECM terminal 114 [HO2S1 (B1) signal] or 115 [HO2S1 (B2) signal] and
ground.

PBIB2025E

SEF647Y

SEF648Y

DTC P0132, P0152 HO2S1

EC-223

C

D

E

F

G

H

I

J

K

L

M

A

EC

3.

Check the following with engine speed held at 2,000 rpm con-
stant under no load.

●

The voltage fluctuates between 0 to 0.3V and 0.6 to 1.0V
more than 5 times within 10 seconds.

●

The maximum voltage is over 0.6V at least 1 time.

●

The minimum voltage is below 0.3V at least 1 time.

●

The voltage never exceeds 1.0V.

1 time: 0 - 0.3V

→

 0.6 - 1.0V

→

 0 - 0.3V

2 times: 0 - 0.3V

→

 0.6 - 1.0V

→

 0 - 0.3V

→

 0.6 - 1.0V

→

 0 -

0.3V

CAUTION:

●

Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a concrete floor; use a new one.

●

Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor
Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

Removal and Installation

ABS002GT

HEATED OXYGEN SENSOR 1

Refer to

EM-22, "EXHAUST MANIFOLD AND THREE WAY CATALYST"

 .

PBIB0064E

EC-224

DTC P0133, P0153 HO2S1

DTC P0133, P0153 HO2S1

PFP:22690

Component Description

ABS002GU

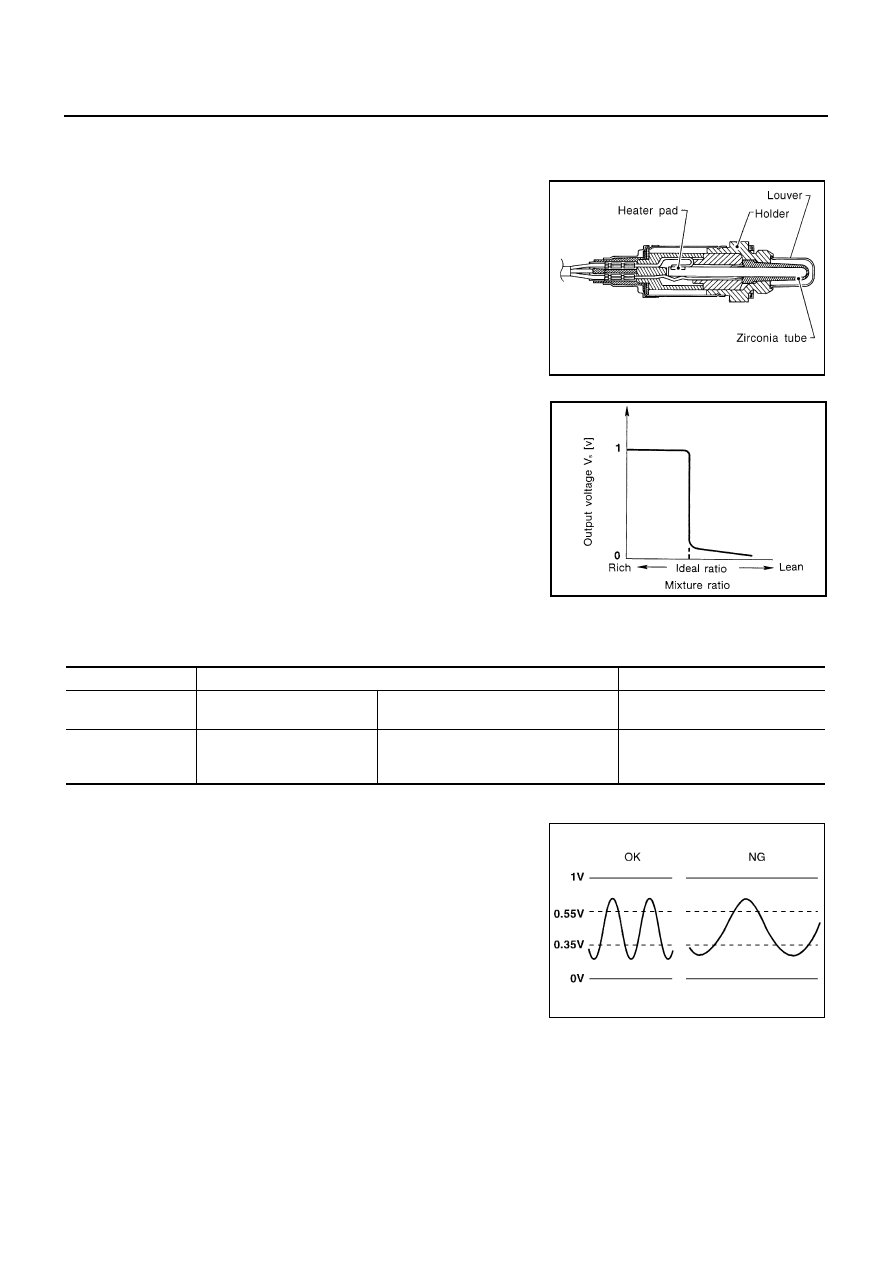

The heated oxygen sensor 1 is placed into the exhaust manifold. It
detects the amount of oxygen in the exhaust gas compared to the
outside air. The heated oxygen sensor 1 has a closed-end tube
made of ceramic zirconia. The zirconia generates voltage from
approximately 1V in richer conditions to 0V in leaner conditions. The
heated oxygen sensor 1 signal is sent to the ECM. The ECM adjusts
the injection pulse duration to achieve the ideal air-fuel ratio. The
ideal air-fuel ratio occurs near the radical change from 1 to 0V.

CONSULT-II Reference Value in Data Monitor Mode

ABS002GV

Specification data are reference values.

On Board Diagnosis Logic

ABS002GW

To judge the malfunction of heated oxygen sensor 1, this diagnosis
measures response time of heated oxygen sensor 1 signal. The time
is compensated by engine operating (speed and load), fuel feedback
control constant, and heated oxygen sensor 1 temperature index.
Judgment is based on whether the compensated time (heated oxy-
gen sensor 1 cycling time index) is inordinately long or not.

SEF463R

SEF288D

MONITOR ITEM

CONDITION

SPECIFICATION

HO2S1 (B1)
HO2S1 (B2)

●

Engine: After warming up

Maintaining engine speed at 2,000 rpm

0 - 0.3V

←→

 Approx. 0.6 - 1.0V

HO2S1 MNTR (B1)
HO2S1 MNTR (B2)

●

Engine: After warming up

Maintaining engine speed at 2,000 rpm

LEAN

←→

 RICH

Changes more than 5 times during
10 seconds.

SEF010V
