POWER SUPPLY AND GROUND CIRCUIT

EC-133

C

D

E

F

G

H

I

J

K

L

M

A

EC

POWER SUPPLY AND GROUND CIRCUIT

PFP:24110

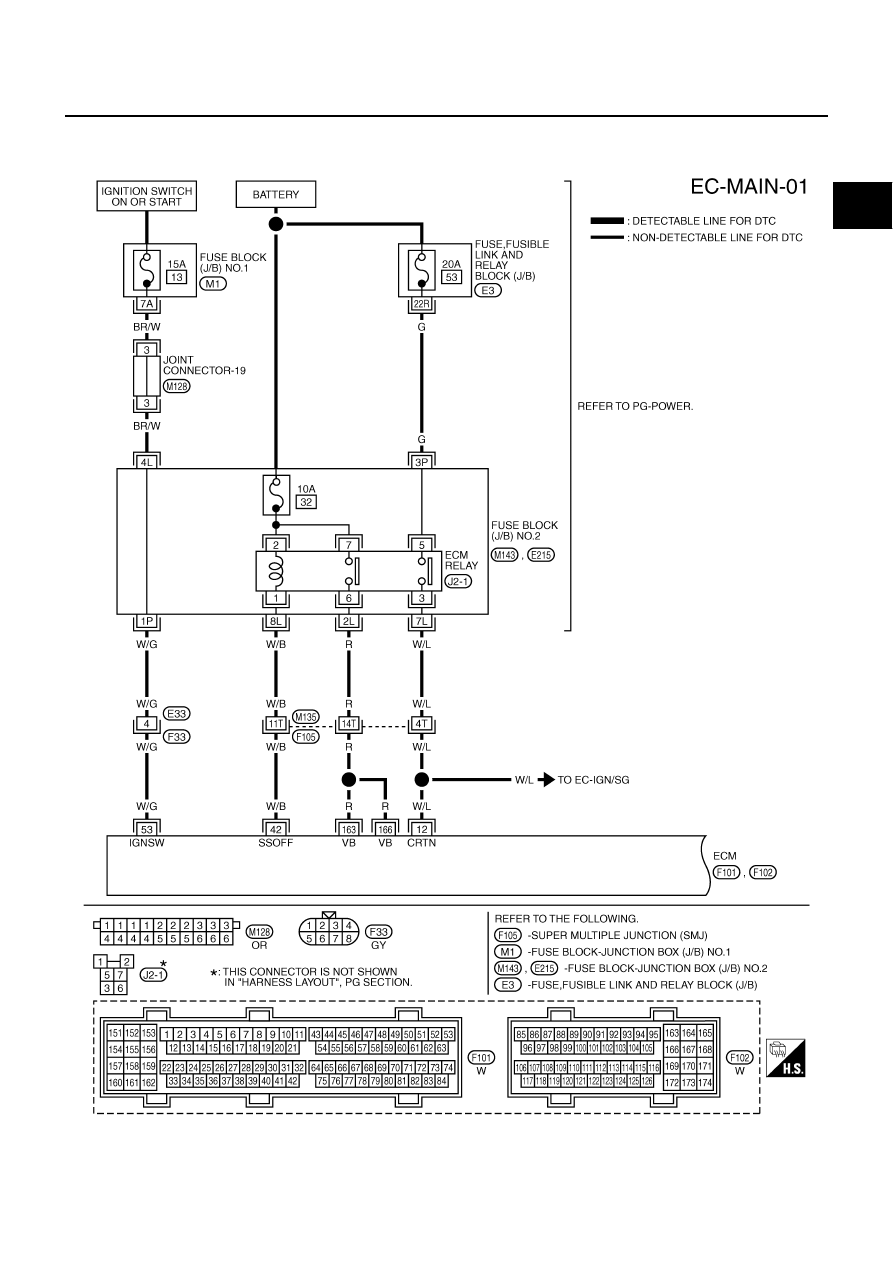

Wiring Diagram

ABS002E4

TBWA0260E

EC-134

POWER SUPPLY AND GROUND CIRCUIT

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

12

W/L

Counter current return

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

42

W/B

ECM relay
(Self shut-off)

[Engine is running]
[Ignition switch: OFF]

●

A few seconds after turning ignition switch OFF

0 - 1.0V

[Ignition switch: OFF]

●

More than a few seconds after turning ignition
switch OFF

BATTERY VOLTAGE
(11 - 14V)

53

W/G

Ignition switch

[Ignition switch: OFF]

0V

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

163
166

R
R

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

POWER SUPPLY AND GROUND CIRCUIT

EC-135

C

D

E

F

G

H

I

J

K

L

M

A

EC

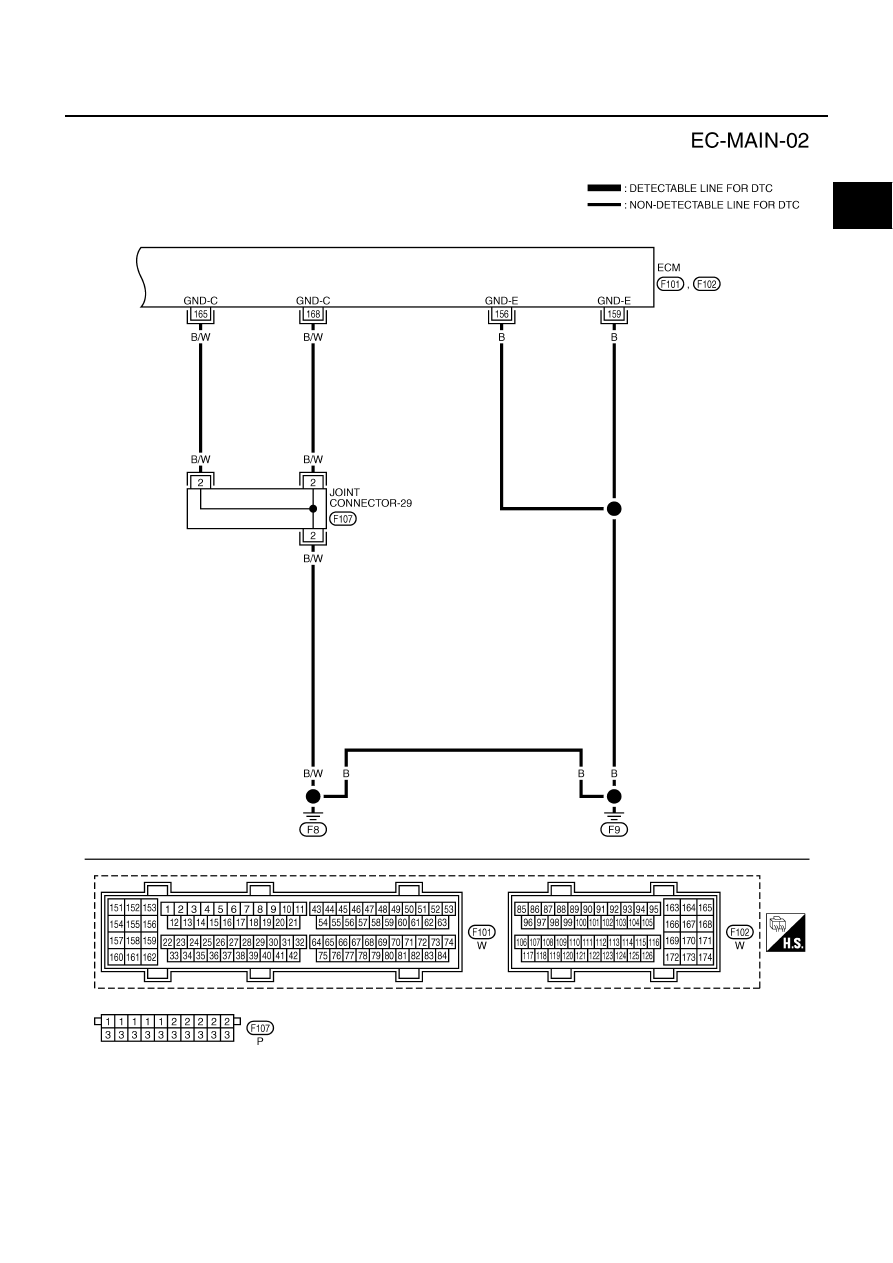

TBWA0261E

EC-136

POWER SUPPLY AND GROUND CIRCUIT

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

ABS00D1M

1.

INSPECTION START

Start engine.
Is engine running?

Yes or No

Yes

>> GO TO 12.

No

>> GO TO 2.

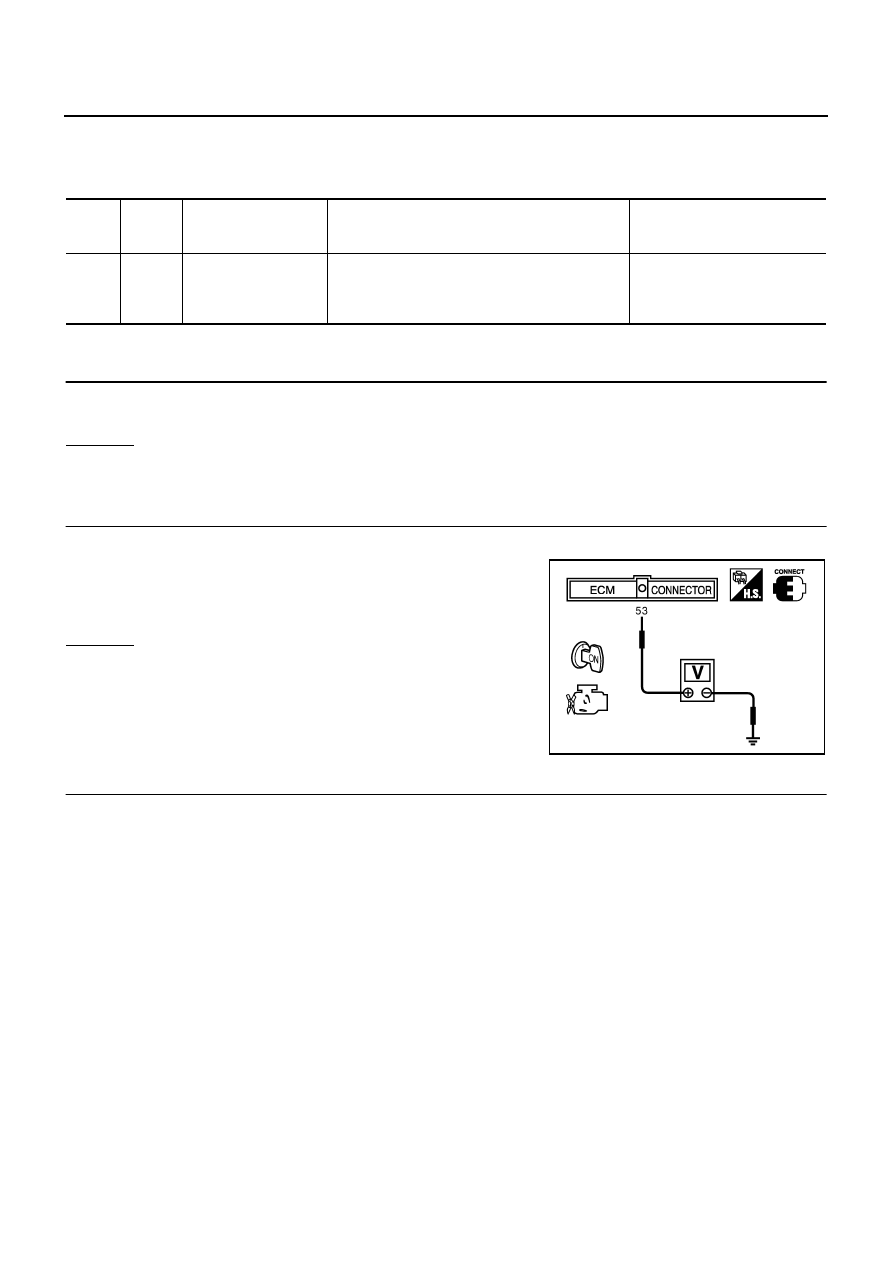

2.

CHECK ECM POWER SUPPLY CIRCUIT-I

1.

Turn ignition switch OFF and then ON.

2.

Check voltage between ECM terminal 53 and ground with CON-
SULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E33, F33

●

Fuse block (J/B) No. 1 connector M1

●

Fuse block (J/B) No. 2 connector M143, E215

●

Joint connector-19

●

15A fuse

●

Harness for open or short between ECM and fuse

>> Repair open circuit or short to ground or short to power in harness or connectors.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

156
159
165
168

B
B
B/W
B/W

ECM ground

[Engine is running]

●

Idle speed

Engine ground

Voltage:

Battery voltage

PBIB0070E
