VOICE ACTIVATED CONTROL SYSTEM

DI-145

C

D

E

F

G

H

I

J

L

M

A

B

DI

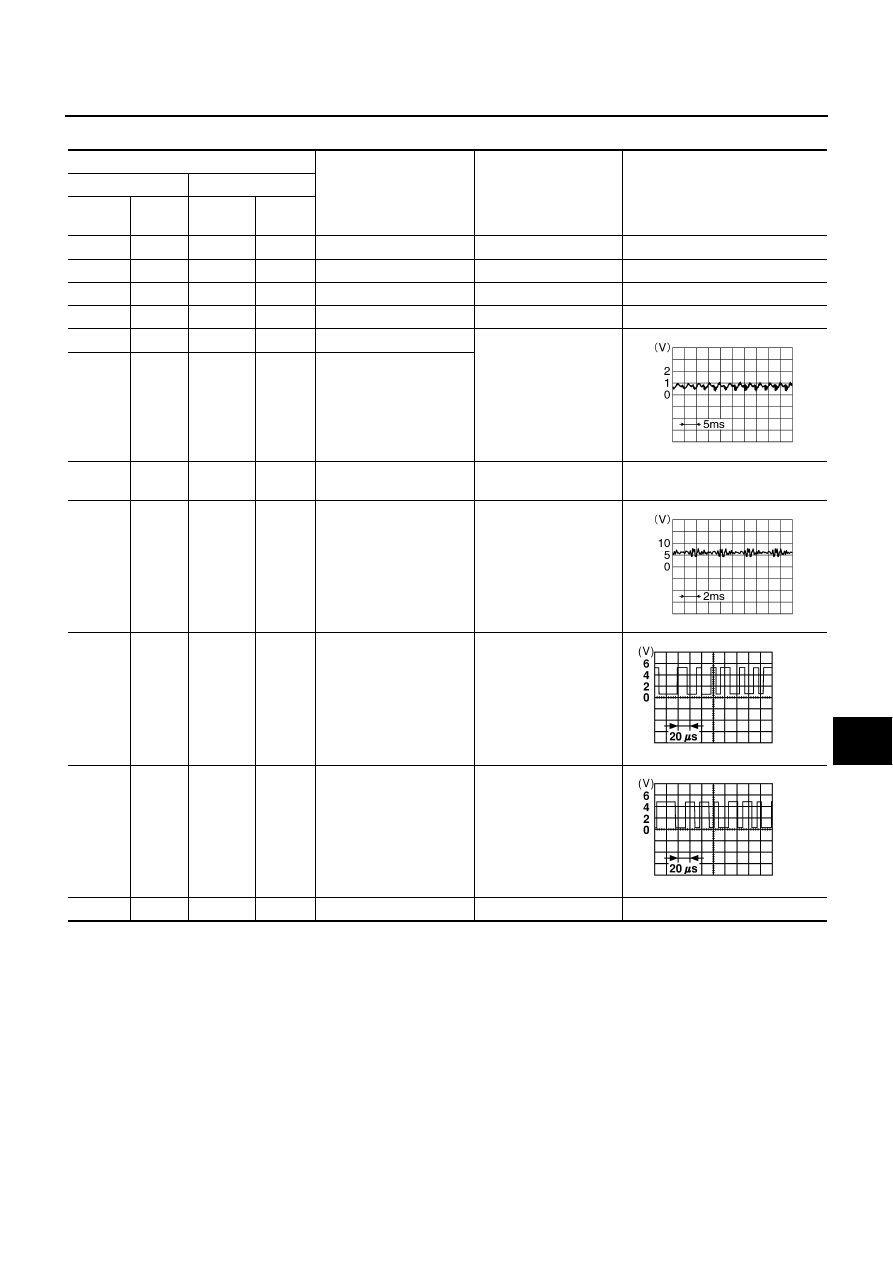

Terminals and Reference Values for Voice Activated Control Module

AKS004OU

Terminals

Item

Condition

Reference value

(+)

(–)

Terminal

 No.

Wire

color

Terminal

No.

Wire

color

13

SB

Ground

–

Battery power supply

–

Battery voltage

14

B

Ground

–

Ground

–

Approx. 0V

20

L/OR

Ground

–

Ignition switch (ACC)

ACC

Battery voltage

23

–

–

–

Audio shield ground

–

–

25

L

23

–

Audio output (–)

Voice guide operates.

26

R

23

–

Audio output (+)

27

Y/R

Ground

–

Mute

PTT switch (not operate

→

 operate)

Approx. 5V

→

 Approx. 0V

34

R

33

L

Mic input

Voice mic test
operates.

35

R

37

–

Communication signal (–)

–

36

G

37

–

Communication signal (+)

–

37

–

–

–

Shield ground

–

–

SKIA9342E

SKIA9343E

SKIA0176E

SKIA0175E

DI-146

VOICE ACTIVATED CONTROL SYSTEM

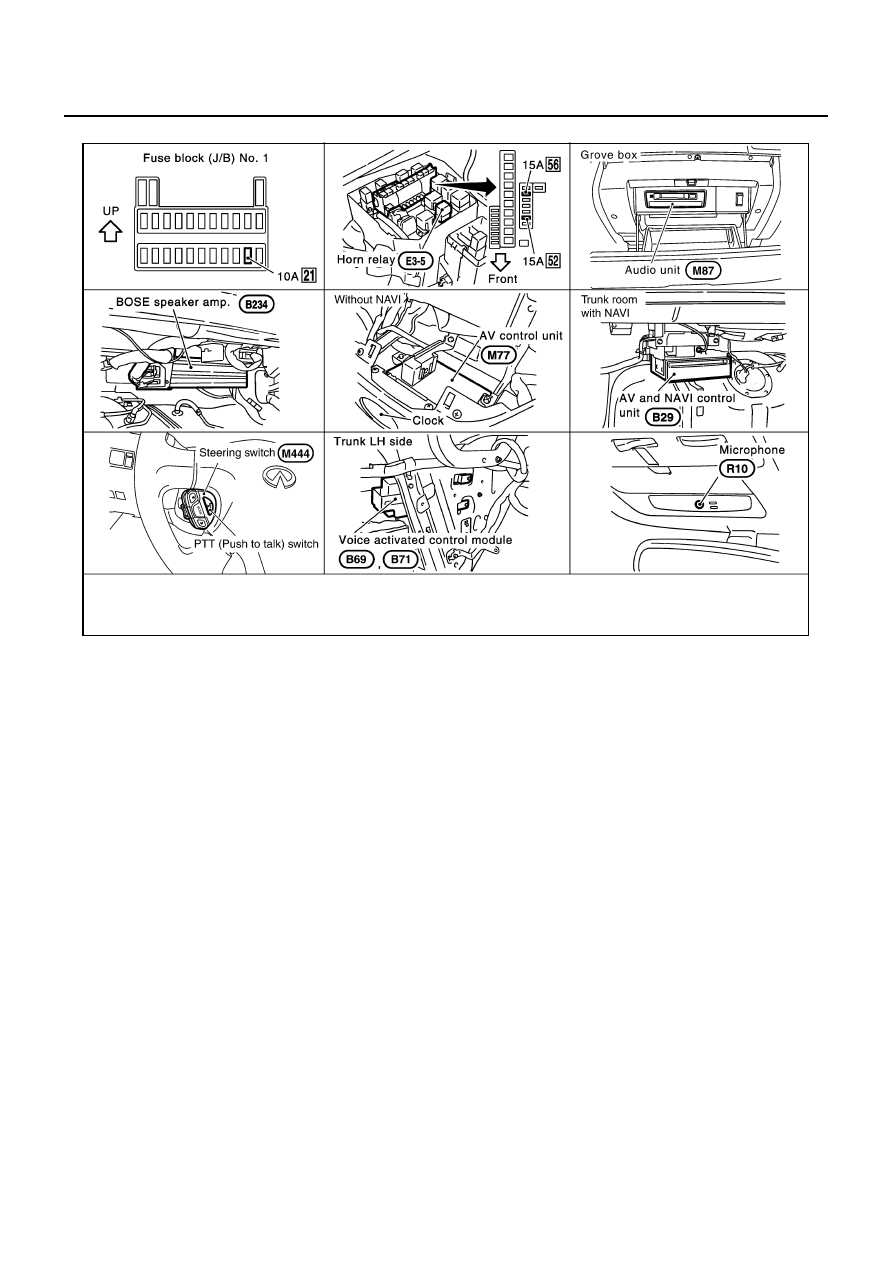

Component Parts and Harness Connector Location

AKS004EC

SKIA9344E

VOICE ACTIVATED CONTROL SYSTEM

DI-147

C

D

E

F

G

H

I

J

L

M

A

B

DI

Trouble Diagnoses

AKS004ED

THIS CONDITION IS NOT MALFUNCTION
Example of Basic Operational Errors

The system should respond correctly to all voice commands. Follow the solutions given in this guide for the
appropriate error when any of the following symptom is encountered.
Where the solutions are listed by number, try each solution in turn, starting with number one, until the symp-
tom is resolved.

Self-Diagnosis Function

AKS004EE

DESCRIPTION

●

Diagnosis function consists of the self-diagnosis mode, and the “CONFIRMATION/ADJUSTMENT” mode.

●

Self-diagnosis mode checks for connection between AV and NAVI control unit (with navigation system) or
AV control unit (without navigation system) and voice activated control module and analyzes each unit,
then displays the results.

●

“CONFIRMATION/ADJUSTMENT” function analyzes each microphone.

DIAGNOSIS ITEM

Self-Diagnosis Mode

AKS004EF

OPERATION PROCEDURE

●

To start the self-diagnosis mode and to check the diagnosis result, refer to

AV-69, "Self-Diagnosis Mode"

(with navigation system), or

DI-113, "Self-Diagnosis Mode"

  (without navigation system).

Symptom

Remedy

Displays “COMMAND
NOT RECOGNIZED” or
the system does not
interpret the command
correctly.

1. Ensure that the command is valid, see Command list (Refer to Owner’s Manual).

2. Ensure that the command is given after the tone while “ LISTENING” is displayed.

3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level.

4. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.

NOTE:
If it is too noisy to use the microphone, it is likely that voice commands will not be recognized.

5. If optional words of the command have been omitted, then the command should be tried with these in

place.

6. If a number of commands have been given in rapid succession resulting in the message “COMMAND

NOT RECOGNIZED” to be displayed, then allow the system to recover (approximately one minute)
before trying the command again.

7. If the system consistently does not recognize commands, the voice training procedure should be carried

out to improve the recognition response for the speaker.

Displays “NO SPEECH
DETECTED”.

1. Ensure that the command is given after the tone while “LISTENING” is displayed.

2. Ensure that the command is given within a maximum of five seconds from the end of the tone.

NOTE:
Be sure you know what to say before pressing the PTT switch.

Displays “NAMETAG
NOT UNIQUE”.

1. This response will be received when storing a nametag if the nametag being given has already been

stored. This can be confirmed by giving the Radio Directory command.

2. If this response is received and the nametag has not been used already, then it is too similar to an exist-

ing nametag or voice grammar and an alternative should be used.

The system consistently
selects the wrong
nametag.

1. Ensure that the nametag requested matches what was originally stored. This can be confirmed by giving

the Radio Directory command.

2. Delete one of the nametags being confused and replace it with a different nametag.

Mode

Description

Self-diagnosis

●

Checks for the connections between AV and NAVI control unit or AV control unit and
voice activated control module.

●

Performs the unit diagnosis of voice activated control module.

CONFIRMATION/
ADJUSTMENT

Voice Mic. Test

●

Checks microphone.

DI-148

VOICE ACTIVATED CONTROL SYSTEM

Confirmation/Adjustment Mode

AKS004EG

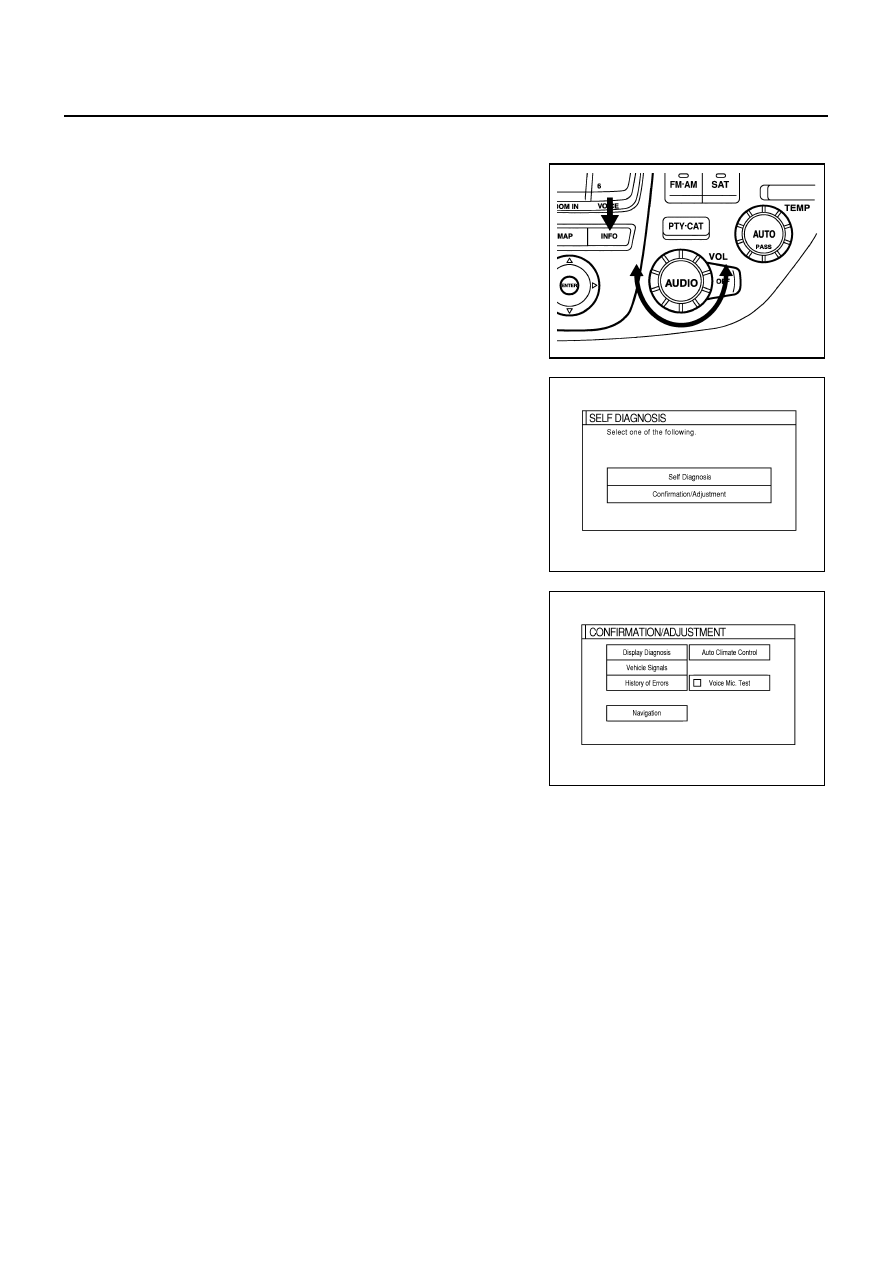

OPERATION PROCEDURE

1.

Start the engine.

2.

Turn the audio system off.

3.

While pressing the “INFO” switch, turn the volume control dial
clockwise or counterclockwise for 30 clicks or more.

4.

The initial trouble diagnosis screen will be shown, and items
“SELF-DIAGNOSIS” and “CONFIRMATION/ADJUSTMENT” will
become selective.

5.

When “CONFIRMATION/ADJUSTMENT” is selected on the
trouble diagnosis screen, the operation will enter the CONFIR-
MATION/ADJUSTMENT mode. In this mode, check and adjust-
ment of each item will become possible.

6.

When “Voice Mic. Test” is selected with joystick, icon indicator
turns on (green) and voice input into microphone is sent out
through speakers.

NOTE:
Voice from speakers may sound echoic.

SKIA3512E

SKIA0381E

SKIA3922E
